Plan 81637AB Cutting Edge Contemporary House Plan

Cutting Edge Contemporary House Plan

Plan 81637AB

  • 3,198

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Stone, stucco and lots of glass give this home its exciting Contemporary edge.
  • Both the dining room and great room are sunken for a dramatic effect.
  • Beautiful balconies, verandas and a sun deck can be found in abundance for your outdoor enjoyment.
  • The second floor is devoted to the bedrooms with an open rail hall that overlooks the beautiful sunken great room below.
  • In the master suite, a huge walk-in closet provides terrific storage and a private balcony is ideal for sipping your morning coffee and relaxing.
  • Plans come with an unfinished lower level with a suggested layout for a huge games room, wet bar and media area.

Plans include the following:

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

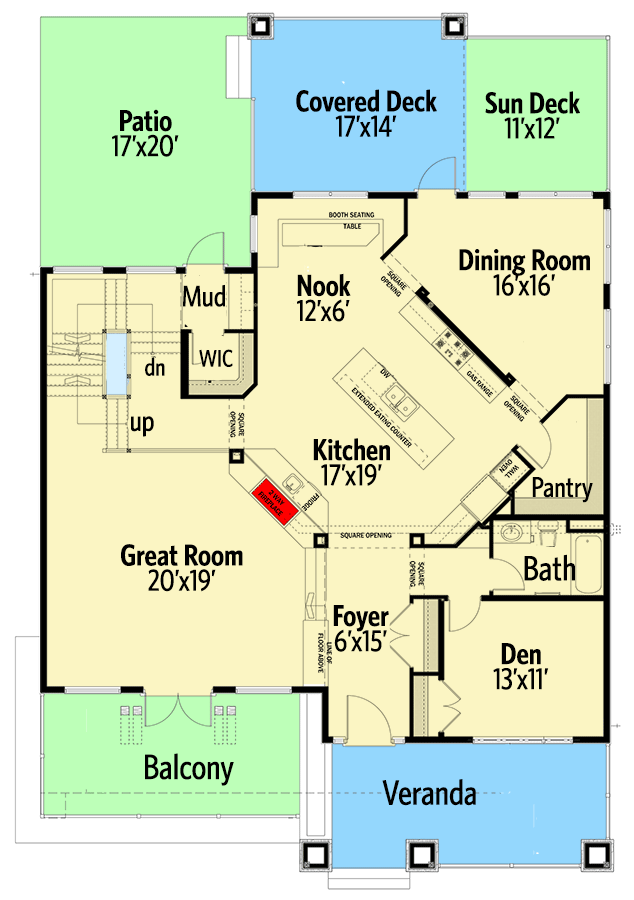

Cutting Edge Contemporary House Plan - 81637AB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

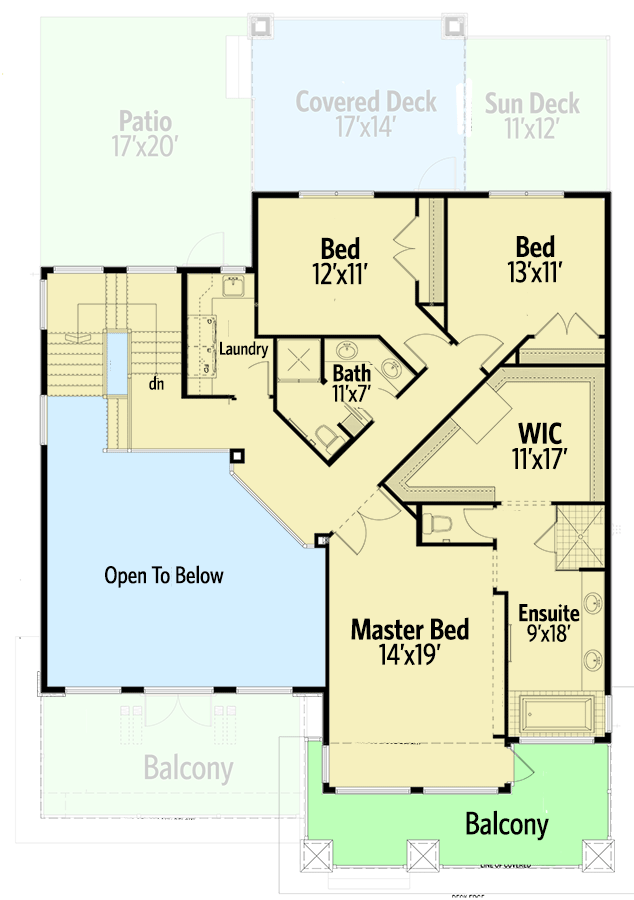

Cutting Edge Contemporary House Plan - 81637AB floor plan - 2nd Floor

Optional Finished Basement

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

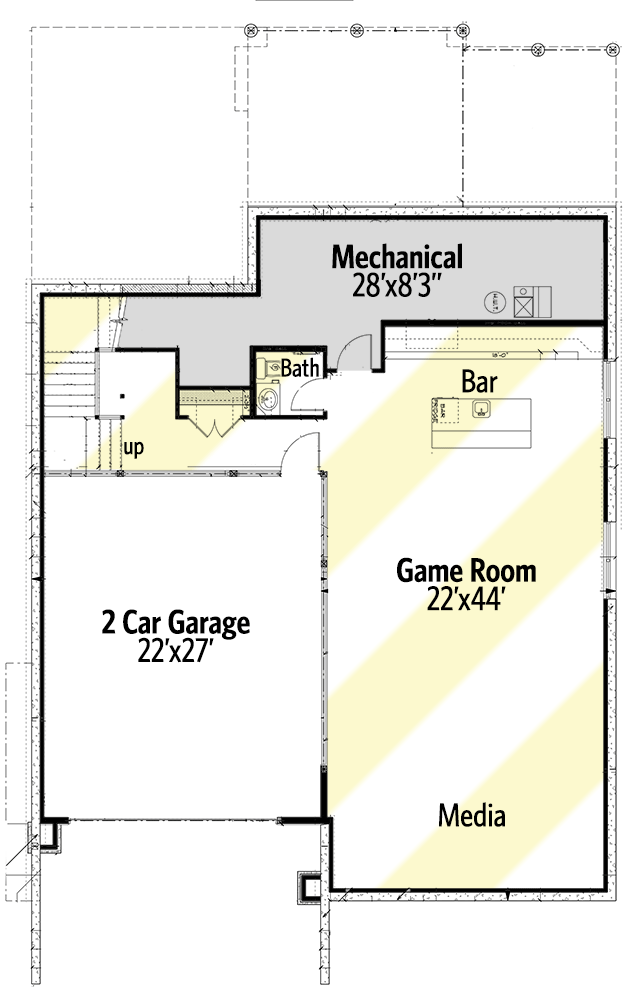

Cutting Edge Contemporary House Plan - 81637AB floor plan - Optional Finished Basement

Plan details

Cutting Edge Contemporary House Plan

  • 3,198

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,900
  • CAD + PDF - Single Build $2,600
  • CAD Unlimited + PDF $3,100
  • View all purchase option online

About This Plan

  • Stone, stucco and lots of glass give this home its exciting Contemporary edge.
  • Both the dining room and great room are sunken for a dramatic effect.
  • Beautiful balconies, verandas and a sun deck can be found in abundance for your outdoor enjoyment.
  • The second floor is devoted to the bedrooms with an open rail hall that overlooks the beautiful sunken great room below.
  • In the master suite, a huge walk-in closet provides terrific storage and a private balcony is ideal for sipping your morning coffee and relaxing.
  • Plans come with an unfinished lower level with a suggested layout for a huge games room, wet bar and media area.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Finished Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,198 sq. ft.
  • 1st Floor: 1,811 sq. ft.
  • 2nd Floor: 1,387 sq. ft.
  • Deck: 370 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 6"
  • Depth: 44' 0"
  • Max ridge height: 25' 5"

Garage

  • Type: Drive Under
  • Area: 776 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss
