Plan 93070EL
EXCLUSIVE
Dazzling Open Layout
Heated S.F.
3,561
Beds
3
Baths
3.5
Stories
2
Cars
2
Photos
What's Included
Plan Details
  • A giant two-story great room is the first thing you see upon entering this very special Craftsman house plan.
  • There are no walls to block great room views, rather columns are used to define the great room so you can easily see into the dining room and the kitchen beyond.
  • Party hearty in the beautiful game room that has a vaulted, beamed ceiling and a huge wet bar, with lots of windows to bring in light.
  • The master suite also has vaulted and beamed ceilings and windows on two sides with a French door that opens to the rear veranda.
  • Two additional bedroom suites are up on the second floor, each with a walk-in closet.
  • The lounge area has an open rail that lets you look down into the great room below.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

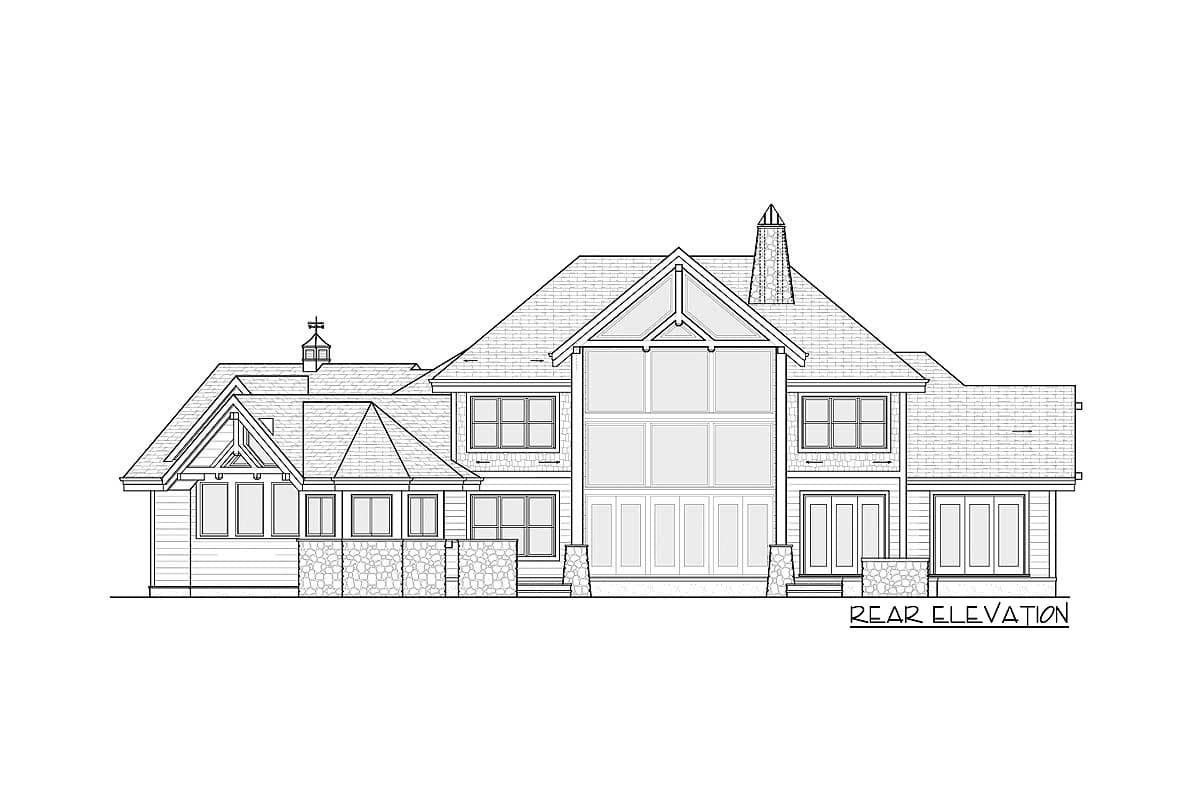

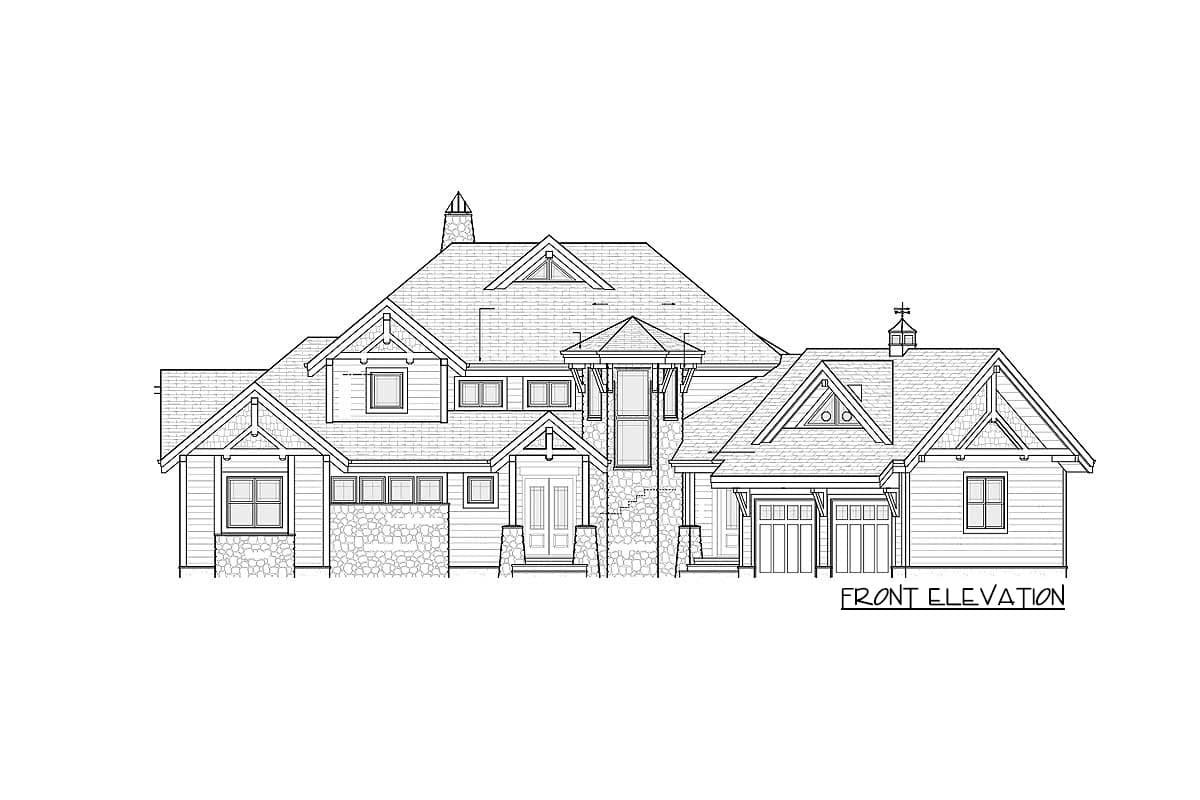

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Dazzling Open Layout

  • 3,561

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

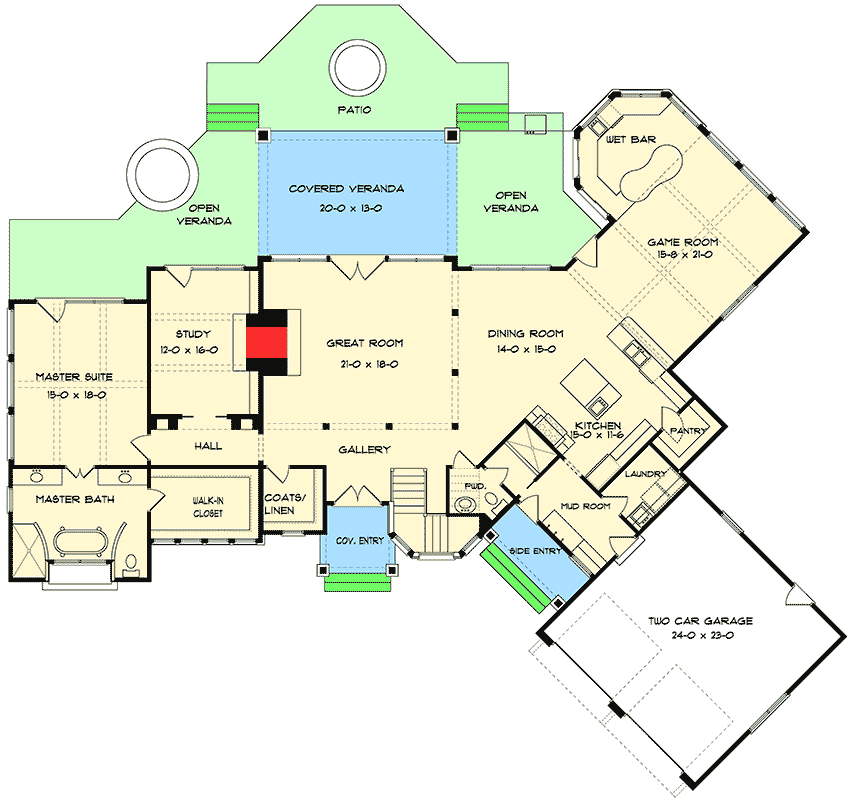

  • Main Level

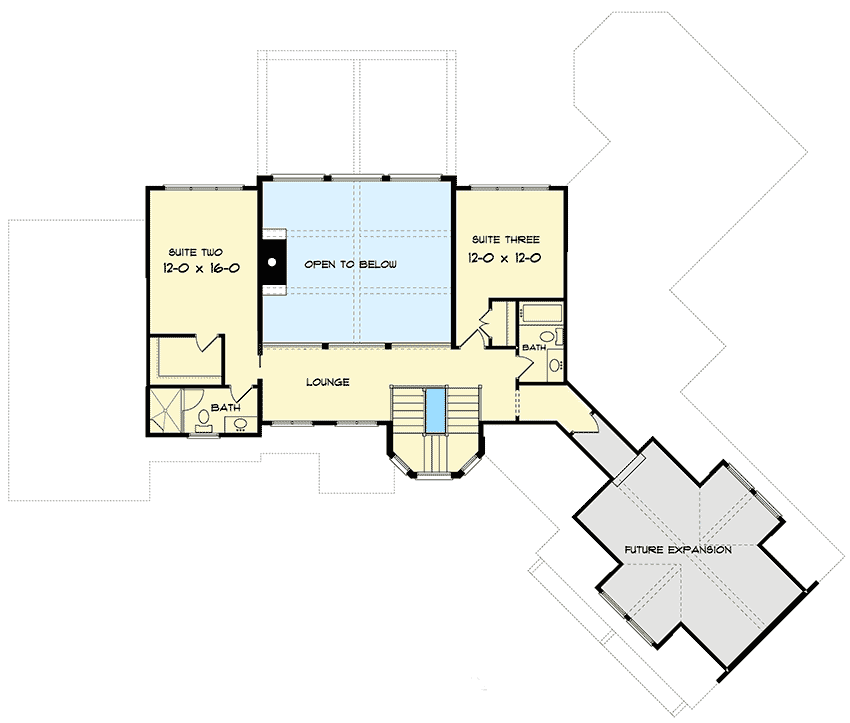

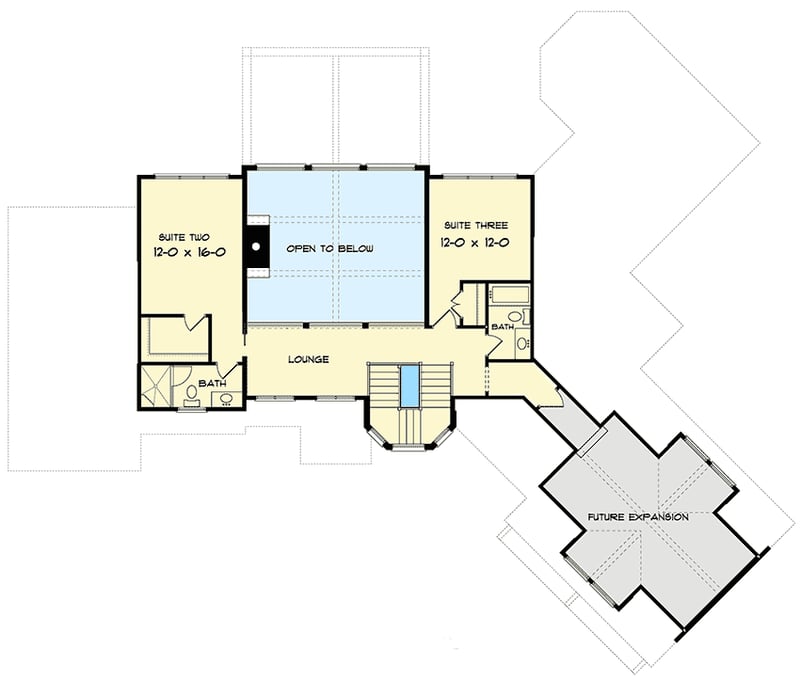

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,561 sq. ft.
  • 1st Floor: 2,706 sq. ft.
  • 2nd Floor: 855 sq. ft.

Dimensions

  • Width: 92' 11"
  • Depth: 87' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 590 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
