Plan 59178ND
Dazzling Split Bedroom Design
Heated S.F.
2,059
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • An elegant, open foyer, offset by stylish columns, provide a dazzling entrance to this split bedroom house plan.
  • The convenient great room allows unimpeded access to all areas of the house, including sliding glass doors to the screened lanai.
  • The gourmet kitchen utilizes a large, functional island and easily serves the adjacent breakfast room and formal dining room.
  • The elaborate master bath includes a private entrance to the lanai and separate whirlpool tub and glass shower.
  • A 2 car garage with storage and laundry room with sink round out the home design.
  • Note: Exterior framing is 8" concrete
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Dazzling Split Bedroom Design

  • 2,059

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

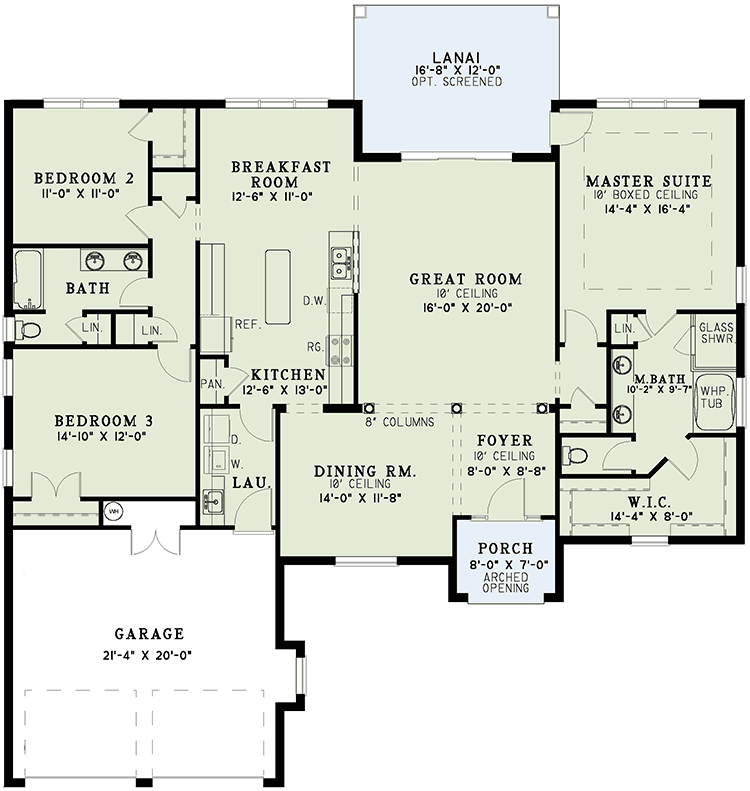

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,059 sq. ft.
  • 1st Floor: 2,059 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 63' 4"
  • Max ridge height: 23' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 554 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 4"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
