Plan 35509GH
Deck On 3 Side and Drive-Under Garage
Heated S.F.
4,667
Beds
3-4
Baths
3.5 - 4.5
Stories
2
Cars
2
What's Included
Plan Details
  • A deck wraps 3 sides of this sloping lot house plan with two sides 6'-deep and the down-slope slide giving you 10' in depth to enjoy the views.
  • Three pairs of french doors access the deep-deck side of the home: one set from the dining room, one from the great room and one from the master suite.
  • The great room has a fireplace and is open to the dining area. The ceiling rises 2-stories and the entire space gets great natural light.
  • The kitchen has a corner pantry and there is seating at the pensinsula.
  • The upper floor has a large open loft that enjoys views to the great room below. To either side you'll find bedrooms with their own baths.
  • The lower level gives you a large rec room and a family room with access to the outside via french doors. An extra bedroom and bath is also downstairs, as is storage and a tandem drive-under garage.
What's Included
  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

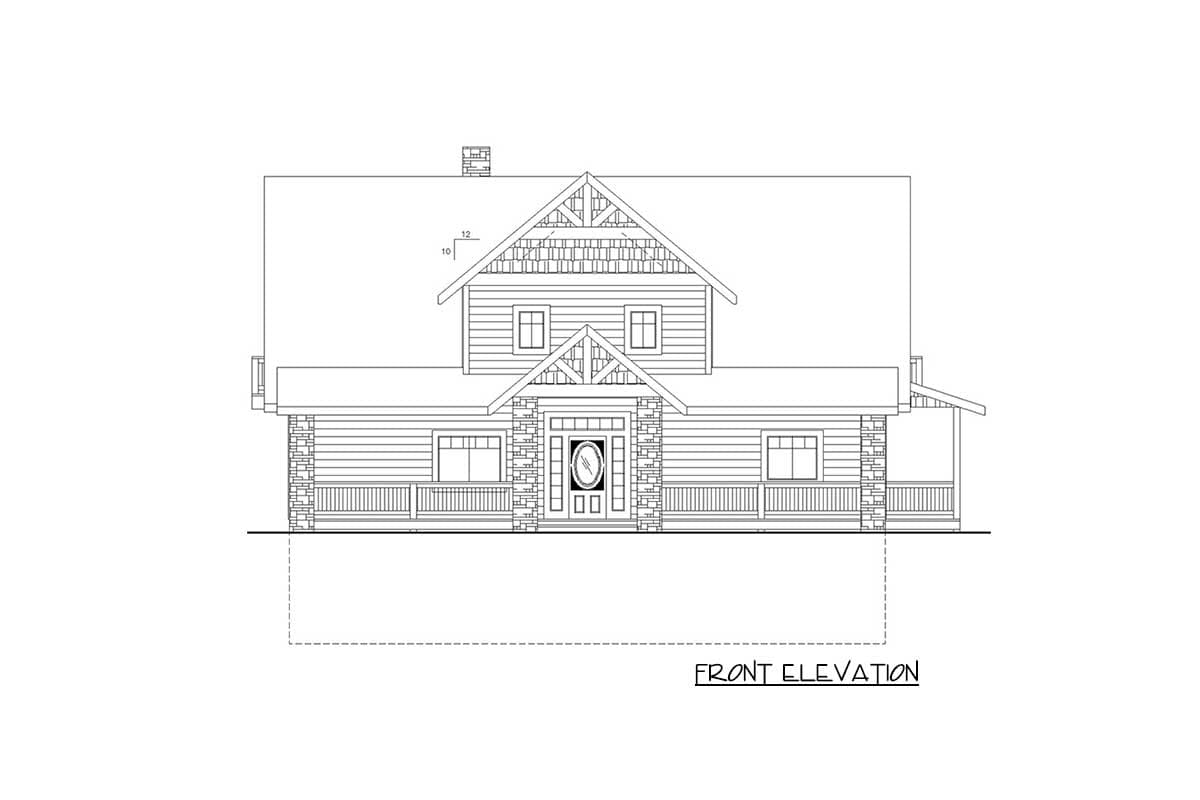

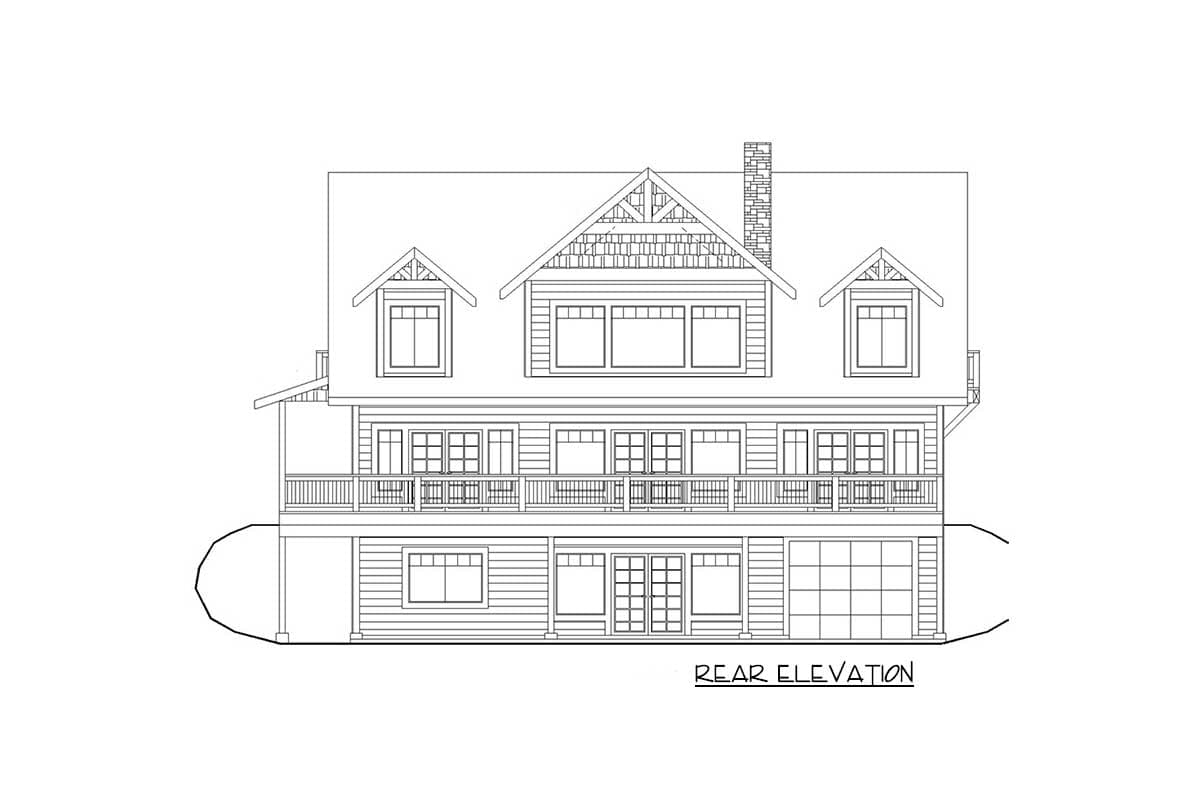

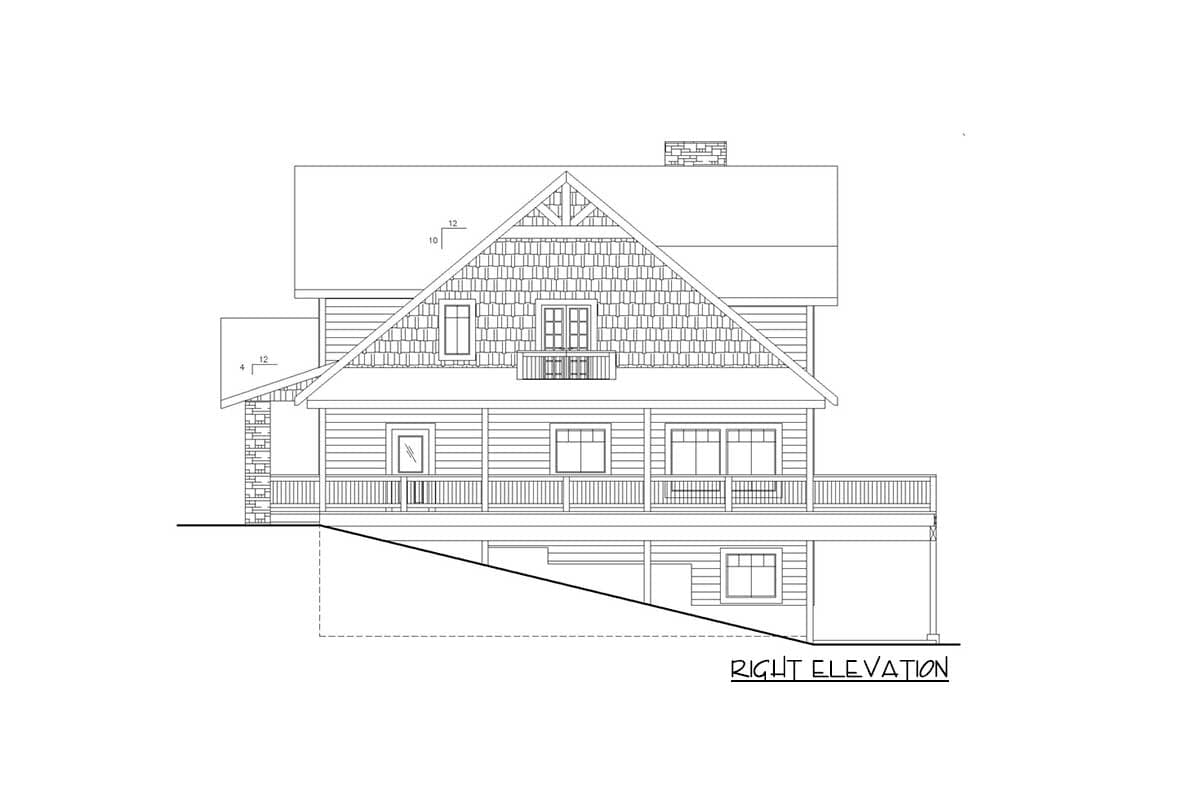

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Deck On 3 Side and Drive-Under Garage

  • 4,667

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

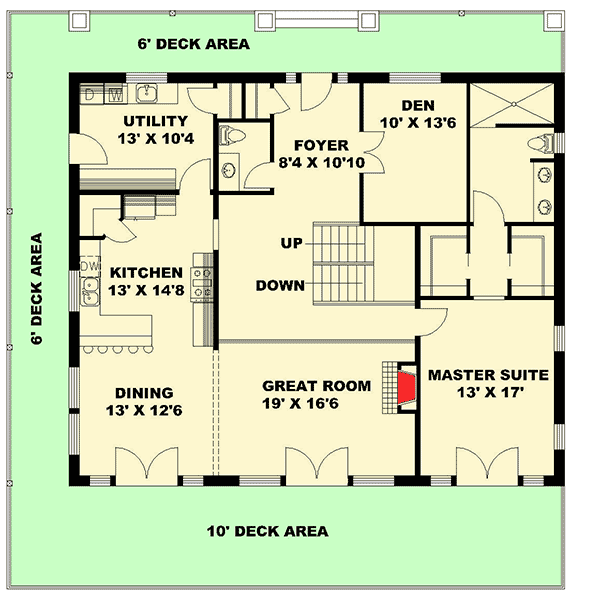

  • Main Level

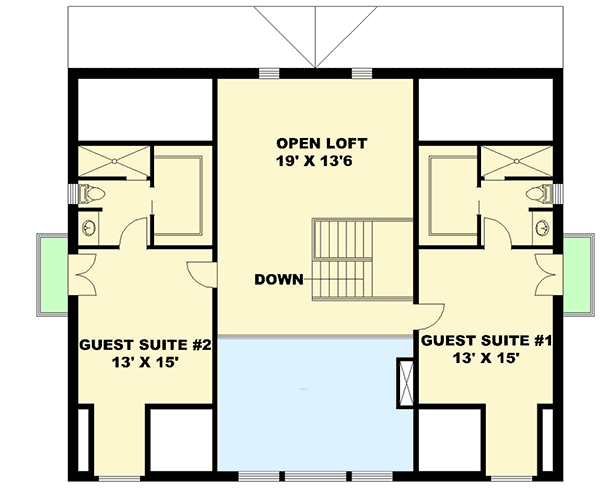

  • 2nd Floor

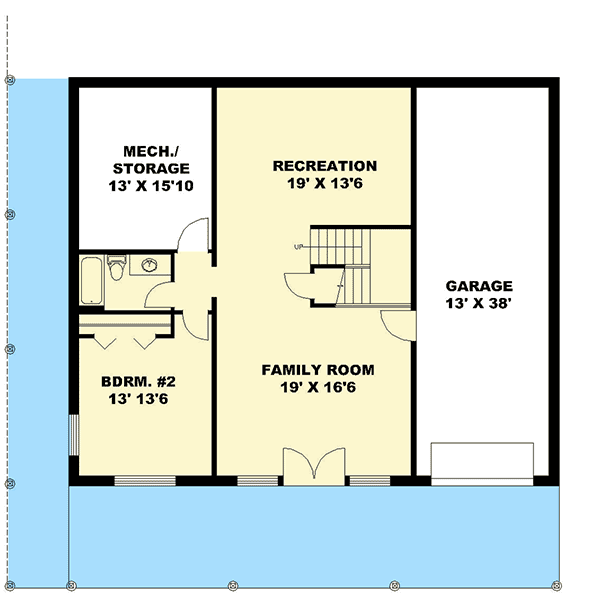

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,667 sq. ft.
  • Lower Level: 1,360 sq. ft.
  • 1st Floor: 1,920 sq. ft.
  • 2nd Floor: 1,387 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 40' 0"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Drive Under
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: N on N
All house plans are copyright ©2024 by the architects and designers represented on our web site

Deck On 3 Side and Drive-Under Garage

  • 4,667

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Deck On 3 Side and Drive-Under Garage

  • 4,667

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,667 sq. ft.
  • Lower Level: 1,360 sq. ft.
  • 1st Floor: 1,920 sq. ft.
  • 2nd Floor: 1,387 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 40' 0"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Drive Under
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: N on N

    Main Level
