Decks and Patios on 3 Levels

Plan 23363JD

  • 6,131

    HEATED S.F.

  • 5

    BEDS

  • 5

    BATHS

  • 2

    FLOORS

  • 3

    CAR GARAGE

About this Plan

  • This house plan gives you outdoor space on 3 levels, including a deck of the second story home office.
  • Look at the rear elevation (which we show as our front elevation). It is designed to maximize your view lot.
  • The master suite is spacious and vaulted ceilings add character. A divided walk-in gives plenty of storage for him and her.
  • The lower level is designed for recreation and includes a home theater/media room.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

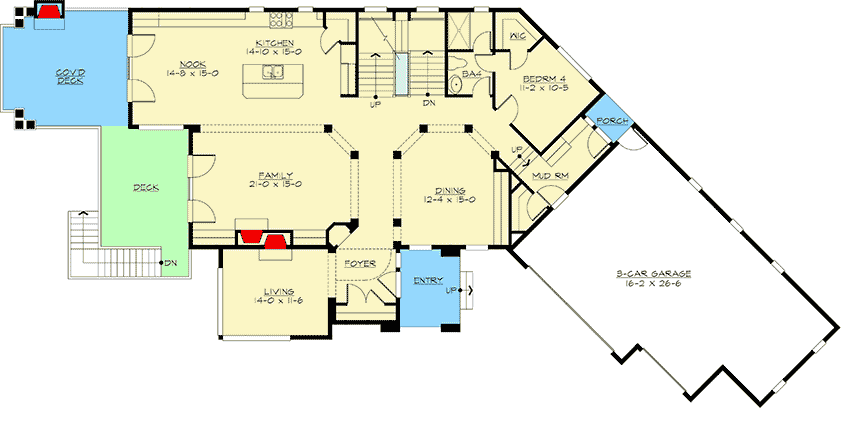

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,131 sq. ft.

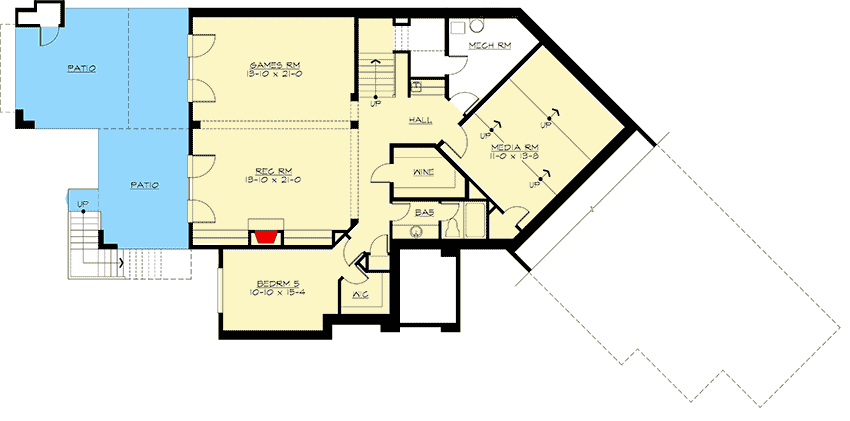

  • Lower Level: 1,920 sq. ft.
  • 1st Floor: 1,999 sq. ft.

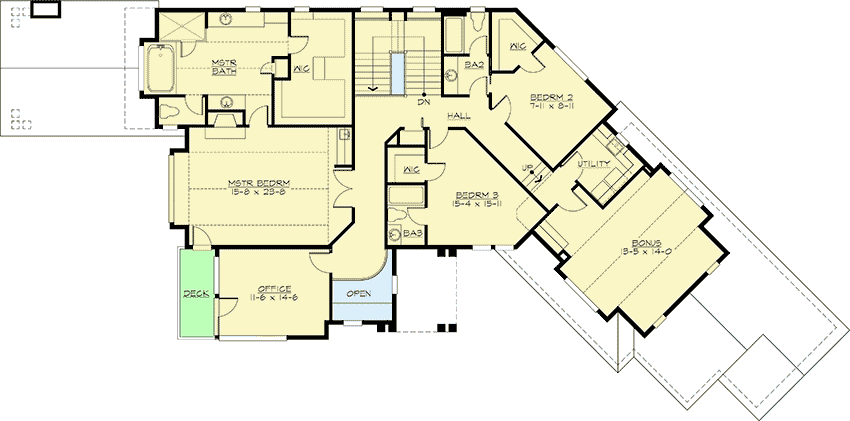

  • 2nd Floor: 2,212 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5

Dimensions

  • Width: 110' 0"
  • Depth: 53' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 827 sq. ft.
  • Details: 3 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
