Plan 666046RAF

Delightful Two-Story Northwest House Plan with Second-Level Master

Heated S.F.
3,598
Beds
4
Baths
4
Stories
2
Cars
3

Floor Plan

Plan 666046RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666046RAF

M-F 9am-5pm EST |

1-203-761-8500

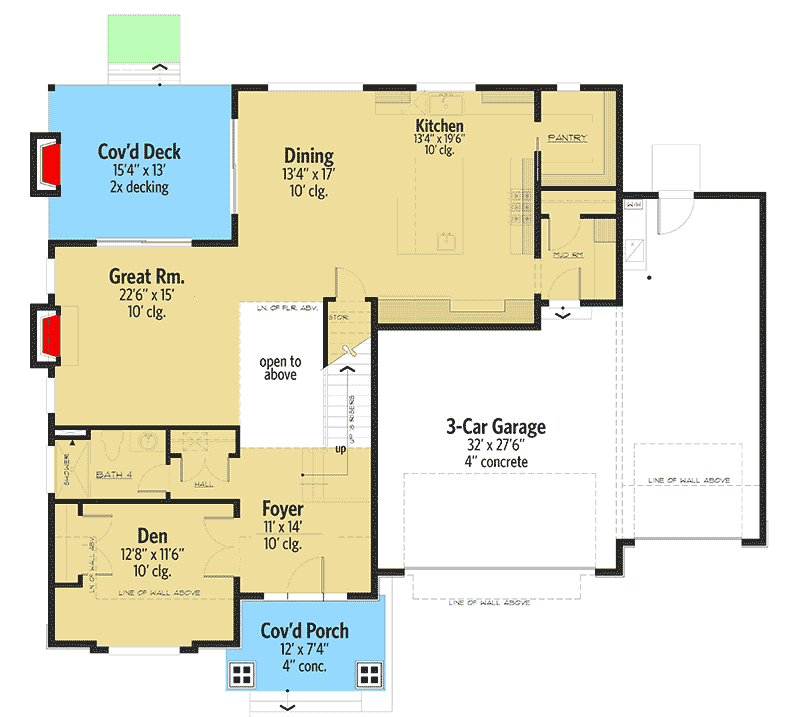

Main Level

Plan 666046RAF: Delightful Two-Story Northwest House Plan with Second-Level Master - Floor Plan - Main Level - Contemporary, New American, Northwest

2nd Floor

Plan 666046RAF: Delightful Two-Story Northwest House Plan with Second-Level Master - Floor Plan - 2nd Floor - Contemporary, New American, Northwest

Plan Details

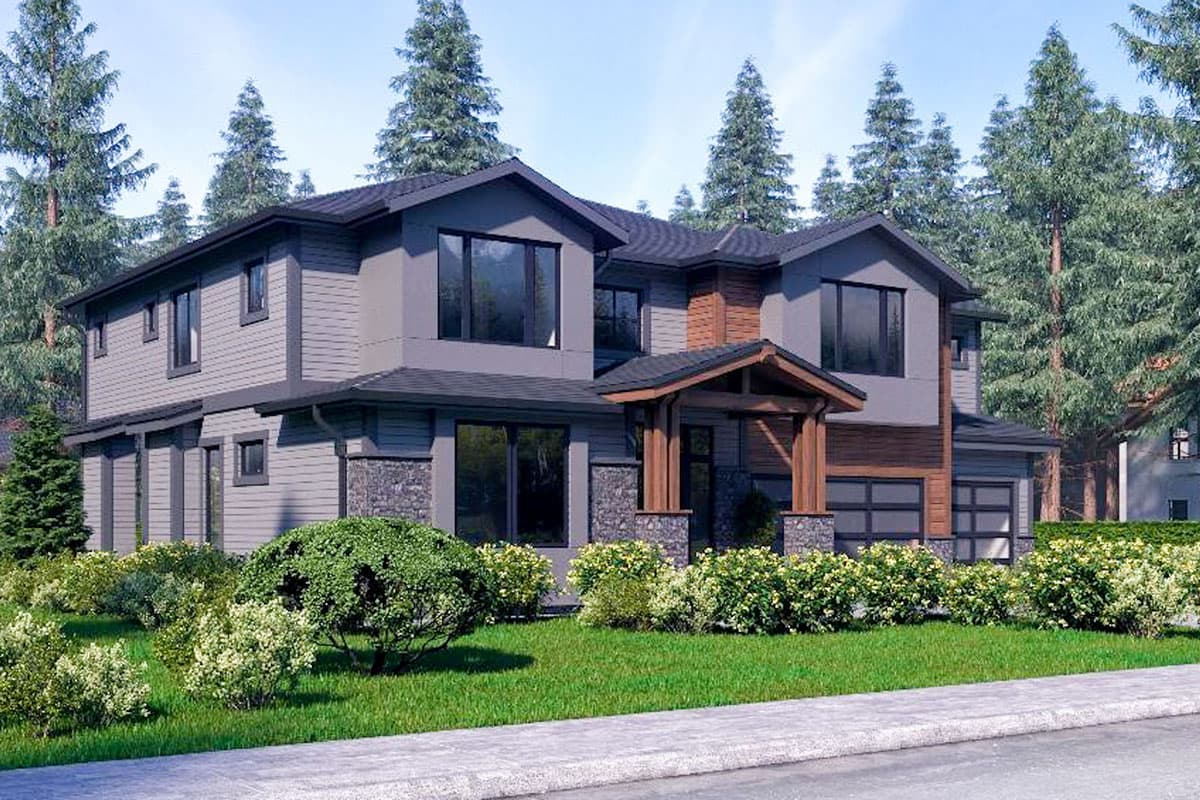

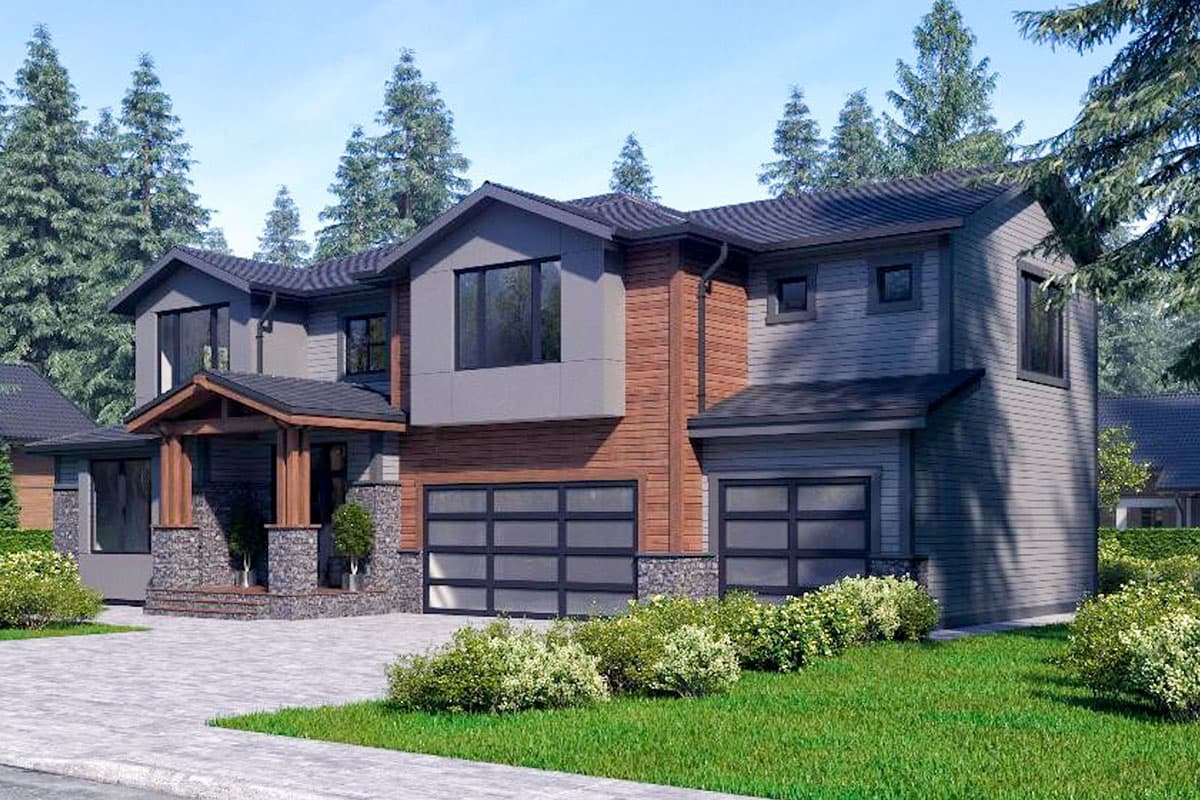

  • This traditional, Northwest house plan takes an updated exterior approach with the oversized panel siding and contrasting wood siding. A large, gabled porch makes a grand first impression.
  • Upon entering, a quiet den, or office for the work-at-home resident, is located to the left, next to a full bathroom.
  • Walls vanish as you proceed through to the shared living spaces consisting of the great room, dining area, and kitchen. A fireplace on the covered deck provides year-round enjoyment.
  • Ample workspace in the kitchen helps prepare for any size of gathering, and a sizable walk-in pantry provides plenty of storage.
  • The second-level master suite boasts a vaulted ceiling and a sprawling walk-in closet. The luxurious ensuite includes a wet room, dual sinks, and a private toilet room.
  • Three secondary bedrooms reside upstairs; one of which includes a full bathroom, while the other two share a 4-fixture bath.
  • A lofted hallway leads to a bonus room for the homeowner's creative touch.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

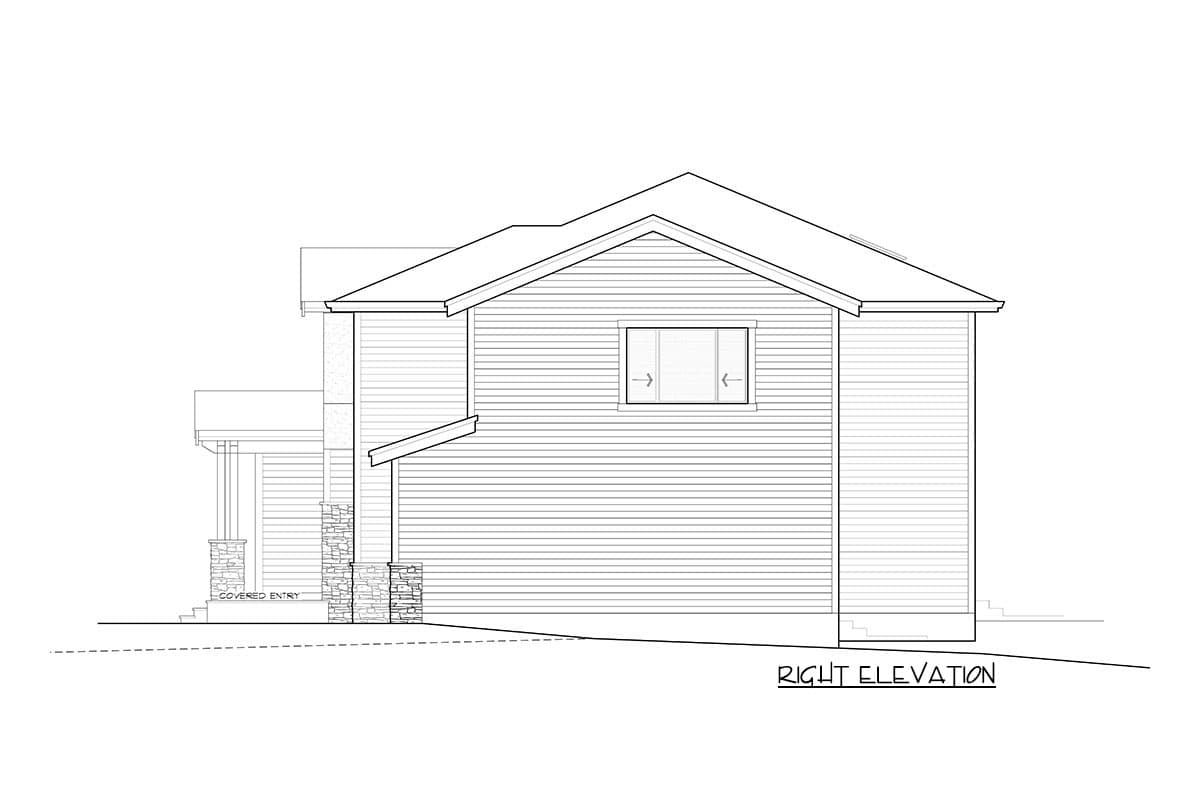

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,598 sq. ft.

1st Floor

1,466 sq. ft.

2nd Floor

2,132 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

50' 0"

Max Ridge Height

29' 9"

Garage

Type

Attached

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

New American

Northwest

Special Features

Butler Walk-in Pantry

Den

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room

Plan Collections

Home Office
