Plan 81605AB
Designed for Entertaining
Heated S.F.
4,555
Beds
2-6
Baths
2.5+ - 5.5+
Stories
2
Cars
3-4
Floor Plan

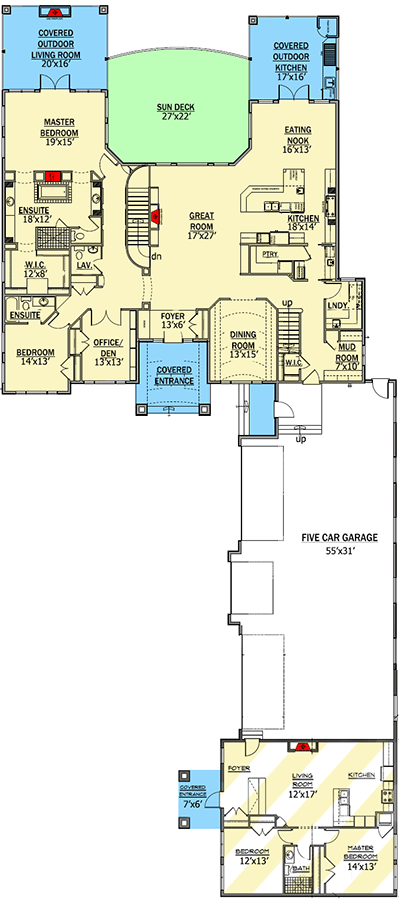

Main Level w/ Optionally Finished Guest Suite
Reverse Floor Plan
Designed for Entertaining - 81605AB floor plan - Main Level w/ Optionally Finished Guest Suite

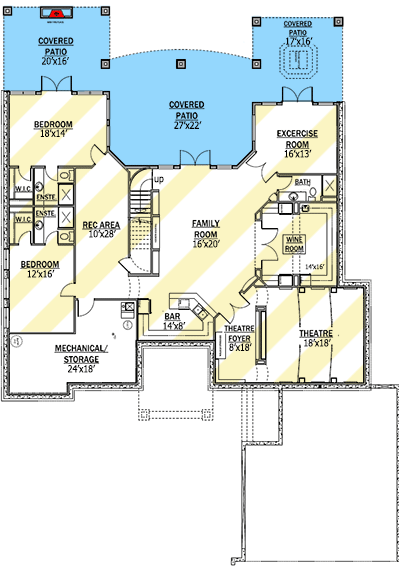

Optionally Finished Lower Level
Reverse Floor Plan
Designed for Entertaining - 81605AB floor plan - Optionally Finished Lower Level
Plan Details
  • Although you can live very comfortably on the main floor of this Craftsman home, there is plenty of room to spread out on the optional lower level.
  • From the moment you step into the front entry, the views go all the way back to the enormous sun deck in the rear.
  • The kitchen is a chef's delight with a massive island and walk-in pantry.
  • Cook indoors or outside in the covered outdoor kitchen.
  • The master suite has a gorgeous bathroom with a soaking tub and large shower.
  • Double doors open to the outdoor living room that is also covered.
  • The enormous optional lower level boasts a wine room, theater room, rec area and two bedrooms.
  • Work out in your exercise room and then enjoy the hot tub that is steps away through double doors.
  • With a five car garage, there is plenty of room for family and friends!
  • Top this off, literally, with a loft area above the main home that has room for a synthetic ice skating rink and rec room with wet bar and half bath.
  • Should you not be interested in an indoor skating rink, you can just use the space as a huge rec room for entertaining.
What's Included

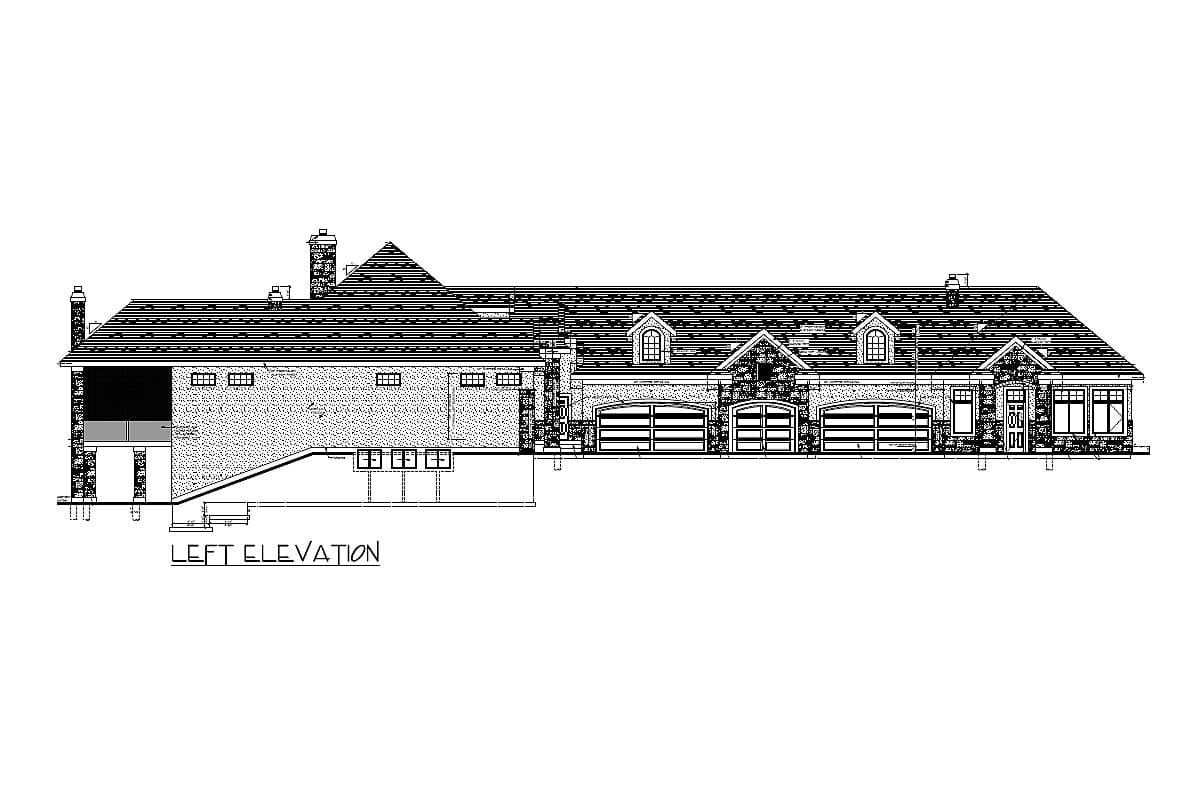

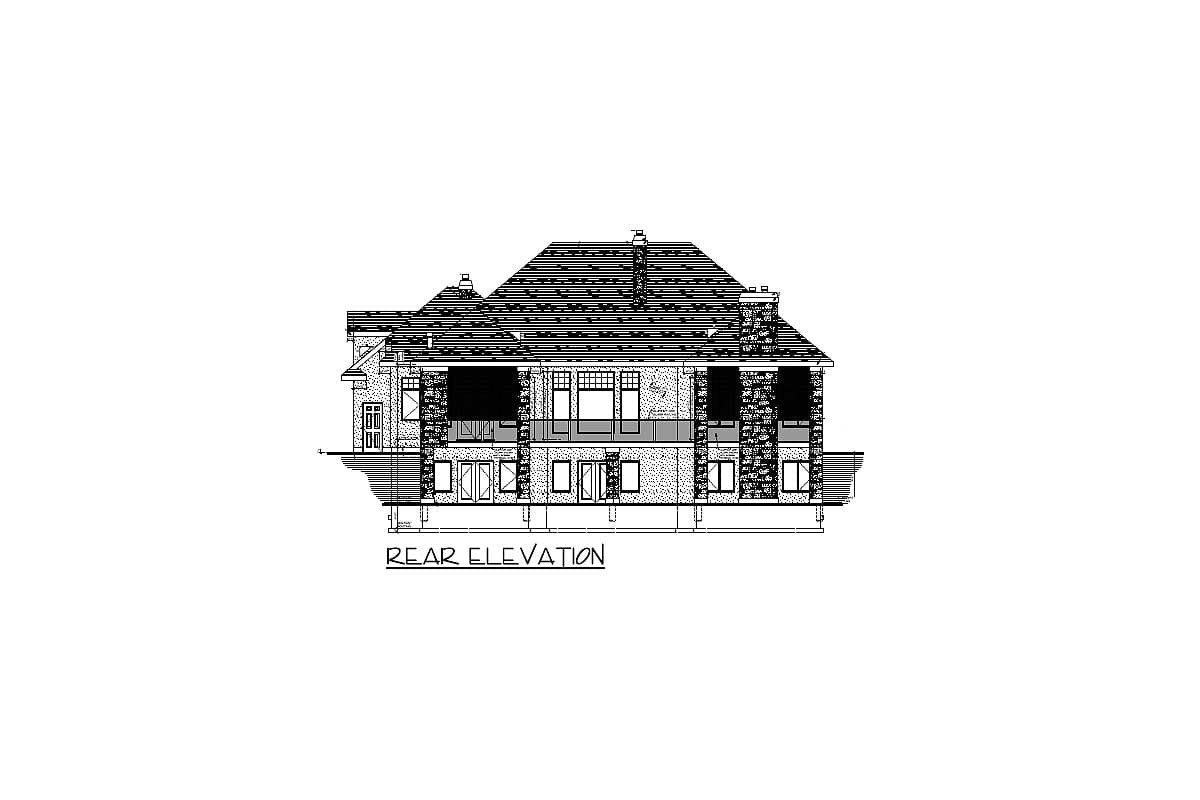

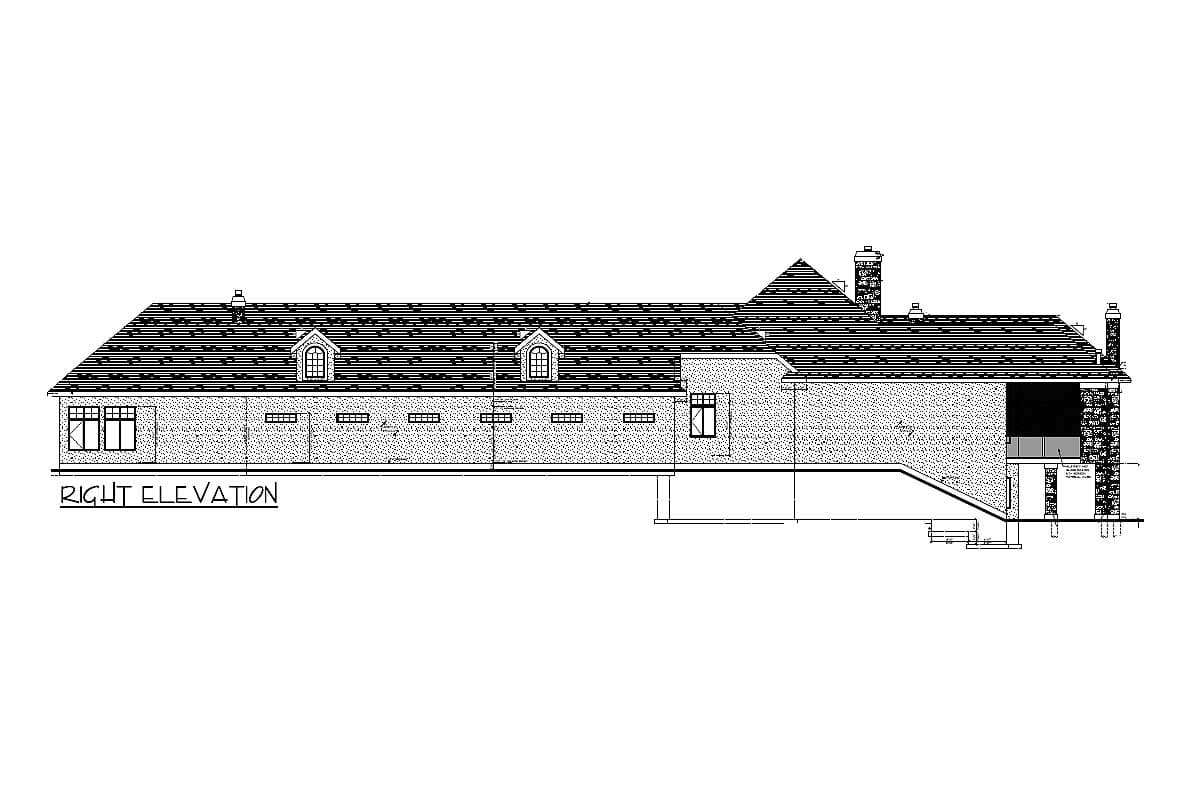

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Designed for Entertaining

  • 4,555

    Heated s.f.

  • 2-6

    Beds

  • 2.5+ - 5.5+

    Baths

  • 2

    Floors

  • 3 - 4

    Car garage

Floor Plan

  • Main Level w/ Optionally Finished Guest Suite

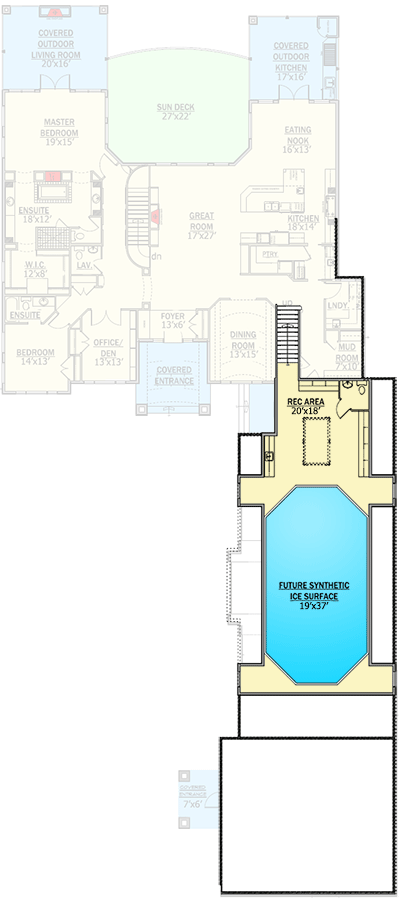

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,555 sq. ft.
  • 1st Floor: 4,555 sq. ft.

Dimensions

  • Width: 78' 0"
  • Depth: 127' 0"
  • Max ridge height: 33' 9"

Beds/Baths

  • Bedrooms: 2, 3, 4, 5, or 6
  • Full bathrooms: 2, 3, 4, or 5
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 2040 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Side, Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 12' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
