Plan 66352WE

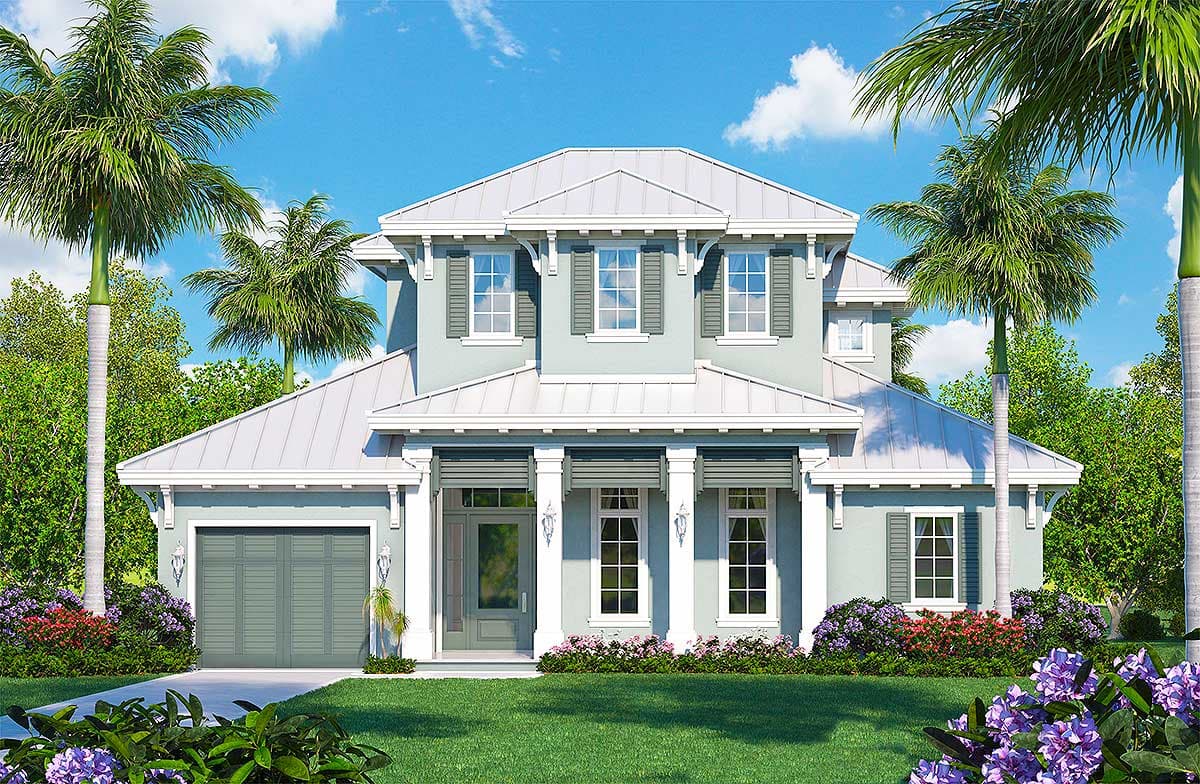

Designer Florida House Plan

Heated S.F.
3,542
Beds
4
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 66352WE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 66352WE

M-F 9am-5pm EST |

1-203-761-8500

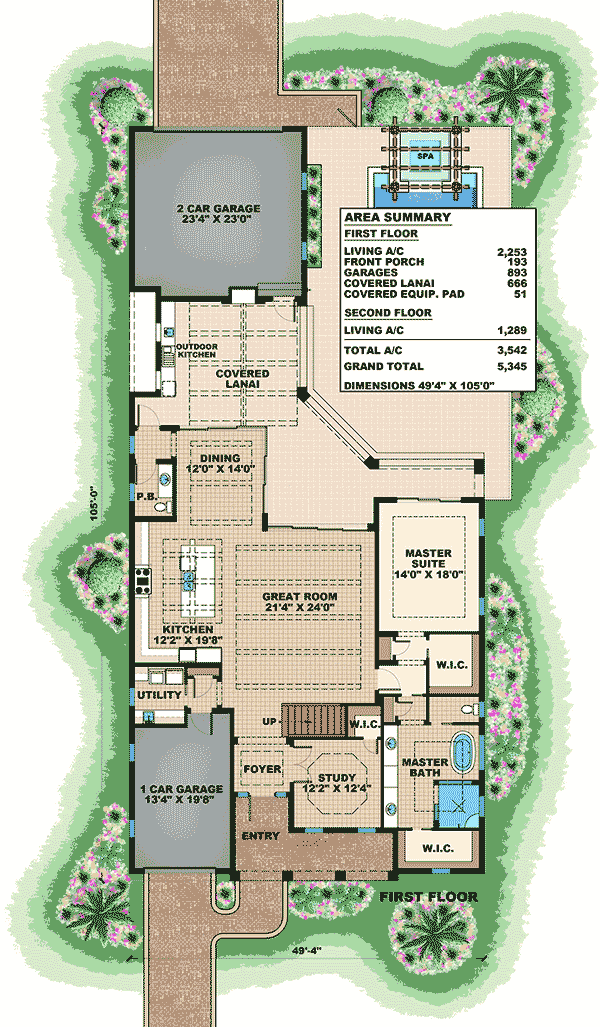

Main Level

Plan 66352WE: Designer Florida House Plan - Floor Plan - Main Level - Florida-Style, Southern

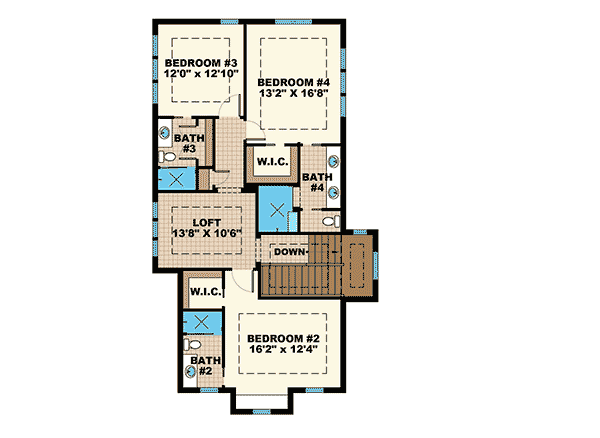

2nd Floor

Plan 66352WE: Designer Florida House Plan - Floor Plan - 2nd Floor - Florida-Style, Southern

Plan Details

  • Florida-style living is easy in this two-story house plan that comes in at under 50' wide.
  • Designed to maximize outdoor living, there are walls of sliding glass doors to take you to the outdoor covered lanai in back.
  • Tray and beamed ceilings top most of the rooms, for an elegant look.
  • A private foyer leads to the first floor master suite that has a huge bathroom and two large walk-in closets.
  • On the second floor, three spacious bedrooms each have private bathrooms and share loft space.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,542 sq. ft.

1st Floor

2,253 sq. ft.

2nd Floor

1,289 sq. ft.

Porch, Front

193 sq. ft.

Lanai

666 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

49' 4"

Depth

105' 0"

Max Ridge Height

29' 10"

Garage

Type

Attached

Area

893 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Southern

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,542 sq. ft.

1st Floor

2,253 sq. ft.

2nd Floor

1,289 sq. ft.

Porch, Front

193 sq. ft.

Lanai

666 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

49' 4"

Depth

105' 0"

Max Ridge Height

29' 10"

Garage

Type

Attached

Area

893 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Southern

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor
