Plan 865027SHW

Detached 2-Car Garage Plan with 2-Bed Guest Suite - 1220 Sq Ft

Heated S.F.
1,220
Beds
2
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 865027SHW

Main Level
Main Level
2nd Floor
2nd Floor
Optional Second Level Included
Optional Second Level Included

Plan 865027SHW

M-F 9am-5pm EST |

1-203-761-8500

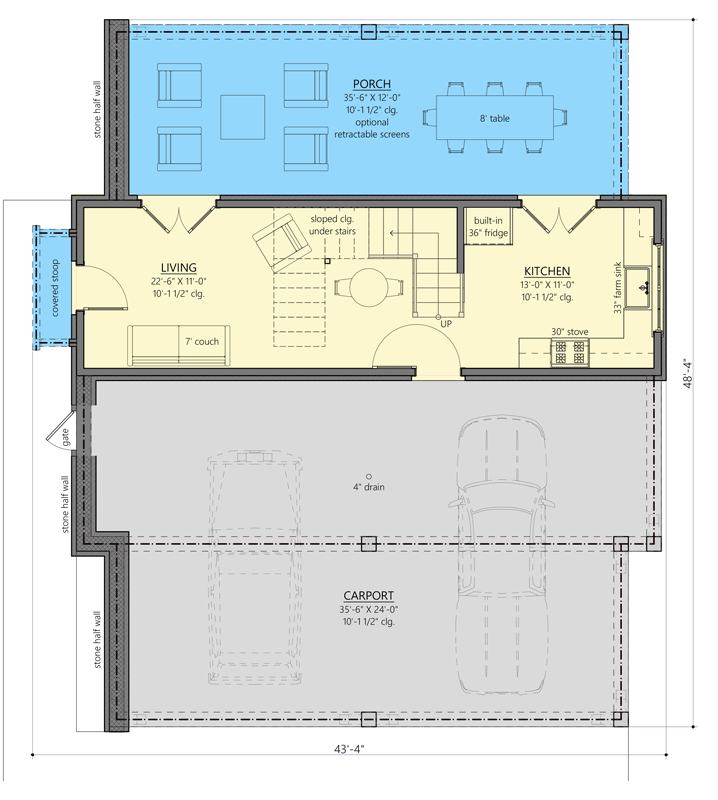

Main Level

Plan 865027SHW: Detached 2-Car Garage Plan with 2-Bed Guest Suite - 1220 Sq Ft - Floor Plan - Main Level - Carriage, Farmhouse, New American

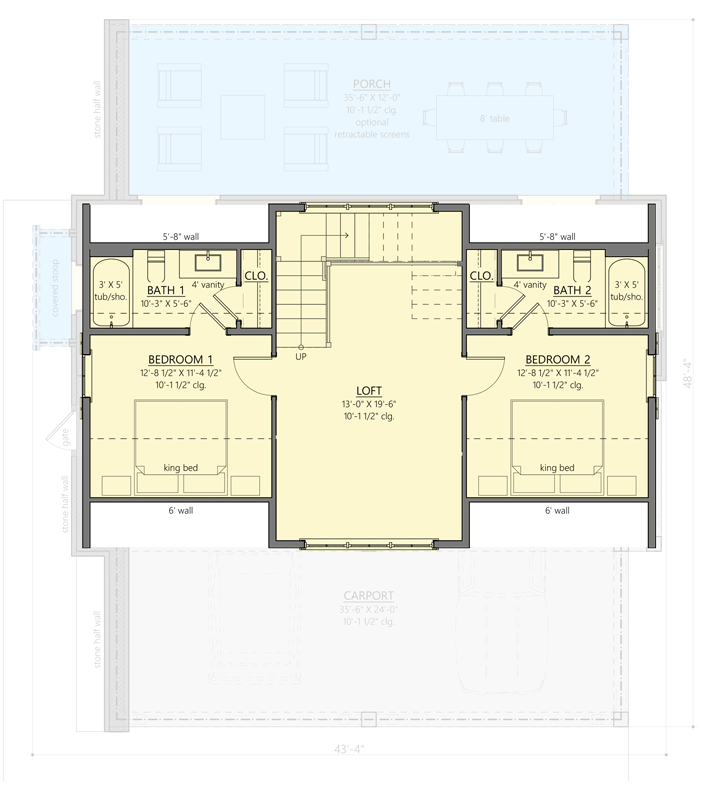

2nd Floor

Plan 865027SHW: Detached 2-Car Garage Plan with 2-Bed Guest Suite - 1220 Sq Ft - Floor Plan - 2nd Floor - Carriage, Farmhouse, New American

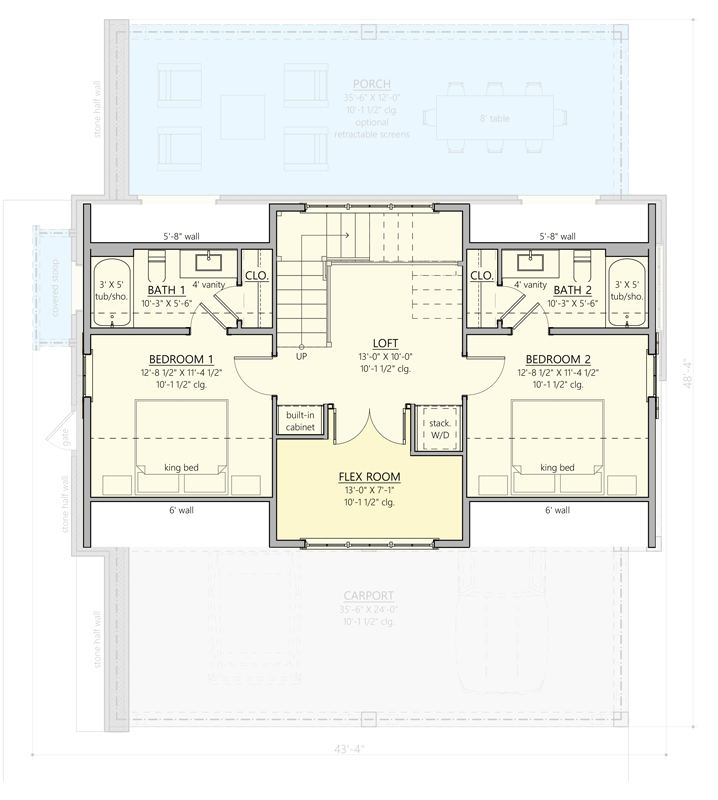

Optional Second Level Included

Plan 865027SHW: Detached 2-Car Garage Plan with 2-Bed Guest Suite - 1220 Sq Ft - Floor Plan - Optional Second Level Included - Carriage, Farmhouse, New American

Plan Details

  • This 1,220 square foot carriage house with a classic gable roof features a cozy 2-bedroom, 2-bathroom dwelling unit above, along with a flexible bonus room option.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet
  • 3D or Sketch Renderings
  • Foundation/Crawlspace Plan
  • Main Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Plan
  • Elevations; all 4 of them
  • Building Sections
  • Interiors (cabinet elevations)
  • Suggested electrical/lighting Plan(s)
  • General Notes
  • General Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,220 sq. ft.

1st Floor

480 sq. ft.

2nd Floor

740 sq. ft.

Porch, Rear

426 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

43' 4"

Depth

48' 4"

Max Ridge Height

27' 4"

Garage

Area

906 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 1"

Second Floor

10' 1"

Carport/Porch

10' 5''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

1.5 on 12

Framing Type

Stick

Architectural Style

Carriage

Farmhouse

New American

Special Features

Bedrooms - Split

Flex Room

Laundry - Upstairs

Loft

Master Suite - Upstairs

Two Master Suites

Plan Collections

Attached Apartments

Square Footage Breakdown

Total Heated Area

1,220 sq. ft.

1st Floor

480 sq. ft.

2nd Floor

740 sq. ft.

Porch, Rear

426 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

43' 4"

Depth

48' 4"

Max Ridge Height

27' 4"

Garage

Area

906 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 1"

Second Floor

10' 1"

Carport/Porch

10' 5''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

1.5 on 12

Framing Type

Stick

Architectural Style

Carriage

Farmhouse

New American

Special Features

Bedrooms - Split

Flex Room

Laundry - Upstairs

Loft

Master Suite - Upstairs

Two Master Suites

Plan Collections

Attached Apartments
