Detached Garage Plan with Second Level Storage or Flex Apartment

Plan 270032AF

  • 1,027

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • A ribbed metal roof caps this detached garage plan styled with farmhouse features for the utmost character. A cupola with a weathervane serves as the cherry on top.
  • The door on the left leads to an entryway with a closet located beneath the U-shaped staircase.
  • Upstairs you get the option of an 859 square foot finished one-bed apartment or optional storage room with lots of natural light.

This plan set includes the following:

  • Foundation Plan - Footing sizes, slab thickness, floor framing notes, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing notes, roof pitch, attic venting, overhangs, roof finish materials, etc.

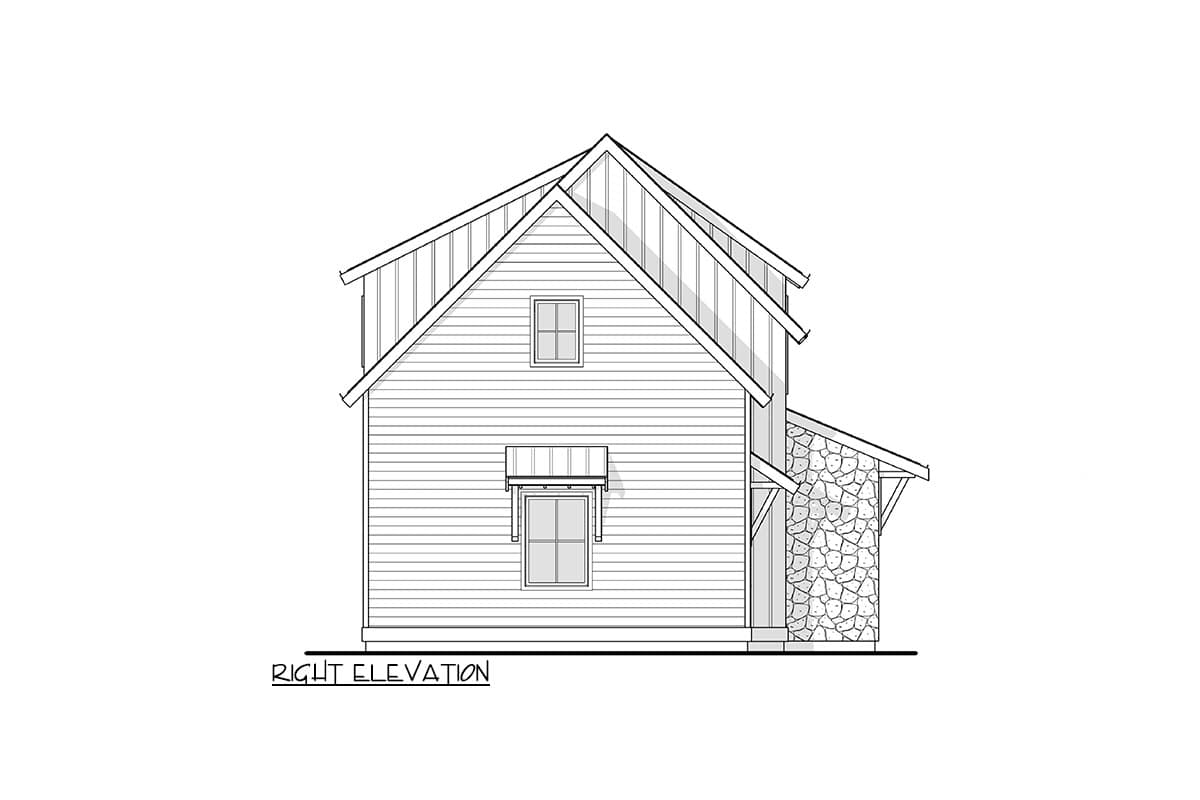

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Sections and Notes - Cut through views of the home
  • Details - Dissected drawings of typical construction details
What is NOT included in the plans:

  •           Architectural or Engineering Stamp - handled locally if required
  •           Site Plan - handled locally when required
  •           Electrical plan
  •           Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  •           Framing layouts with beam sizes and locations
  •           Material lists
  •           Energy calculations - handled locally when required
  •   Renderings, photography, or marketing imagery

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

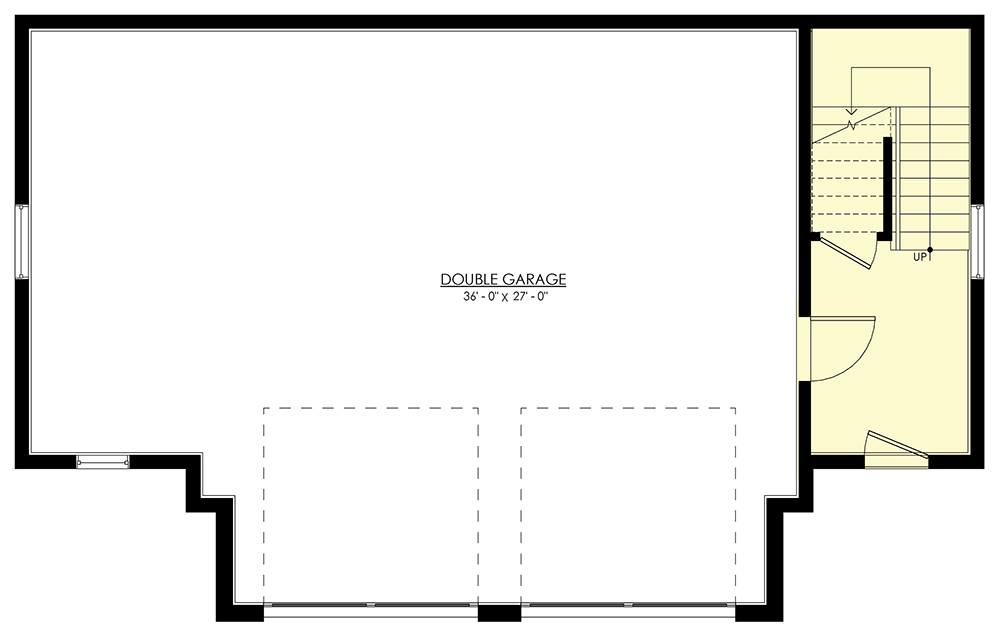

Detached Garage Plan with Second Level Storage or Flex Apartment - 270032AF floor plan - Main Level

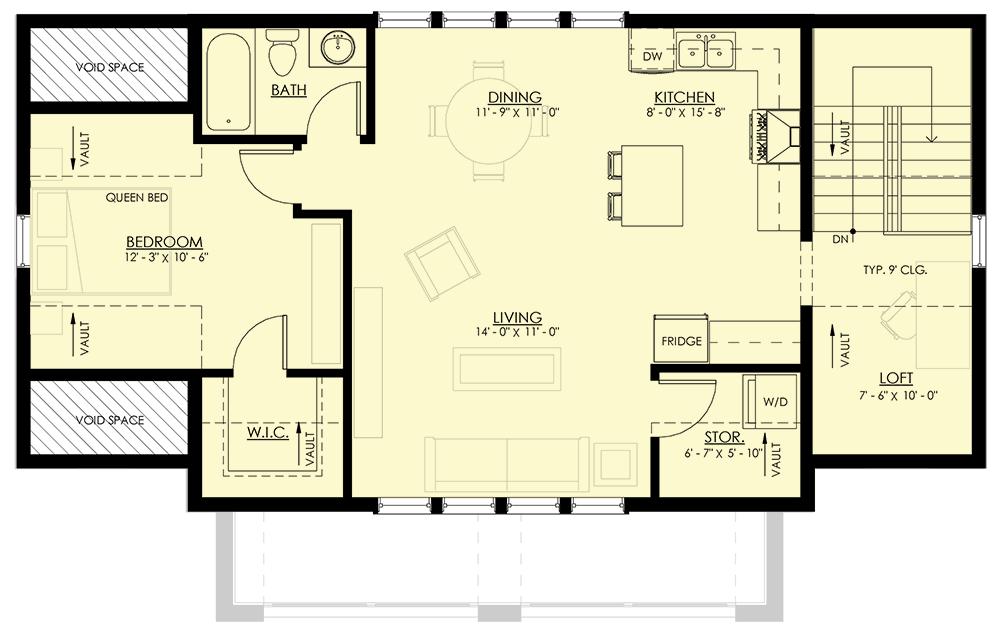

Apartment Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Detached Garage Plan with Second Level Storage or Flex Apartment - 270032AF floor plan - Apartment Level

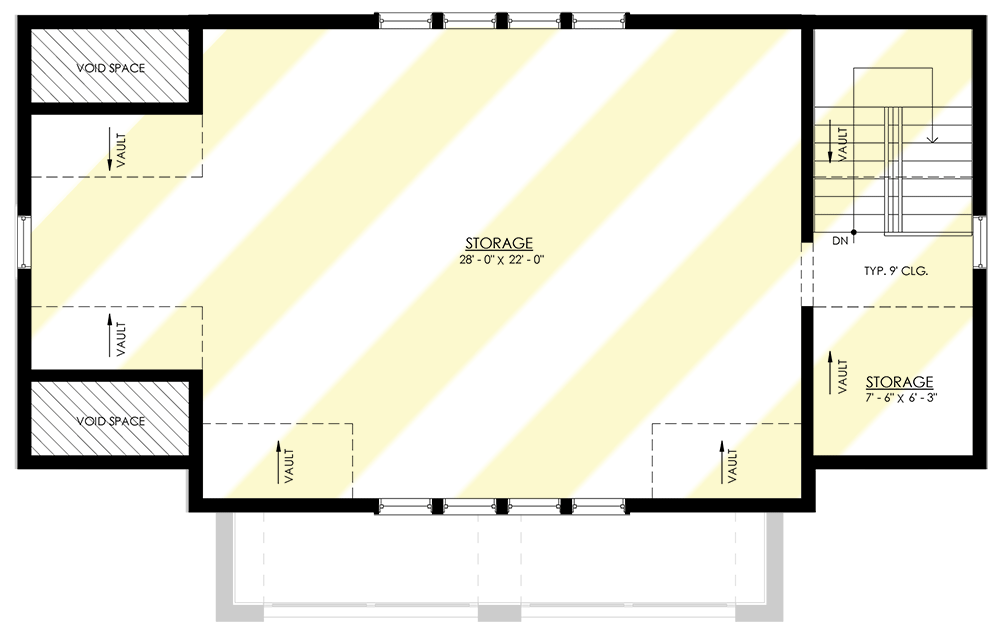

Optional Storage Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Detached Garage Plan with Second Level Storage or Flex Apartment - 270032AF floor plan - Optional Storage Level

Architectural Style

Plan Collections

Detached Garage Plan with Second Level Storage or Flex Apartment

  • 1,027

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Apartment Level

  • Optional Storage Level

Plan Details

Square Footage Breakdown

  • Total: 1,027 sq. ft.
  • 1st Floor: 168 sq. ft.
  • 2nd Floor: 859 sq. ft.

Dimensions

  • Width: 45' 0"
  • Depth: 23' 0"
  • Max ridge height: 28' 7"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 965 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8.5 on 12
  • Framing Type: Truss
