Plan 68903VR Detached Garage with an RV Bay and an Open Loft Above

1,258 1 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Detached Garage with an RV Bay and an Open Loft Above

Plan 68903VR

  • 1,258

    Heated s.f.

  • 1

    Baths

  • 2

    Stories

  • 3

    Cars

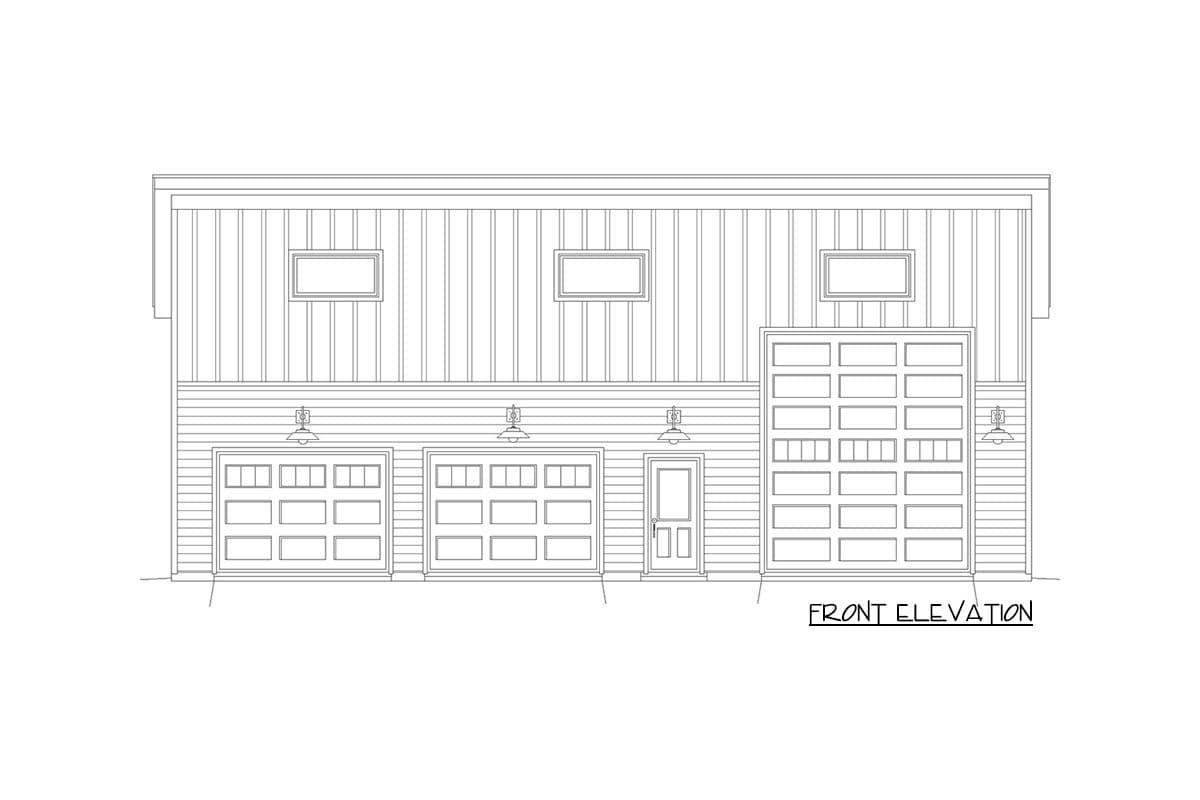

  • This contemporary RV garage has 3 bays: 2 for cars or smaller vehicles behind 10' by 7' garage doors and a third bay behind a 12' by 14' garage door for your RV.

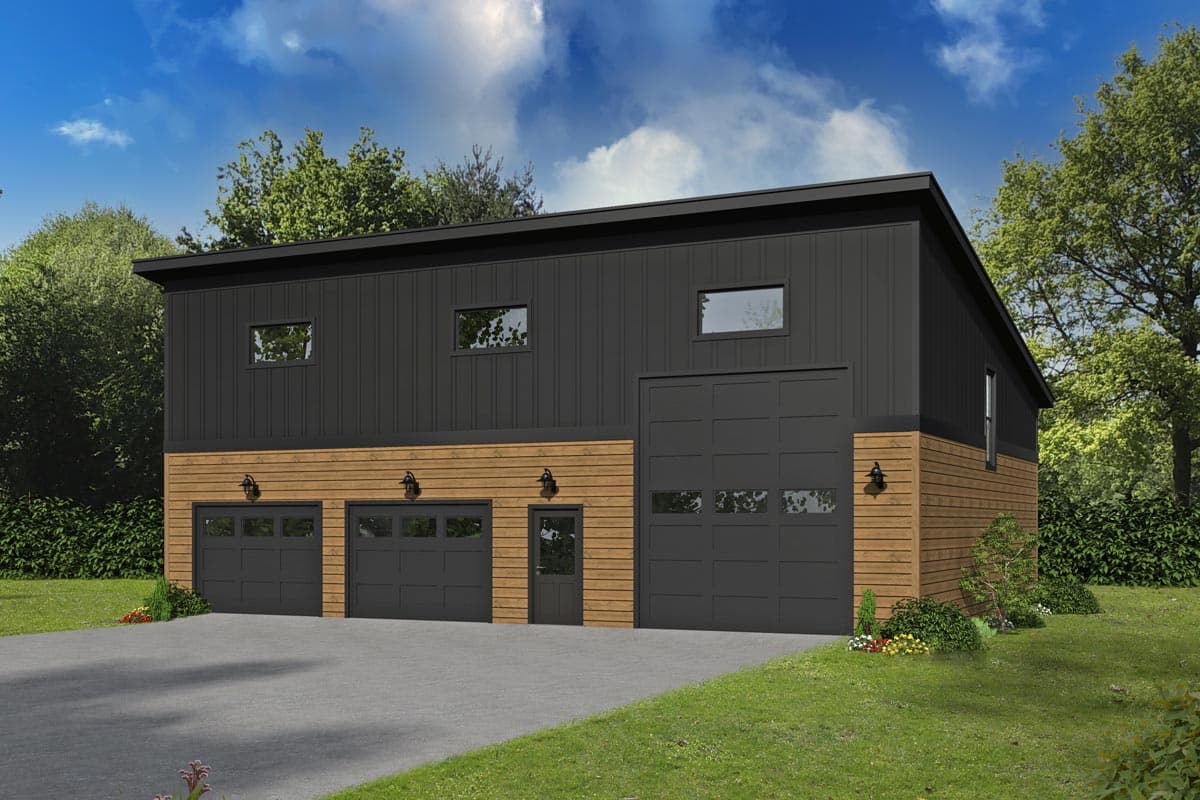

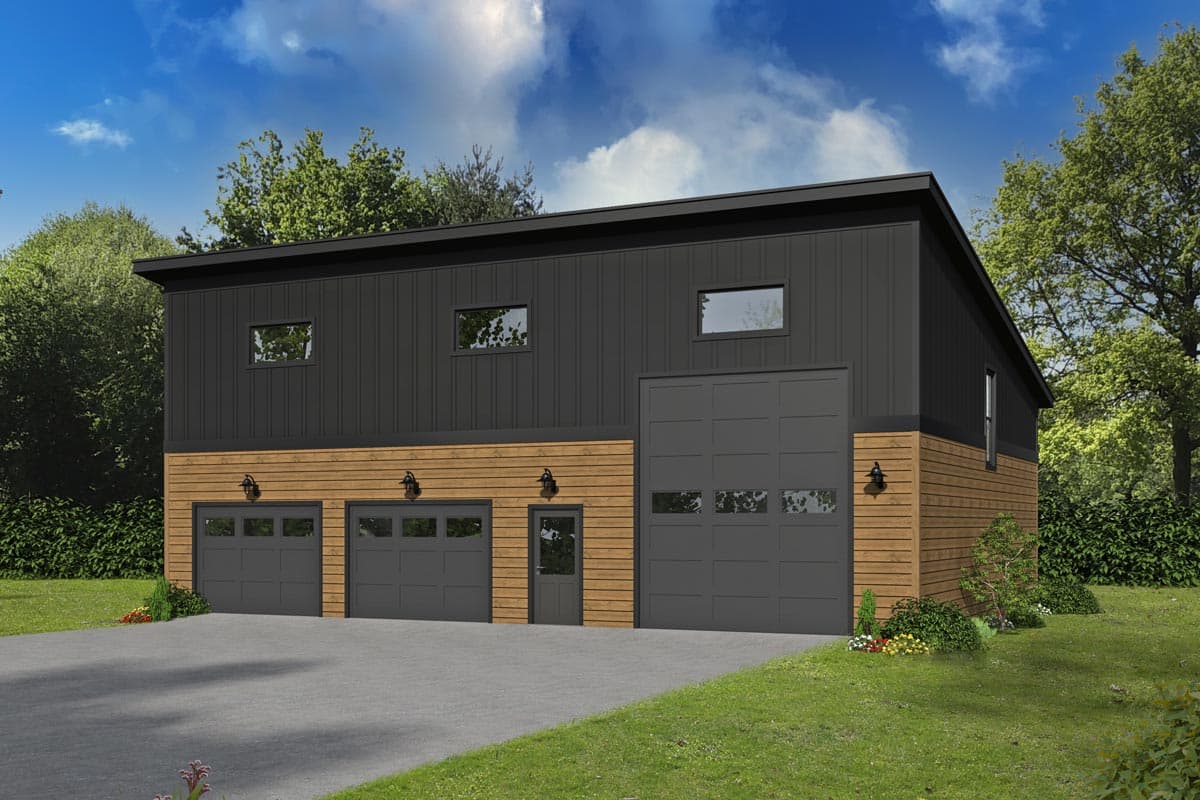

  • A mixture of board and batten and traditional siding and a 2:12 roof give it a contemporary look.
  • With a 40' depth, additional storage space is available on the main level.
  • Upstairs gives you an open loft space with the ceiling rising to 12'9" in front from 6' in back. The space has a full bath, a kitchenette and the rest of the space can be configured as you see fit.
  • Related Plan: Get an alternate version with plan 68680VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

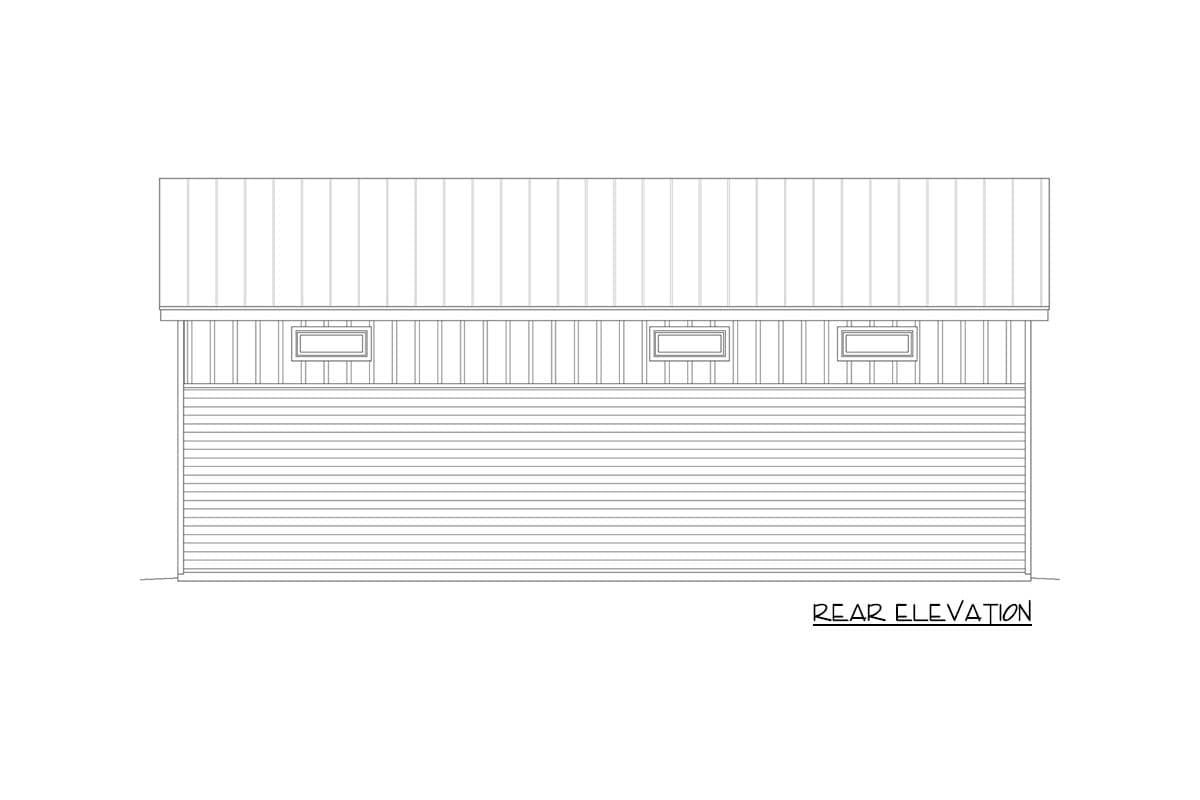

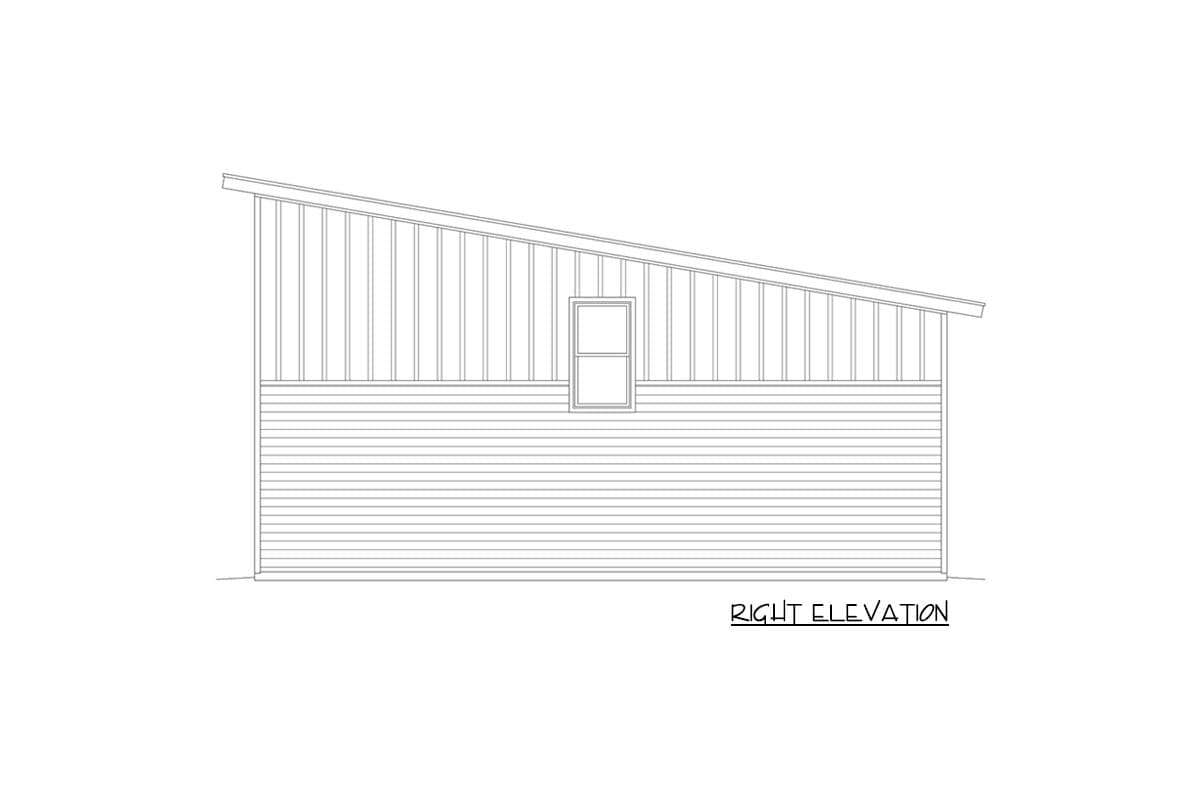

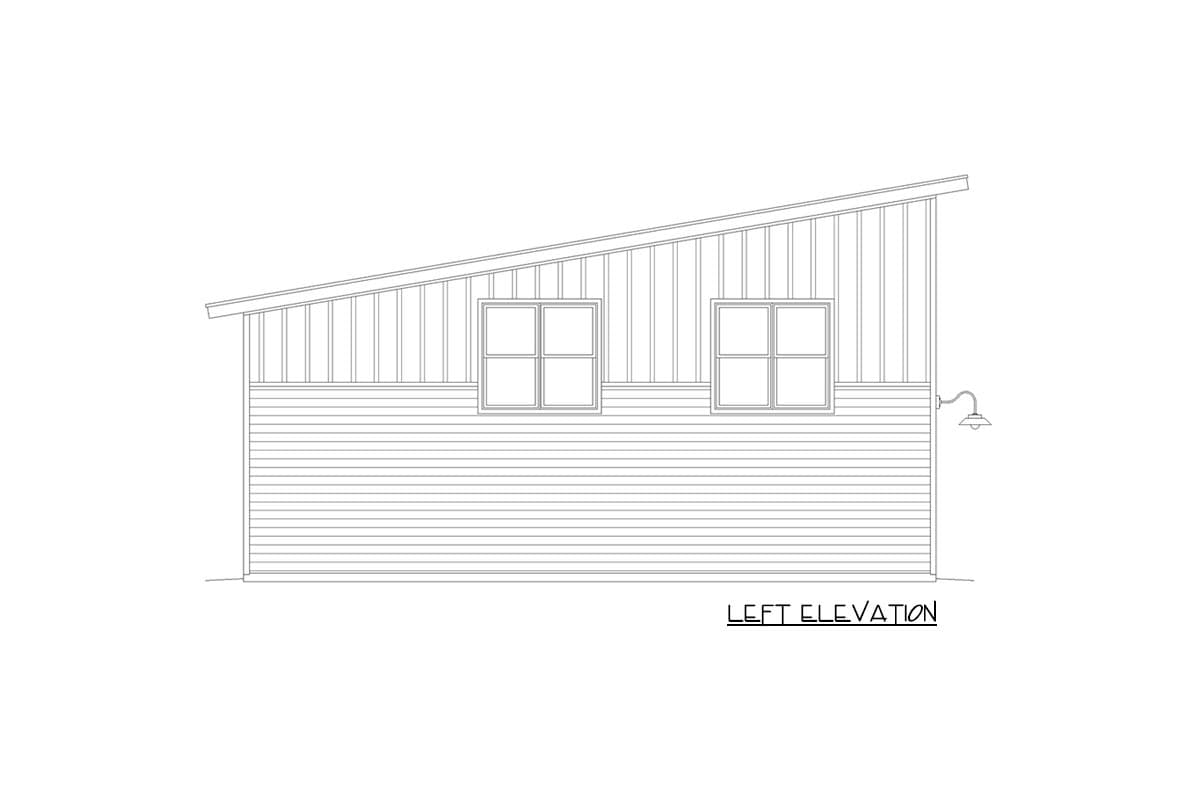

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Detached Garage with an RV Bay and an Open Loft Above - 68903VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

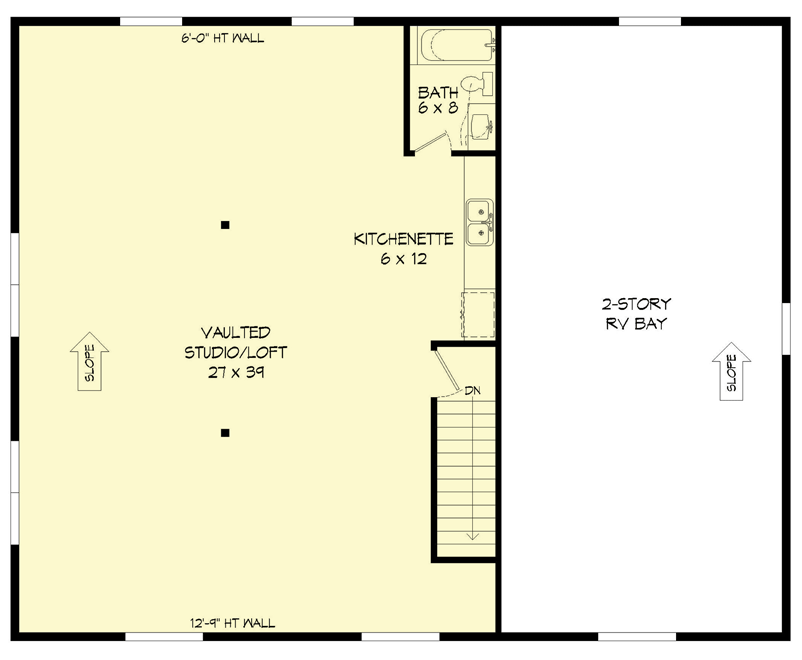

Detached Garage with an RV Bay and an Open Loft Above - 68903VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,258 sq. ft.
  • 2nd Floor: 1,258 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 40' 0"
  • Max ridge height: 23' 1"

Garage

  • Type: Detached, RV Garage
  • Area: 2000 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Loft Vaulted 27' 0" 39' 0" 6' 0" to 12' 9"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Stick

Architectural Style

Special features

Detached Garage with an RV Bay and an Open Loft Above

  • 1,258

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,495
  • 5 Sets $1,595
  • 5 Sets + PDF $1,645
  • CAD + PDF - Single-Build $1,795
  • View all purchase option online

About This Plan

  • This contemporary RV garage has 3 bays: 2 for cars or smaller vehicles behind 10' by 7' garage doors and a third bay behind a 12' by 14' garage door for your RV.
  • A mixture of board and batten and traditional siding and a 2:12 roof give it a contemporary look.
  • With a 40' depth, additional storage space is available on the main level.
  • Upstairs gives you an open loft space with the ceiling rising to 12'9" in front from 6' in back. The space has a full bath, a kitchenette and the rest of the space can be configured as you see fit.
  • Related Plan: Get an alternate version with plan 68680VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,258 sq. ft.
  • 2nd Floor: 1,258 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 40' 0"
  • Max ridge height: 23' 1"

Garage

  • Type: Detached, RV Garage
  • Area: 2000 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
Plan 68903VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68903VR
|
