Plan 81667AB
Detailed Craftsman House Plan
Heated S.F.
3,087
Beds
3-4
Baths
2.5
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

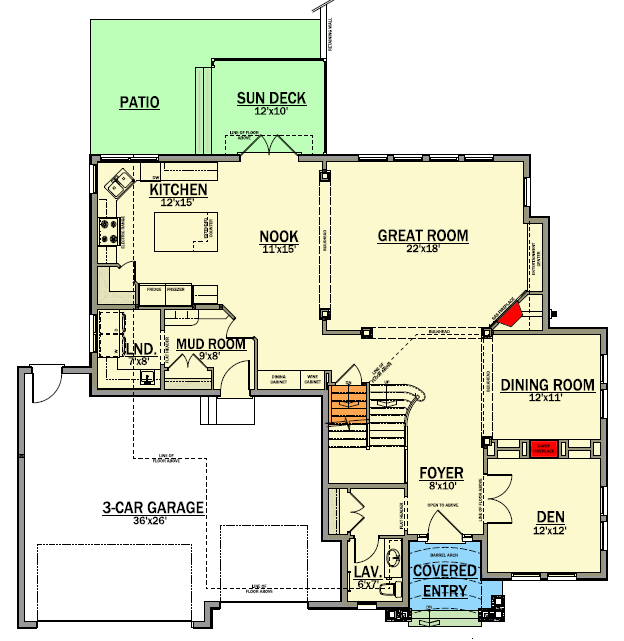

Detailed Craftsman House Plan - 81667AB floor plan - Main Level
2nd Floor
Reverse Floor Plan

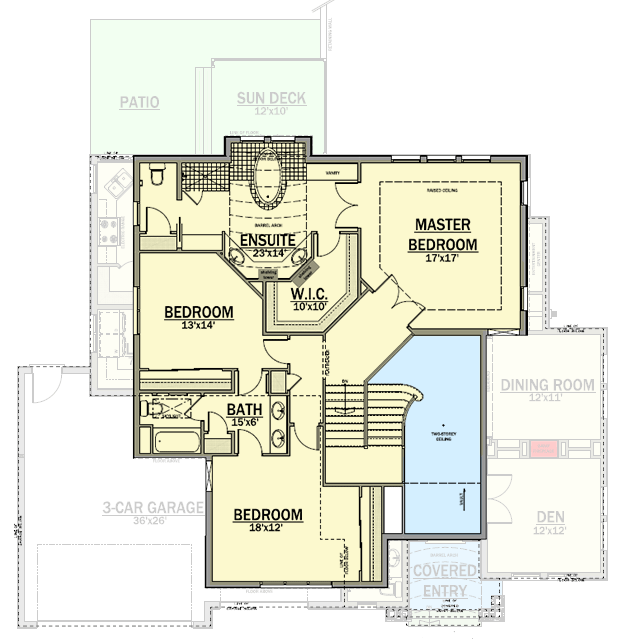

Detailed Craftsman House Plan - 81667AB floor plan - 2nd Floor
Optional Lower Level
Reverse Floor Plan

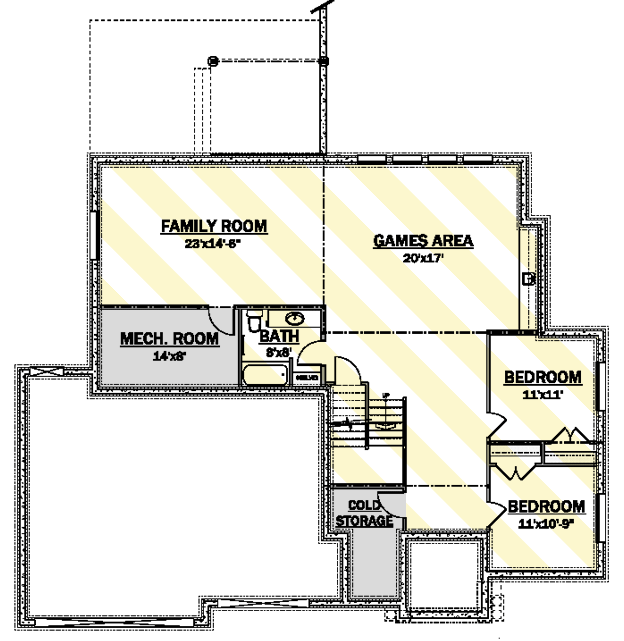

Detailed Craftsman House Plan - 81667AB floor plan - Optional Lower Level
Plan Details
  • It's all in the details and this Craftsman house plan has an abundance, both inside and out.
  • Shakes and board and battan on the exterior plus big transom windows heighten the curb appeal.
  • Interior columns inside keep the sightlines flowing between rooms and there are built-ins everywhere you look.
  • Double doors take you outside to the sundeck with a two step drop to the patio level.
  • A two-way fireplace warms both the den and the dining room.
  • All three bedrooms are on the upper floor where the master suite gets a gorgeous barrel vaulted bathroom.
  • A connected bathroom serves the other two bedrooms.
What's Included
Plans include the following:

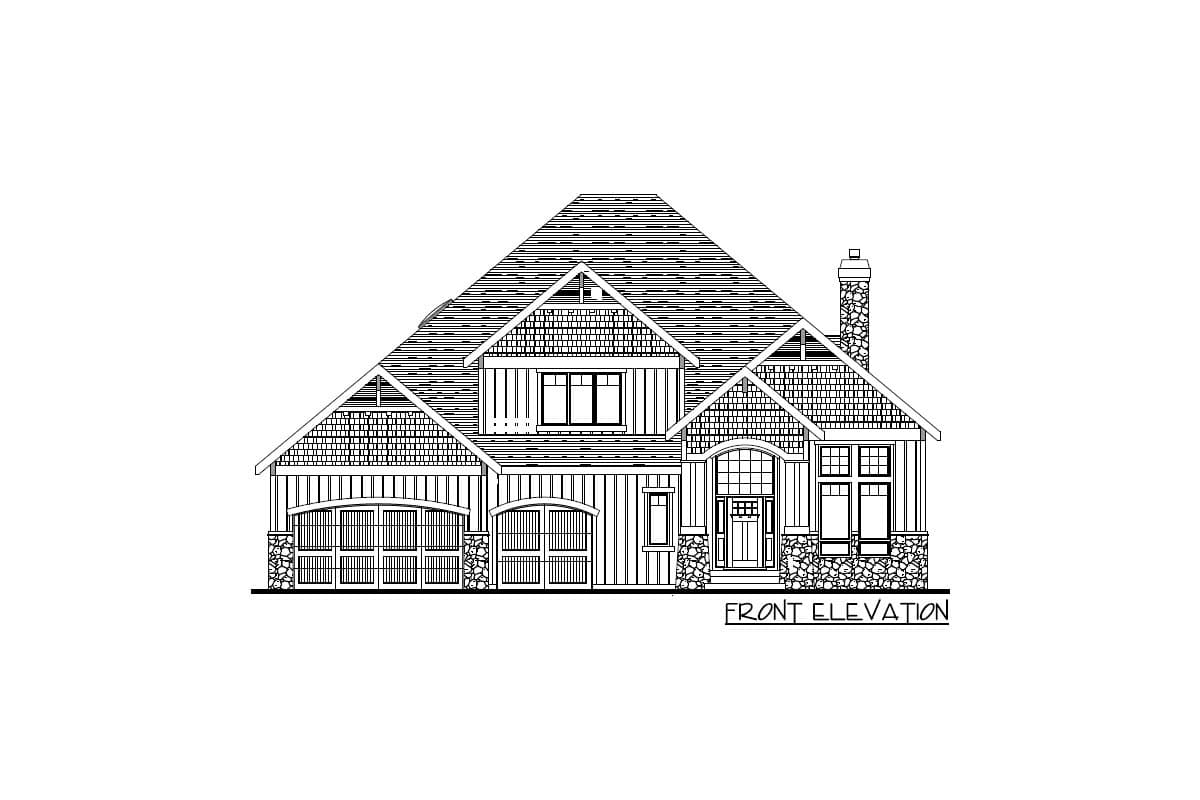

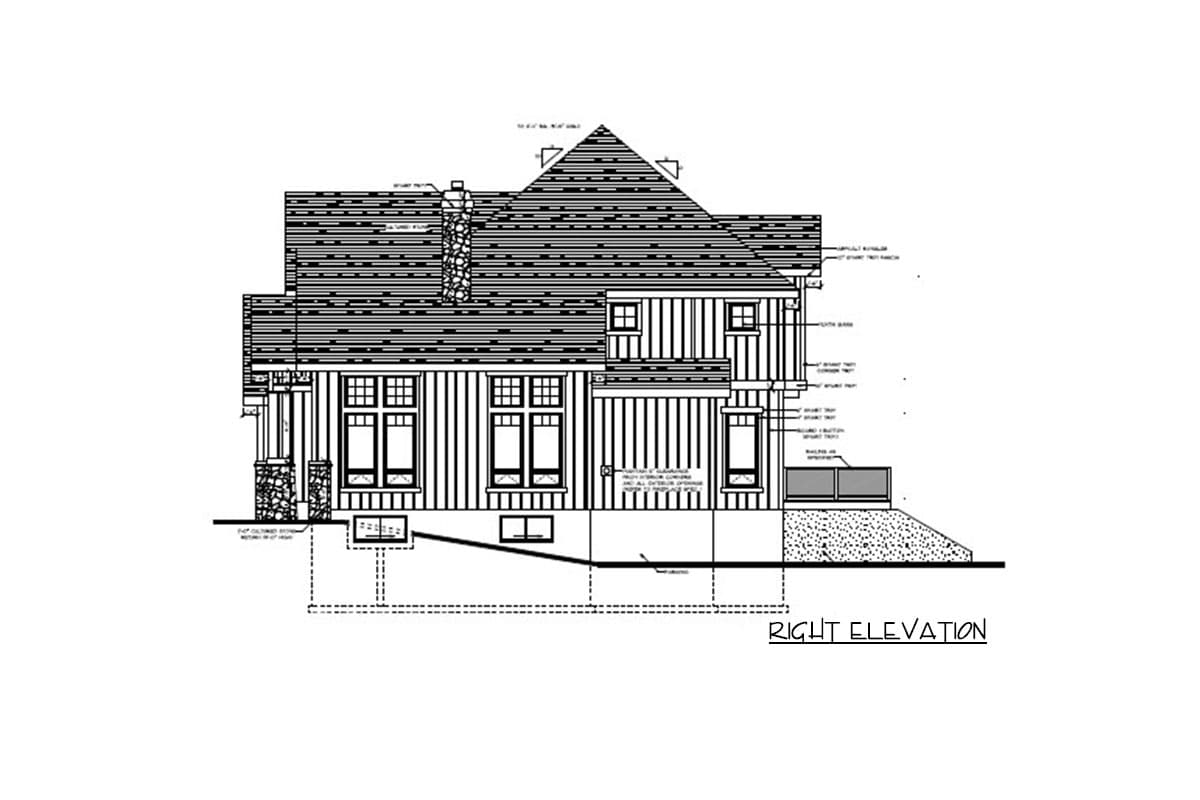

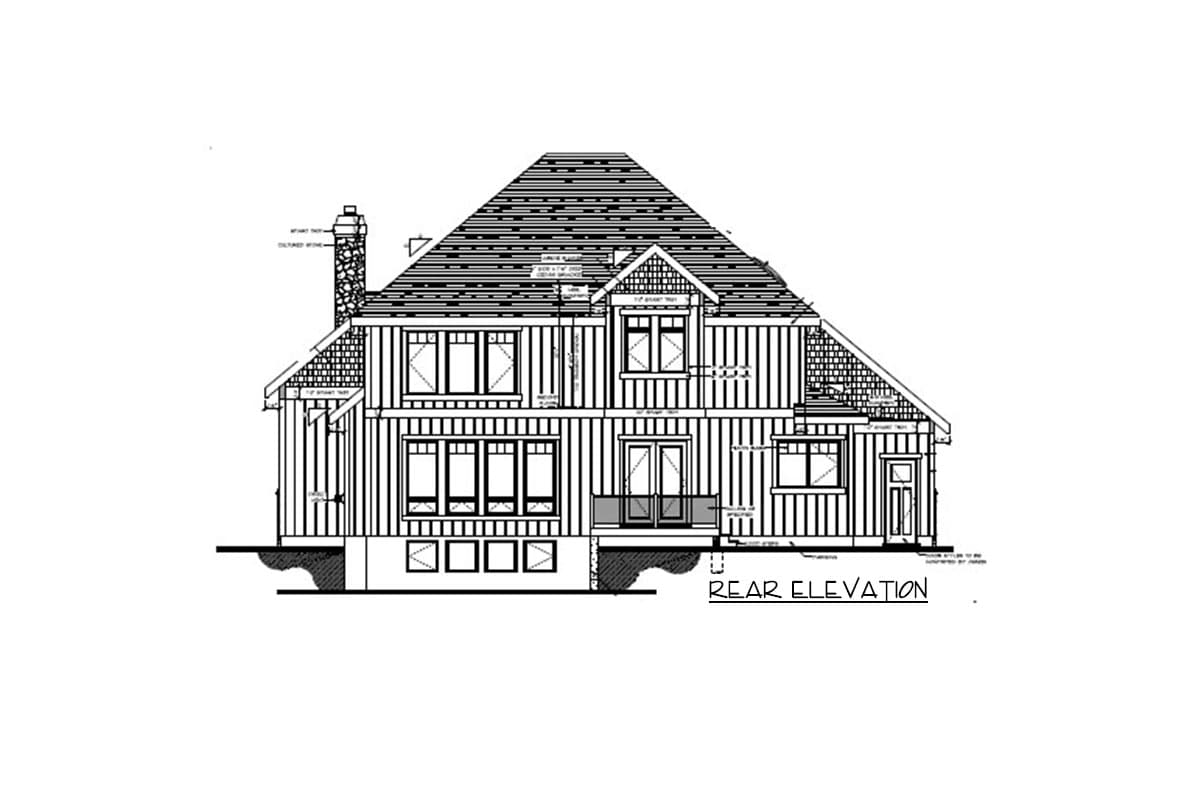

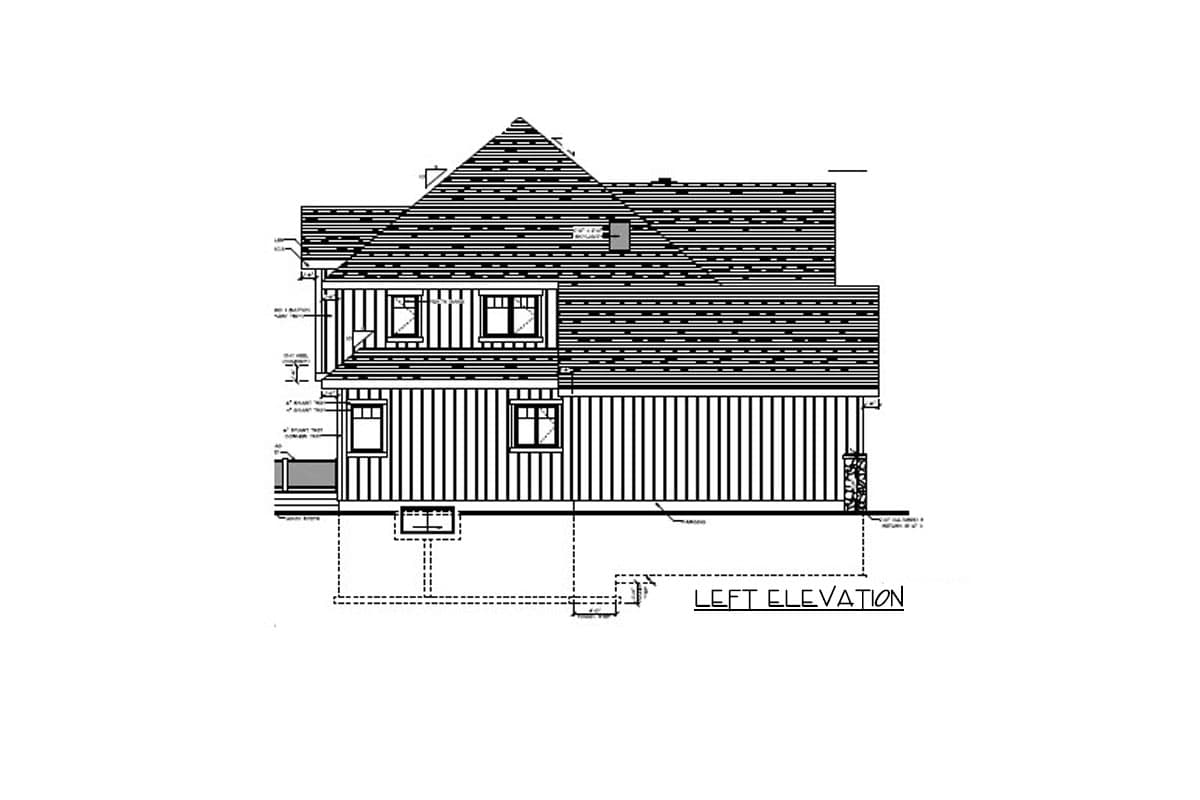

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Detailed Craftsman House Plan

  • 3,087

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,087 sq. ft.
  • 1st Floor: 1,760 sq. ft.
  • 2nd Floor: 1,327 sq. ft.

Dimensions

  • Width: 61' 0"
  • Depth: 63' 0"
  • Max ridge height: 36' 10"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 775 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 8" SIP system

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
