Plan 77613FB

Exclusive

Distinctive Traditional House Plan

Heated S.F.
2,483
Beds
3 - 5
Baths
3.5 - 4.5
Stories
1
Cars
2

Floor Plan

Plan 77613FB

Main Level
Main Level
2nd Floor
2nd Floor
Basement
Basement

Plan 77613FB

M-F 9am-5pm EST |

1-203-761-8500

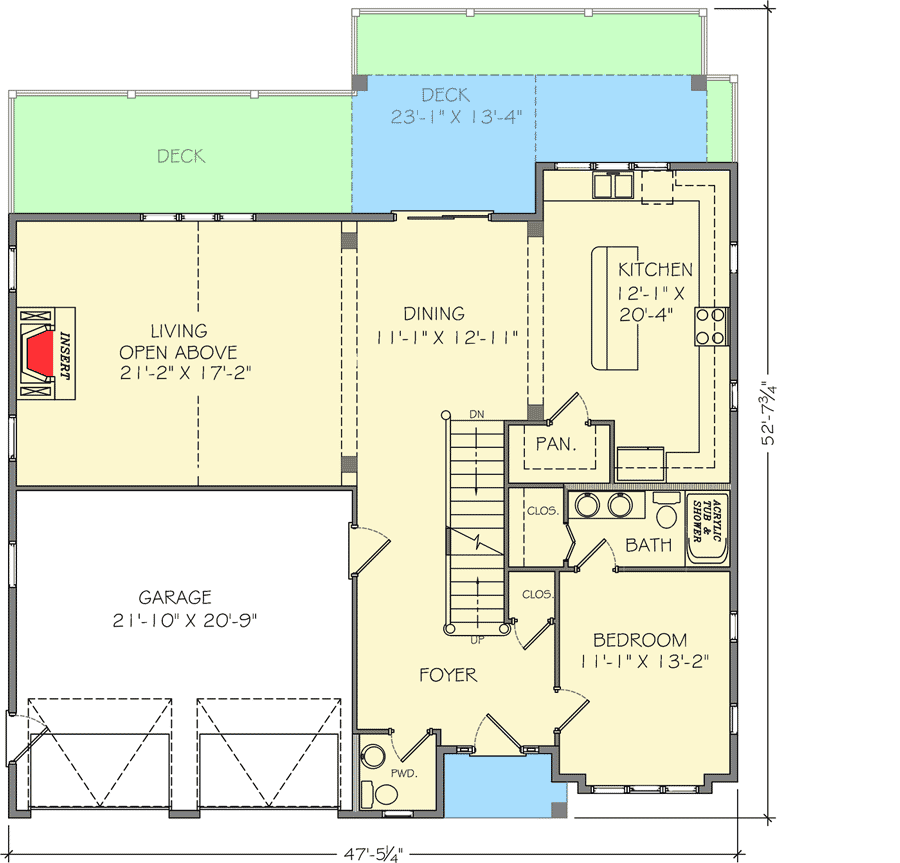

Main Level

Plan 77613FB: Distinctive Traditional House Plan - Floor Plan - Main Level - Cottage

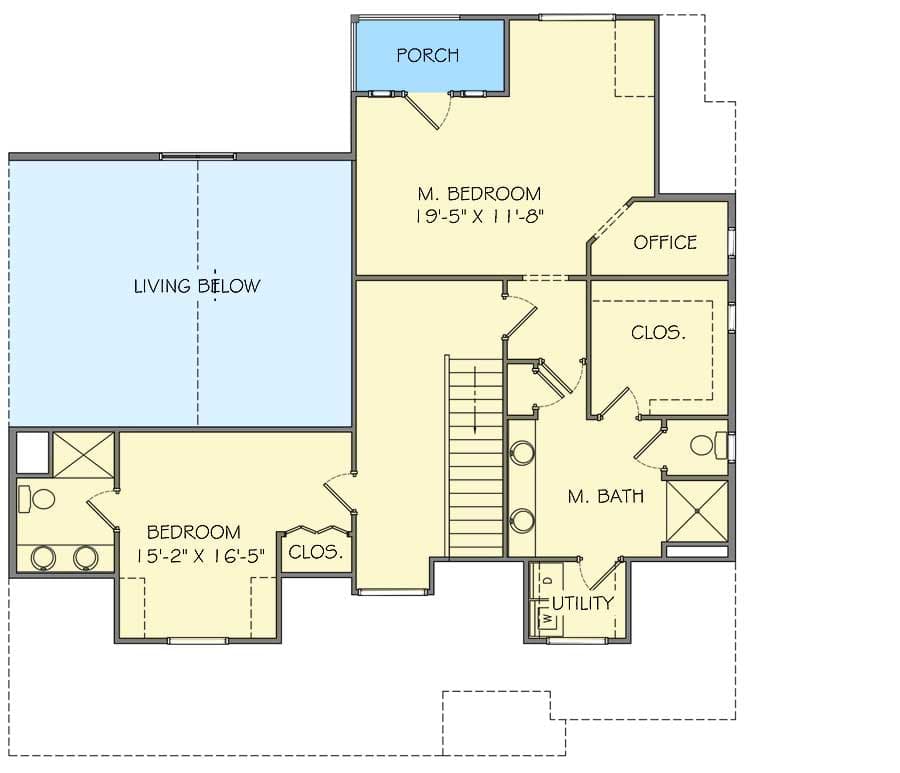

2nd Floor

Plan 77613FB: Distinctive Traditional House Plan - Floor Plan - 2nd Floor - Cottage

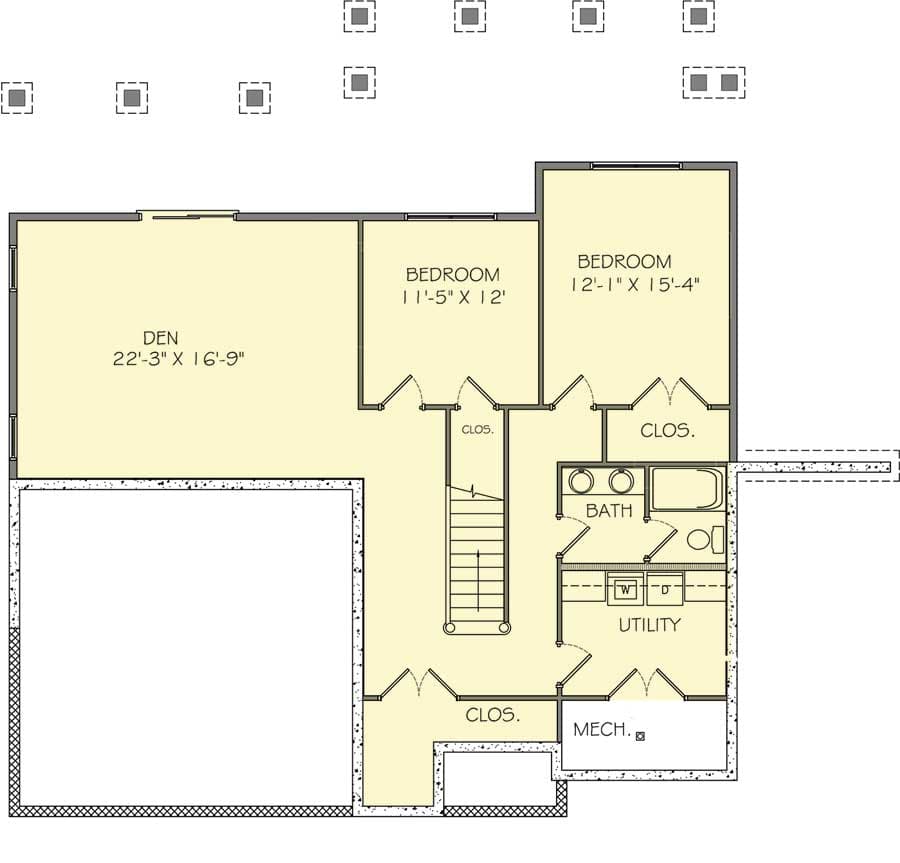

Basement

Plan 77613FB: Distinctive Traditional House Plan - Floor Plan - Basement - Cottage

Plan Details

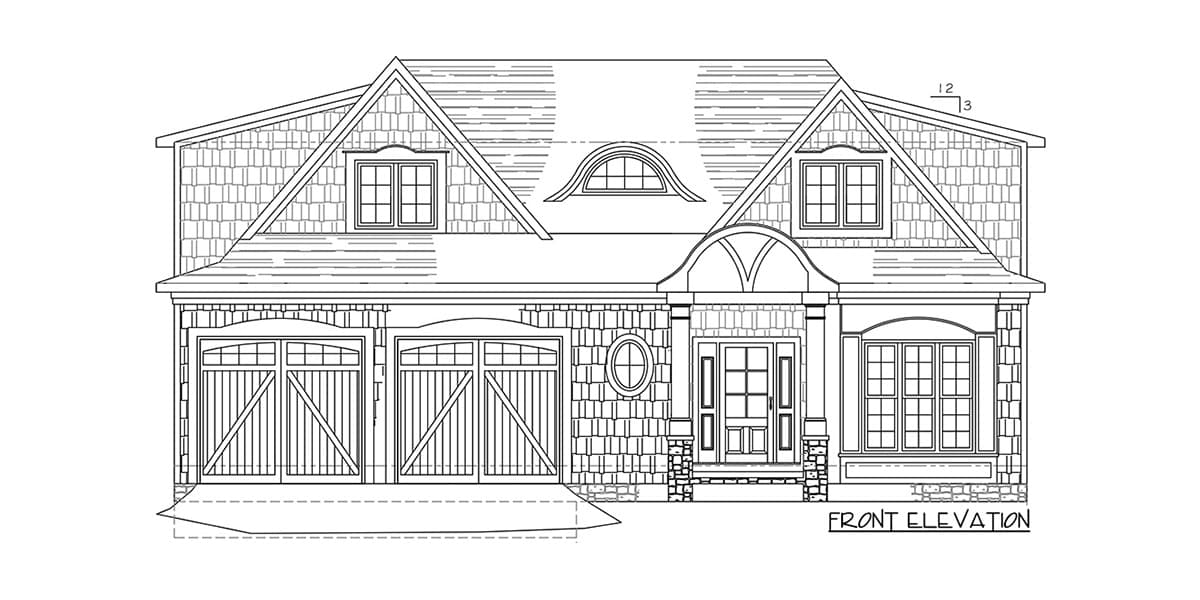

  • Wonderful shapes like the arched entry porch, round window and eyebrow dormer lend a distinctive look to this handsome Traditional house plan.

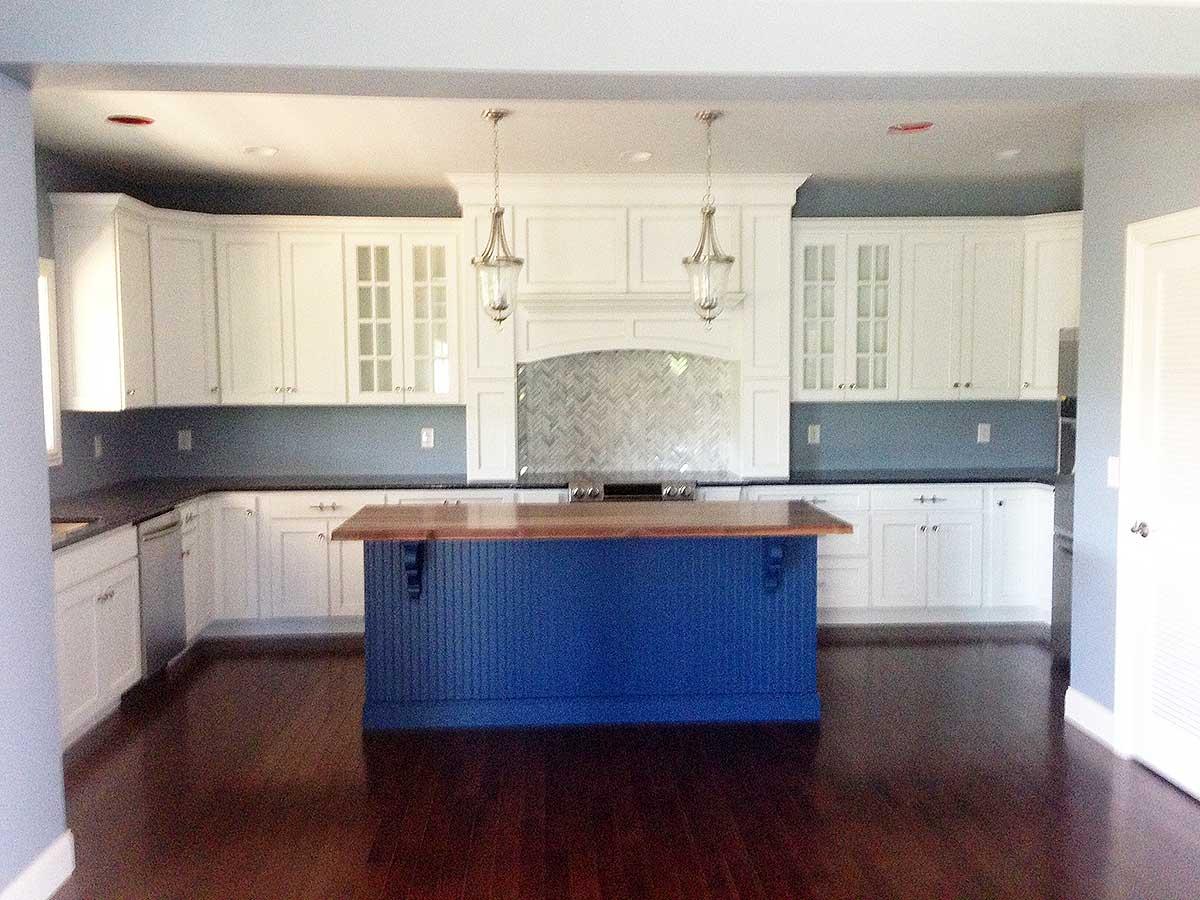

  • The U shape of the kitchen makes it most efficient with a big walk-in pantry and center island for extra storage.
  • The spacious living room has a delightful vaulted ceiling and is open to the dining area and kitchen for sweeping views.

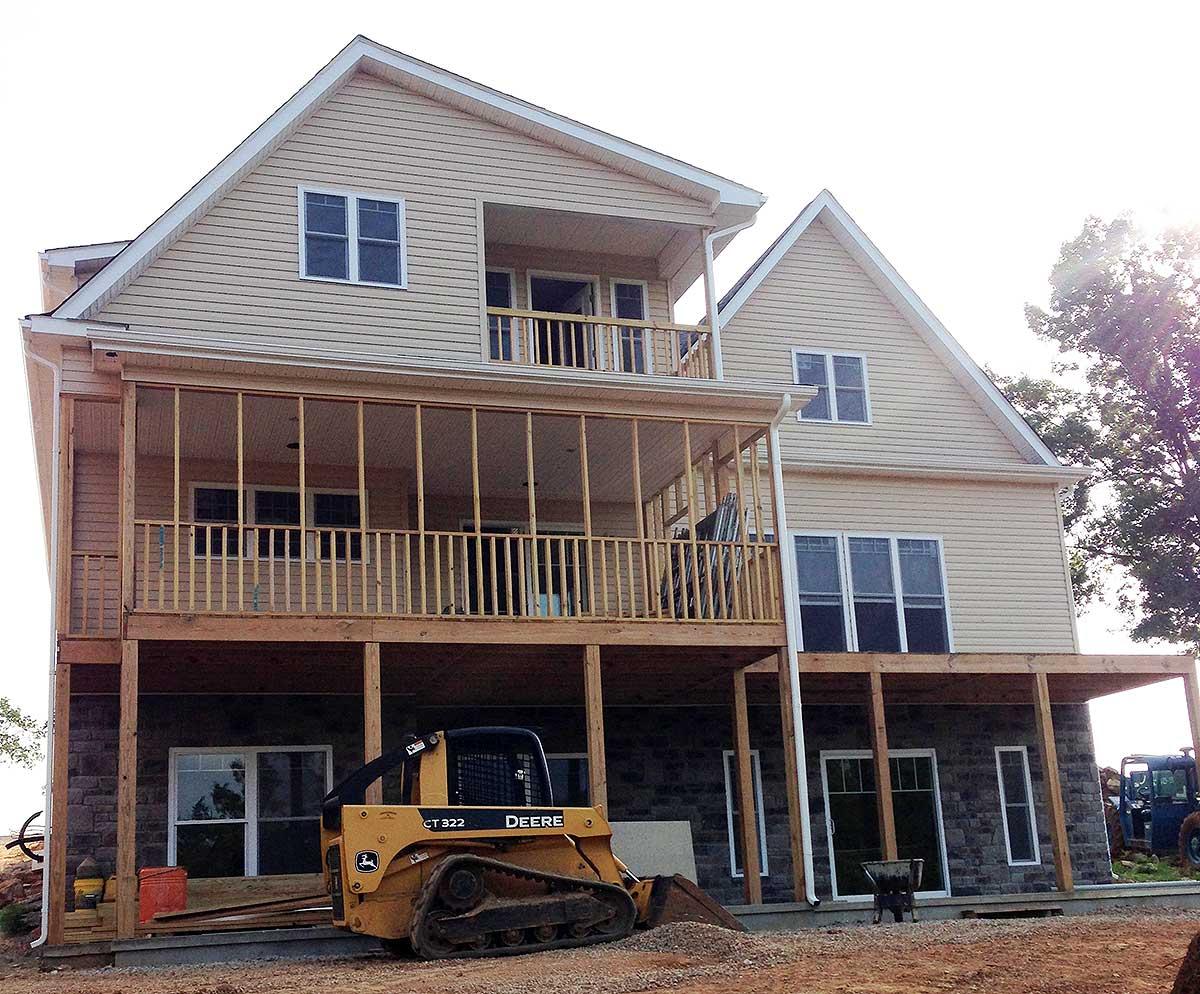

  • n back you get both an open deck and a covered deck for your outdoor enjoyment.
  • There's a first floor guest suite and upstairs you have two big bedrooms, each with their own bathroom.
  • If you finish the lower level, you gain 1312 square feet with two more bedrooms and an extra bathroom.

What's Included

  • Cover page
  • Foundation plan
  • Floor Plan
  • Elevations
  • Section View
  • Construction details
  • Electrical Layout
  • Roof Plan (if needed)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,483 sq. ft.

1st Floor

1,381 sq. ft.

2nd Floor

1,102 sq. ft.

Optional Lower Level

1,312 sq. ft.

Porch, Front

124 sq. ft.

Porch, Combined

221 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Daylight, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 5"

Depth

52' 7"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

477 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Living Room

Cathedral

0' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Cottage

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Upstairs

Master Suite - Upstairs

Two Story Great Room

Walk-in Pantry

Plan Collections

Exclusive
