Dramatic European Chateau

Plan 90129PD

  • 3,867

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Beautifully designed to resemble a European chateau, this stately home plan will have you feel like you are living in a castle.
  • An air-lock entry keeps the cold air out of the home and ushers you into the main foyer that is flanked by formal living and dining rooms.
  • A grand staircase creates a dramatic focal point.
  • Warmed by a fireplace, the extra-large family room with two sets of double doors provides the family with a comfortable place to congregate.
  • At the top of the stairs, four bedrooms, including a luxurious master suite and extravagant master bath, are accessible off a mezzanine-in-the-round. An optional bonus room above the garage is perfect for a home theater.
  • Related Plans: For a three bedroom version, see house plan 9025PD.
  • For an alternate elevation with a front-entry garage, see house plan 90097PD.

Each plan set includes the following:

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

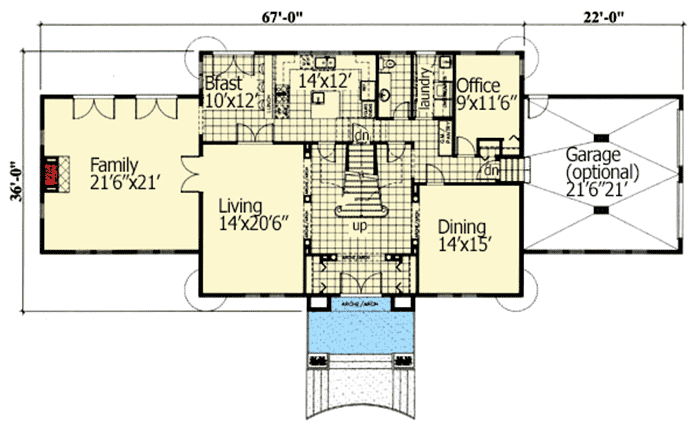

Dramatic European Chateau - 90129PD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

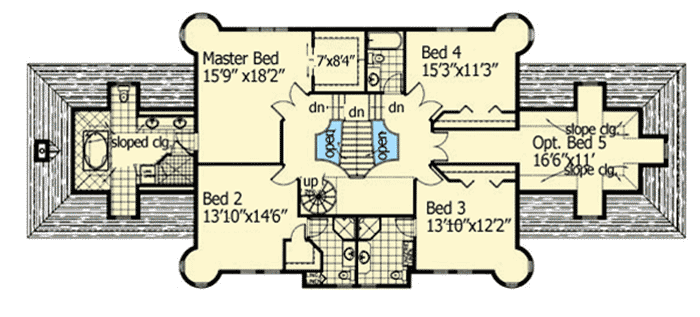

Dramatic European Chateau - 90129PD floor plan - 2nd Floor

Optional

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Dramatic European Chateau - 90129PD floor plan - Optional

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,867 sq. ft.
  • 1st Floor: 2,014 sq. ft.
  • 2nd Floor: 1,853 sq. ft.
  • Bonus: 714 sq. ft.
  • Basement Unfinished: 2,014 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 99' 0"
  • Depth: 36' 0"
  • Max ridge height: 48' 5"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Dramatic European Chateau

  • 3,867

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,597
  • 8 Sets $1,795
  • PDF - Single-Build $2,097
  • 4 Sets + PDF $2,247
  • CAD + PDF - Single Build $3,337
  • View all purchase option online

About This Plan

  • Beautifully designed to resemble a European chateau, this stately home plan will have you feel like you are living in a castle.
  • An air-lock entry keeps the cold air out of the home and ushers you into the main foyer that is flanked by formal living and dining rooms.
  • A grand staircase creates a dramatic focal point.
  • Warmed by a fireplace, the extra-large family room with two sets of double doors provides the family with a comfortable place to congregate.
  • At the top of the stairs, four bedrooms, including a luxurious master suite and extravagant master bath, are accessible off a mezzanine-in-the-round. An optional bonus room above the garage is perfect for a home theater.
  • Related Plans: For a three bedroom version, see house plan 9025PD.
  • For an alternate elevation with a front-entry garage, see house plan 90097PD.

Floor Plans

  • Main Level

  • 2nd Floor

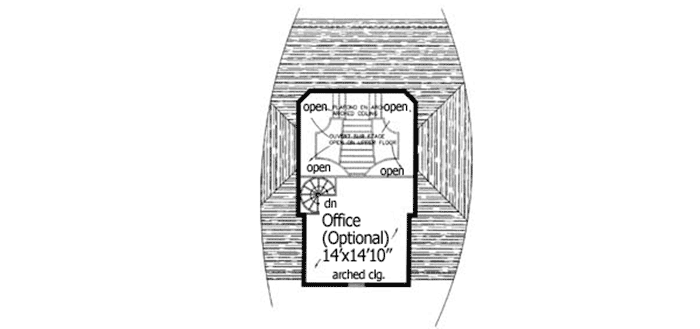

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,867 sq. ft.
  • 1st Floor: 2,014 sq. ft.
  • 2nd Floor: 1,853 sq. ft.
  • Bonus: 714 sq. ft.
  • Basement Unfinished: 2,014 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 99' 0"
  • Depth: 36' 0"
  • Max ridge height: 48' 5"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss
