Dramatic Florida House Plan

Plan 66363WE

  • 2,684

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

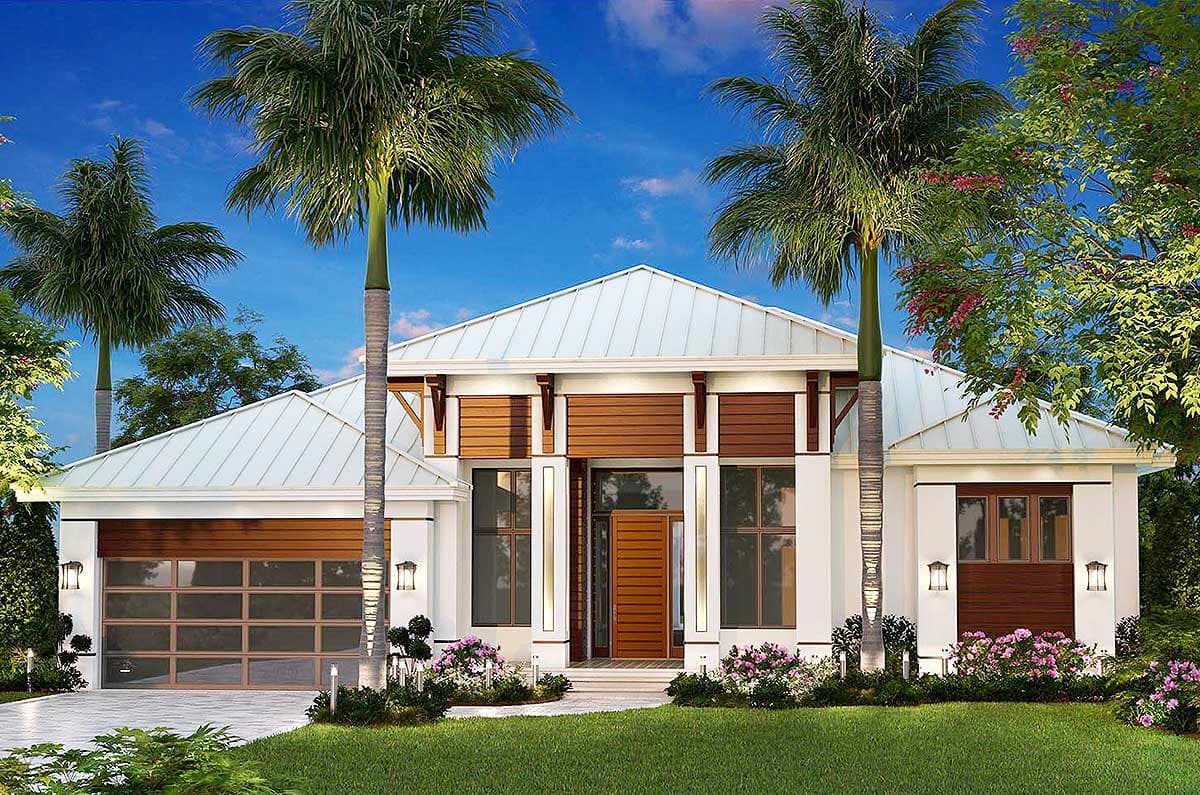

  • Decorative detailing gives a contemporary edge to this very special Florida house plan.
  • Almost every room in the house gets a high-end ceiling treatment that creates a custom feel.
  • The open floor plan enhances the sight-lines that sweep right out to the rear covered lanai through walls of sliding glass doors.
  • The wet bar in the great room serves the entire living area.
  • Rest easy in your stunning master suite with its luxurious master bathroom that comes with a vaulted ceiling and a grand soaking tub set in the middle of the room.
  • On the opposite side of the home, there are two more bedrooms and bathrooms.
  • Even the outdoor living space in this home comes with special ceiling treatments and a fabulous summer kitchen.

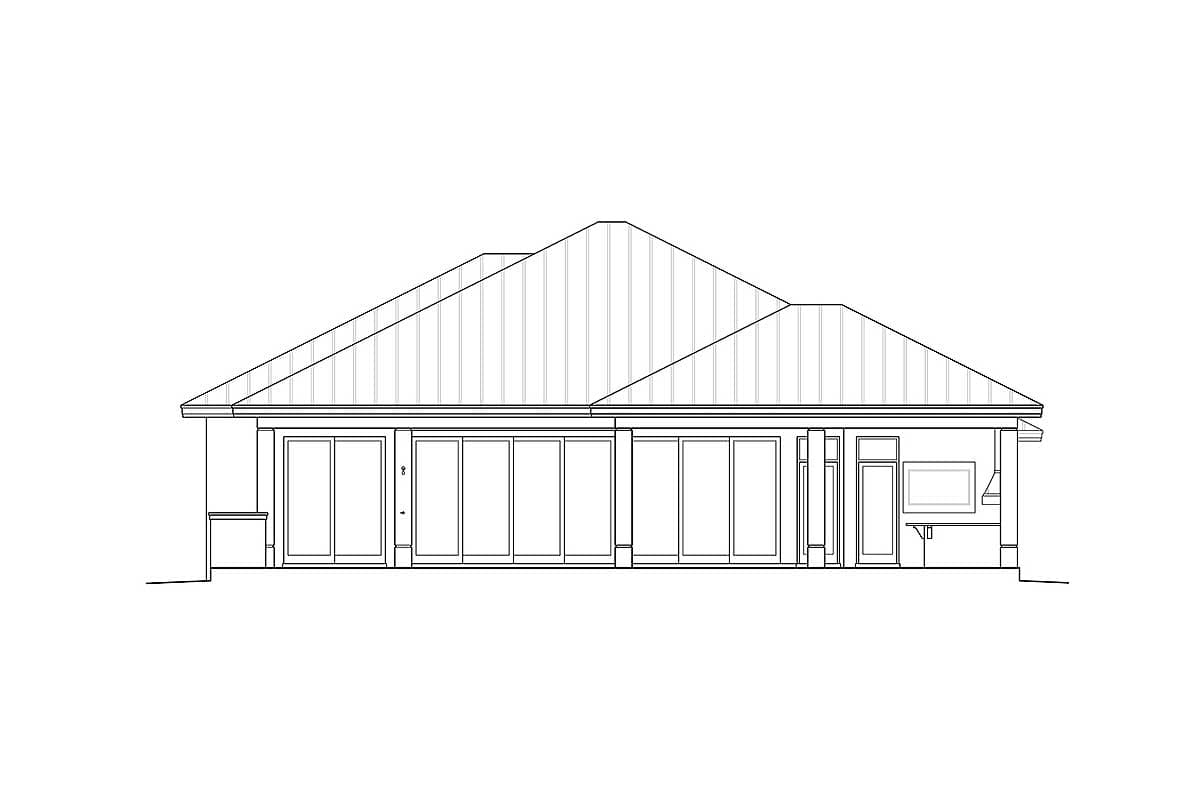

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



Dramatic Florida House Plan

  • 2,684

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,400
  • PDF - single-use $1,400
  • CAD $1,400
  • View all purchase option online

About This Plan

  • Decorative detailing gives a contemporary edge to this very special Florida house plan.
  • Almost every room in the house gets a high-end ceiling treatment that creates a custom feel.
  • The open floor plan enhances the sight-lines that sweep right out to the rear covered lanai through walls of sliding glass doors.
  • The wet bar in the great room serves the entire living area.
  • Rest easy in your stunning master suite with its luxurious master bathroom that comes with a vaulted ceiling and a grand soaking tub set in the middle of the room.
  • On the opposite side of the home, there are two more bedrooms and bathrooms.
  • Even the outdoor living space in this home comes with special ceiling treatments and a fabulous summer kitchen.

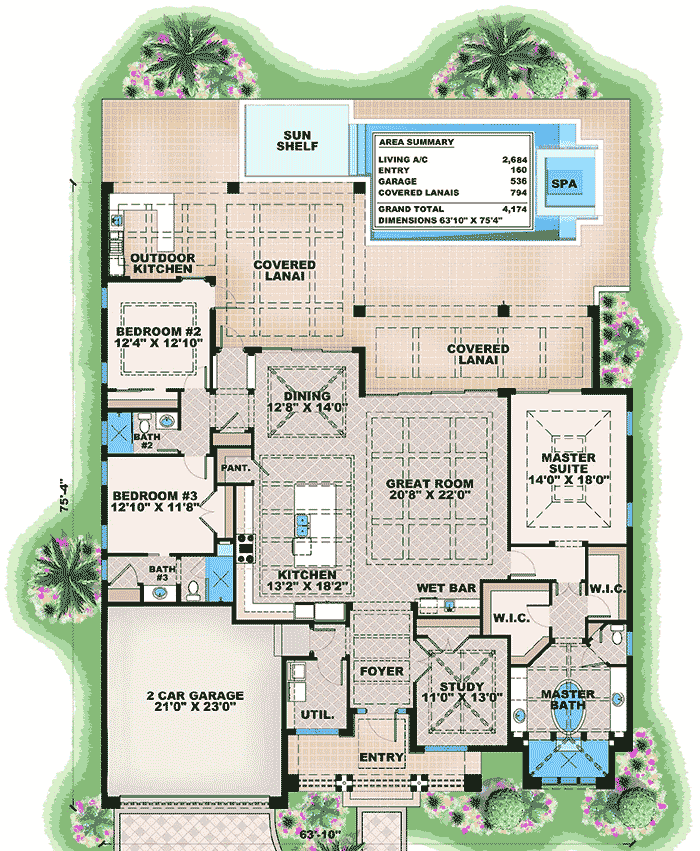

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,684 sq. ft.
  • 1st Floor: 2,684 sq. ft.
  • Lanai: 794 sq. ft.
  • Entry: 160 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 63' 10"
  • Depth: 75' 4"
  • Max ridge height: 26' 11"

Garage

  • Type: Attached
  • Area: 536 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
