Plan 12945KN
Dramatic Northwest Home with Contemporary Styling
Heated S.F.
7,419
Beds
5
Baths
4.5+
Stories
2
Cars
3
What's Included
Plan Details
  • This dramatic Northwest house plan is overflowing with all the space and luxury you could want.
  • The gorgeous master suite is in a world of its own separated from the main house, with a sitting area, private porch, romantic fireplace and a stunning master bathroom with two gigantic walk-in closets.
  • Wide, open spaces in the main living area give you sweeping views of the beamed living room, kitchen and dining room.
  • The L-shaped covered outdoor living area keeps you warm in the glow of an outdoor fireplace.
  • Three large bedrooms on the upper floor share a large loft space with open railing that lets you see into the living room below.
  • But wait!  There's more on a fully finished lower level that has a large family room with wet bar, a bedroom suite, bonus room and a private office set away from the rest of the lower level.
  • Storage can be found all throughout the house for all your extras.
What's Included

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Dramatic Northwest Home with Contemporary Styling

  • 7,419

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

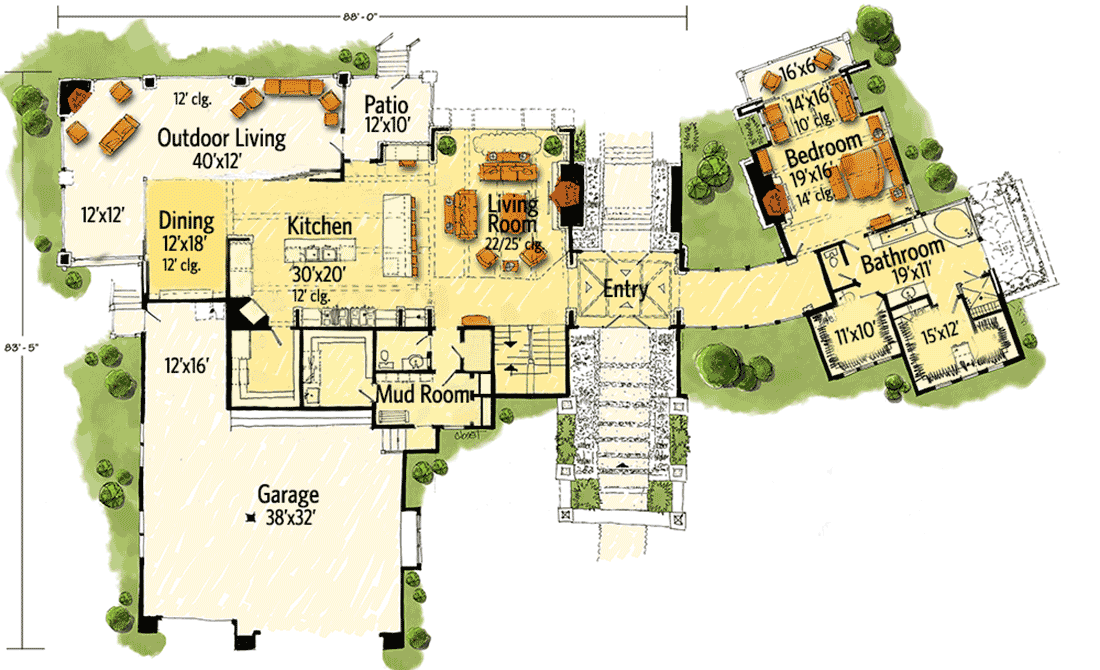

  • Main Level

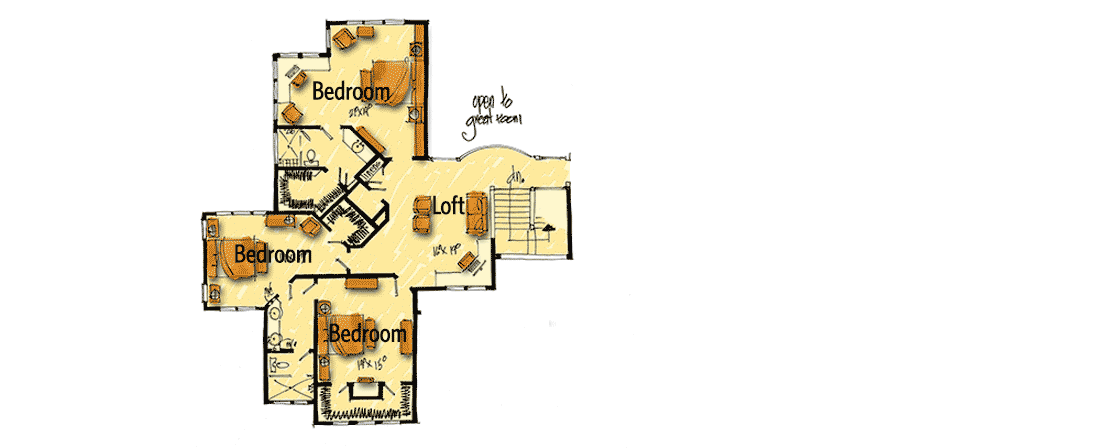

  • 2nd Floor

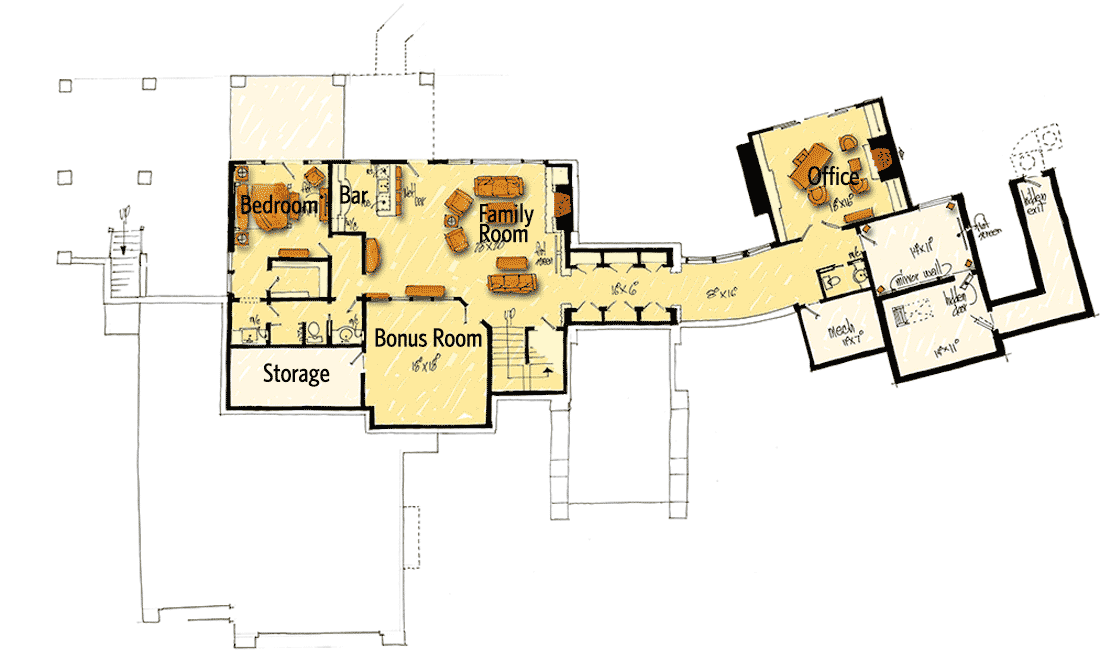

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 7,419 sq. ft.
  • Lower Level: 2,475 sq. ft.
  • 1st Floor: 3,257 sq. ft.
  • 2nd Floor: 1,687 sq. ft.

Dimensions

  • Width: 140' 6"
  • Depth: 97' 6"
  • Max ridge height: 47' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1523 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
