Dramatic Views

Plan 90130PD

  • 1,996

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • Dramatic views off the dramatic rear veranda will take your breath away.
  • The living room is anchored by a stone fireplace flanked by windows looking out the rear.
  • On one side you'll find the dining room open to the kitchen with an anglerd eat-at counter and loads of counterspace.
  • The master bedroom occupies the other wing and has access through French doors to the rear porch.
  • A family room and two more bedrooms in opposite wings completes this unique vacation house plan.
  • The roof is a truss design and has a 8:12 pitch and a 12:12 pitch over the front door.
  • Related Plans: Building in reverse? See house plan 9016PD (2,222 sq. ft.).

Each plan set includes the following:

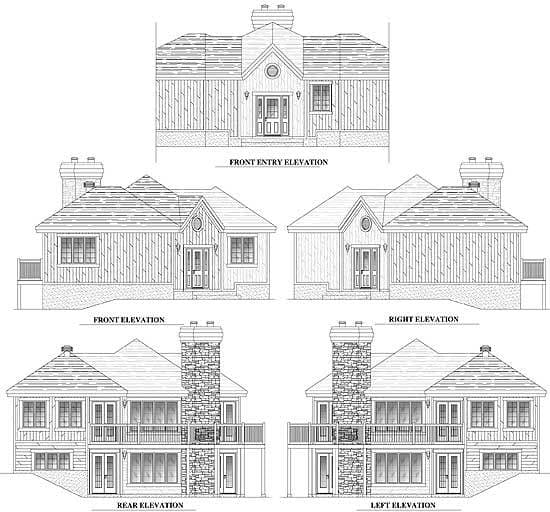

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

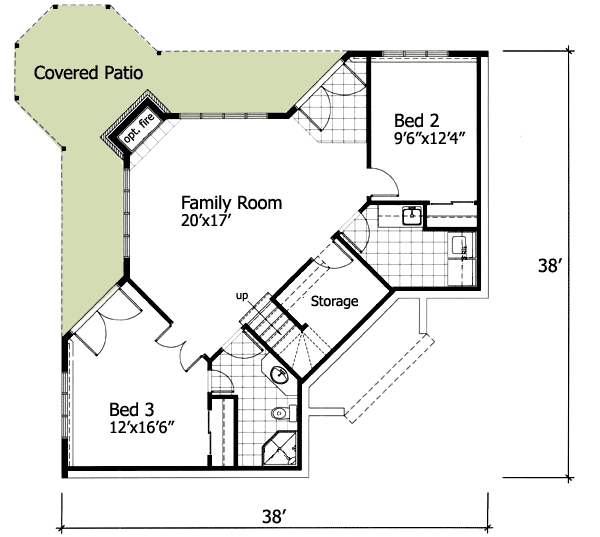

Dramatic Views - 90130PD floor plan - Lower Level

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

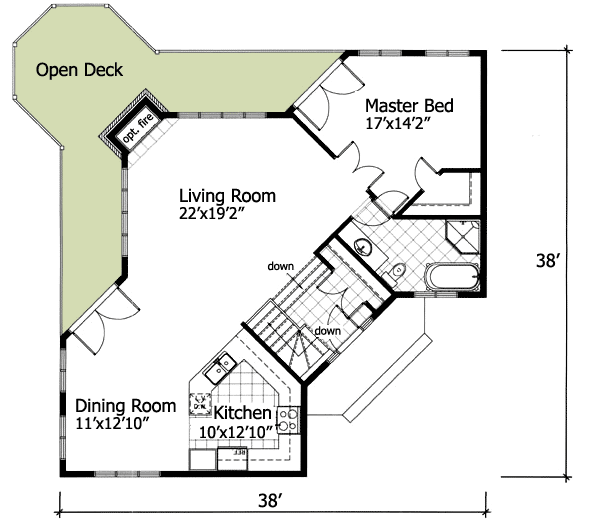

Dramatic Views - 90130PD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,996 sq. ft.
  • Lower Level: 998 sq. ft.
  • 1st Floor: 998 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 38' 0"
  • Max ridge height: 22' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 8" First Floor / 8' 2"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Dramatic Views

  • 1,996

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • 5 Sets $1,132
  • 8 Sets $1,177
  • PDF - Single-Build $1,531
  • CAD - Single-Build $2,346
  • View all purchase option online

About This Plan

  • Dramatic views off the dramatic rear veranda will take your breath away.
  • The living room is anchored by a stone fireplace flanked by windows looking out the rear.
  • On one side you'll find the dining room open to the kitchen with an anglerd eat-at counter and loads of counterspace.
  • The master bedroom occupies the other wing and has access through French doors to the rear porch.
  • A family room and two more bedrooms in opposite wings completes this unique vacation house plan.
  • The roof is a truss design and has a 8:12 pitch and a 12:12 pitch over the front door.
  • Related Plans: Building in reverse? See house plan 9016PD (2,222 sq. ft.).

Floor Plans

  • Lower Level

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,996 sq. ft.
  • Lower Level: 998 sq. ft.
  • 1st Floor: 998 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 38' 0"
  • Max ridge height: 22' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 8" First Floor / 8' 2"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
