Plan 9016PD

Sweeping Views

Heated S.F.
2,222
Beds
3
Baths
2
Stories
2, or 1

Floor Plan

Plan 9016PD

Basement
Basement
Main Level
Main Level

Plan 9016PD

M-F 9am-5pm EST |

1-203-761-8500

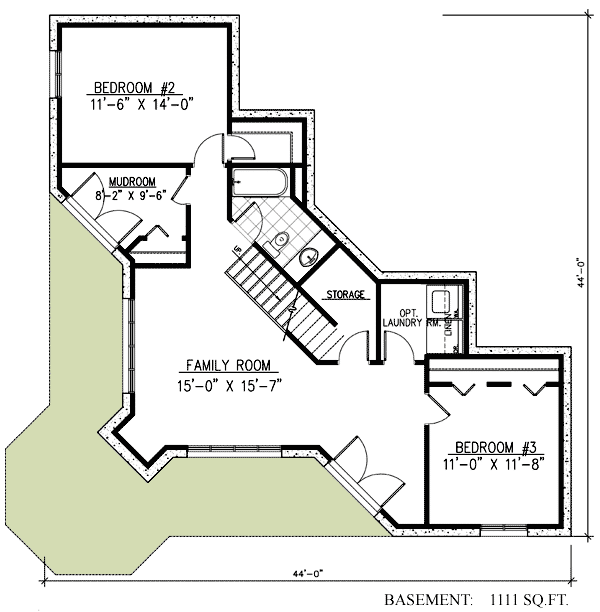

Basement

Plan 9016PD: Sweeping Views - Floor Plan - Basement - Cottage, Mountain, Vacation

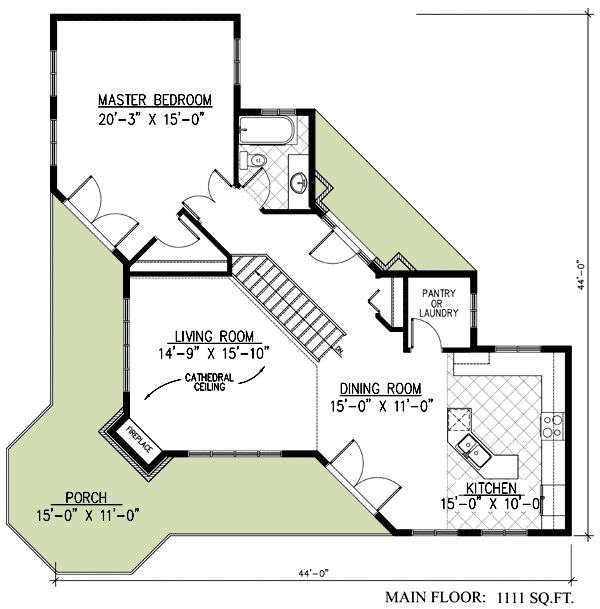

Main Level

Plan 9016PD: Sweeping Views - Floor Plan - Main Level - Cottage, Mountain, Vacation

Plan Details

  • Sweeping views off the dramatic rear veranda will take your breath away.
  • The living room is anchored by a stone fireplace flanked by windows looking out the rear.
  • On one side you'll find the dining room open to the kitchen with an anglerd eat-at counter and loads of counterspace.
  • The master bedroom occupies the other wing and has access through French doors to the rear porch.
  • A family room and two more bedrooms in opposite wings completes this unique vacation house plan.
  • Related Plan: Building in reverse? See house plan 90130PD (1,996 sq. ft.).

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,222 sq. ft.

Lower Level

1,111 sq. ft.

1st Floor

1,111 sq. ft.

Deck

165 sq. ft.

Porch, Front

68 sq. ft.

Porch, Rear

346 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

44' 0"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Mountain

Vacation

Special Features

Accessible Design

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Canadian House Plans

Metric

Sloping Lot

Square Footage Breakdown

Total Heated Area

2,222 sq. ft.

Lower Level

1,111 sq. ft.

1st Floor

1,111 sq. ft.

Deck

165 sq. ft.

Porch, Front

68 sq. ft.

Porch, Rear

346 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

44' 0"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Mountain

Vacation

Special Features

Accessible Design

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Canadian House Plans

Metric

Sloping Lot
