Dream Estate

Plan 66071WE

  • 6,649

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • This fantastic two-story estate house plan features five bedrooms, five and a half baths, a study and conservatory.
  • The large gourmet kitchen offers a butler's pantry and wine cellar.
  • Entertaining in the formal dining room will be convenient with a large serving bar and wet bar.
  • The family room is comfortably outfitted with a fireplace and built-in entertainment center.
  • You won't want to miss the view from the large dinette with a wall of mitered glass overlooking the pool area.
  • This home is graced with fantastic outdoor living areas, a huge covered lanai and outdoor kitchen area flowing into a bridge that crosses over the koi ponds into a large gazebo with a private fireplace.
  • Upstairs is accessible by either an elevator or the elegantly appointed stairwell with wrought iron and oak railing. Upstairs, you will pass through a colonnade of stone columns and archways that overlook the first floor family room, and enter a generous living/game room with wet bar.
  • From both guest suites, you can step out onto private lanais, one offering a bridge onto the exciting observation deck.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



Dream Estate

  • 6,649

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • Reproducible Set $4,800
  • PDF - single-use $4,800
  • CAD $4,800
  • View all purchase option online

About This Plan

  • This fantastic two-story estate house plan features five bedrooms, five and a half baths, a study and conservatory.
  • The large gourmet kitchen offers a butler's pantry and wine cellar.
  • Entertaining in the formal dining room will be convenient with a large serving bar and wet bar.
  • The family room is comfortably outfitted with a fireplace and built-in entertainment center.

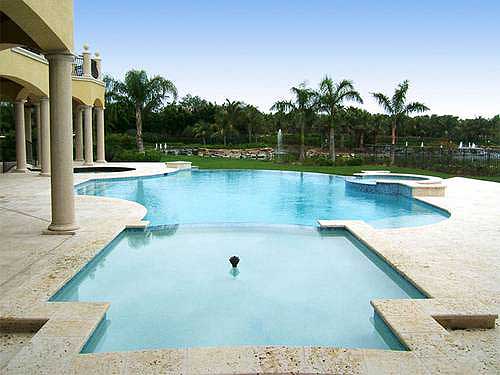

  • You won't want to miss the view from the large dinette with a wall of mitered glass overlooking the pool area.
  • This home is graced with fantastic outdoor living areas, a huge covered lanai and outdoor kitchen area flowing into a bridge that crosses over the koi ponds into a large gazebo with a private fireplace.
  • Upstairs is accessible by either an elevator or the elegantly appointed stairwell with wrought iron and oak railing. Upstairs, you will pass through a colonnade of stone columns and archways that overlook the first floor family room, and enter a generous living/game room with wet bar.
  • From both guest suites, you can step out onto private lanais, one offering a bridge onto the exciting observation deck.

Floor Plans

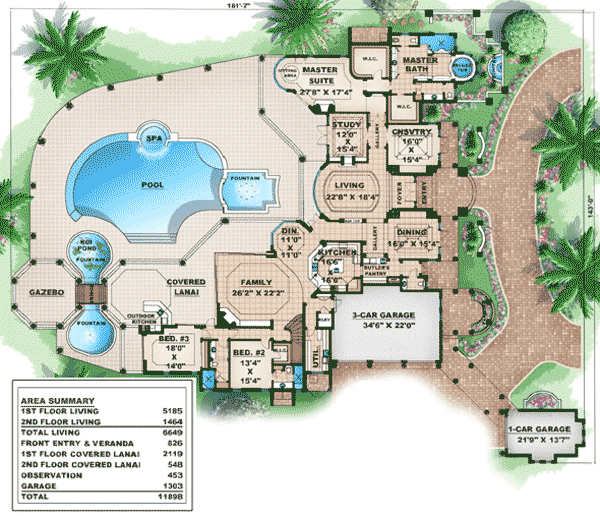

  • Main Level

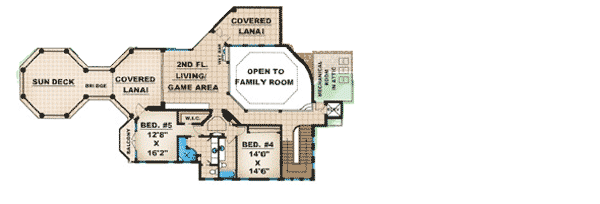

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,649 sq. ft.
  • 1st Floor: 5,185 sq. ft.
  • 2nd Floor: 1,464 sq. ft.
  • Lanai: 2,667 sq. ft.
  • Entry: 826 sq. ft.
  • Balcony / Veranda: 453 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6 and Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 143' 0"
  • Depth: 181' 7"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 1303 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
