Dreamy Modern Farmhouse Plan with Loft Overlooking Great and Dining Rooms

Plan 70603MK

  • 3,342

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

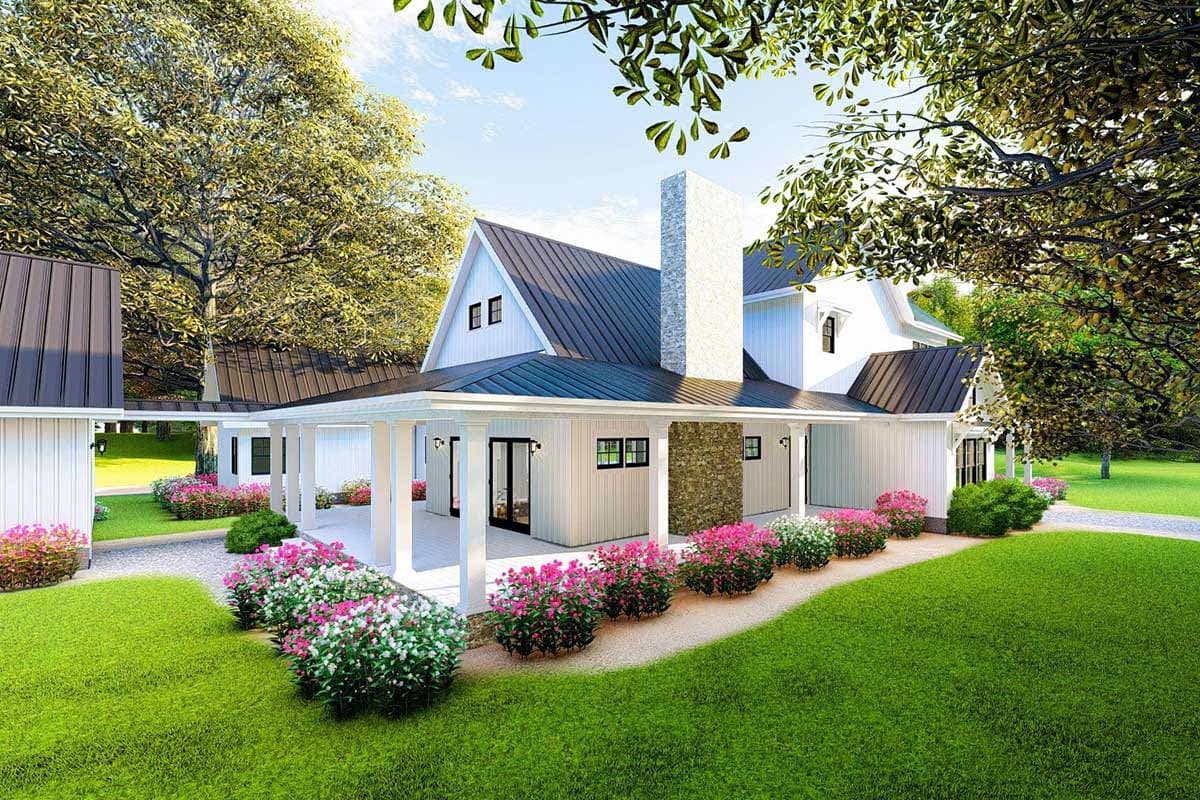

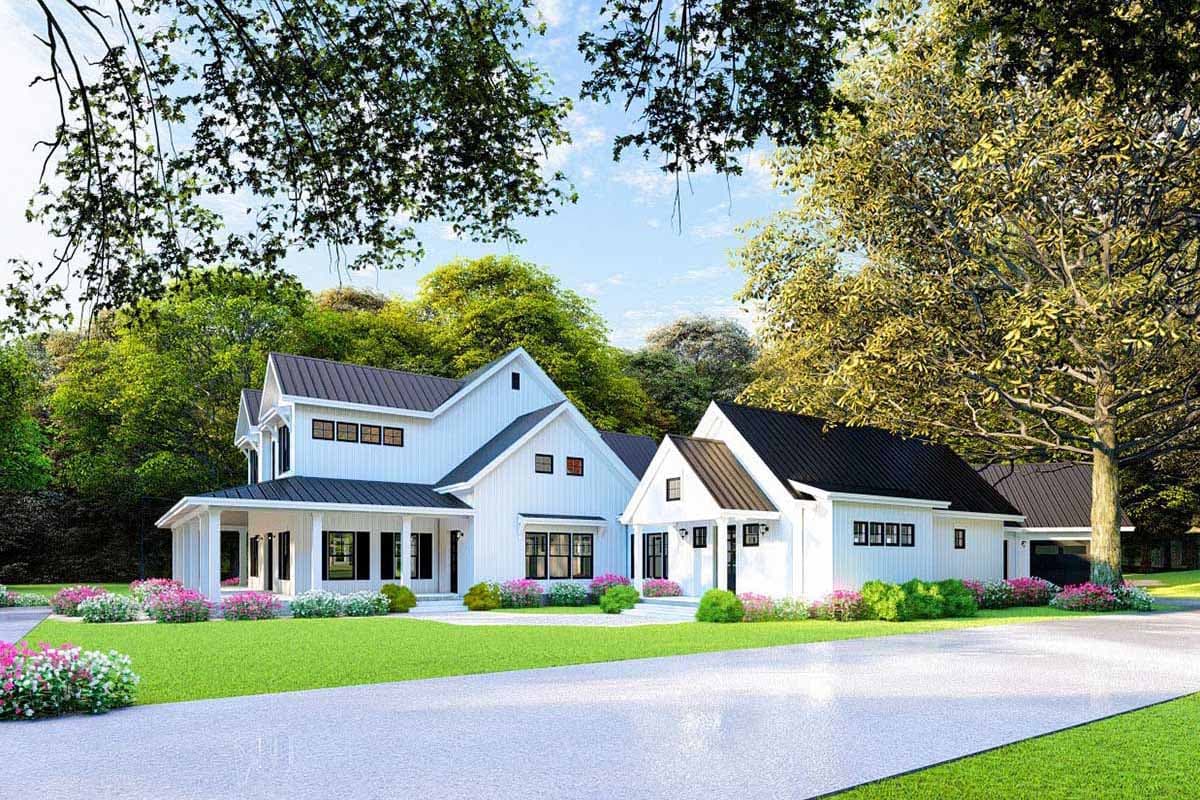

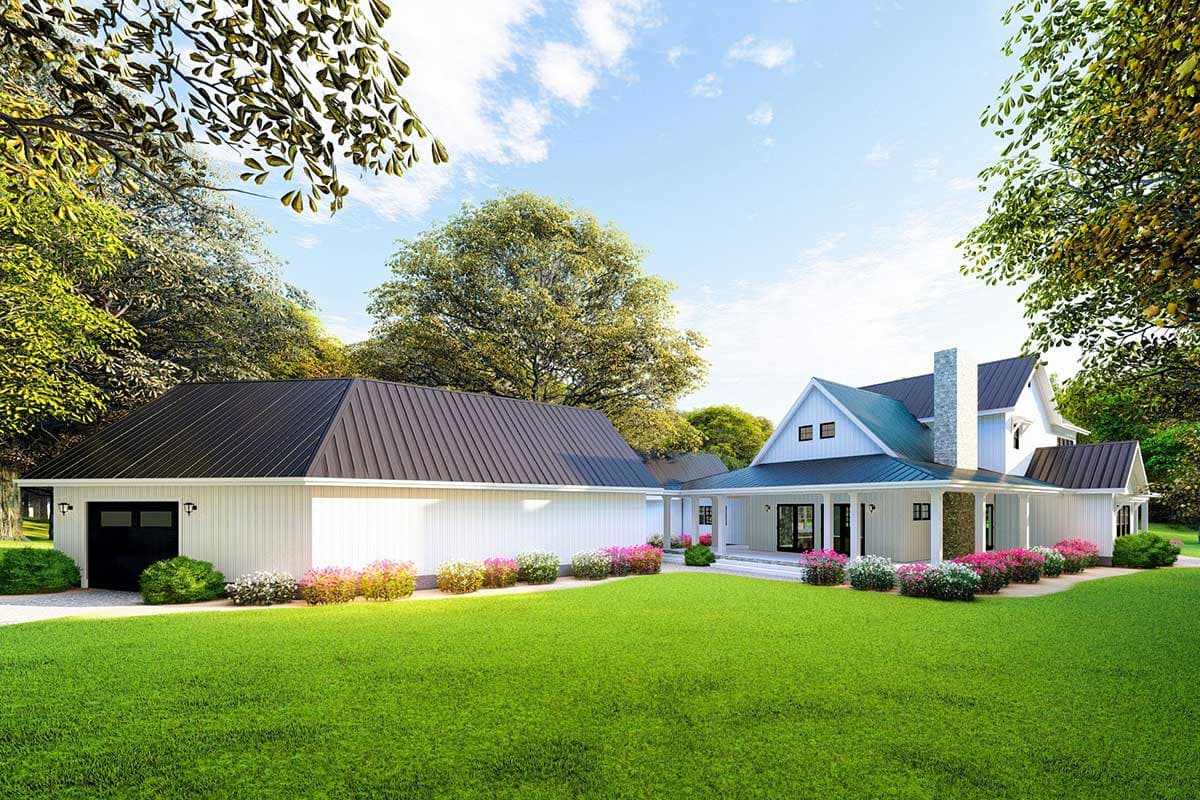

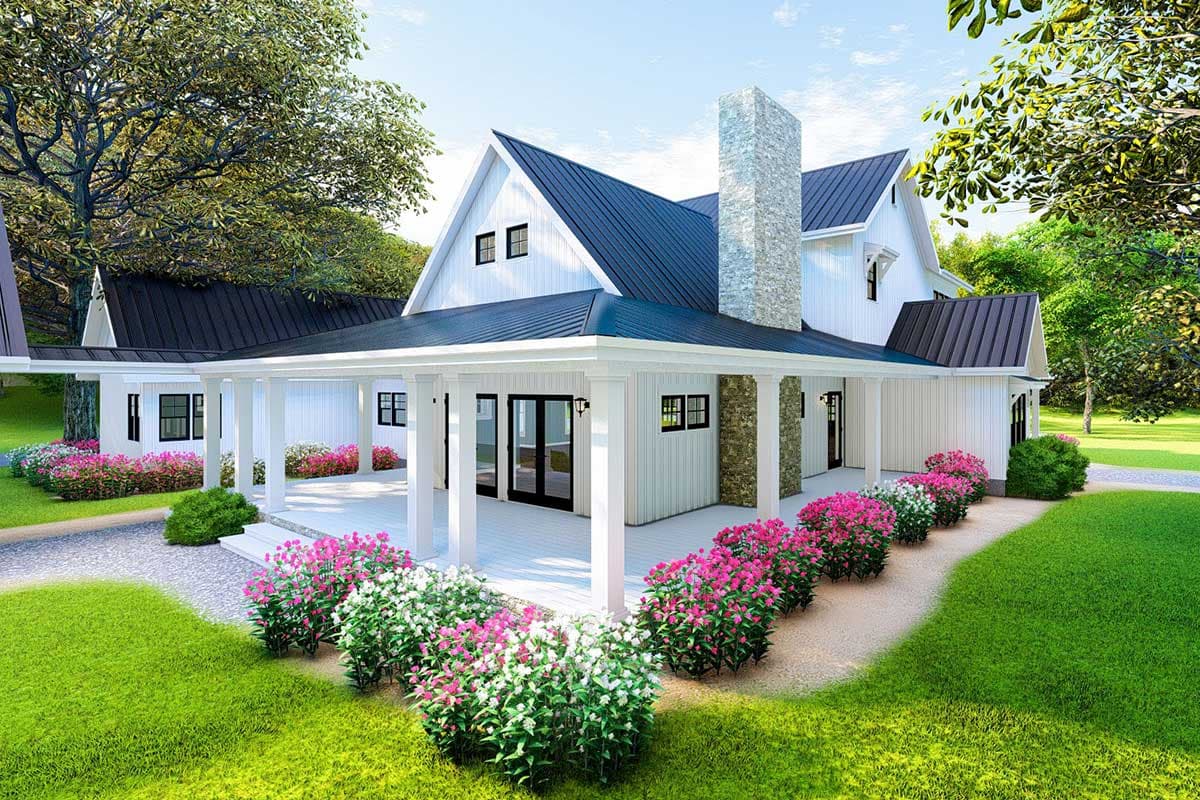

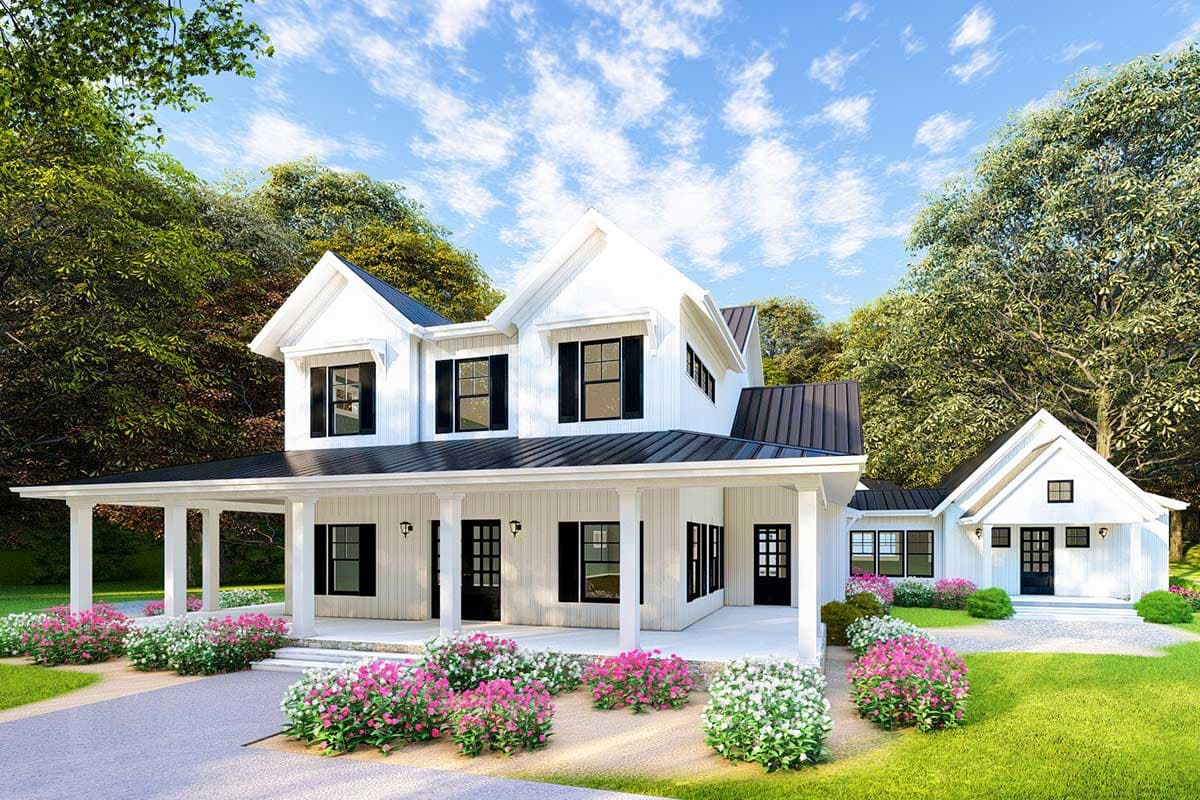

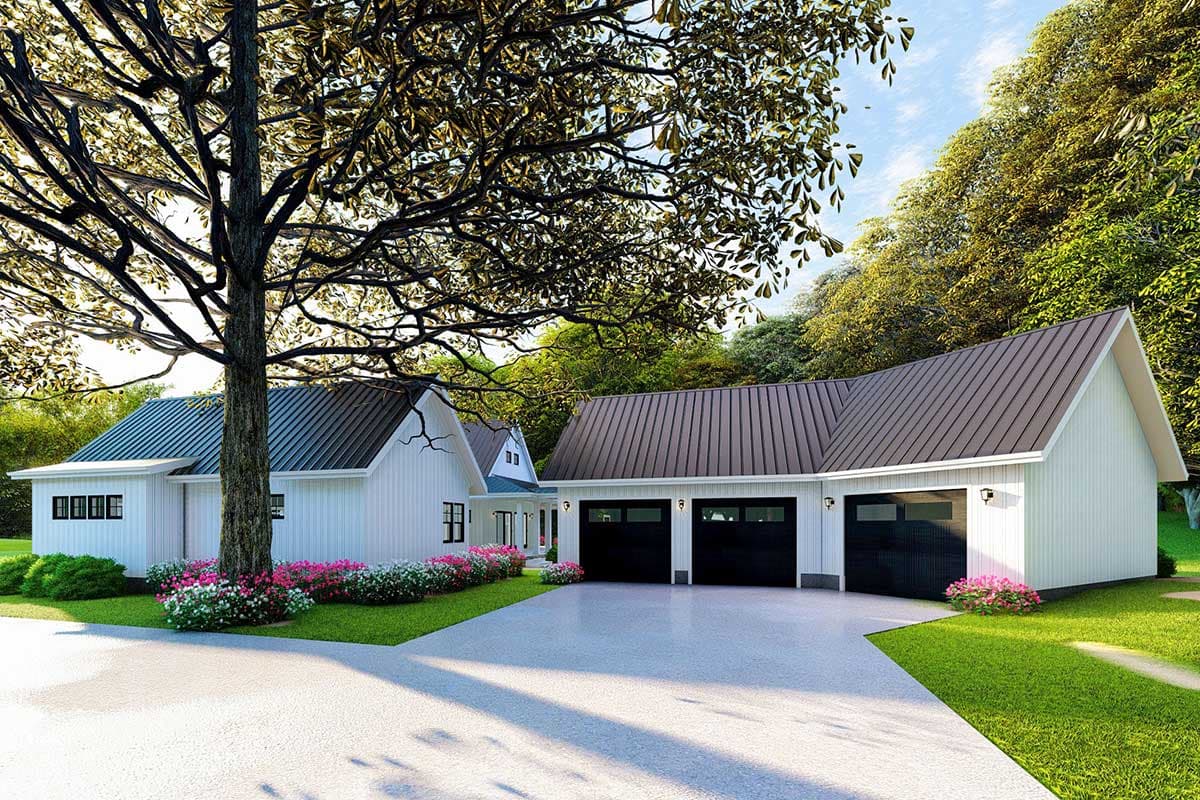

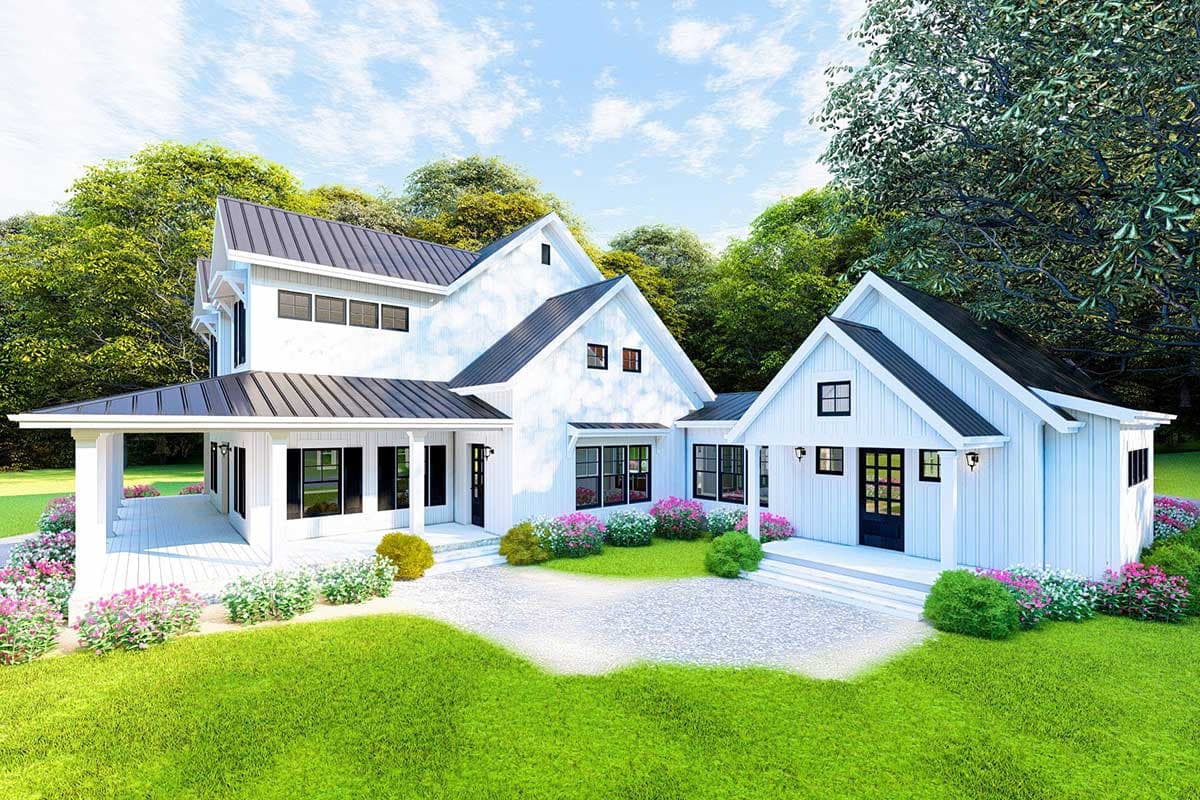

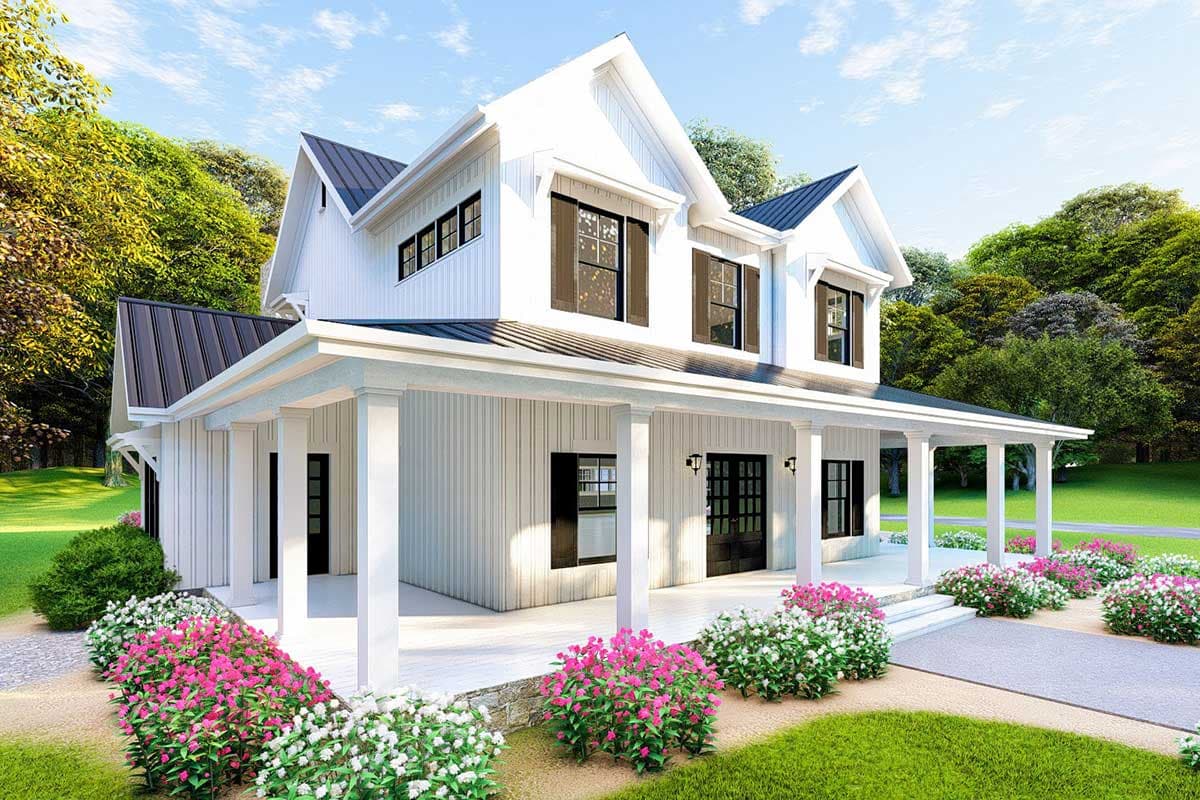

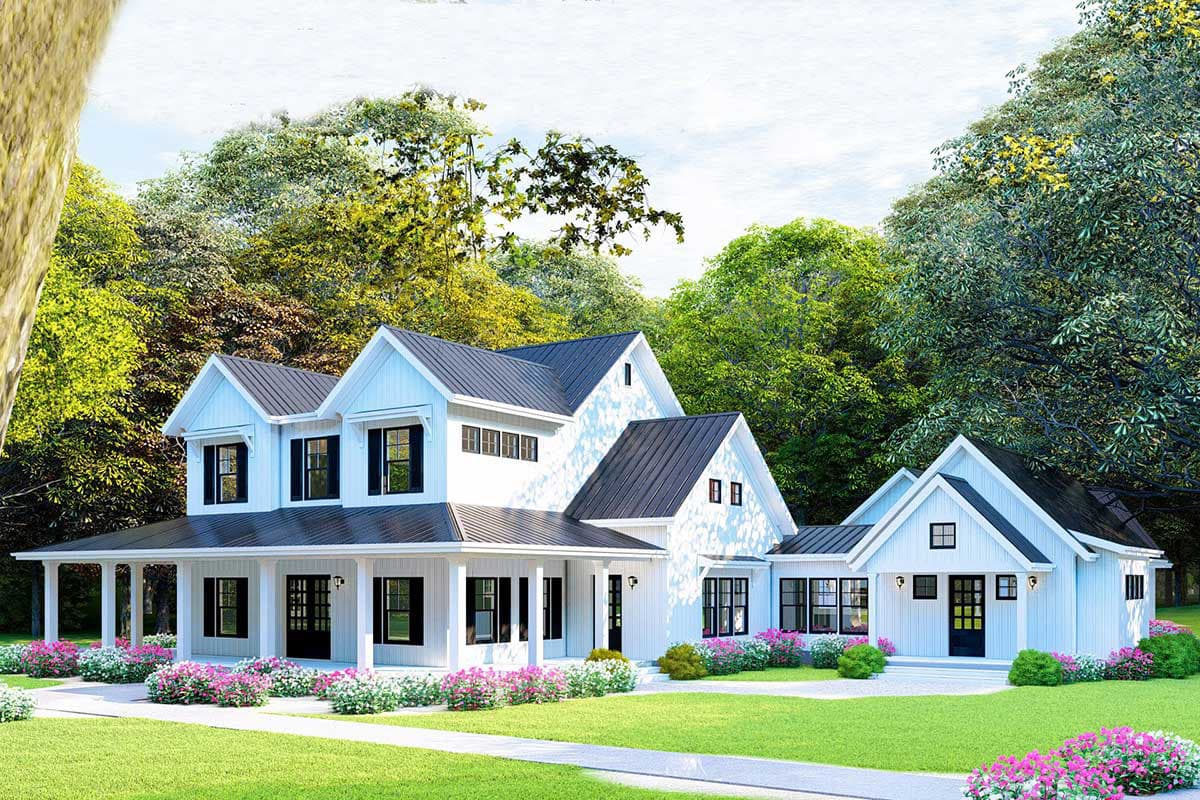

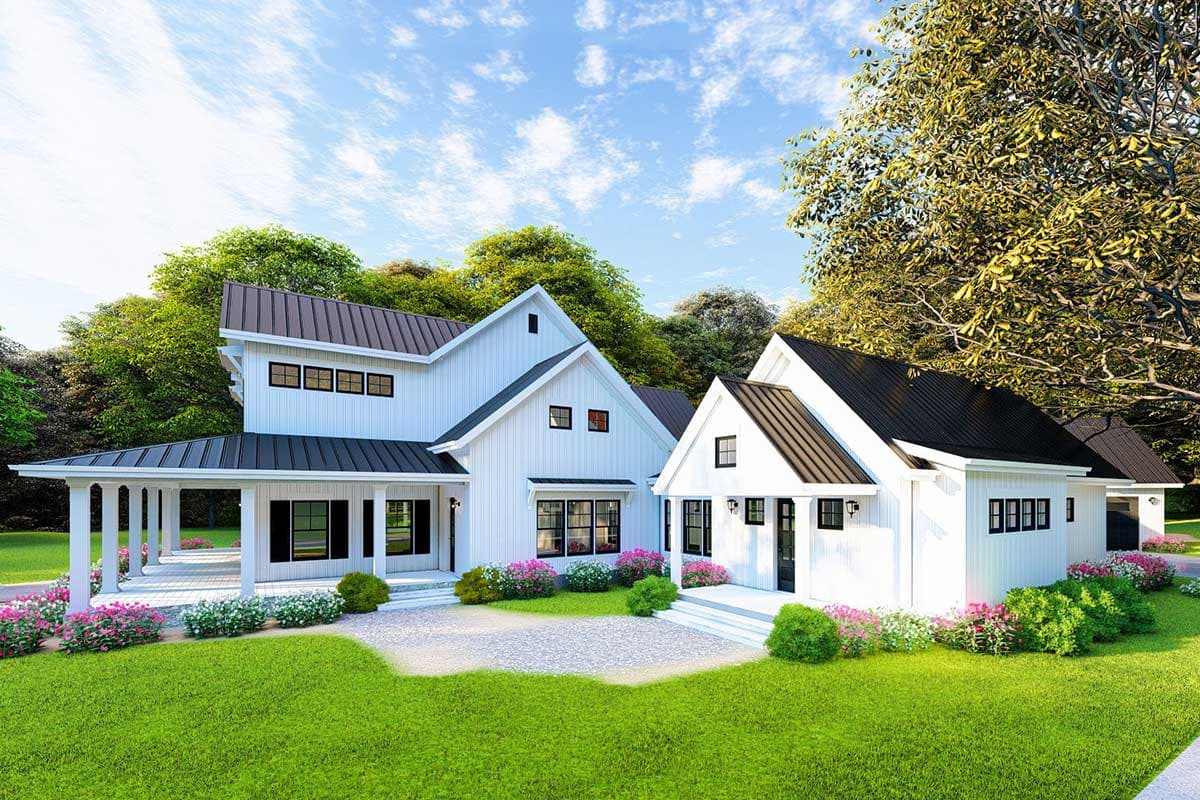

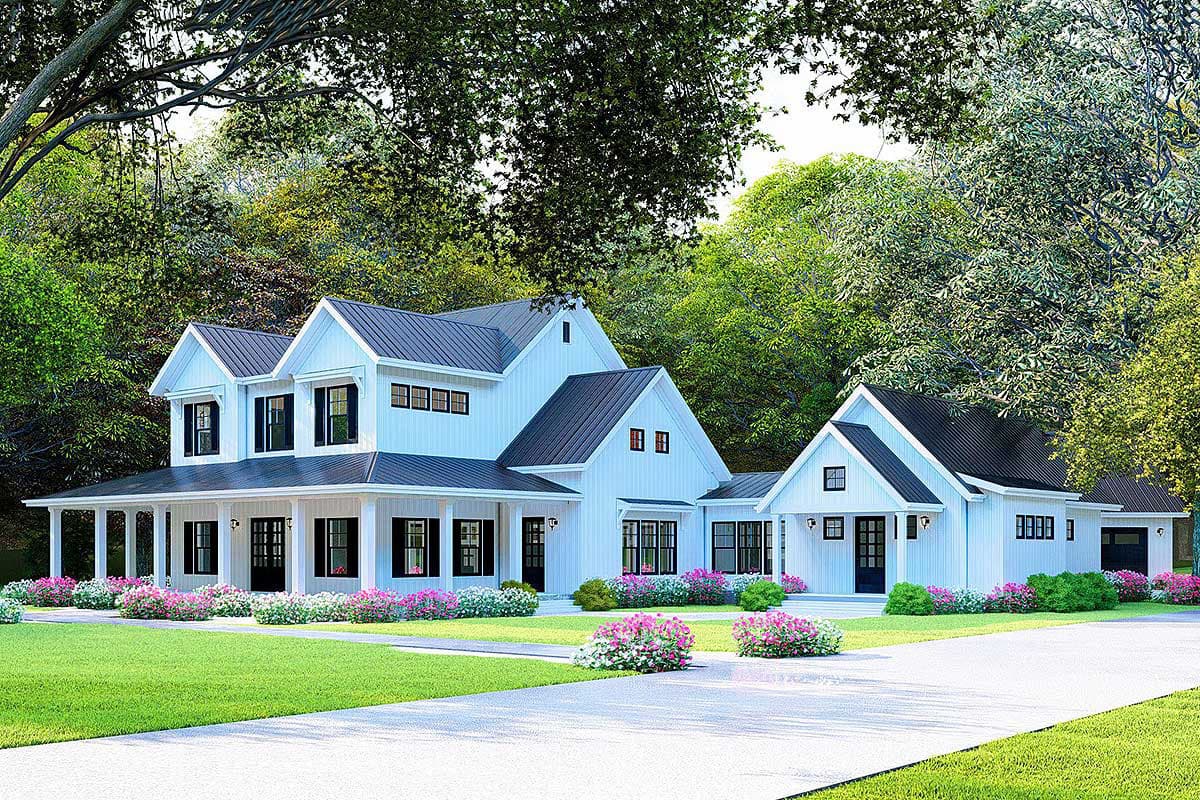

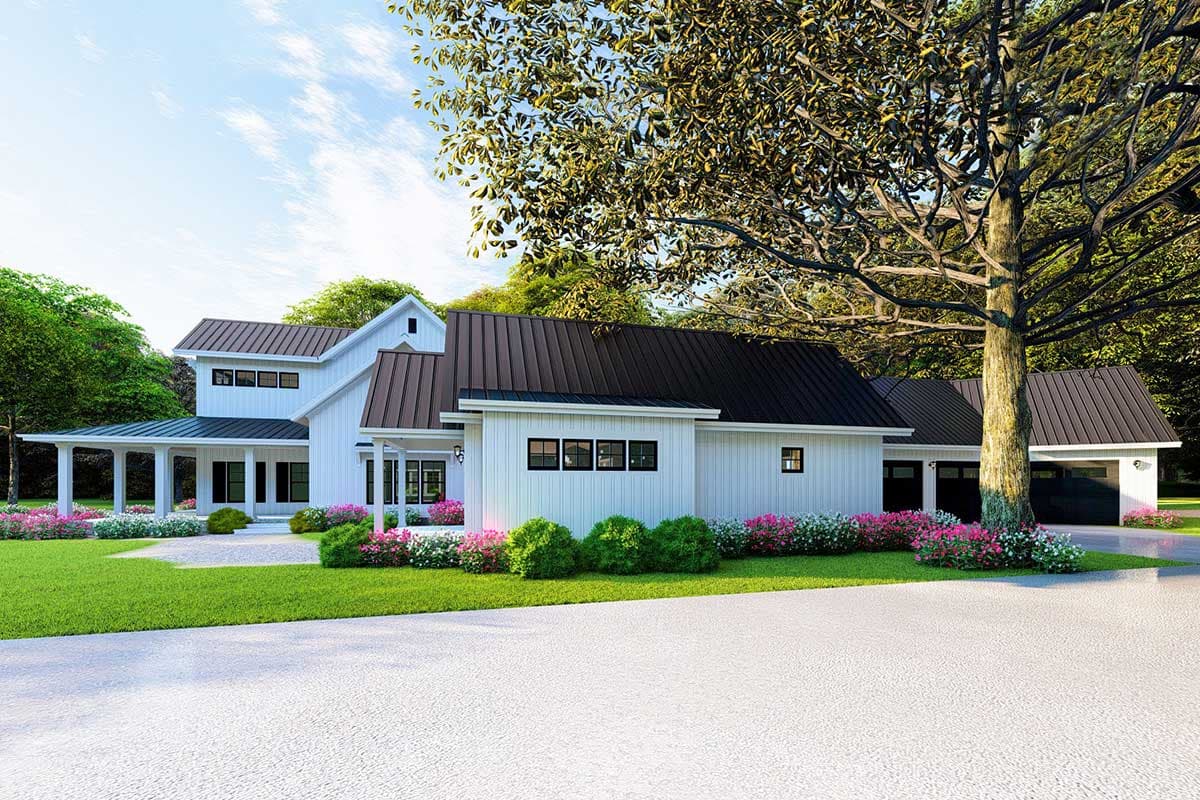

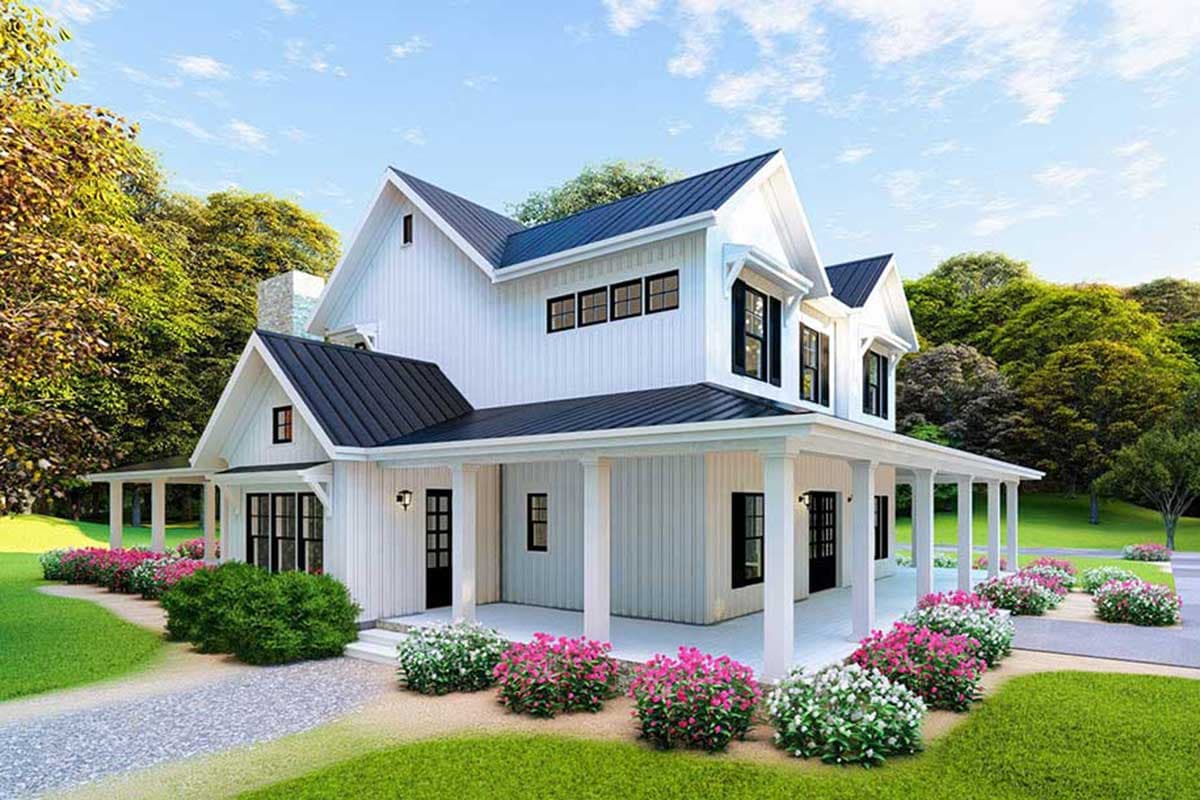

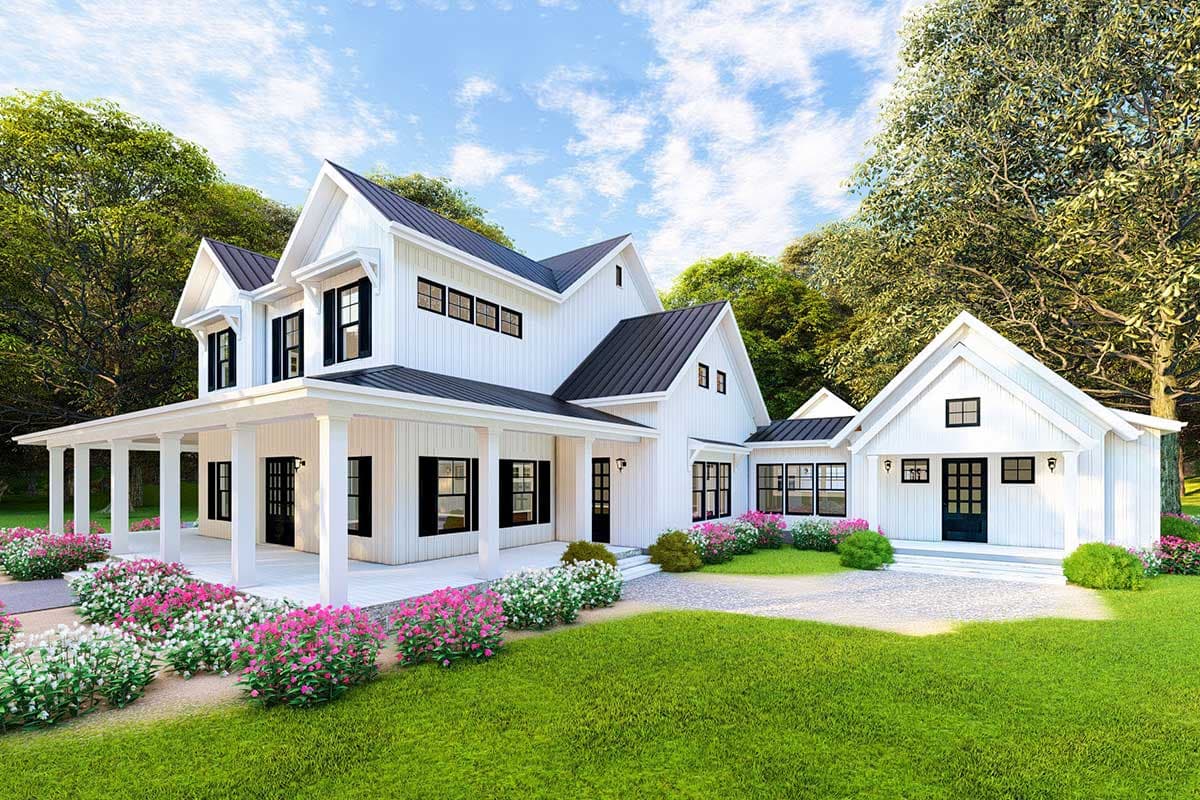

  • This modern farmhouse plan has an 8'-deep front porch that partially wraps around the home. In back, you'll enjoy a 10' grilling porch with an optional outdoor cooking area. Connected by a breezeway, a 3-car garage has a drive-through bay.
  • Inside, the vaulted dining and great rooms can be viewed from loft.
  • With one of the deepest walk-in pantry's you'll find, there is lots of storage for the cook in the house. Dual sinks are located in the island that has room for four sitting on the non-cooking side.
  • The guest bedroom has direct outdoor access while the master suite has its own private wing with a separate covered porch entry. Upstairs, two more bedrooms share a bath with walk-in shower and dual vanities.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details



Dreamy Modern Farmhouse Plan with Loft Overlooking Great and Dining Rooms

  • 3,342

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,320
  • 5 Sets $1,420
  • CAD $2,840
  • View all purchase option online

About This Plan

  • This modern farmhouse plan has an 8'-deep front porch that partially wraps around the home. In back, you'll enjoy a 10' grilling porch with an optional outdoor cooking area. Connected by a breezeway, a 3-car garage has a drive-through bay.
  • Inside, the vaulted dining and great rooms can be viewed from loft.
  • With one of the deepest walk-in pantry's you'll find, there is lots of storage for the cook in the house. Dual sinks are located in the island that has room for four sitting on the non-cooking side.
  • The guest bedroom has direct outdoor access while the master suite has its own private wing with a separate covered porch entry. Upstairs, two more bedrooms share a bath with walk-in shower and dual vanities.

Floor Plans

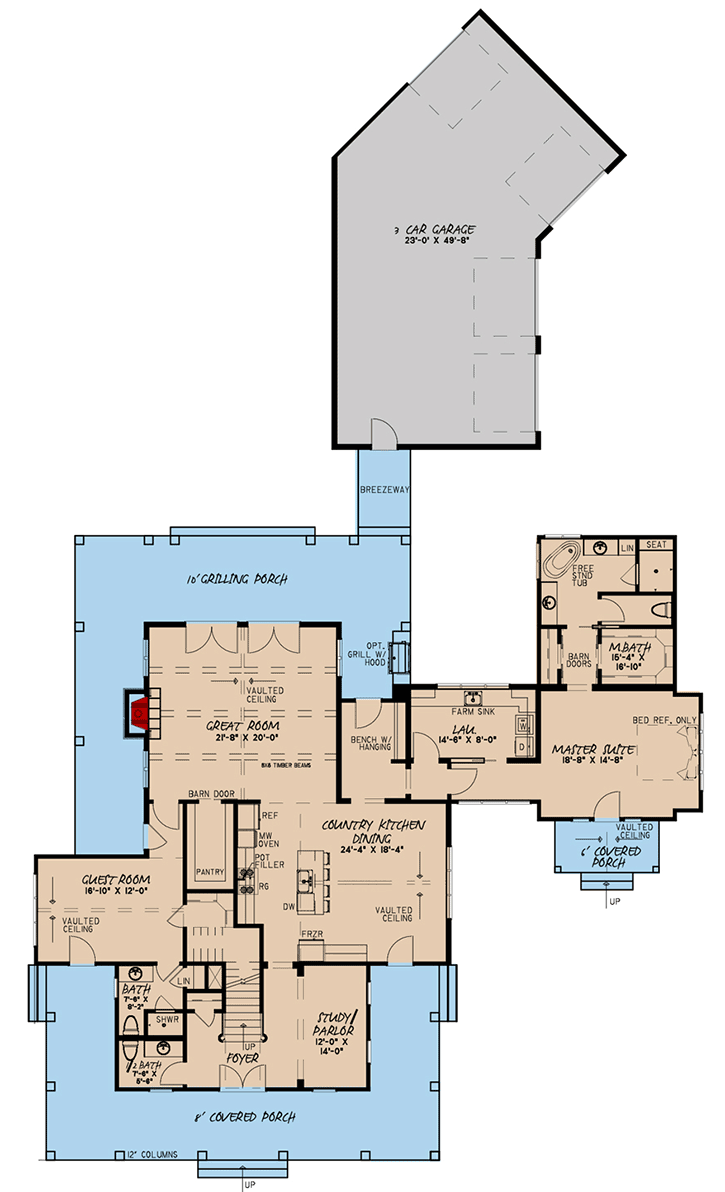

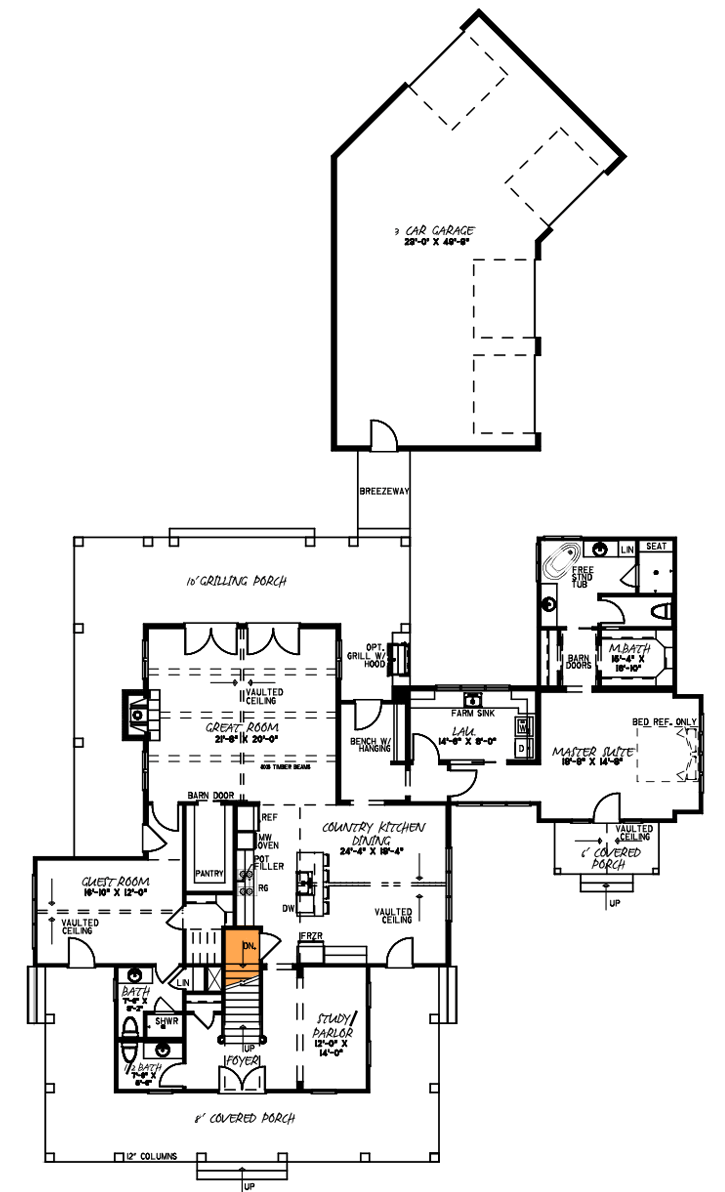

  • Main Level

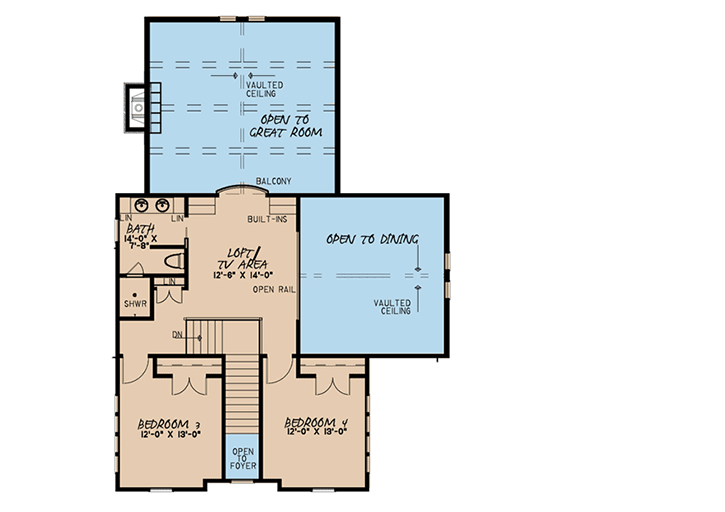

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,342 sq. ft.
  • 1st Floor: 2,585 sq. ft.
  • 2nd Floor: 757 sq. ft.
  • Porch, Combined: 1,324 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 0"
  • Depth: 132' 10"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 1150 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
