Plan 62512DJ

Duplex Garage-And-Loft Apartment

Heated S.F.
1,378
Units
2
Width
Depth

Floor Plan

Plan 62512DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 62512DJ

M-F 9am-5pm EST |

1-203-761-8500

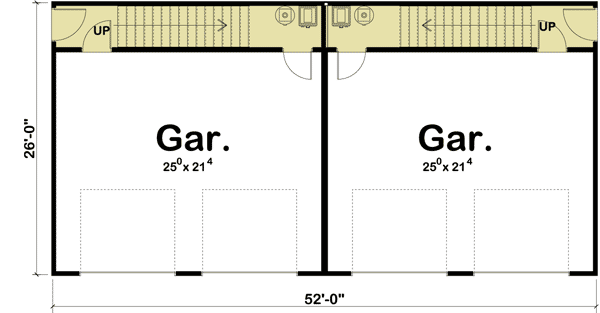

Main Level

Plan 62512DJ: Duplex Garage-And-Loft Apartment - Floor Plan - Main Level

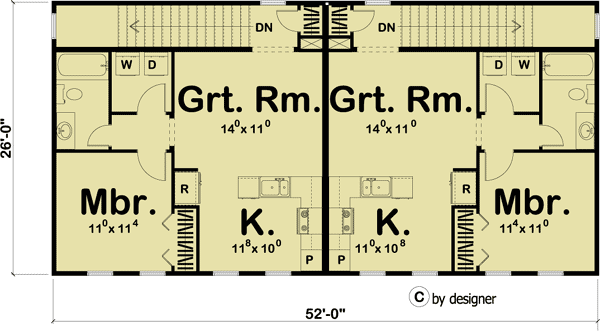

2nd Floor

Plan 62512DJ: Duplex Garage-And-Loft Apartment - Floor Plan - 2nd Floor

Plan Details

  • What a great idea: a duplex carriage house plan! This gives each of the two units 689 square feet of living space on the upper floor and room for two vehicles on the ground floor.
  • Access to the apartment is gained from both inside the garage and the back side corners.
  • Each full-featured apartment comes with a full kitchen, laundry room and bed with full bath.
  • The roof is a truss design and has a 10 on 12 main pitch and a 8 on 12 secondary pitch.
  • Related Plan: Get a single unit version with house plan 62903DJ.
Unit A
Heated Area
689Sq. Ft.
689 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Cars
Drive Under
573 Sq. Ft.
Dimensions
26'width
26'depth
29'height
Unfinished Areas
573 Sq. Ft. Garage
Unit B
Heated Area
689Sq. Ft.
689 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Cars
Drive Under
573 Sq. Ft.
Dimensions
26'width
26'depth
29'height
Unfinished Areas
573 Sq. Ft. Garage

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,378 sq. ft.

2nd Floor

1,378 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

52' 0"

Depth

26' 0"

Max Ridge Height

29' 0"

Garage

Type

Detached, Drive Under

Area

1146 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Special Features

Laundry - Upstairs

Loft

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,378 sq. ft.

2nd Floor

1,378 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

52' 0"

Depth

26' 0"

Max Ridge Height

29' 0"

Garage

Type

Detached, Drive Under

Area

1146 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Special Features

Laundry - Upstairs

Loft

Master Suite - Upstairs
