Plan 42586DB

Duplex House Plan for the Narrow Lot

Heated S.F.
2,554
Units
2
Width
Depth

Floor Plan

Plan 42586DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42586DB

M-F 9am-5pm EST |

1-203-761-8500

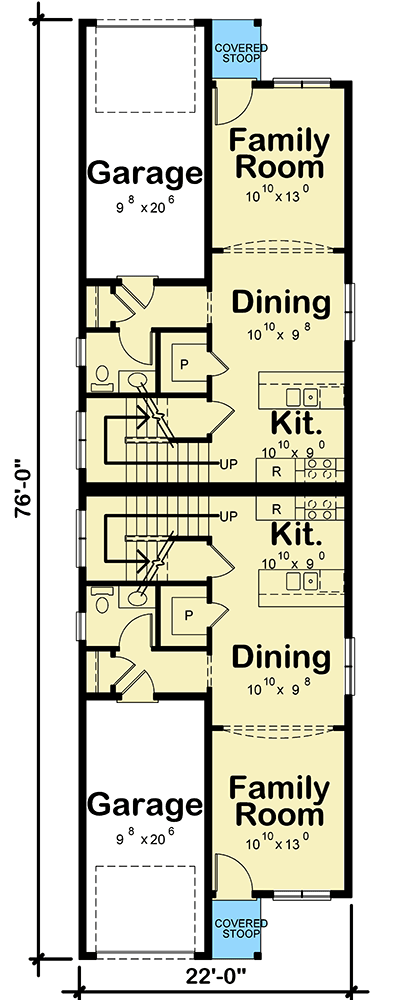

Main Level

Plan 42586DB: Duplex House Plan for the Narrow Lot - Floor Plan - Main Level - Contemporary, Northwest

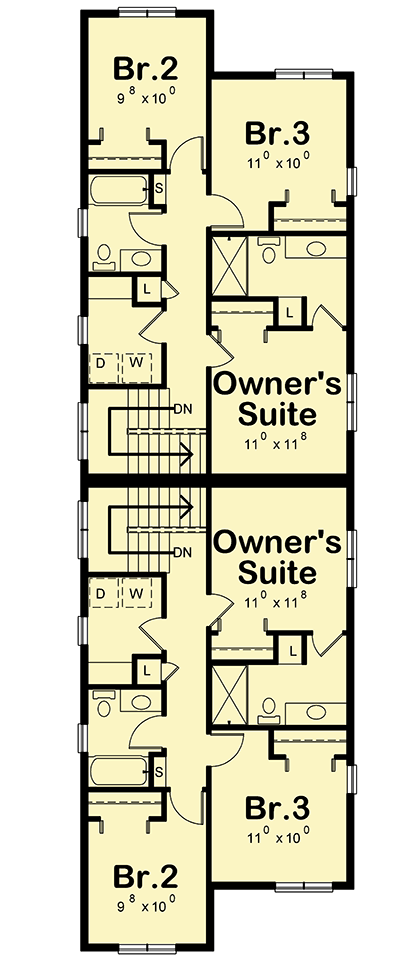

2nd Floor

Plan 42586DB: Duplex House Plan for the Narrow Lot - Floor Plan - 2nd Floor - Contemporary, Northwest

Plan Details

  • This 2-story duplex plan is ideal for very narrow lots. The units each have front-facing garages and are set front to back with a 22' wide footprint.
  • The main floor consists of the family room, dining room and kitchen, and are arrayed in an open concept layout. A walk-in pantry makes storage and organization easy.
  • A window in the stairs provide natural light and serves as a safety feature. Upstairs, there are three bedrooms, two baths and conveniently located laundry.All three bedrooms provide double-wide windows for abundant daylight.
  • Each unit gives you 1,277 square feet of heated living space (562 sq. ft. on the main floor and 715 sq. ft. upstairs) and 217 sq. ft. of garage space.
Unit A
Heated Area
1,277Sq. Ft.
562 Sq. Ft. 1st
715 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
217 Sq. Ft.
Dimensions
22'width
36'depth
Unfinished Areas
217 Sq. Ft. Garage
Unit B
Heated Area
1,277Sq. Ft.
562 Sq. Ft. 1st
715 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
217 Sq. Ft.
Dimensions
22'width
36'depth
Unfinished Areas
217 Sq. Ft. Garage

What's Included

  • General Notes

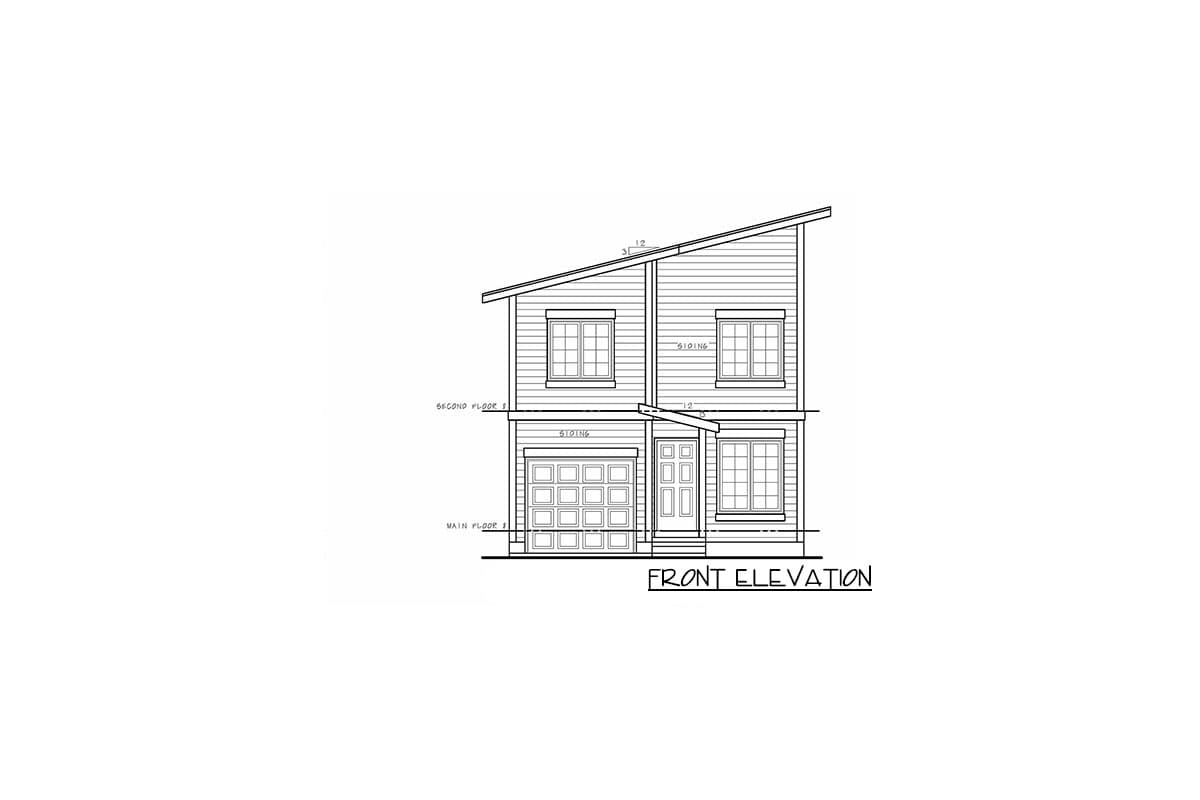

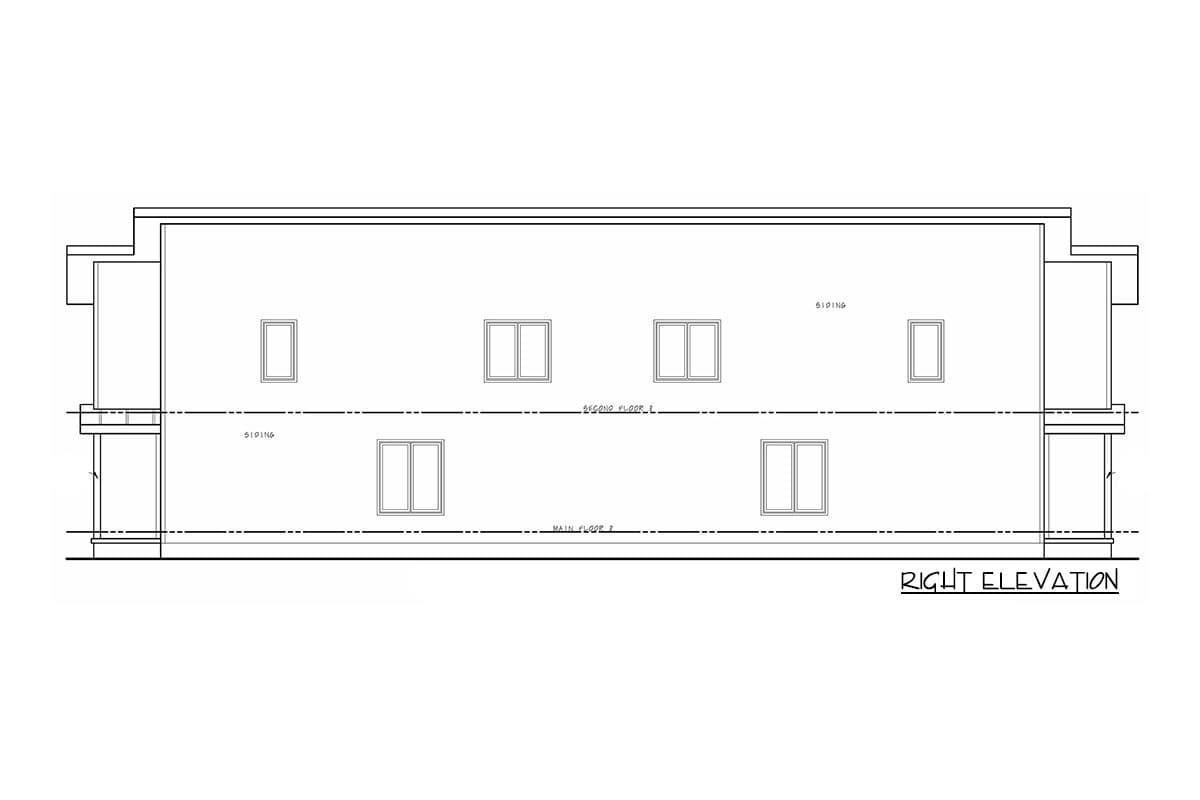

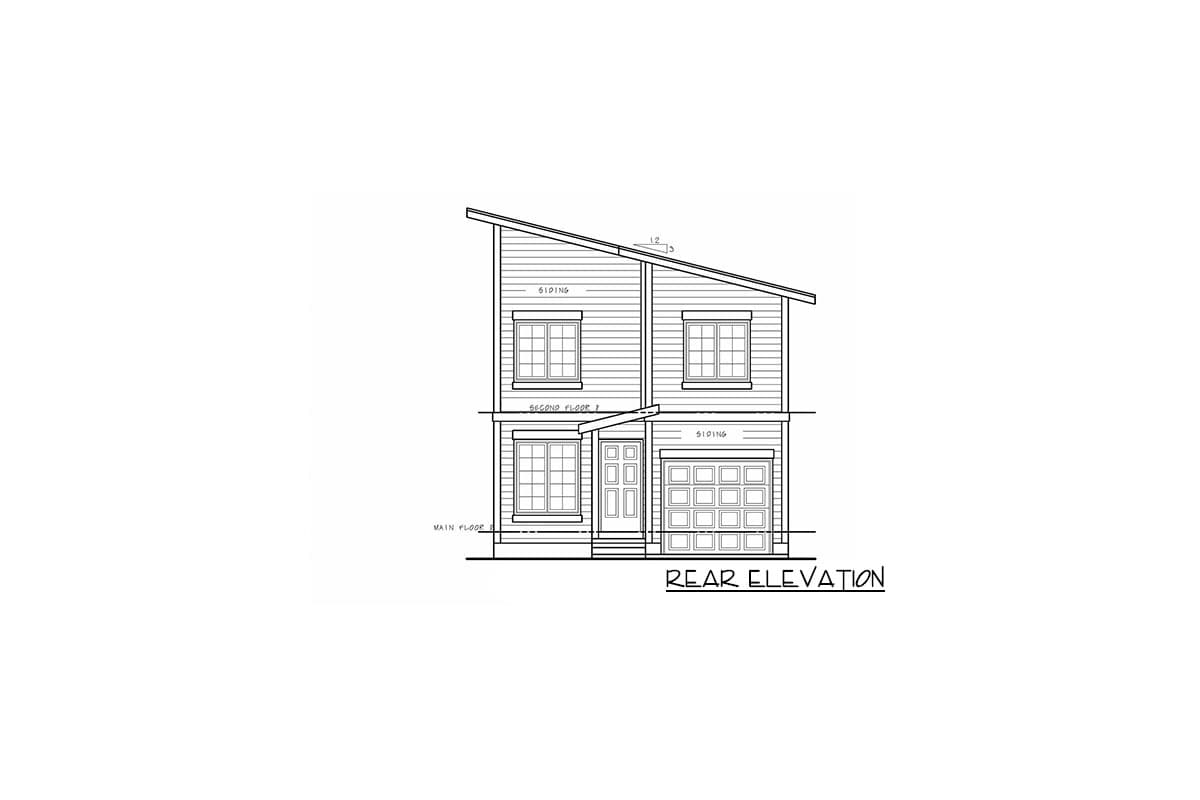

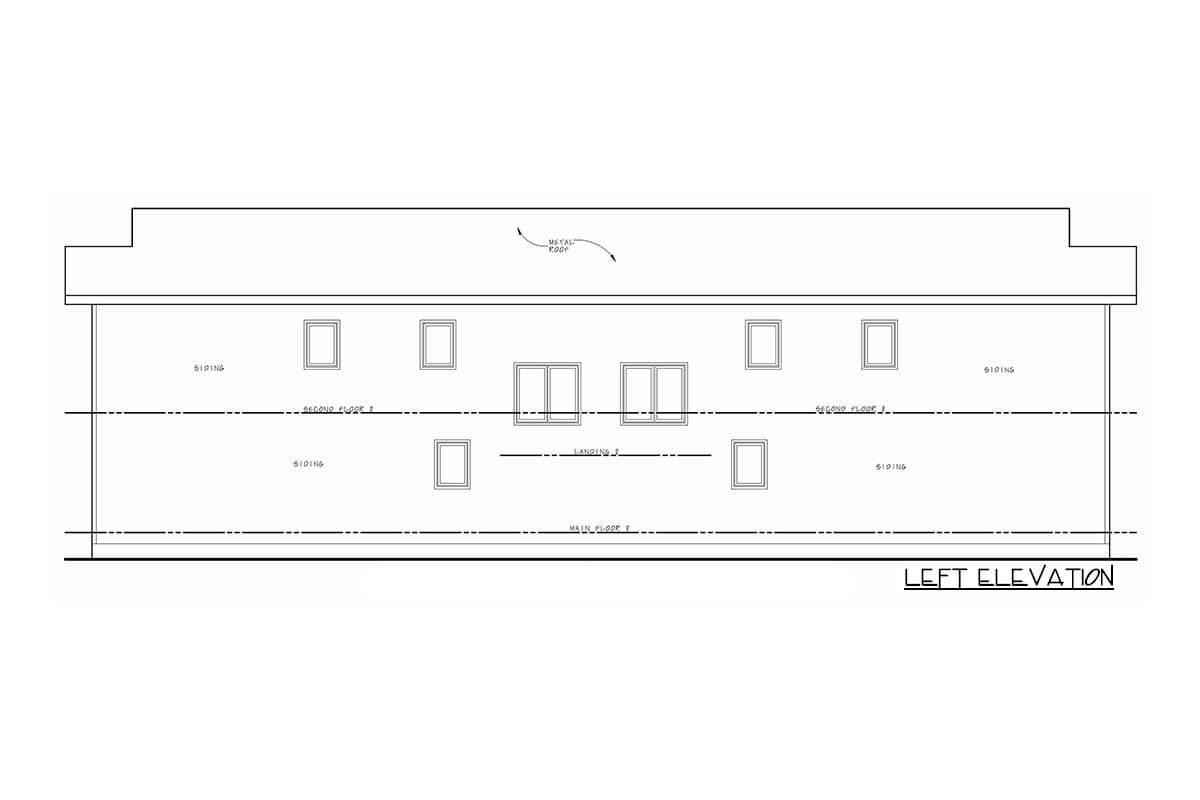

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,554 sq. ft.

1st Floor

1,124 sq. ft.

2nd Floor

1,430 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

76' 0"

Max Ridge Height

26' 3"

Garage

Type

Attached

Area

434 sq. ft.

Count

2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,554 sq. ft.

1st Floor

1,124 sq. ft.

2nd Floor

1,430 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

76' 0"

Max Ridge Height

26' 3"

Garage

Type

Attached

Area

434 sq. ft.

Count

2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Laundry - Upstairs

Master Suite - Upstairs
