Duplex House Plan with 2 and 3 Bed Units - 1220 Sq Ft

Heated S.F.
2,440
Units
2
Width
Depth

Floor Plan

Plan 80576PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80576PM

M-F 9am-5pm EST |

1-203-761-8500

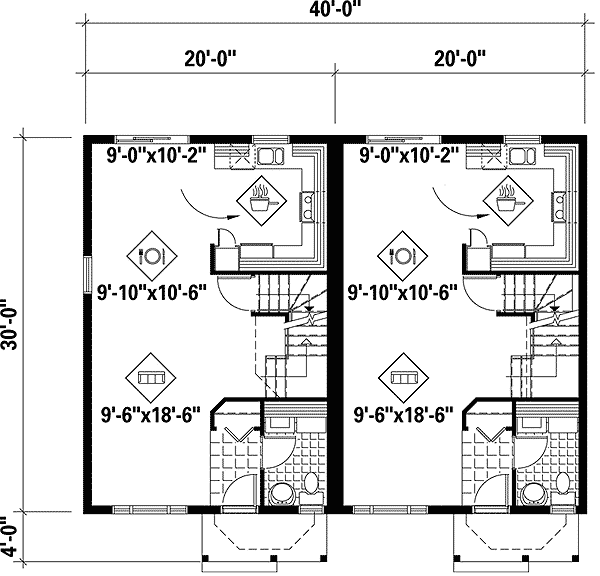

Main Level

Plan 80576PM: Duplex House Plan with 2 and 3 Bed Units - 1220 Sq Ft - Floor Plan - Main Level - Traditional

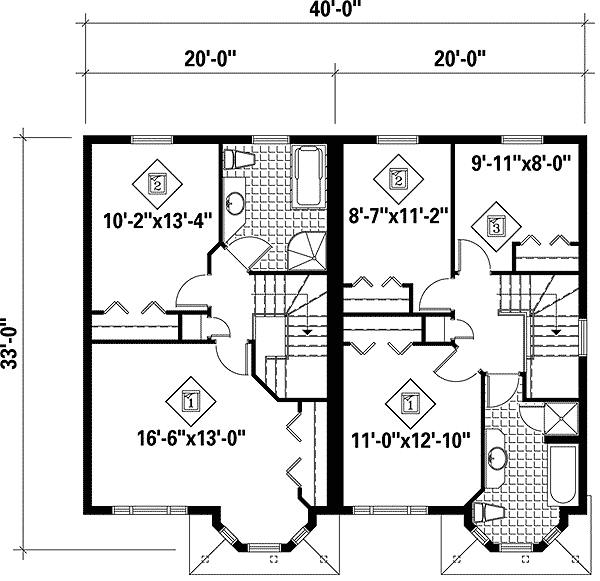

2nd Floor

Plan 80576PM: Duplex House Plan with 2 and 3 Bed Units - 1220 Sq Ft - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This duplex house plan give you side-by-side 1,220 square foot units. The unit on the left has 2 beds and 1.5 baths and the one on the right has 3 beds and 1.5 baths.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,220Sq. Ft.
600 Sq. Ft. 1st
620 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Dimensions
20'width
33'depth
Unit B
Heated Area
1,220Sq. Ft.
600 Sq. Ft. 1st
620 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Dimensions
20'width
33'depth

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,440 sq. ft.

1st Floor

1,200 sq. ft.

2nd Floor

1,240 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

33' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

2,440 sq. ft.

1st Floor

1,200 sq. ft.

2nd Floor

1,240 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

33' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric
