Duplex House Plan with 3 Upstairs Bedrooms - 1539 Sq Ft Each Unit

Heated S.F.
3,078
Units
2
Width
Depth

Floor Plan

Plan 42462DB

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 42462DB

M-F 9am-5pm EST |

1-203-761-8500

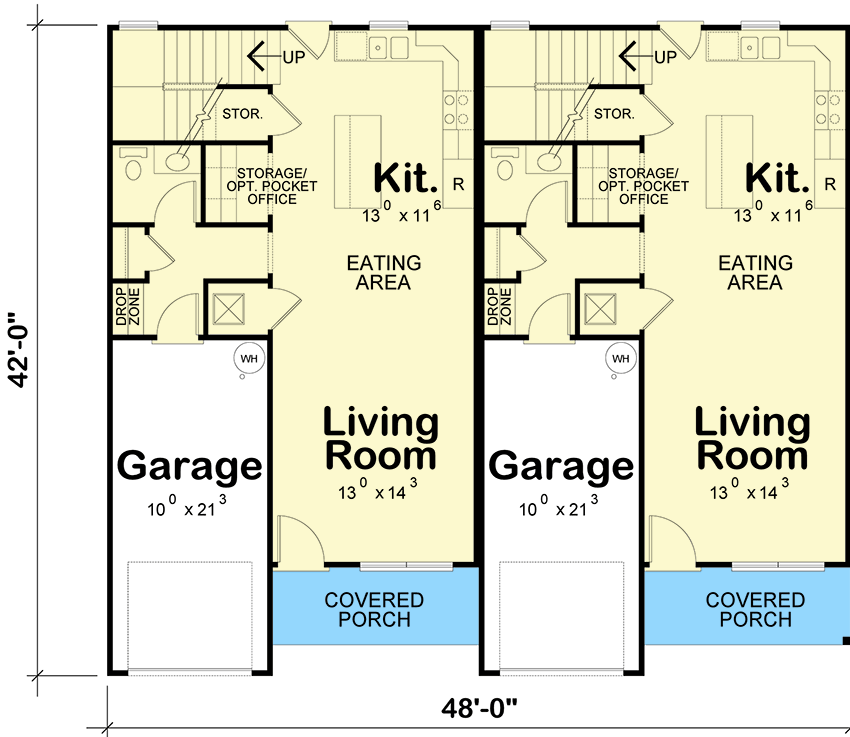

Main Level

Plan 42462DB: Duplex House Plan with 3 Upstairs Bedrooms - 1539 Sq Ft Each Unit - Floor Plan - Main Level - Craftsman, New American

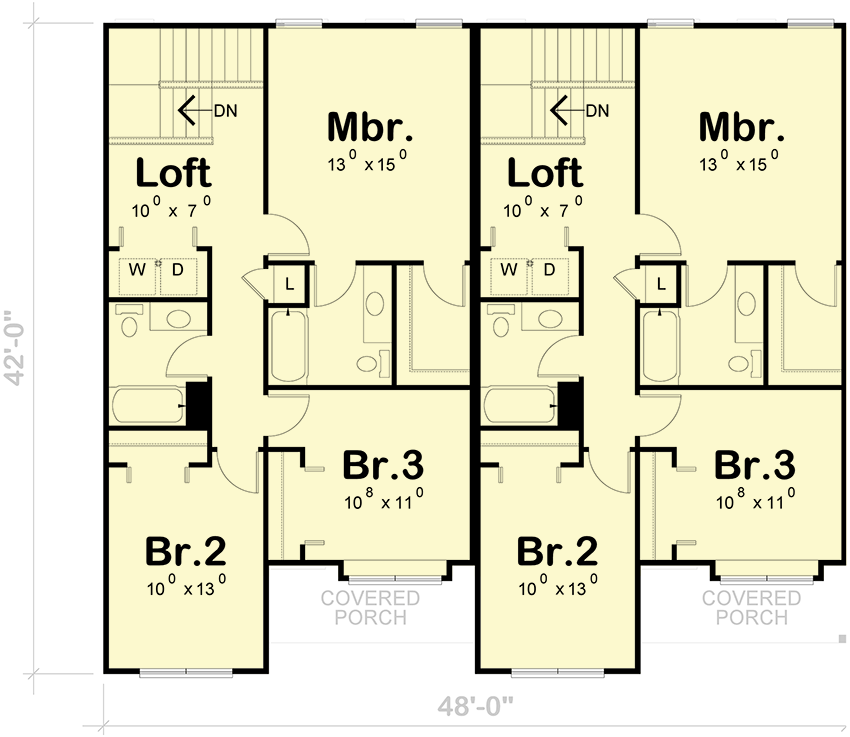

2nd Floor

Plan 42462DB: Duplex House Plan with 3 Upstairs Bedrooms - 1539 Sq Ft Each Unit - Floor Plan - 2nd Floor - Craftsman, New American

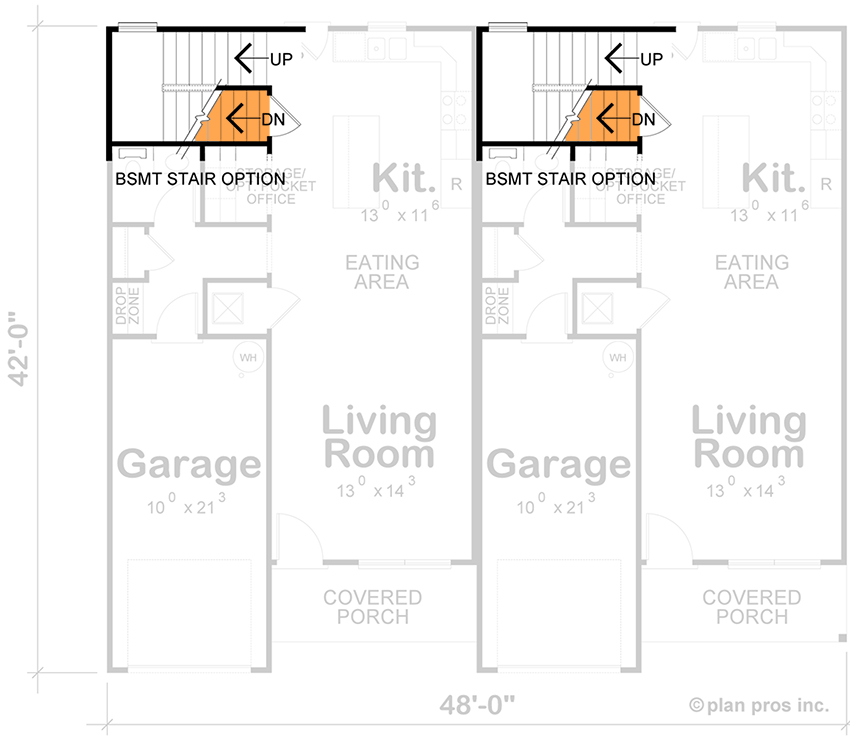

3rd Floor

Plan 42462DB: Duplex House Plan with 3 Upstairs Bedrooms - 1539 Sq Ft Each Unit - Floor Plan - 3rd Floor - Craftsman, New American

Plan Details

  • This duplex house plan gives you matching 1,539 square feet (688 sq. ft. on the first floor, 851 sq. ft. on the second floor) 3 bed, 2.5 bath units with 1-car garages.
  • The main floor gives you a living room that opens to the kitchen with large island with seating.
  • All three bedrooms are upstairs as is the laundry for your convenience.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate exterior with 2-family house plan 42427DB or 42449DB.
Unit A
Heated Area
1,539Sq. Ft.
688 Sq. Ft. 1st
851 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
226 Sq. Ft.
Dimensions
24'width
42'depth
Unfinished Areas
67 Sq. Ft. Porch, Front
226 Sq. Ft. Garage
Unit B
Heated Area
1,539Sq. Ft.
688 Sq. Ft. 1st
851 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
226 Sq. Ft.
Dimensions
24'width
42'depth
Unfinished Areas
226 Sq. Ft. Garage
67 Sq. Ft. Porch, Front

What's Included

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,078 sq. ft.

1st Floor

1,376 sq. ft.

2nd Floor

1,702 sq. ft.

Porch, Front

134 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 0"

Depth

42' 0"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

452 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Clustered

Home Office

Laundry - Upstairs

Loft

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

3,078 sq. ft.

1st Floor

1,376 sq. ft.

2nd Floor

1,702 sq. ft.

Porch, Front

134 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 0"

Depth

42' 0"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

452 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Clustered

Home Office

Laundry - Upstairs

Loft

Master Suite - Upstairs
