Plan 42569DB
Duplex House Plan with 3 Upstairs Bedrooms - 2064 Sq Ft Units
Heated S.F.
4,128
Units
2
Width
56'
Depth
50'
Cars
4
Plan Details
  • This duplex house plan gives you matching side-by-side 3 bedroom units.
  • Each units gives you 2,064 square feet of heated living space with 809 square feet on the main floor and 1,255 square feet on the upper floor.
  • Related Plans: Get a 3-family version with plan 42585DB or a 4-family version with house plan 42570DB.
Unit A
2,064 Sq. Ft.
806 Sq. Ft. 1st Floor
1255 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
483 Sq. Ft.
28' w 51' d 32' h
Unit B
2,064 Sq. Ft.
809 Sq. Ft. 1st Floor
1255 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
483 Sq. Ft.
28' w 50' d 32' h
What's Included
  • General Notes

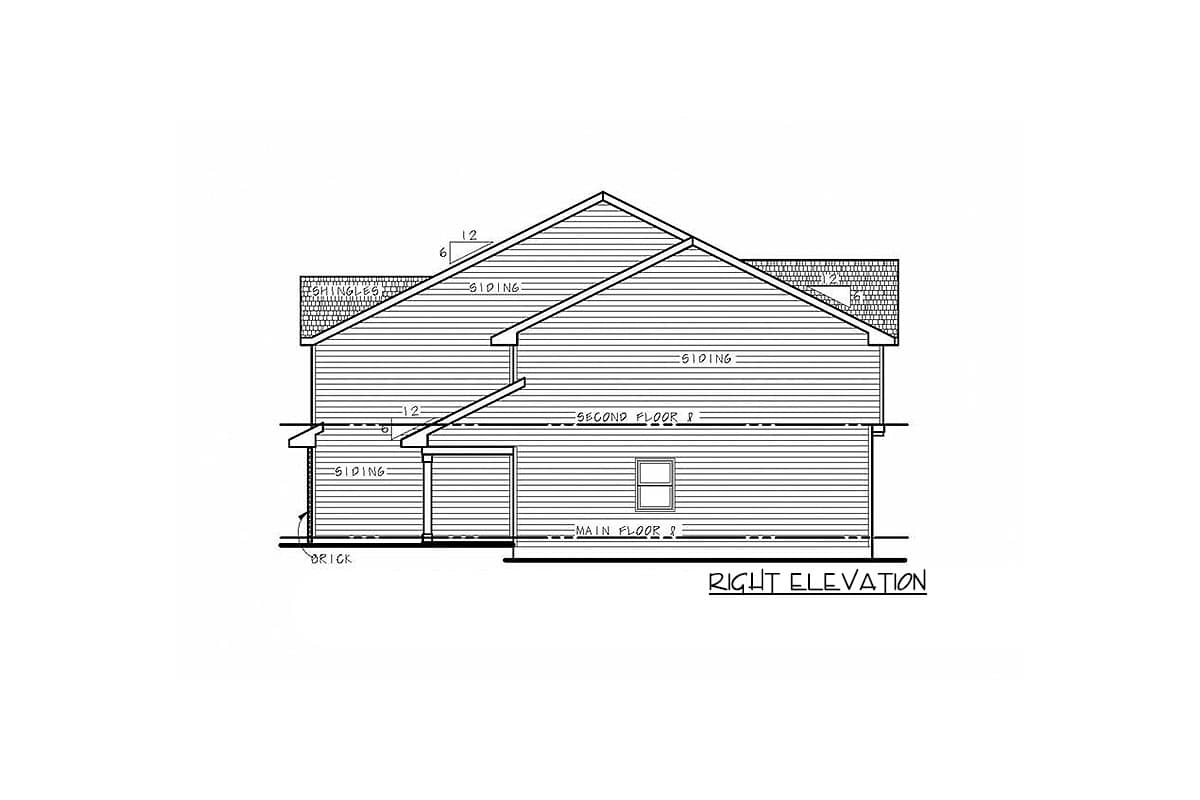

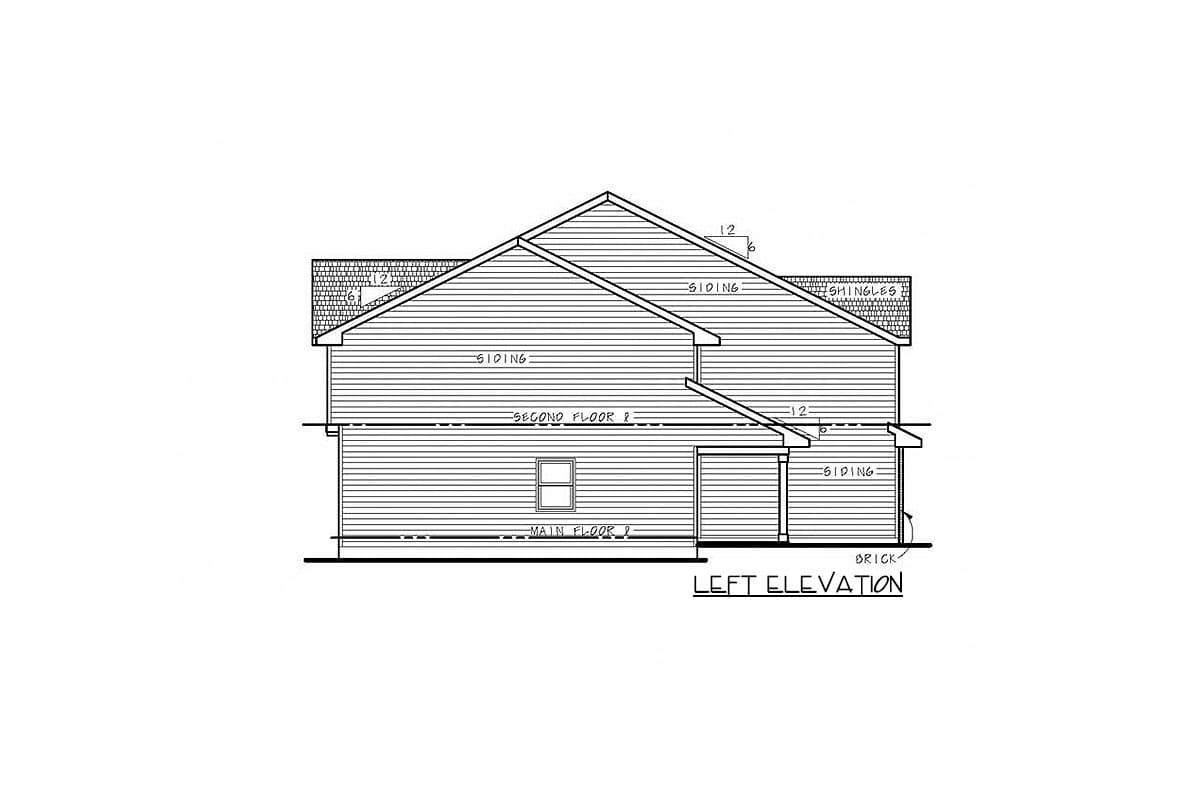

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Duplex House Plan with 3 Upstairs Bedrooms - 2064 Sq Ft Units

  • 4,128

    Heated s.f.

  • 2

    Units

  • 56'

    Width

  • 50'

    Depth

Floor Plan

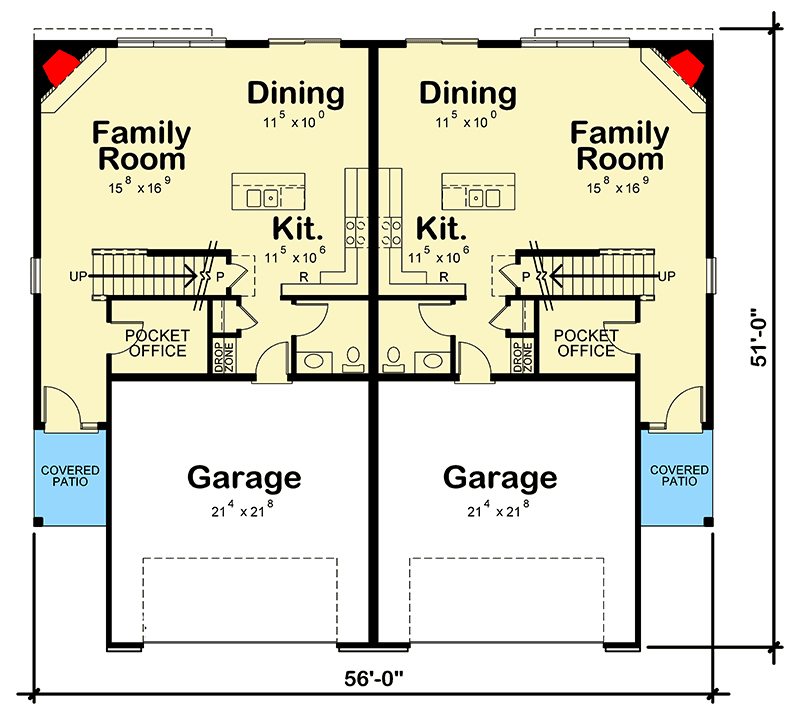

  • Main Level

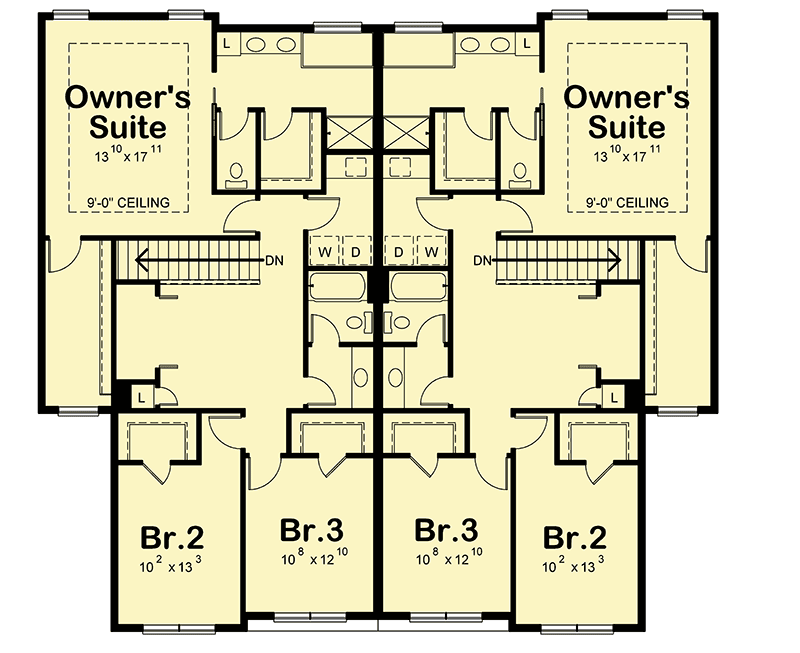

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,128 sq. ft.
  • 1st Floor: 1,618 sq. ft.
  • 2nd Floor: 2,510 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 50' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 966 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
