Duplex House Plan with Matching 2364 Square Foot Units with Finished Lower Levels

Heated S.F.
4,728
Units
2
Width
Depth

Floor Plan

Plan 801139PM

Main Level
Main Level
Lower Level
Lower Level

Plan 801139PM

M-F 9am-5pm EST |

1-203-761-8500

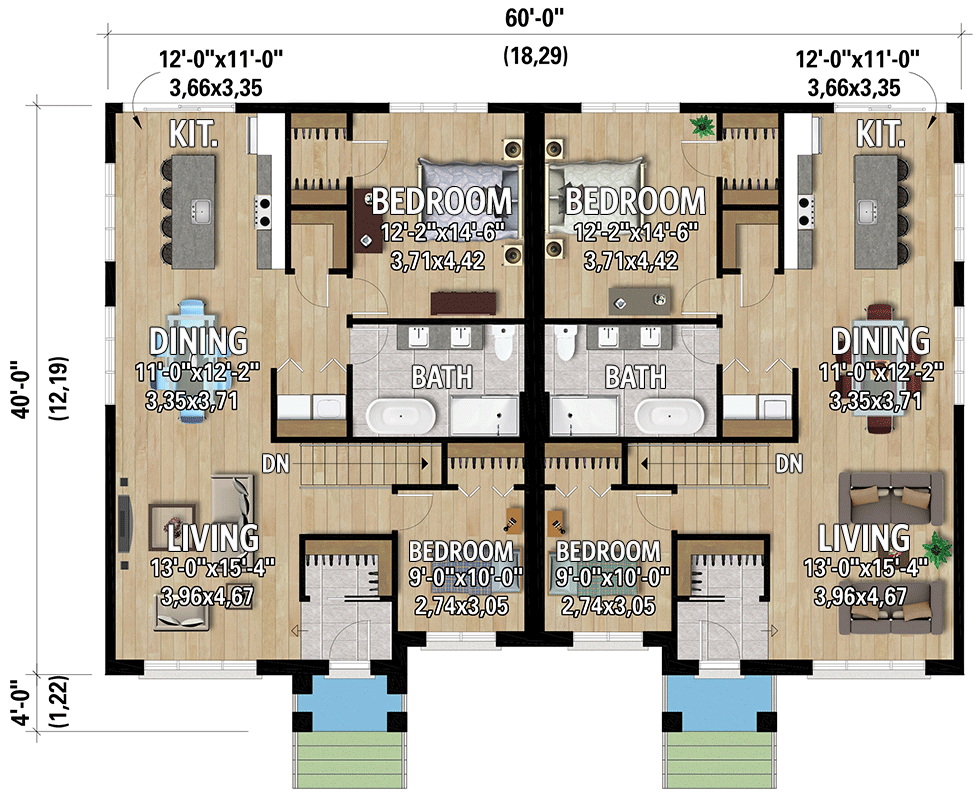

Main Level

Plan 801139PM: Duplex House Plan with Matching 2364 Square Foot Units with Finished Lower Levels - Floor Plan - Main Level - Contemporary, Modern, New American

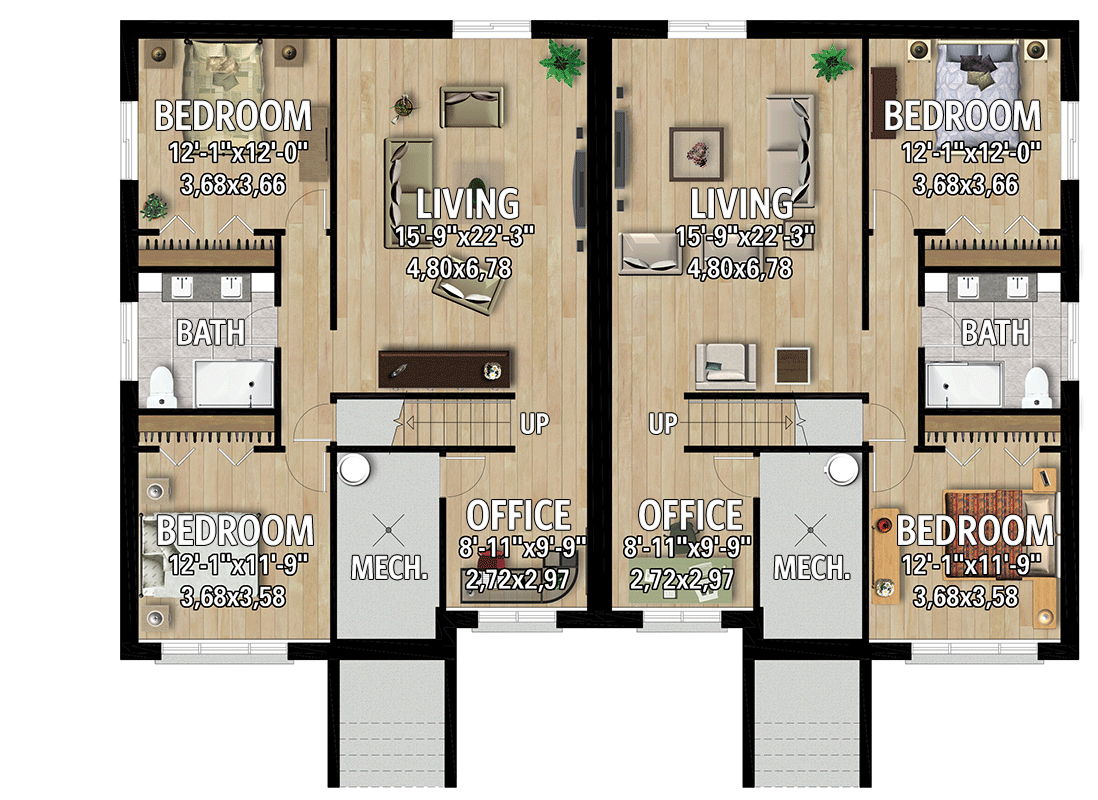

Lower Level

Plan 801139PM: Duplex House Plan with Matching 2364 Square Foot Units with Finished Lower Levels - Floor Plan - Lower Level - Contemporary, Modern, New American

Plan Details

  • This multi-family house plan gives you 2 number of units each with 2364 square feet of heated living space (1182 sq. ft. on the first floor, 1182 sq. ft. on the lower level), 4 beds and 2 baths.
  • The basement has two bedrooms, a complete bathroom, a family room and an area for an office or a reading corner.
  • The ground floor has a vestibule with a walk-in closet, a kitchen with a walk-in pantry, a dining room, a living room, a complete bathroom as well as two other bedrooms, one of which being the master bedroom with a walk-in closet.
