Plan 22525DR
Duplex House Plan with Modern Exterior
Heated S.F.
4,000
Units
2
Width
56'
Depth
38'
What's Included
Plan Details
  • This duplex house plan gives you matching side-by-side 4-bed units. Each family gets 1,000 sq. ft. on the main floor and 1,000 sq. ft. in the lower level.
  • Enjoy an open concept layout with unbroken views from the living room to the kitchen.

Unit A
2,000 Sq. Ft.
1000 Sq. Ft. Lower Level
1000 Sq. Ft. 1st Floor
4 Beds
2 Full Baths
None
28' w 38' d 21' 3" h
Unit B
2,000 Sq. Ft.
1000 Sq. Ft. Lower Level
1000 Sq. Ft. 1st Floor
4 Beds
2 Full Baths
None
28' w 38' d 21' 3" h
What's Included
Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Duplex House Plan with Modern Exterior

  • 4,000

    Heated s.f.

  • 2

    Units

  • 56'

    Width

  • 38'

    Depth

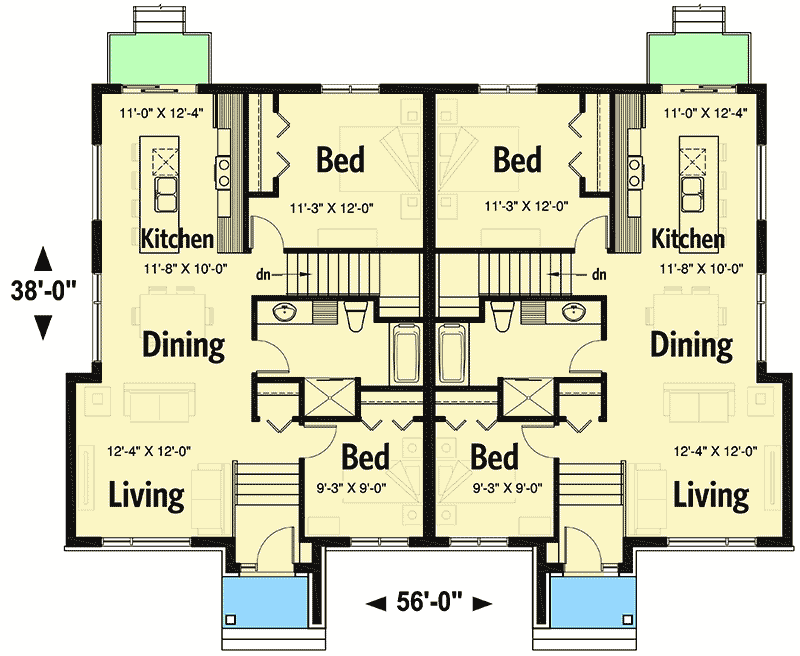

Floor Plan

  • Main Level

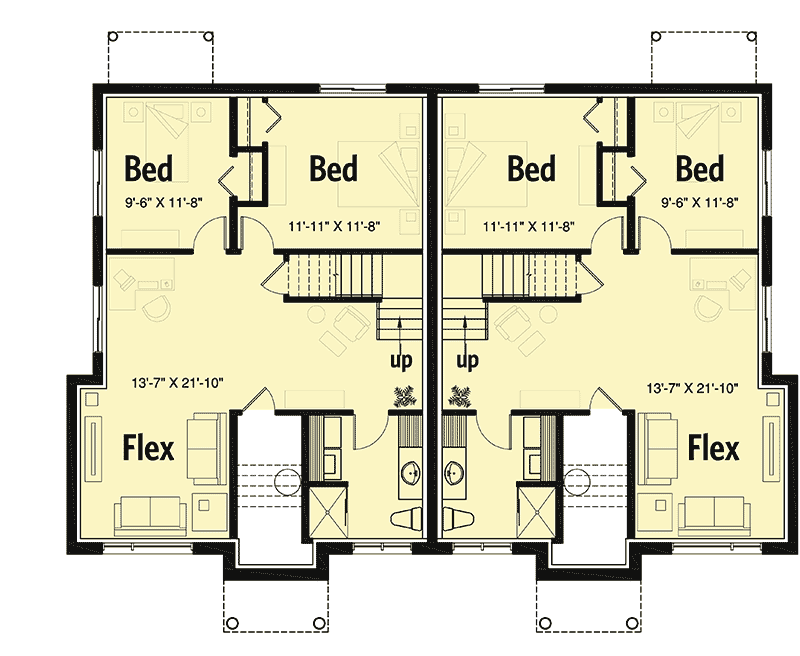

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,000 sq. ft.
  • Lower Level: 2,000 sq. ft.
  • 1st Floor: 2,000 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 38' 0"
  • Max ridge height: 21' 3"

Beds/Baths

  • Bedrooms: 8
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 5 on 12
