Plan 69379AM
Duplex House Plan with Outdoor Access from Dining Room
Heated S.F.
3,020
Units
2
Width
60'
Depth
42'
Cars
4
Plan Details

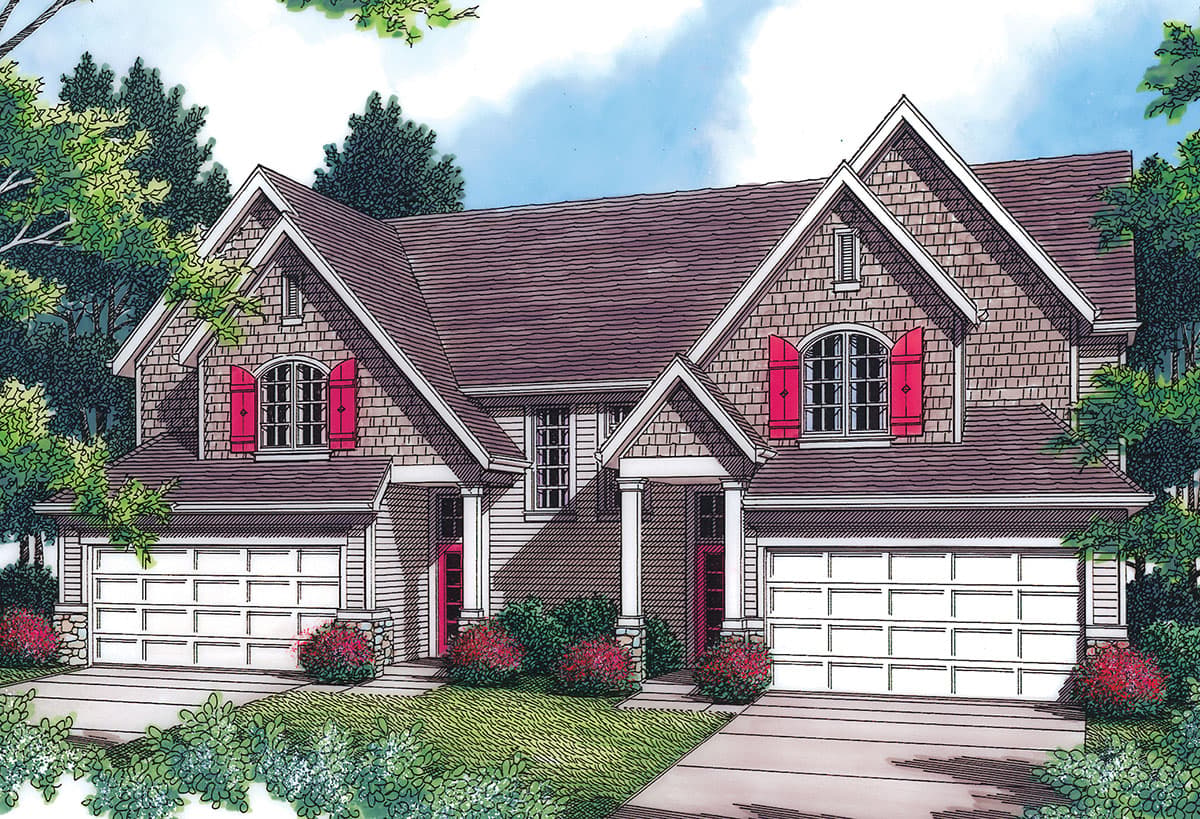

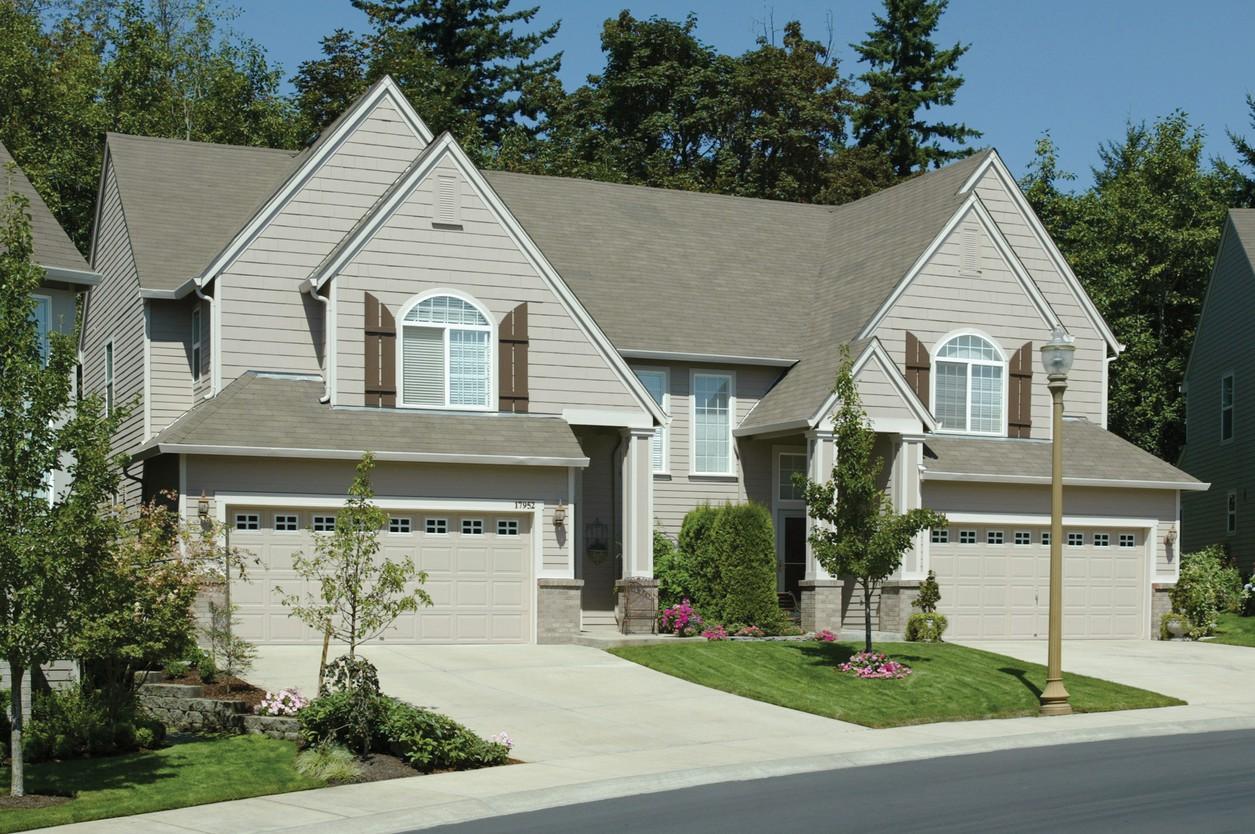

  • A few simple details, such as shuttered windows and cedar shingles can make the difference between a plain façade and an appealing home. This duplex house plan offers more than just a treat for the eye - it also houses two comfortable living units.
  • Each unit gives you 1,510 square feet of heated living (709 sq. ft. on the first floor and 801 sq. ft. on the second floor) and a 411 square foot garage.
  • Each side contains open living space in a great room and dining room - both near an island kitchen with corner window sink. The great room features a nine-foot ceiling; the dining room has outdoor access. Double windows in both rooms brighten the whole area. A half-bath and coat closet are handy additions.
  • The second level holds bedrooms: two for family and guests, plus a master suite. The master bath is especially noteworthy with a walk-in closet and double sinks. The shared bath is compartmented for convenience. Note the thoughtful placement of the laundry room on the upper level.
  • Related Plan: Downsize slightly with duplex house plan 69378AM.
Unit A
1,510 Sq. Ft.
709 Sq. Ft. 1st Floor
801 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
411 Sq. Ft.
30' w 42' d 30' h
Unit B
1,510 Sq. Ft.
708 Sq. Ft. 1st Floor
801 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
411 Sq. Ft.
30' w 42' d 30' h
What's Included

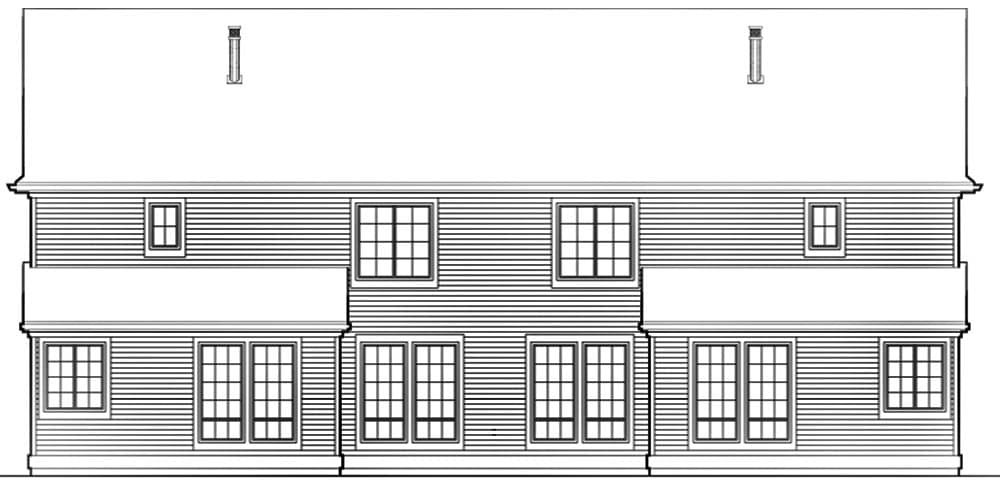

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Duplex House Plan with Outdoor Access from Dining Room

  • 3,020

    Heated s.f.

  • 2

    Units

  • 60'

    Width

  • 42'

    Depth

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,020 sq. ft.
  • 1st Floor: 1,418 sq. ft.
  • 2nd Floor: 1,602 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 42' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 742 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site

Duplex House Plan with Outdoor Access from Dining Room

  • 3,020

    Heated s.f.

  • 2

    Units

  • 60'

    Width

  • 42'

    Depth

Duplex House Plan with Outdoor Access from Dining Room

  • 3,020

    Heated s.f.

  • 2

    Units

  • 60'

    Width

  • 42'

    Depth

Plan Details

Square Footage Breakdown

  • Total: 3,020 sq. ft.
  • 1st Floor: 1,418 sq. ft.
  • 2nd Floor: 1,602 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 42' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 742 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

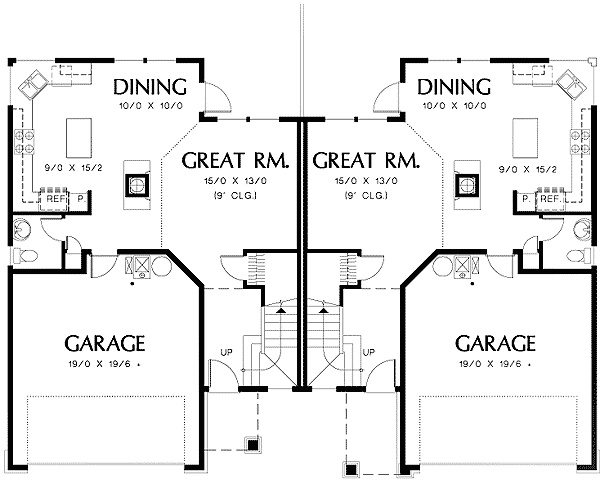

    Main Level

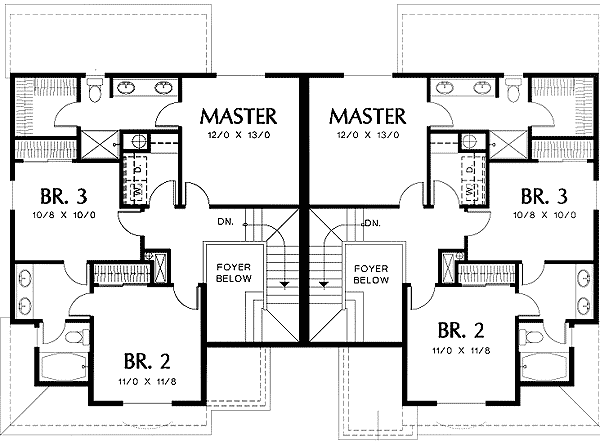

    2nd Floor
