Plan 69378AM

Large Colonial Style Duplex Plan

2,928 2 60' 0" 42' 0" 4
Pageloader

Large Colonial Style Duplex Plan

Plan 69378AM

  • 2,928

    Heated s.f.

  • 2

    Units

  • 60' 0"

    Width

  • 42' 0"

    Depth

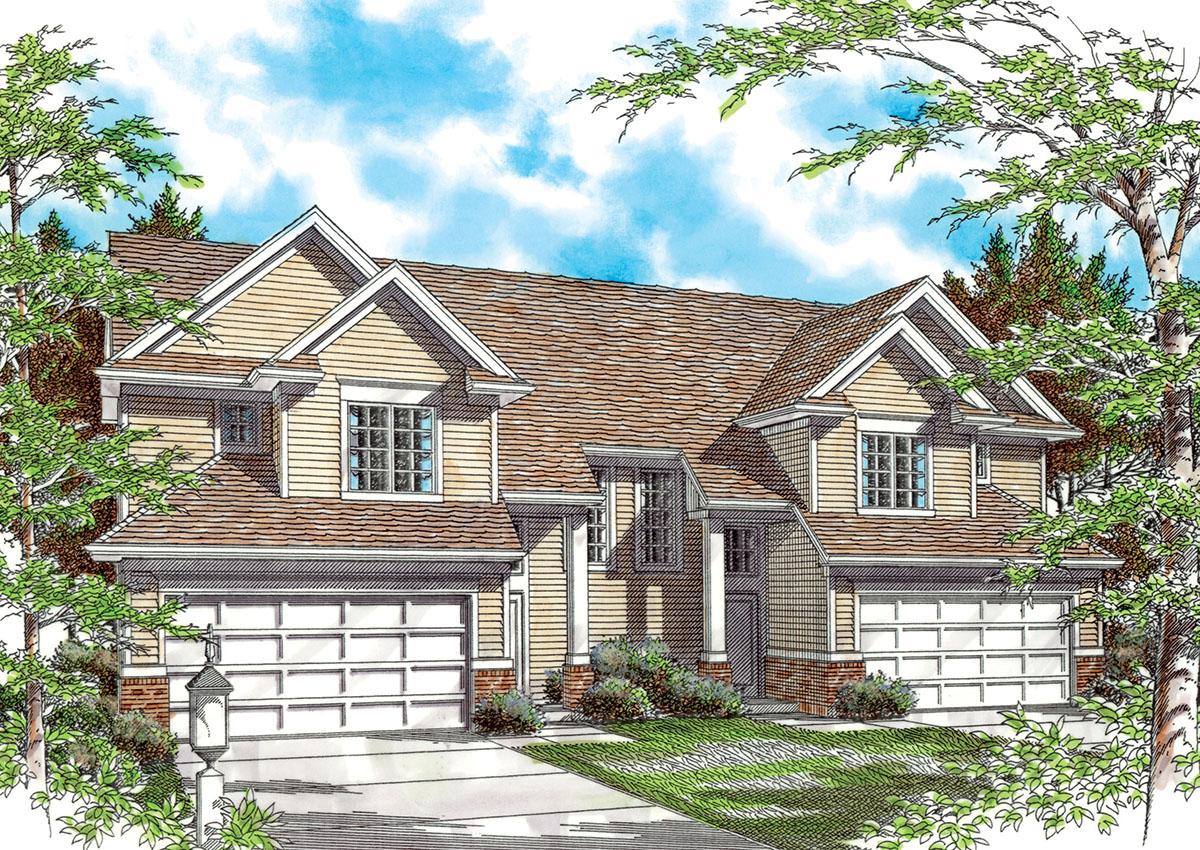

  • Not a typical multi-family structure, this design is both visually appealing and designed for great livability. Its mixture of horizontal wood siding and brick complement multi-pane windows and solid porch columns.
  • Convenient features inside dominate the identical units of the duplex. Begin with a front-facing garage that shields living spaces from street noise. Then proceed inside to find a commodious floor plan with a great room, dining room and kitchen on the main level and three bedrooms on the upper level. The great room features a nine-foot ceiling; the dining room has outdoor access and is light-filled. A coat closet and under-stair storage are found in the entry hall. A half-bath graces the service entry to the garage.
  • The laundry room is thoughtfully placed on the upper level, near family bedrooms and a master suite. The master bath features a walk-in closet and dual sinks. The main hall bath is compartmented.
  • Related Plan: Get a slightly larger version with house plan 69379AM.

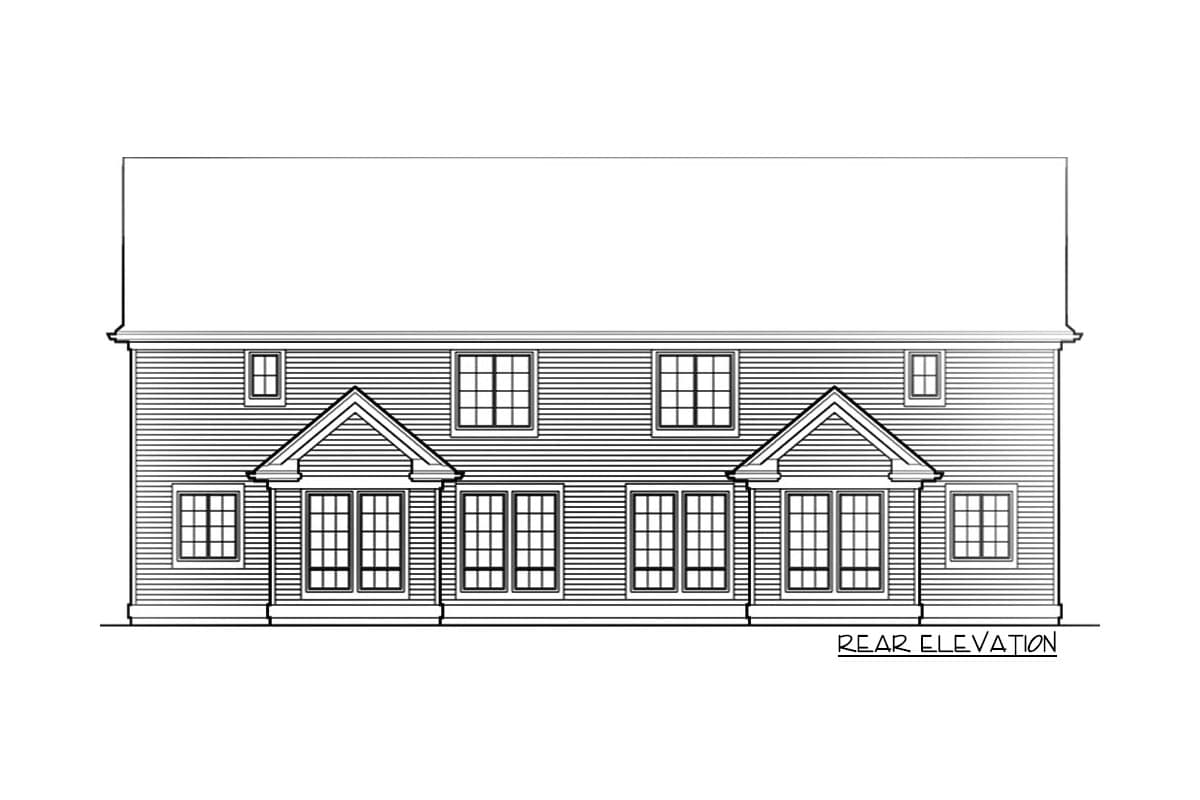

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Large Colonial Style Duplex Plan

  • 2,928

    Heated s.f.

  • 2

    Units

  • 60' 0"

    Width

  • 42' 0"

    Depth

Buy This Plan
  • Digital Study Set $1,314
  • PDF - single-use $1,664
  • 5 Sets $1,814
  • 5 Sets PLUS $1,864
  • CAD - multi-use $3,328
  • View all purchase option online

About This Plan

  • Not a typical multi-family structure, this design is both visually appealing and designed for great livability. Its mixture of horizontal wood siding and brick complement multi-pane windows and solid porch columns.
  • Convenient features inside dominate the identical units of the duplex. Begin with a front-facing garage that shields living spaces from street noise. Then proceed inside to find a commodious floor plan with a great room, dining room and kitchen on the main level and three bedrooms on the upper level. The great room features a nine-foot ceiling; the dining room has outdoor access and is light-filled. A coat closet and under-stair storage are found in the entry hall. A half-bath graces the service entry to the garage.
  • The laundry room is thoughtfully placed on the upper level, near family bedrooms and a master suite. The master bath features a walk-in closet and dual sinks. The main hall bath is compartmented.
  • Related Plan: Get a slightly larger version with house plan 69379AM.

Floor Plans

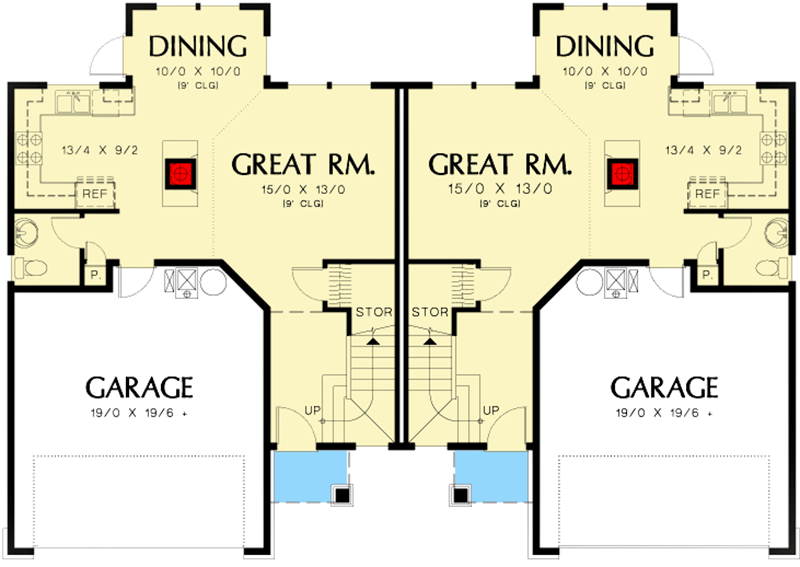

  • Main Level

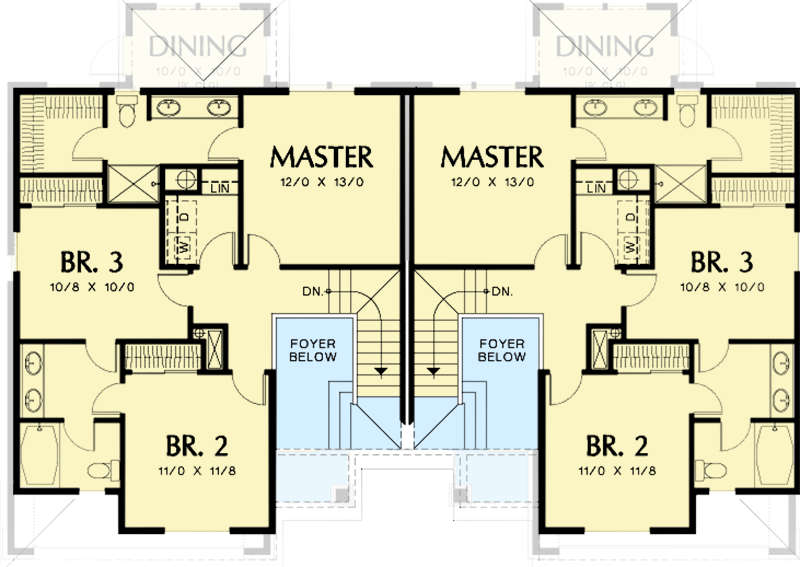

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,928 sq. ft.
  • 1st Floor: 1,310 sq. ft.
  • 2nd Floor: 1,618 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 42' 0"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 742 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • Jack & Jill Bath
  • PDF

Plan Collections

  • Multi-Family Home

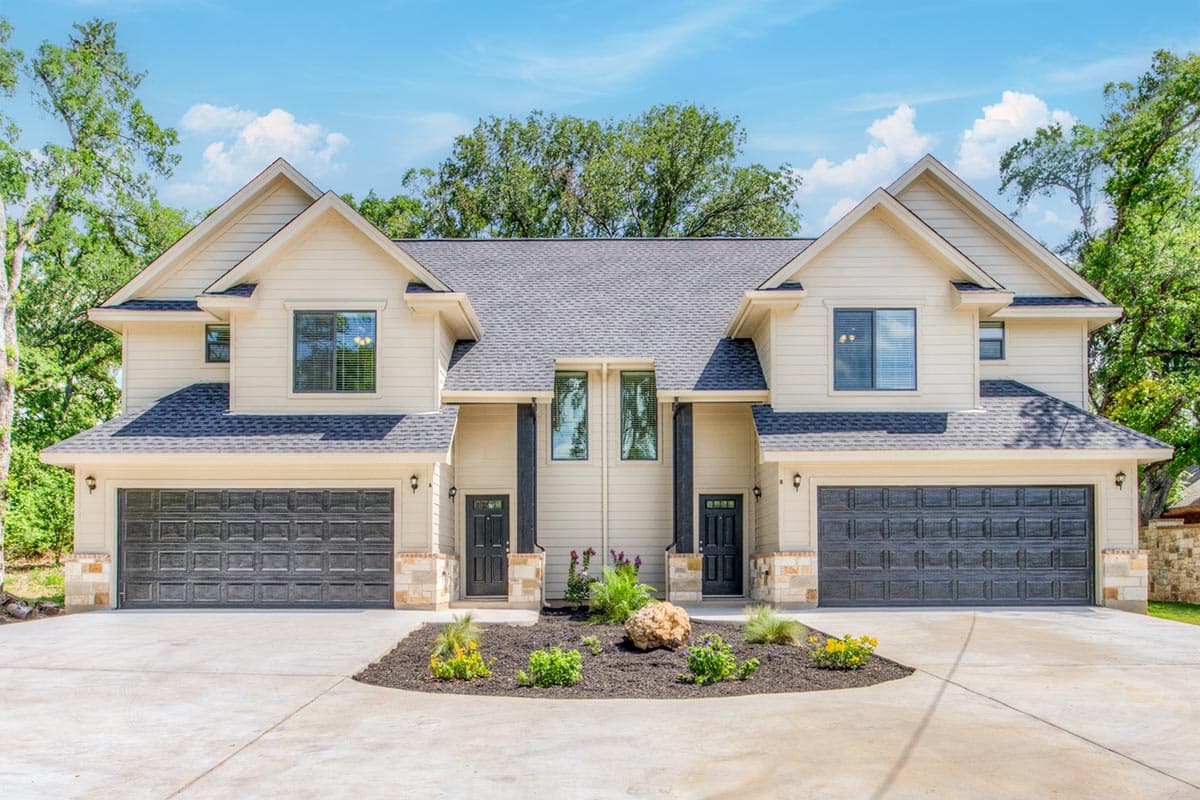

  • Photo Gallery
