Duplex with 2 Bed 898 Square Foot Units

Plan 51200MM

  • 1,796

    Heated s.f.

  • 2

    Units

  • 63'

    Width

  • 42' 6"

    Depth

  • This full-featured duplex plan gives you matching 898 square foot units, each with 2 beds and 2 baths, a 48 square foot entry porch and a 64 square foot rear porch.
  • The plan provides an excellent value in space planning, and includes several key features that help to minimize the overall cost-to-build, including the shape of the building, hip roof, and 8' ceilings.
  • Bedrooms are lined up on the outer walls leaving the interior shared wall dividing the units by the kitchen and great room, laid out in an open concept fashion.
  • Related Plans: Get other versions with duplex house plans 51176MM (701 sq. ft. units), 5183MM (825 sq. ft. units), 5150MM (990 sq. ft. units) and 51114MM (1,170 sq. ft. units).

Cover Sheet: Showing architectural rendering of residence.

Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.

Foundation Plan and Details: In general, each house plan set includes one foundation type.

Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.

Foundation types typically offered: (each type may or may not be available for a given design)

·       Slab: Slab is a type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the "water table" refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.

·       Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.

·       Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.



Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

Roof Drainage Plan:
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

Exterior Elevations:

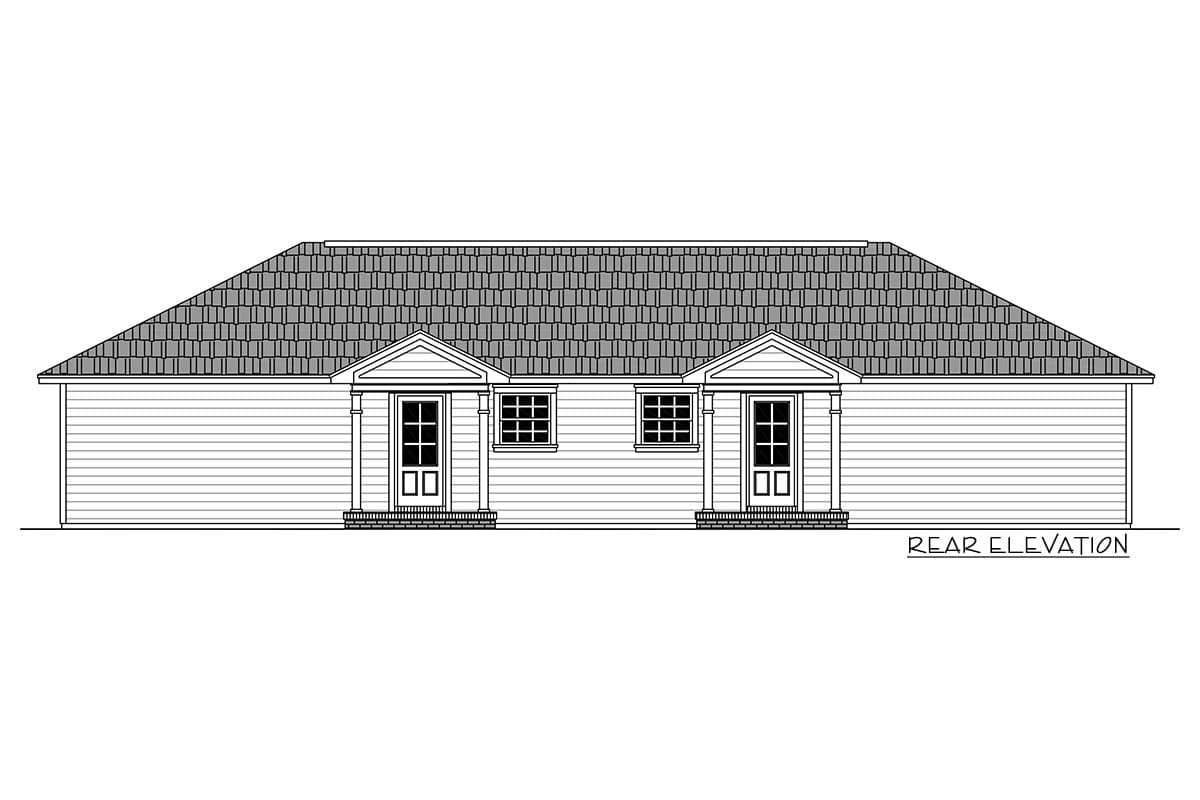

In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Specifications Form:
In general, each house plan set includes a blank short-form FHA/VA specifications document for your reference.

License to Build: Each set of construction plans include ONE license to build.

Plans include relevant building sections and details.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Unit Details

A
898 Sq. Ft.
898 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
None
31' w 42' d 15' h
B
898 Sq. Ft.
1796 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
None
31' w 42' d 15' h
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

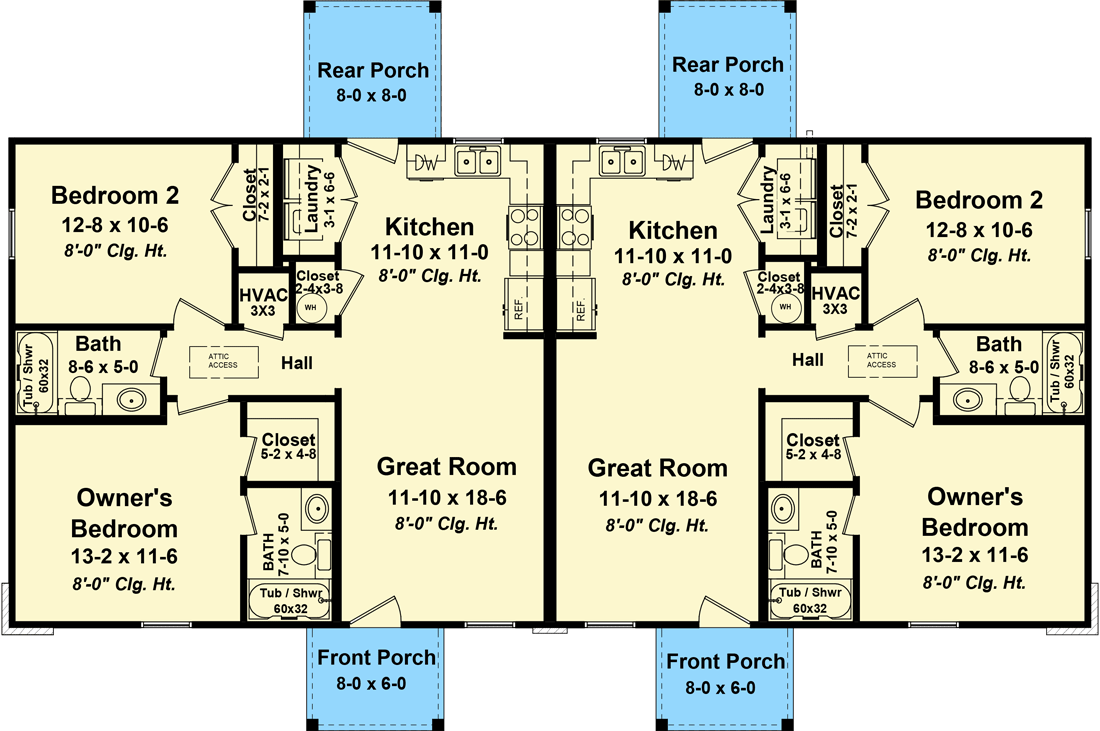

Duplex with 2 Bed 898 Square Foot Units - 51200MM floor plan - Main Level

Duplex with 2 Bed 898 Square Foot Units

  • 1,796

    Heated s.f.

  • 2

    Units

  • 63'

    Width

  • 42' 6"

    Depth

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,796 sq. ft.
  • 1st Floor: 1,796 sq. ft.

Dimensions

  • Width: 63' 0"
  • Depth: 42' 6"
  • Max ridge height: 15' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
