Plan 69379AM

Duplex House Plan with Outdoor Access from Dining Room

Heated S.F.
3,020
Units
2
Width
Depth

Floor Plan

Plan 69379AM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 69379AM

M-F 9am-5pm EST |

1-203-761-8500

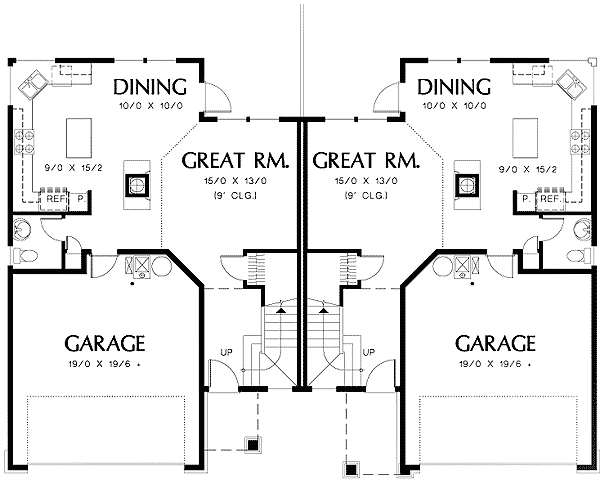

Main Level

Plan 69379AM: Duplex House Plan with Outdoor Access from Dining Room - Floor Plan - Main Level

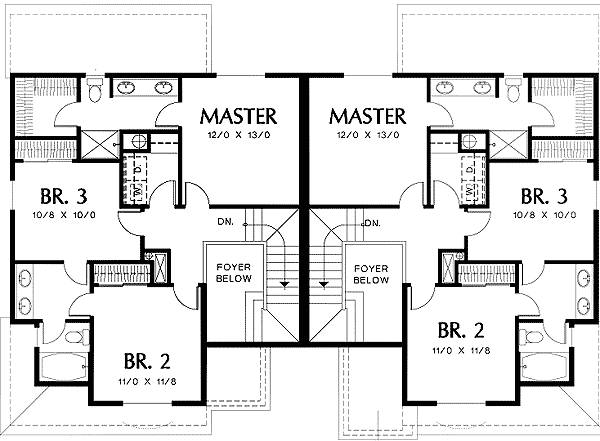

2nd Floor

Plan 69379AM: Duplex House Plan with Outdoor Access from Dining Room - Floor Plan - 2nd Floor

Plan Details

  • A few simple details, such as shuttered windows and cedar shingles can make the difference between a plain façade and an appealing home. This duplex house plan offers more than just a treat for the eye - it also houses two comfortable living units.
  • Each unit gives you 1,510 square feet of heated living (709 sq. ft. on the first floor and 801 sq. ft. on the second floor) and a 411 square foot garage.
  • Each side contains open living space in a great room and dining room - both near an island kitchen with corner window sink. The great room features a nine-foot ceiling; the dining room has outdoor access. Double windows in both rooms brighten the whole area. A half-bath and coat closet are handy additions.
  • The second level holds bedrooms: two for family and guests, plus a master suite. The master bath is especially noteworthy with a walk-in closet and double sinks. The shared bath is compartmented for convenience. Note the thoughtful placement of the laundry room on the upper level.
  • Related Plan: Downsize slightly with duplex house plan 69378AM.
Unit A
Heated Area
1,510Sq. Ft.
709 Sq. Ft. 1st
801 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
411 Sq. Ft.
Dimensions
30'width
42'depth
30'height
Unfinished Areas
411 Sq. Ft. Garage
Unit B
Heated Area
1,510Sq. Ft.
708 Sq. Ft. 1st
801 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
411 Sq. Ft.
Dimensions
30'width
42'depth
30'height
Unfinished Areas
411 Sq. Ft. Garage

What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,020 sq. ft.

1st Floor

1,418 sq. ft.

2nd Floor

1,602 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

42' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

742 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Special Features

Jack & Jill Bath

Laundry - Upstairs

Master Suite - Upstairs
