Plan 89252AH Duplex With Perfect Blend Of Stone And Stucco

Duplex With Perfect Blend Of Stone And Stucco

Plan 89252AH

  • 6,624

    Heated s.f.

  • 2

    Units

  • 104' 0"

    Width

  • 70' 4"

    Depth

  • This traditional duplex house plan was designed with the perfect blend of stone and stucco to give these homes a unique cure appeal.
  • Inside, we've made use of every square foot of available space for each unit making them perfect for a wide variety of buyers.
  • The kitchen, dining room and great room all flow together in an open plan creating a living space large enough to entertain.
  • The master bedroom has a walk-in closet and his and hers sinks.
  • The second bedroom is on the main floor but can double as an office if necessary. Downstairs you'll be pleasantly surprised to find two more bedrooms, a spacious family room with wet bar a game room and a full bath.
  • Each unit has space for three-cars making these homes appealing to many buyers.
  • Interested in single-family versions of this house plan? See house plans 89676AH (with lower level) and 89675AH (single-level design).

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

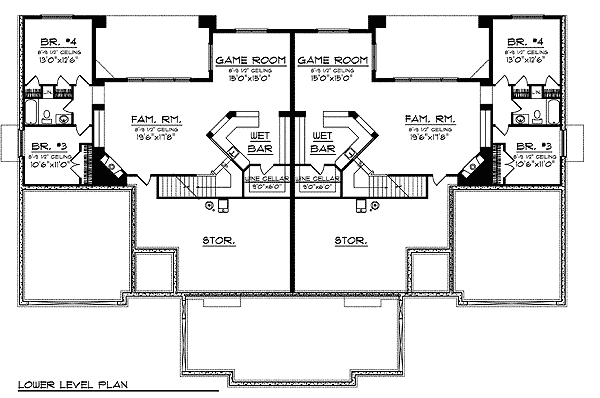

Duplex With Perfect Blend Of Stone And Stucco - 89252AH floor plan - Basement
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Duplex With Perfect Blend Of Stone And Stucco - 89252AH floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Duplex With Perfect Blend Of Stone And Stucco - 89252AH floor plan - Optional

Plan details

Duplex With Perfect Blend Of Stone And Stucco

  • 6,624

    Heated s.f.

  • 2

    Units

  • 104' 0"

    Width

  • 70' 4"

    Depth

Buy This Plan
  • 5 Sets $3,643
  • 8 Sets $3,974
  • Reproducible Set $5,100
  • PDF - Single-Build $5,100
  • CAD - Single-Build $7,949
  • View all purchase option online

About This Plan

  • This traditional duplex house plan was designed with the perfect blend of stone and stucco to give these homes a unique cure appeal.
  • Inside, we've made use of every square foot of available space for each unit making them perfect for a wide variety of buyers.
  • The kitchen, dining room and great room all flow together in an open plan creating a living space large enough to entertain.
  • The master bedroom has a walk-in closet and his and hers sinks.
  • The second bedroom is on the main floor but can double as an office if necessary. Downstairs you'll be pleasantly surprised to find two more bedrooms, a spacious family room with wet bar a game room and a full bath.
  • Each unit has space for three-cars making these homes appealing to many buyers.
  • Interested in single-family versions of this house plan? See house plans 89676AH (with lower level) and 89675AH (single-level design).

Floor Plans

  • Basement

  • Main Level

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,624 sq. ft.
  • Lower Level: 2,642 sq. ft.
  • 1st Floor: 3,982 sq. ft.

Beds/Baths

  • Bedrooms: 8
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 104' 0"
  • Depth: 70' 4"
  • Max ridge height: 24' 9"

Garage

  • Type: Attached
  • Area: 1578 sq. ft.
  • Count: 6 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
