Plan 62523DJ

Easy To Build 3 Unit House Plan

Heated S.F.
5,013
Units
3
Width
Depth

Floor Plan

Plan 62523DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 62523DJ

M-F 9am-5pm EST |

1-203-761-8500

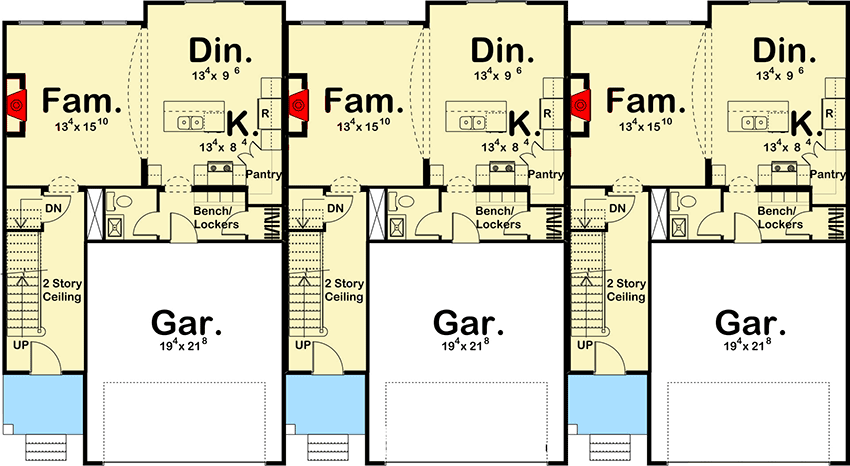

Main Level

Plan 62523DJ: Easy To Build 3 Unit House Plan - Floor Plan - Main Level

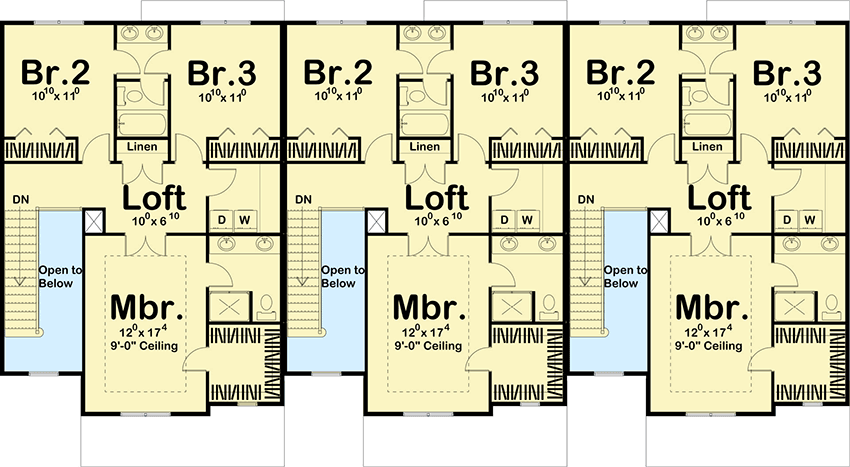

2nd Floor

Plan 62523DJ: Easy To Build 3 Unit House Plan - Floor Plan - 2nd Floor

Plan Details

  • This 3 unit house plan is easy to build and a great plan for a high density neighborhood.
  • Each unit features an open family room with fireplace that is open to the kitchen and dining area on the main floor.
  • Upstairs, each unit features a roomy master bedroom with a huge walk-in closet plus two more bedrooms.
  • Each unit delivers 753 square feet of living space on the main floor and 918 square feet of living space on the upper floor plus a 435 square foot garage.
Unit A
Heated Area
1,671Sq. Ft.
753 Sq. Ft. 1st
918 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
435 Sq. Ft.
Dimensions
28'width
46'depth
34'height
Unfinished Areas
435 Sq. Ft. Garage
1305 Sq. Ft. Attached
Unit B
Heated Area
1,671Sq. Ft.
753 Sq. Ft. 1st
918 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
435 Sq. Ft.
Dimensions
28'width
46'depth
34'height
Unfinished Areas
435 Sq. Ft. Garage
Unit C
Heated Area
1,671Sq. Ft.
753 Sq. Ft. 1st
918 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
435 Sq. Ft.
Dimensions
28'width
43'depth
34'height
Unfinished Areas
435 Sq. Ft. Garage

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,013 sq. ft.

1st Floor

2,259 sq. ft.

2nd Floor

2,754 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

2, 3, 4, 5, or 6

Half bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

84' 0"

Depth

46' 0"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

1305 sq. ft.

Count

6 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Special Features

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

5,013 sq. ft.

1st Floor

2,259 sq. ft.

2nd Floor

2,754 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

2, 3, 4, 5, or 6

Half bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

84' 0"

Depth

46' 0"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

1305 sq. ft.

Count

6 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Special Features

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry
