Plan 5111MM
Easy To Build House Plan
Heated S.F.
1,654
Beds
3
Baths
2
Stories
1
Cars
2
Videos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

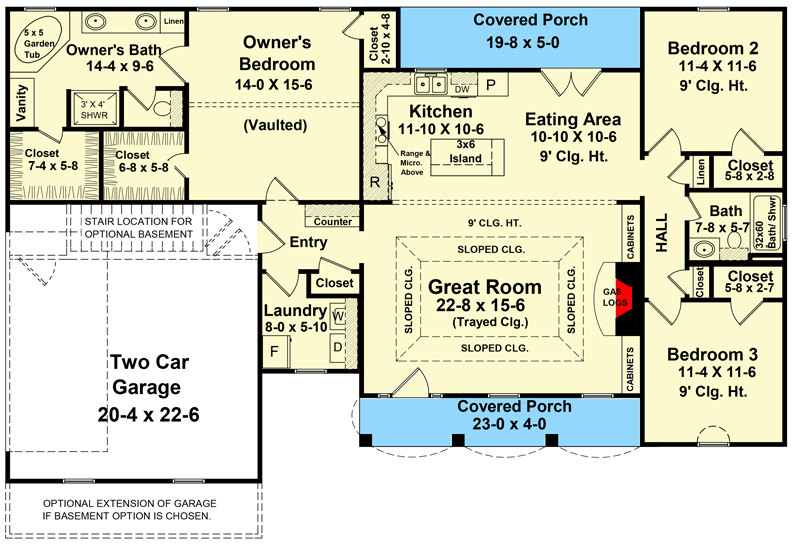

Easy To Build House Plan - 5111MM floor plan - Main Level
Optional Basement Stair Location
Reverse Floor Plan

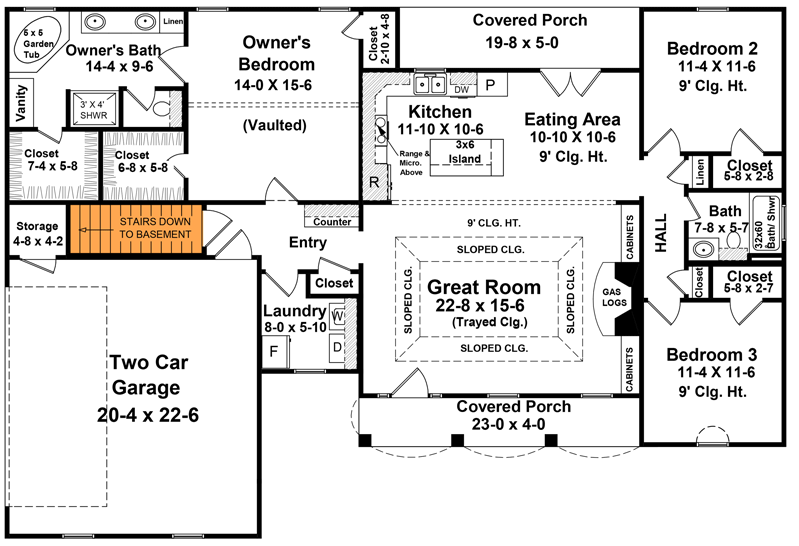

Easy To Build House Plan - 5111MM floor plan - Optional Basement Stair Location
Plan Details
  • This highly-functional split-bedroom home has a brick exterior and a 5'-deep front porch and a 4'-deep back porch.
  • The great room has a trayed ceiling and a fireplace and is open to the kitchen and dining area.
  • An expansive master bedroom has a vaulted ceiling, shoes/valuables extra closet, and 2 large walk-in closets.
  • The master bath features an oversized jet tub, a separate shower, separate make-up area, and a compartmentalized toilet.
  • A large laundry room off the garage entry has a freezer giving you extra food storage space.
  • Related Plans: Get alternate versions with house plans 5112MM, 5110MM and 5117MM and a version with dormers with house plan 5113MM.
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

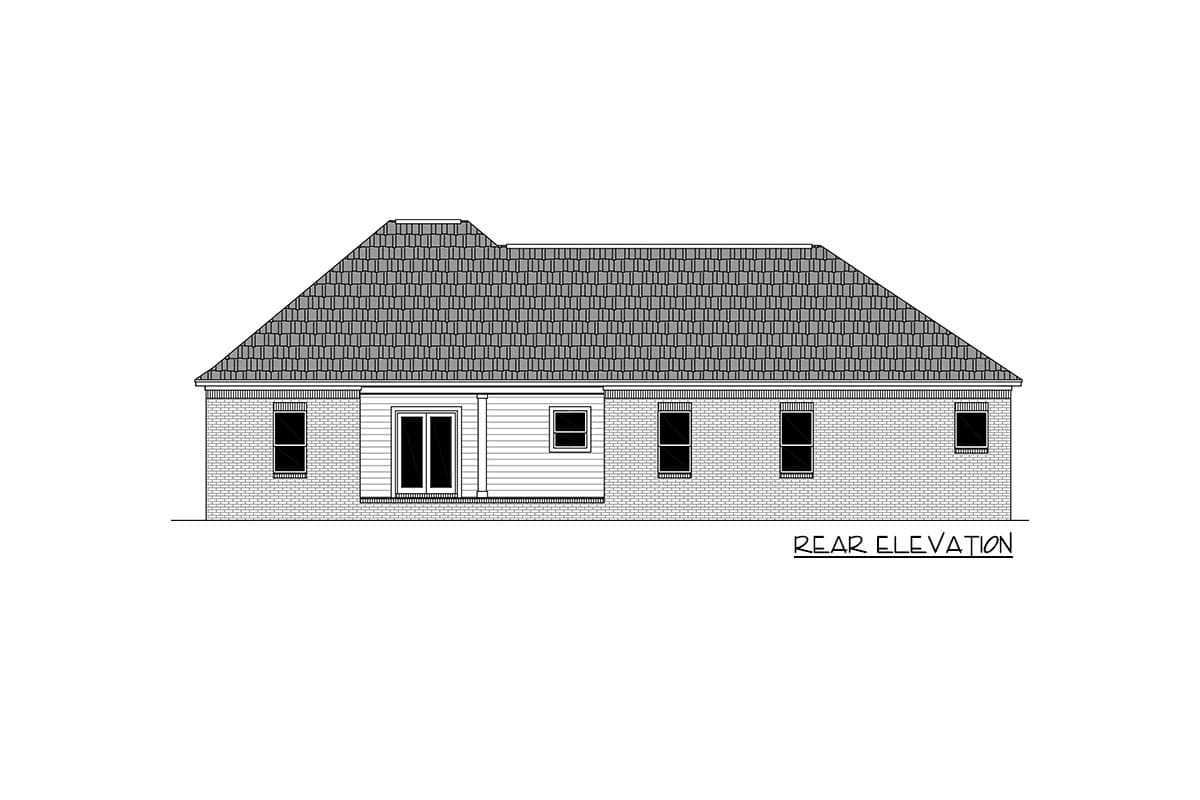

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
