Plan 5110MM

Highly Functional Split-Bedroom Floorplan

Heated S.F.
1,639
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 5110MM

Main Level
Main Level

Plan 5110MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

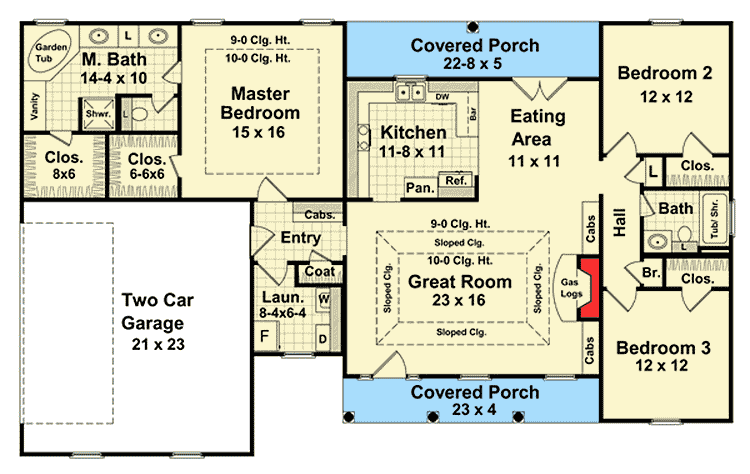

Plan 5110MM: Highly Functional Split-Bedroom Floorplan - Floor Plan - Main Level - Acadian, Ranch, Southern, Traditional

Plan Details

  • This house plan features a highly-functional split-bedroom floorplan layout and covered front and rear porches.
  • Feature rich master bedroom suite with trayed ceiling, two large walk-in closets, oversized jet tub, separate shower, compartmented toilet, and separate make-up area.
  • Laundry with freezer space.
  • Related Plans: Get a basement version with house plan 5112MM, a vaulted master bedroom with house plan  5111MM and a version with a bonus room with house plan 5117MM. Get a version with dormers with house plan 5113MM.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

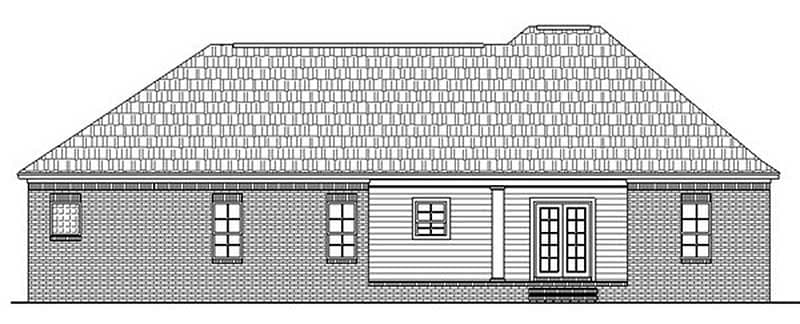

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,639 sq. ft.

1st Floor

1,639 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

113 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

39' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Acadian

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,639 sq. ft.

1st Floor

1,639 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

113 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

39' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Acadian

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

USDA Approved
