Plan 72112DA

Economical Narrow Lot

Heated S.F.
1,429
Beds
2
Baths
2.5
Stories
2

Floor Plan

Plan 72112DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72112DA

M-F 9am-5pm EST |

1-203-761-8500

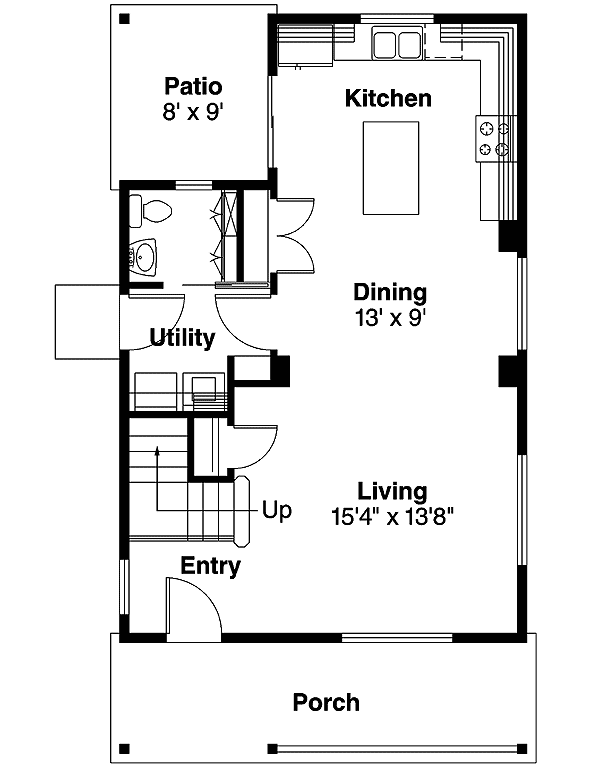

Main Level

Plan 72112DA: Economical Narrow Lot - Floor Plan - Main Level - Cottage, Craftsman

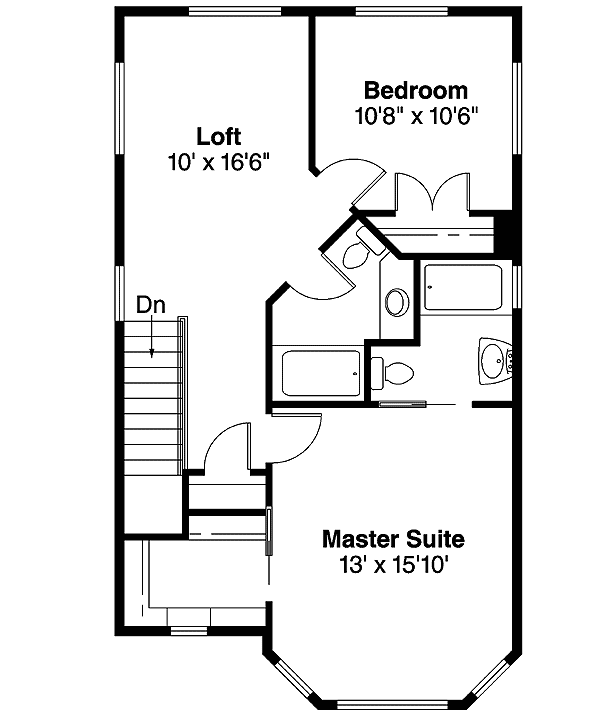

2nd Floor

Plan 72112DA: Economical Narrow Lot - Floor Plan - 2nd Floor - Cottage, Craftsman

Plan Details

  • The compact, two-story house plan is designed to fit on a narrow lot with room to spare. It is as economical to build as it is to heat and maintain, yet still has a very spacious feel, especially in the main floor gathering spaces.
  • A front porch spans the entire front fa'ade. The stairway across from the front door creates a protected entry. When you turn to the right, you move into an expansive space that is totally open from the living room's front window to the kitchen's rear window. Windowed on two sides, the room is naturally bright.
  • Square columns mark the boundary between the living room and a dining room that is open to the kitchen. Counters and cabinets wrap around two sides of the kitchen, and there's plenty of room for a large freestanding table at the center. From the kitchen, sliding doors provide access to a covered patio that can be screened, and double doors swing open to reveal a roomy set of pantry shelves.
  • Laundry appliances are nearby too, in a pass through space that leads to an exterior door. A powder room is right across the hall. This area can be closed off to serve as a mudroom.
  • Two bedrooms, two bathrooms and a loft fill the upper level. A wide bay window brightens and expands the home plan's master suite, which also has a generously sized walk-in closet and private bathroom. Pull-down stairs provide attic access.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,429 sq. ft.

1st Floor

676 sq. ft.

2nd Floor

753 sq. ft.

Covered Patio

72 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

40' 0"

Max Ridge Height

25' 8"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Special Features

Loft

Master Suite - Upstairs

Mudroom

Square Footage Breakdown

Total Heated Area

1,429 sq. ft.

1st Floor

676 sq. ft.

2nd Floor

753 sq. ft.

Covered Patio

72 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

40' 0"

Max Ridge Height

25' 8"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Special Features

Loft

Master Suite - Upstairs

Mudroom
