Plan: 33145ZR

Elegant Energy Smart Home Plan

4,150 3-4 4 + 1-2 2
Pageloader

Elegant Energy Smart Home Plan

Plan 33145ZR

  • 4,150

    Heated s.f.

  • 3-4

    Beds

  • 4 +

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • VIDEO: See this house plan from all angles in our YouTube video.

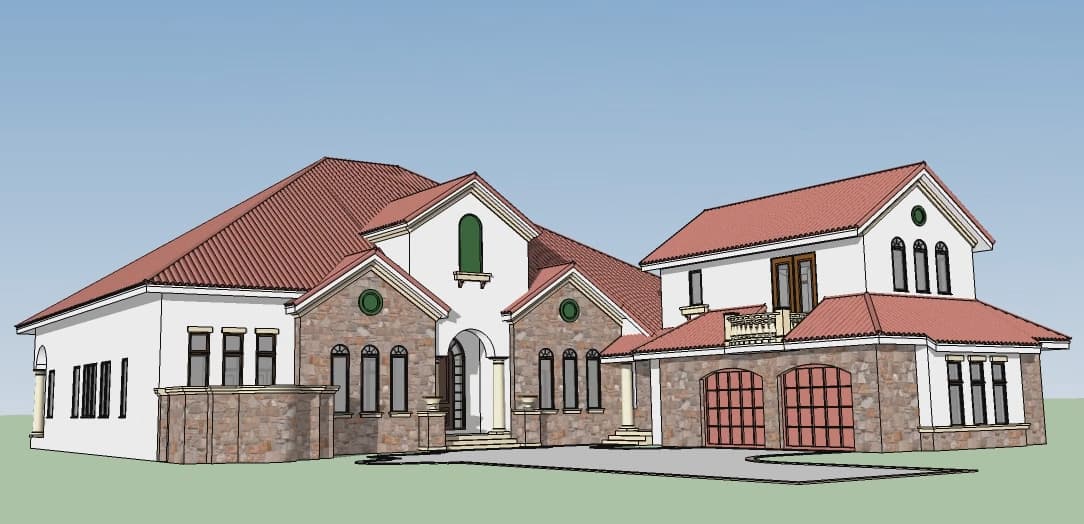

  • This elegant Mediteranean home plan, exclusive to Architectural Designs, is not only beautiful but energy-efficient too!
  • Built to the architect's specifications, this home consumes 50% less energy than a typical new home, which can reduce the monthly cost of home ownership by up to hundreds of dollars.
  • The enormous great room has a gorgeous coffered ceiling and a fireplace flanked by built-ins.
  • Three sets of double doors give you easy access to the rear covered lanai, keeping you cool in the shade.
  • The nearby sun deck has an outdoor fireplace to gather around.
  • Each guest bedroom has a large walk-in closet and direct access to a bathroom.
  • The master suite is over on the other side of the home where you have a private foyer with a display niche for your collectibles.
  • Twin walk-in closets are closed off with pocket doors - a real space saver.
  • Bonus space on the second floor adds a 4th bedroom suite with an outdoor balcony and is included in the total living area.
  • Related Plan: Get a stunning stair tower and a Mediterranean exterior with house plan 33144ZR (4,127 sq. ft.).

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

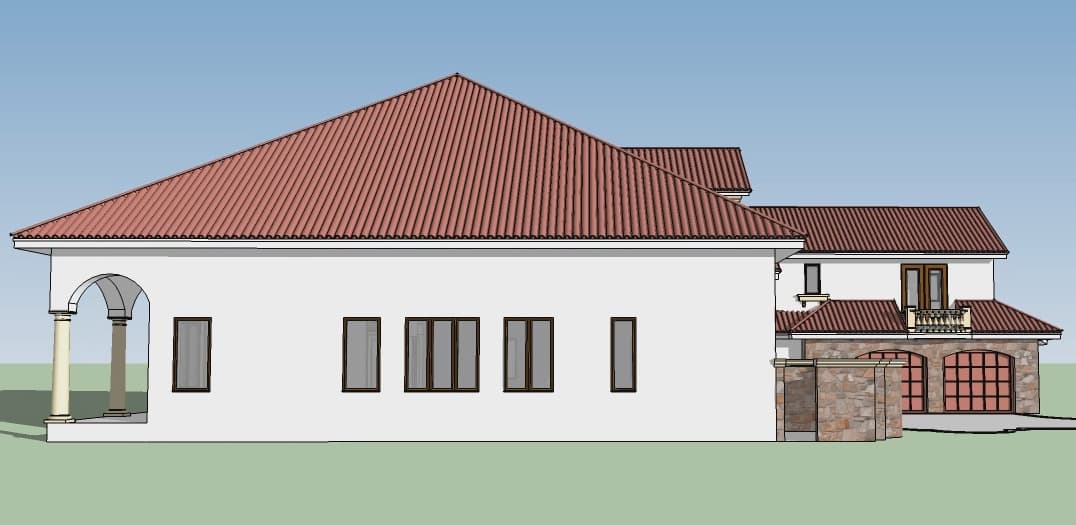

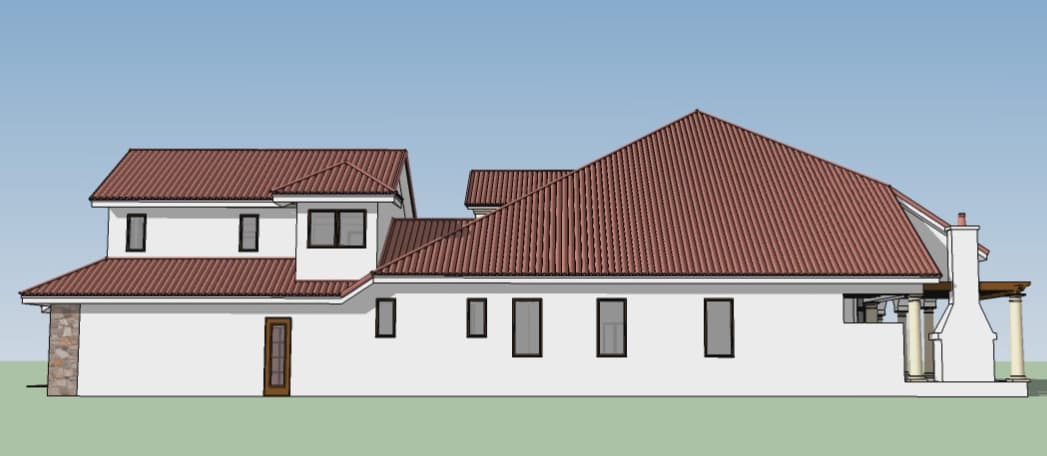

EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details

Plan details



Elegant Energy Smart Home Plan

  • 4,150

    Heated s.f.

  • 3 - 4

    Beds

  • 4 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $2,530
  • 5 Sets $2,630
  • CAD $3,950
  • View all purchase option online

About This Plan

  • VIDEO: See this house plan from all angles in our YouTube video.
  • This elegant Mediteranean home plan, exclusive to Architectural Designs, is not only beautiful but energy-efficient too!
  • Built to the architect's specifications, this home consumes 50% less energy than a typical new home, which can reduce the monthly cost of home ownership by up to hundreds of dollars.
  • The enormous great room has a gorgeous coffered ceiling and a fireplace flanked by built-ins.
  • Three sets of double doors give you easy access to the rear covered lanai, keeping you cool in the shade.
  • The nearby sun deck has an outdoor fireplace to gather around.
  • Each guest bedroom has a large walk-in closet and direct access to a bathroom.
  • The master suite is over on the other side of the home where you have a private foyer with a display niche for your collectibles.
  • Twin walk-in closets are closed off with pocket doors - a real space saver.
  • Bonus space on the second floor adds a 4th bedroom suite with an outdoor balcony and is included in the total living area.
  • Related Plan: Get a stunning stair tower and a Mediterranean exterior with house plan 33144ZR (4,127 sq. ft.).

Floor Plans

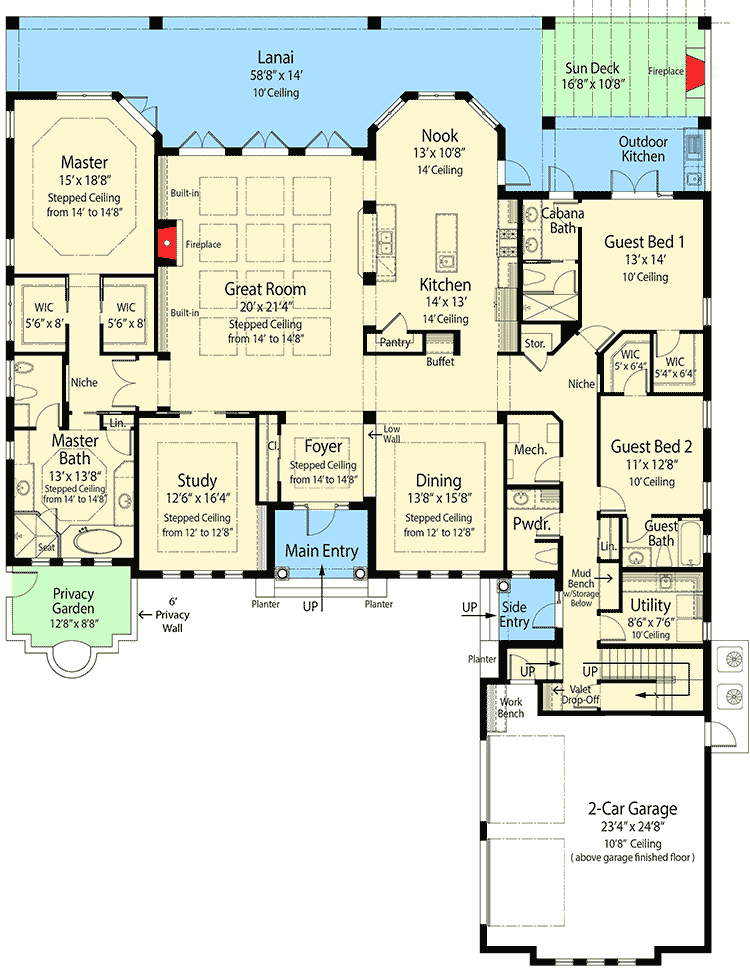

  • Main Level

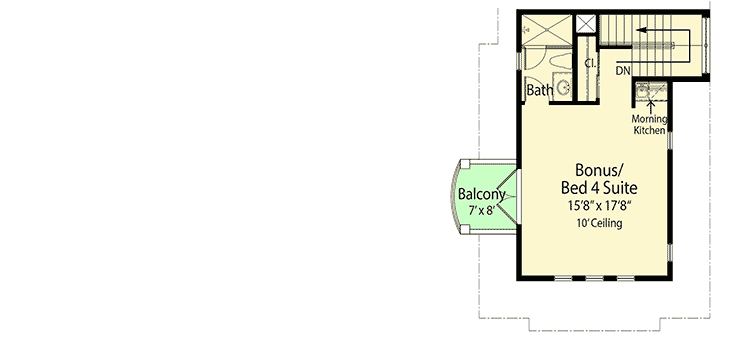

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,150 sq. ft.
  • 1st Floor: 3,711 sq. ft.
  • 2nd Floor: 437 sq. ft.
  • Balcony / Veranda: 53 sq. ft.
  • Deck: 178 sq. ft.
  • Entry: 73 sq. ft.
  • Lanai: 818 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 75' 4"
  • Depth: 101' 4"
  • Max ridge height: 37' 6"

Garage

  • Type: Attached
  • Area: 665 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • European
  • Mediterranean
  • Southern

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • CAD Available
  • Den-Office-Library-Study
  • MBR Sitting Area
  • PDF
  • Split Bedrooms

Plan Collections

  • Exclusive
  • Net Zero Ready
