Plan 80405PM

Elegant European Home Plan

Heated S.F.
2,535
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 80405PM

Main Level
Main Level
Main Level
Main Level
2nd Floor
2nd Floor
2nd Floor
2nd Floor

Plan 80405PM

M-F 9am-5pm EST |

1-203-761-8500

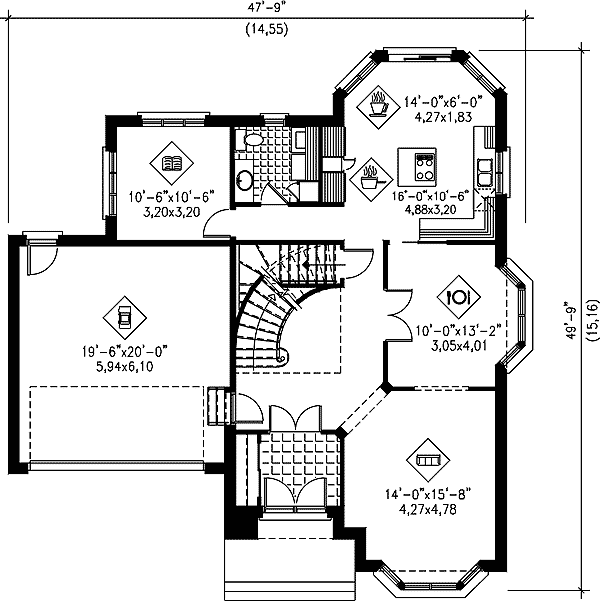

Main Level

Plan 80405PM: Elegant European Home Plan - Floor Plan - Main Level - European, Traditional

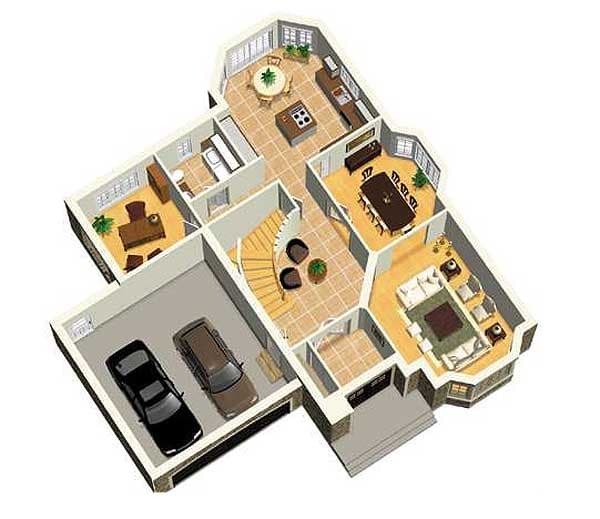

Main Level

Plan 80405PM: Elegant European Home Plan - Floor Plan - Main Level - European, Traditional

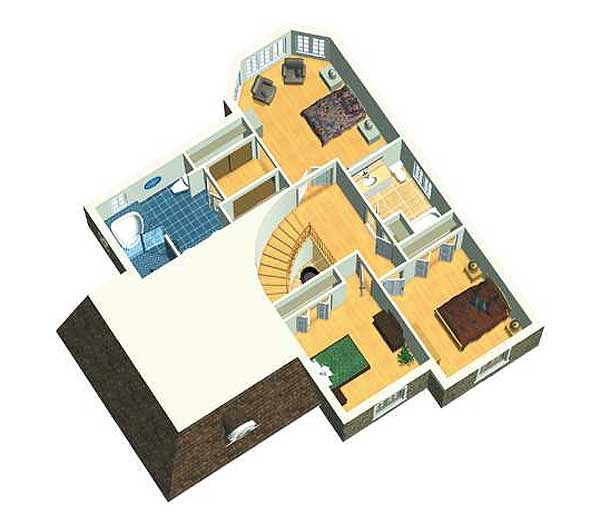

2nd Floor

Plan 80405PM: Elegant European Home Plan - Floor Plan - 2nd Floor - European, Traditional

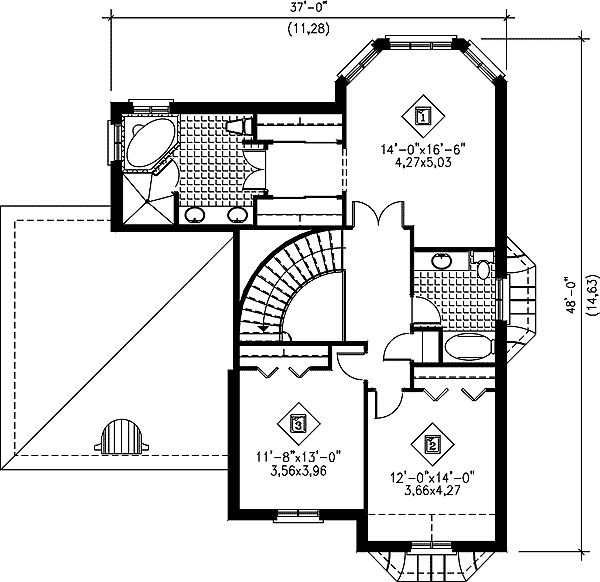

2nd Floor

Plan 80405PM: Elegant European Home Plan - Floor Plan - 2nd Floor - European, Traditional

Plan Details

  • A steep hip roof adds distinction to this elegant European home plan.
  • The air lock entry foyer keeps cold air out of the main house in the winter.
  • A curved staircase is your first sight as you enter the home.
  • Bay windows extend both the living room and dining room, making them feel larger.
  • The kitchen has an island and a bayed eating nook that floods both rooms with light.
  • All the bedrooms are on the upper floor.

What's Included

Please note this plan is designed to the National Building Code of Canada.

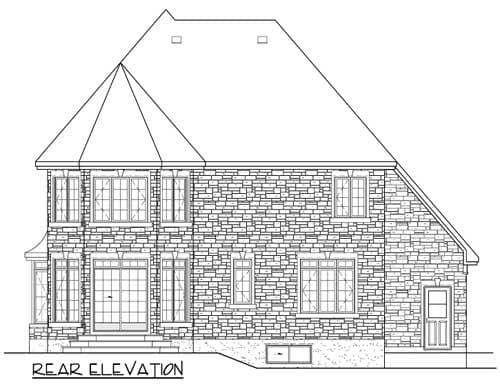

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,535 sq. ft.

1st Floor

1,273 sq. ft.

2nd Floor

1,262 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

50' 0"

Max Ridge Height

37' 9"

Garage

Type

Attached

Area

439 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

European

Traditional

Special Features

Breakfast Nook

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric
