Plan 59853ND

Elegant European Home with Split Bedrooms and Courtyard Charm

Heated S.F.
2,507
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 59853ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59853ND

M-F 9am-5pm EST |

1-203-761-8500

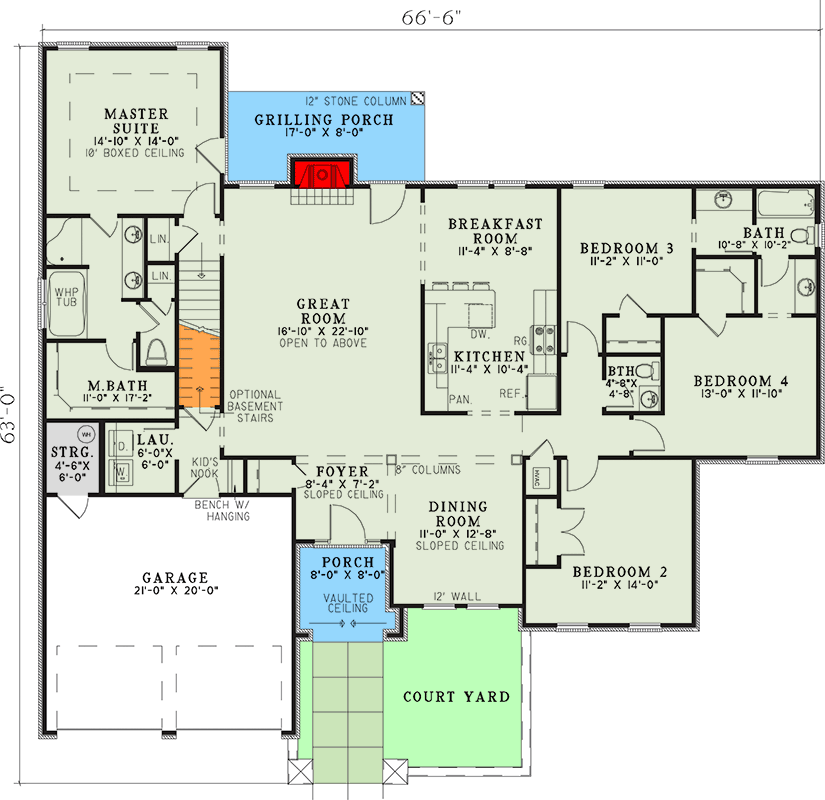

Main Level

Plan 59853ND: Elegant European Home with Split Bedrooms and Courtyard Charm - Floor Plan - Main Level - European, Mediterranean, Tuscan

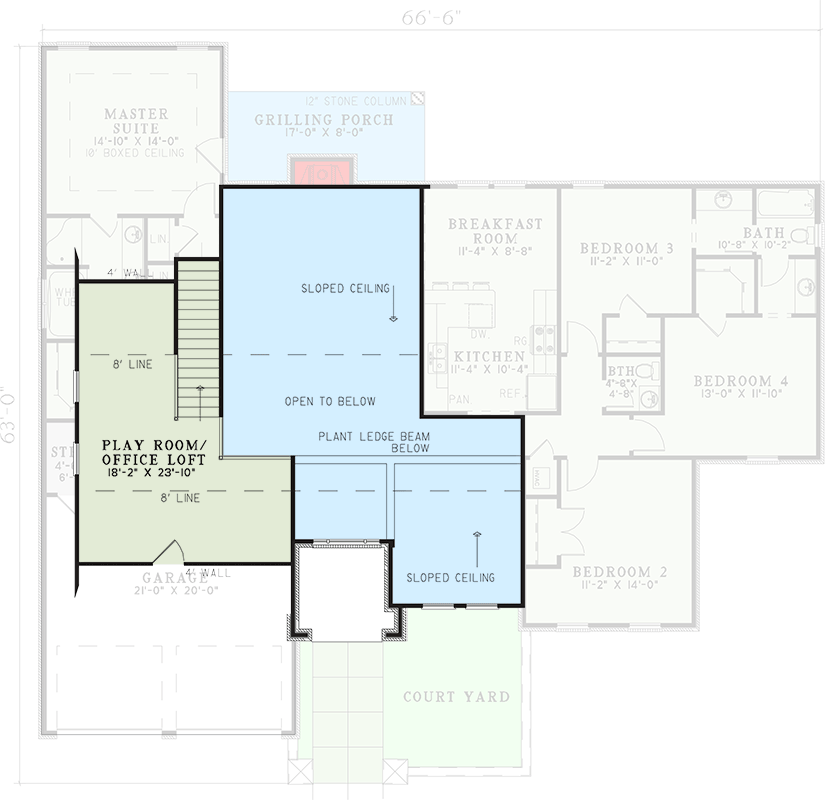

2nd Floor

Plan 59853ND: Elegant European Home with Split Bedrooms and Courtyard Charm - Floor Plan - 2nd Floor - European, Mediterranean, Tuscan

Plan Details

  • This 2,507 sq. ft. 4-bedroom, 2.5-bathroom home beautifully combines European, Mediterranean, and Tuscan styles with a spacious attached 2-car garage.
  • Enter through the elegant foyer, where a charming courtyard welcomes you, setting the tone for the home’s open and fluid design.
  • The expansive great room boasts a stunning two-story ceiling, seamlessly blending with the dining room and kitchen for effortless entertaining.
  • Enjoy a private oasis with the first-floor master suite, complete with a luxurious en-suite bathroom. Secondary bedrooms positioned with a split design ensure privacy and comfort.
  • Discover versatile spaces with a home office/loft and playroom, perfect for adapting to your lifestyle needs.
  • Relish outdoor living on the rear grilling porch, ideal for hosting gatherings or relaxing evenings.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,507 sq. ft.

1st Floor

2,186 sq. ft.

2nd Floor

321 sq. ft.

Porch, Rear

140 sq. ft.

Entry

64 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 6"

Depth

63' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

482 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

European

Mediterranean

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Courtyard

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Playroom

Two Story Great Room

Plan Collections

Home Office
