Elegant Florida House Plan

Plan 66356WE

  • 1,526

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • With its modest square footage, this elegant Florida house plan gives you split bedrooms and an open layout, without a lot of space to clean and maintain.
  • The arched windows are matched by an arched entry porch for a high end look.
  • Sightlines start right at the front door where you get sweeping views of the main living area and lanai.
  • Designed for outdoor living, the rear covered lanai protects you from sun and rain.
  • The quiet master suite is tucked away at the back of the house away from street noise.
  • On the other side of the house, bedroom 3 gets a lovely bay window.
  • The three car garage is side load, ideal for a corner lot.



Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

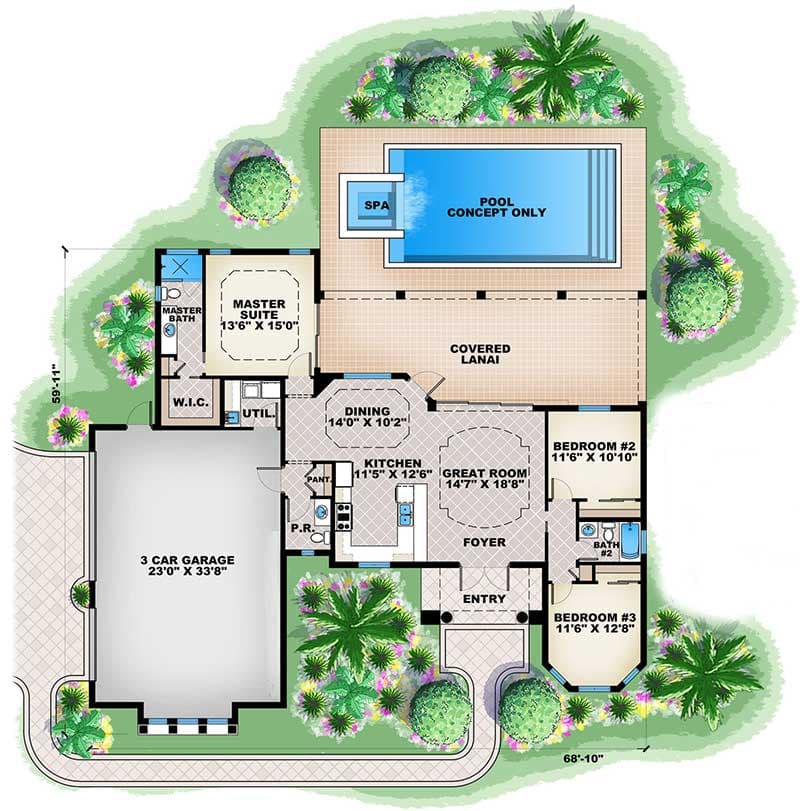

Elegant Florida House Plan - 66356WE floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,526 sq. ft.
  • 1st Floor: 1,526 sq. ft.
  • Lanai: 521 sq. ft.
  • Entry: 105 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 68' 10"
  • Depth: 59' 11"
  • Max ridge height: 22' 6"

Garage

  • Type: Attached
  • Area: 899 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Elegant Florida House Plan

  • 1,526

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $900
  • CAD - Single-Build $900
  • View all purchase option online

About This Plan

  • With its modest square footage, this elegant Florida house plan gives you split bedrooms and an open layout, without a lot of space to clean and maintain.
  • The arched windows are matched by an arched entry porch for a high end look.
  • Sightlines start right at the front door where you get sweeping views of the main living area and lanai.
  • Designed for outdoor living, the rear covered lanai protects you from sun and rain.
  • The quiet master suite is tucked away at the back of the house away from street noise.
  • On the other side of the house, bedroom 3 gets a lovely bay window.
  • The three car garage is side load, ideal for a corner lot.



Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,526 sq. ft.
  • 1st Floor: 1,526 sq. ft.
  • Lanai: 521 sq. ft.
  • Entry: 105 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 68' 10"
  • Depth: 59' 11"
  • Max ridge height: 22' 6"

Garage

  • Type: Attached
  • Area: 899 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 66356WE
View this and more for this plan by visiting www.architechtecturaldesigns.com/66356WE
|
