Plan 66319WE

Elegant Florida-Style House Plan with Outdoor Kitchen and First-Floor Master

Name: Plan 66319WE: Elegant Florida-Style House Plan with Outdoor Kitchen and First-Floor Master
Brand: Architectural Designs
SKU: 66319WE
Price: 1650.0 USD
Availability: InStock

Heated S.F.

2,548

Beds

Baths

3.5

Stories

Cars

Floor Plan

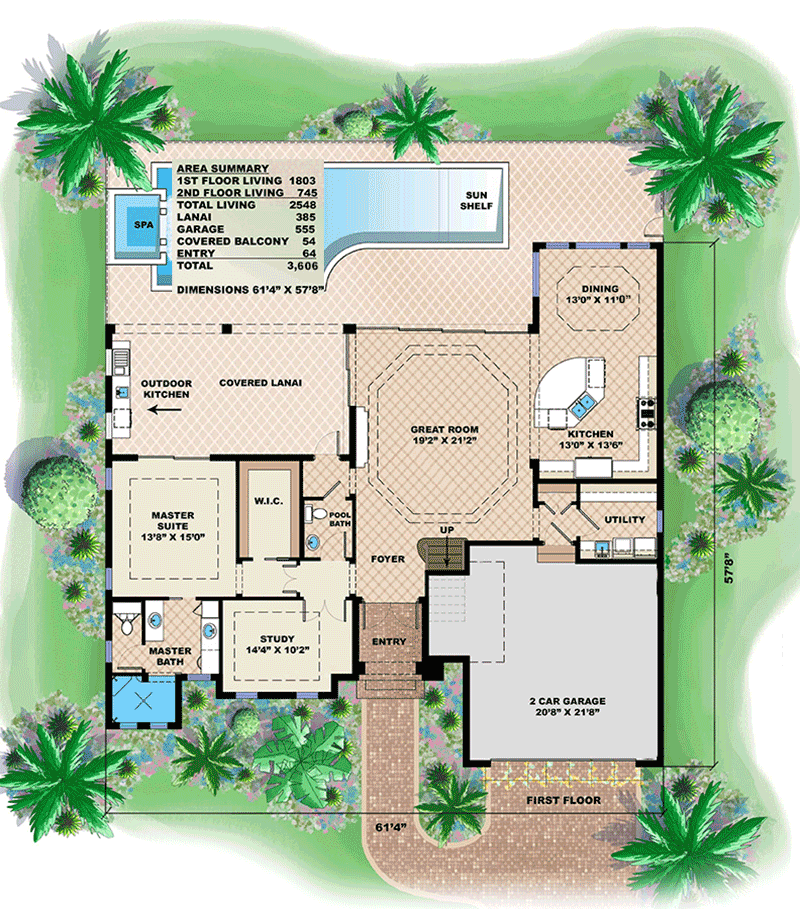

Main Level

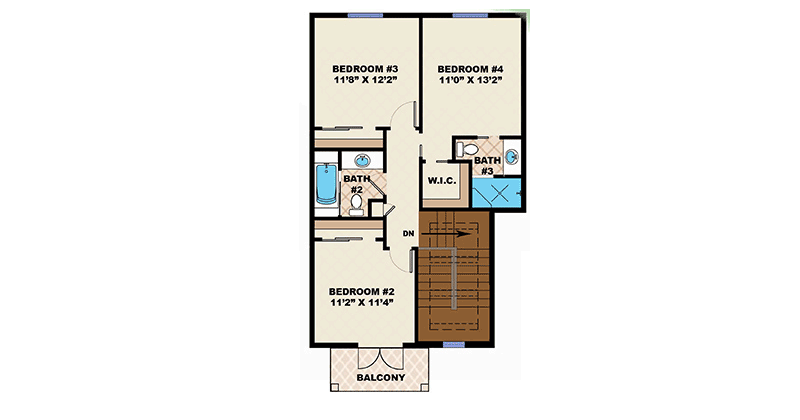

2nd Floor

Plan Details

This captivating Florida-Style Mediterranean house plan offers 2,548 sq. ft. of heated living space, featuring 4 bedrooms, 3 full bathrooms, 1 half bathroom, and an attached 555 sq. ft. two-car garage, all wrapped in a sophisticated stucco exterior.
Step through the grand double-door entry into a welcoming foyer with soaring 10-foot ceilings, immediately revealing a refined formal dining room to one side and a versatile library or study, perfect for a home office, on the other.
The heart of the home unfolds into an expansive open-concept living area, seamlessly connecting the gourmet kitchen, a spacious great room, and a casual dining nook, all designed for effortless entertaining and daily living. A convenient mudroom and main-level laundry enhance functionality.
The luxurious first-floor master suite provides a private retreat, thoughtfully separated from the main living areas and secondary bedrooms for ultimate tranquility. Upstairs, three additional bedrooms offer comfortable accommodations, ensuring privacy and space for family or guests.
Beyond the main living spaces, discover unique amenities designed for a premium lifestyle, including a dedicated library/study ideal for quiet contemplation or remote work, and an outdoor kitchen perfect for al fresco dining and entertaining.
Embrace the quintessential Florida lifestyle with a generous 385 sq. ft. lanai, offering an idyllic setting for morning coffee or evening cocktails, seamlessly extending your living space outdoors and inviting relaxation amidst lush surroundings.
BUILDING RESTRICTIONS: This house plan cannot be built in Collier or Lee County, Florida. Contact us for details.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
