Plan 623624DJ

Elegant Greenhouse House Plan with Dome and Vaulted Ceilings

Heated S.F.
0
Beds
0
Baths
0
Stories
1

Floor Plan

Plan 623624DJ

Main Level
Main Level

Plan 623624DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

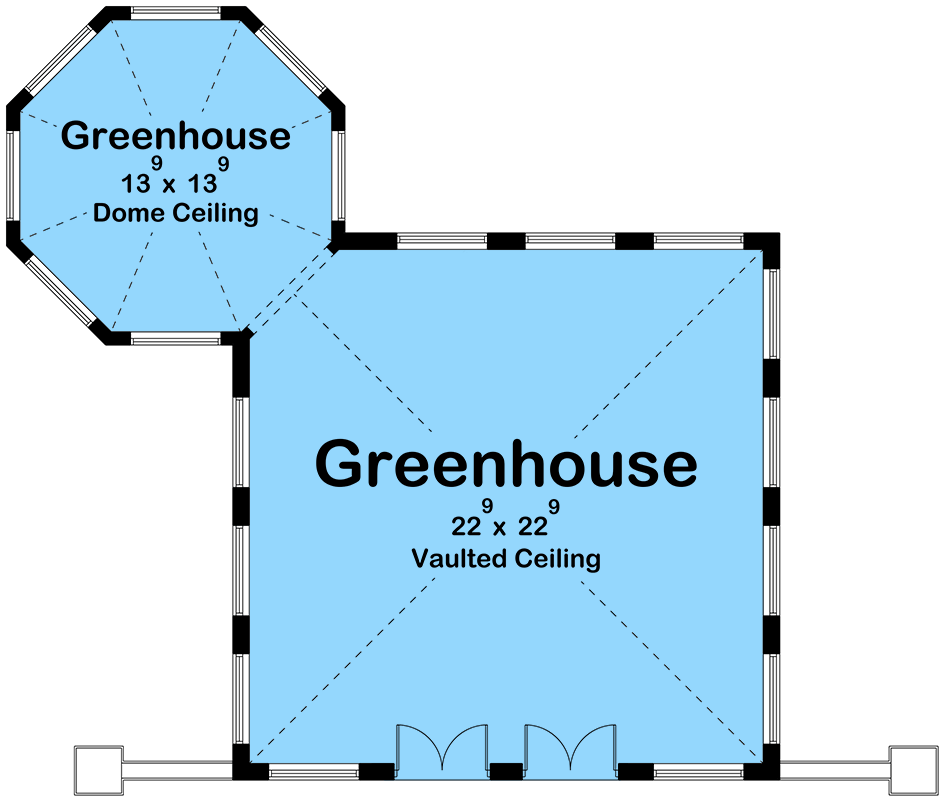

Plan 623624DJ: Elegant Greenhouse House Plan with Dome and Vaulted Ceilings - Floor Plan - Main Level - Coastal Contemporary, Contemporary, Florida-Style

Plan Details

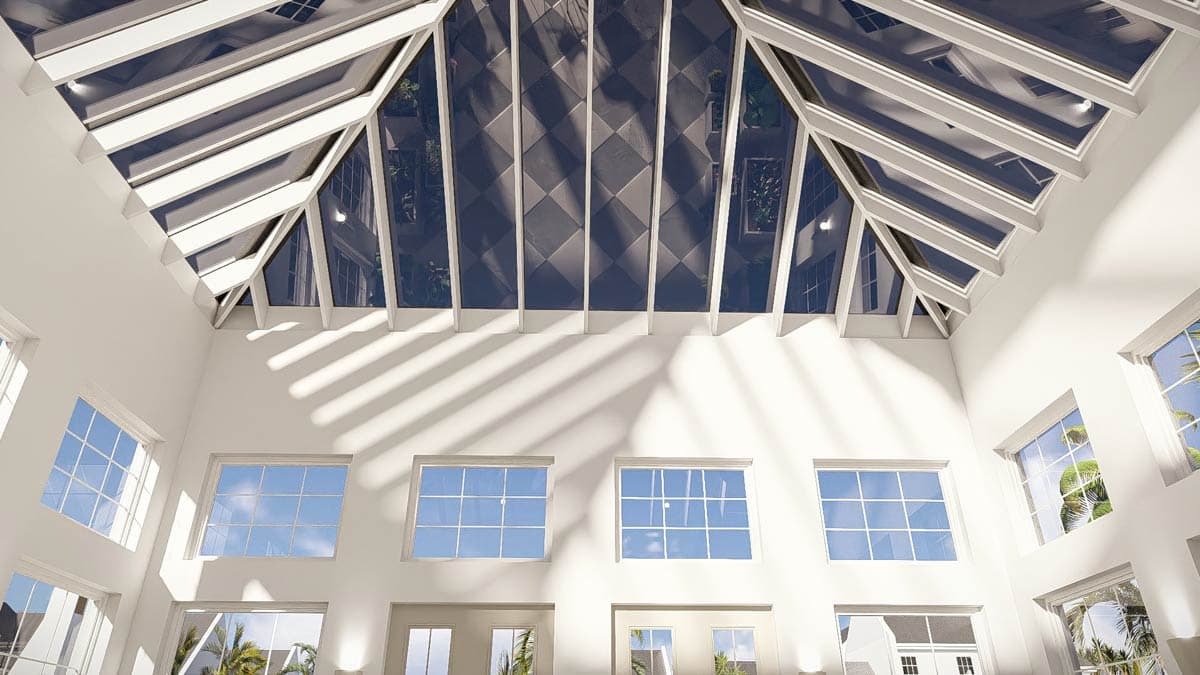

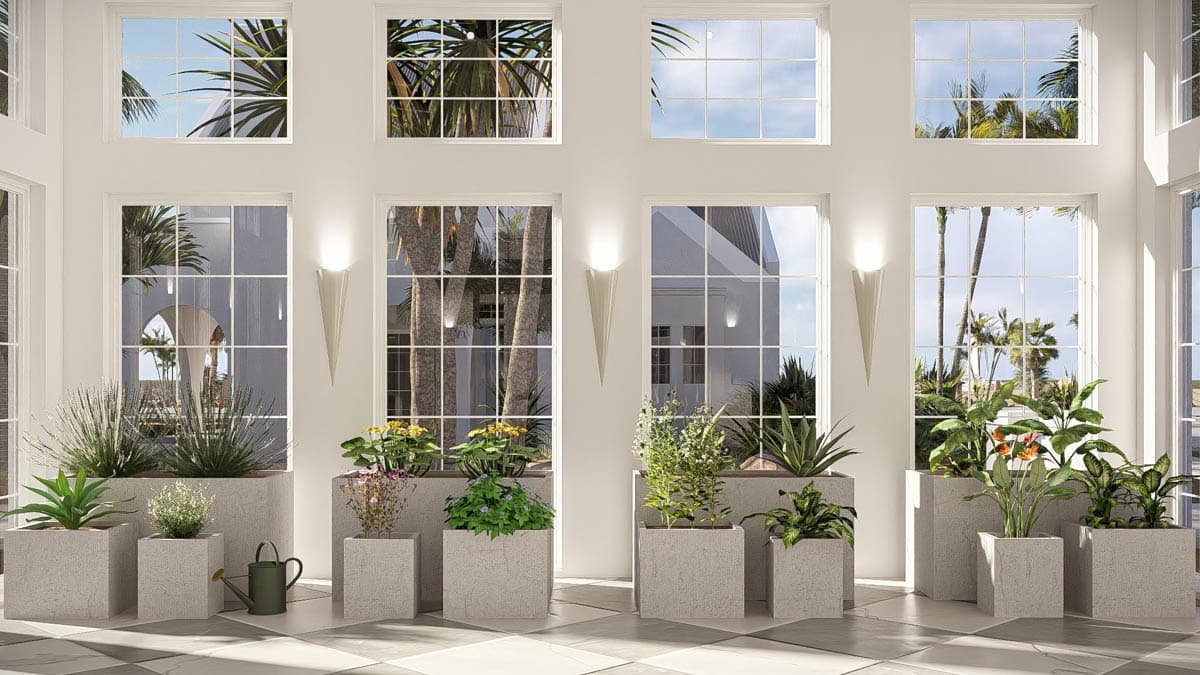

  • This striking architectural plan offers a unique conservatory-style living space, featuring a main greenhouse area of 22' x 22' with a vaulted ceiling and an additional octagonal greenhouse measuring 13' x 13' with a captivating dome ceiling.

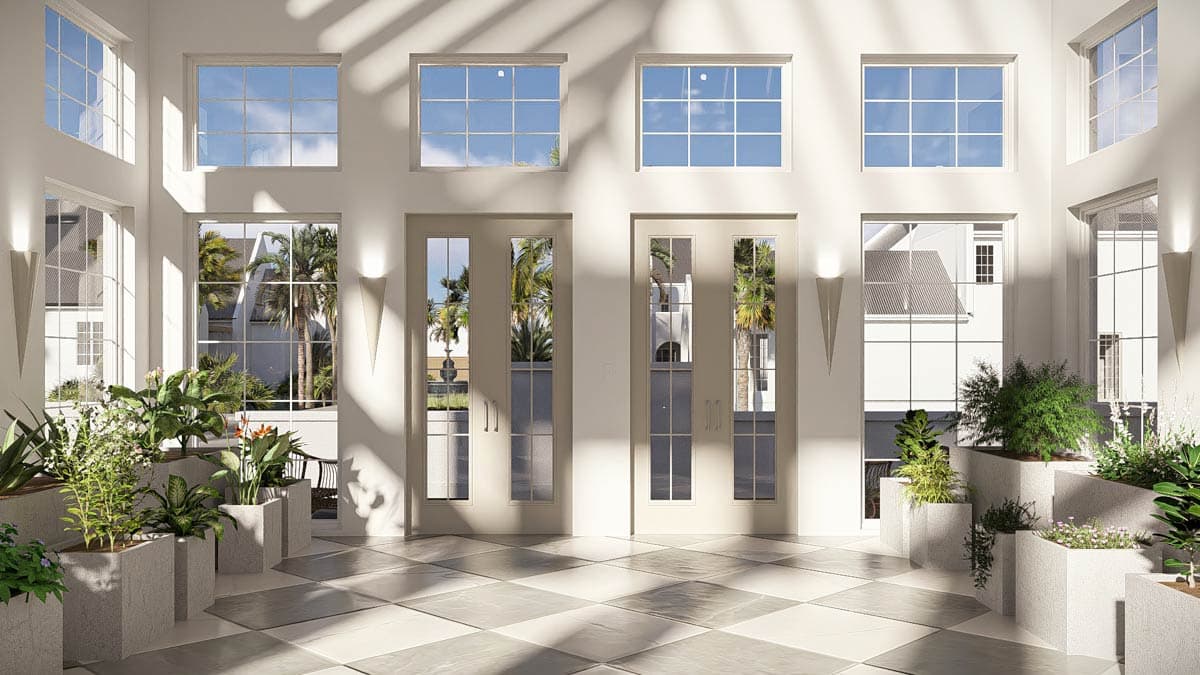

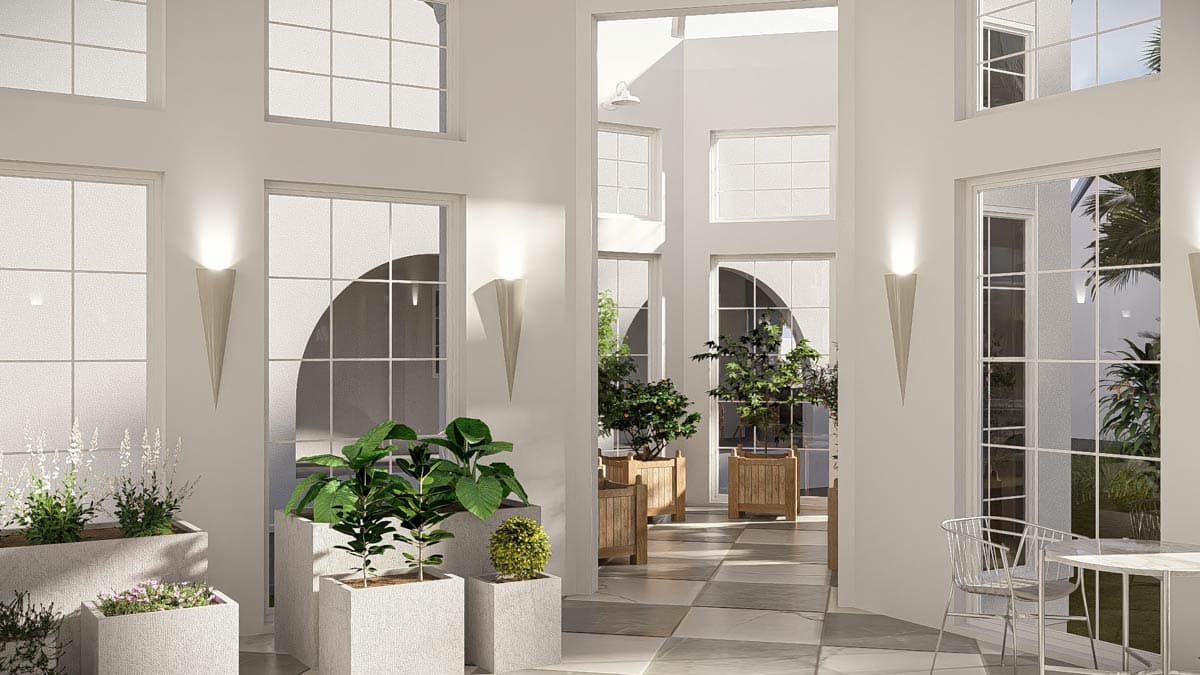

  • This unique plan is centered around its extraordinary greenhouse spaces, ideal for cultivating an indoor garden, enjoying year-round sunshine, or creating a breathtaking venue for gatherings.

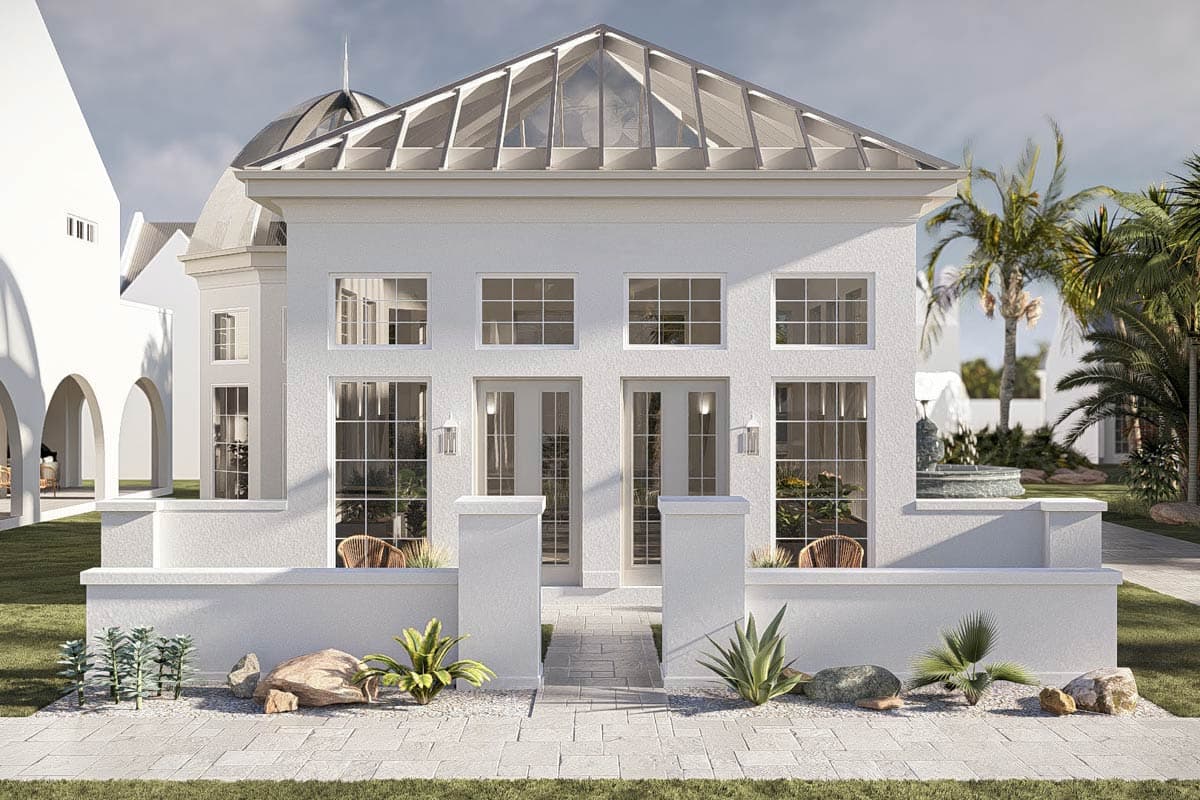

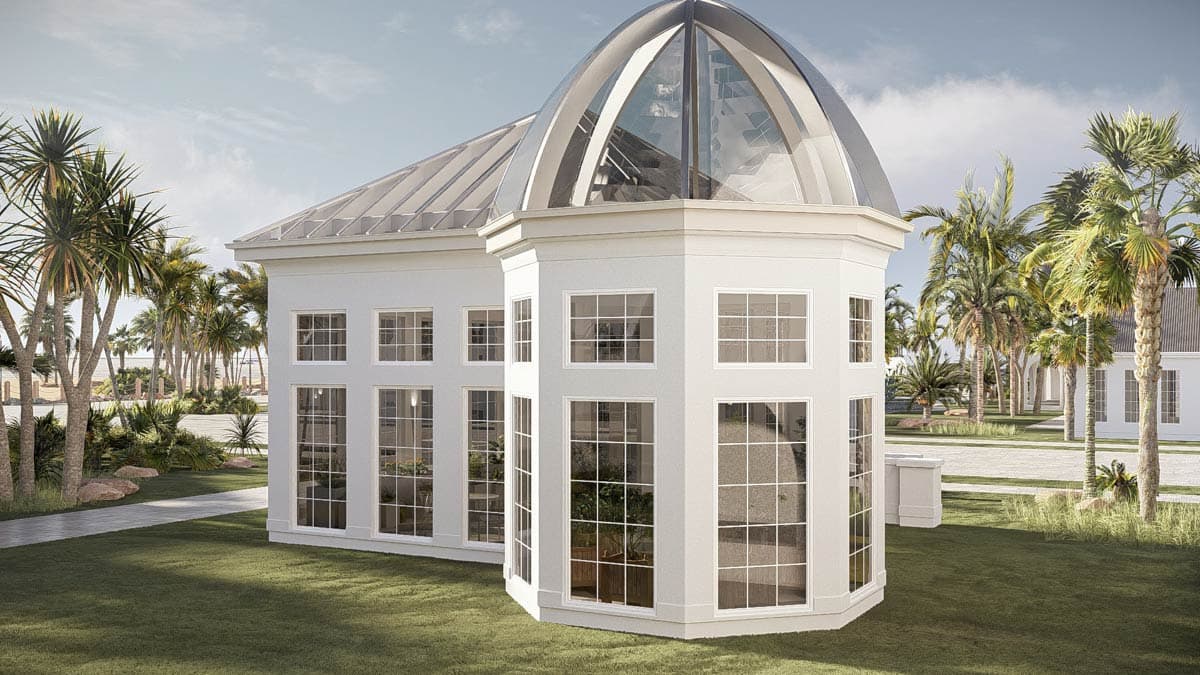

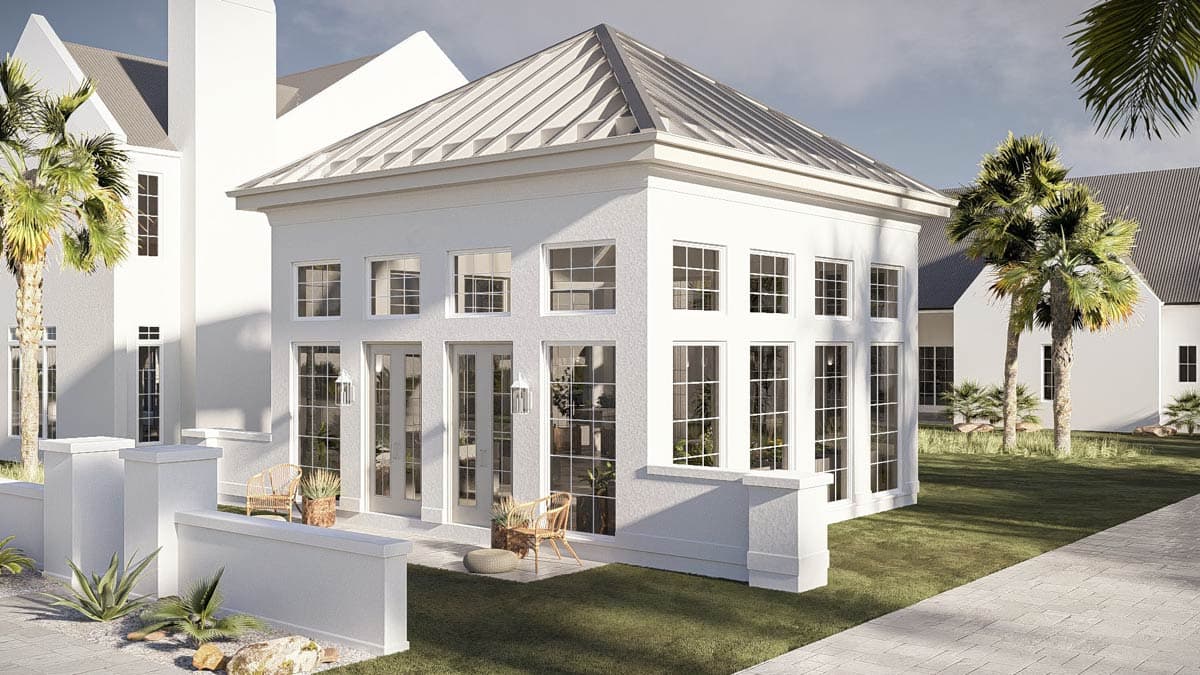

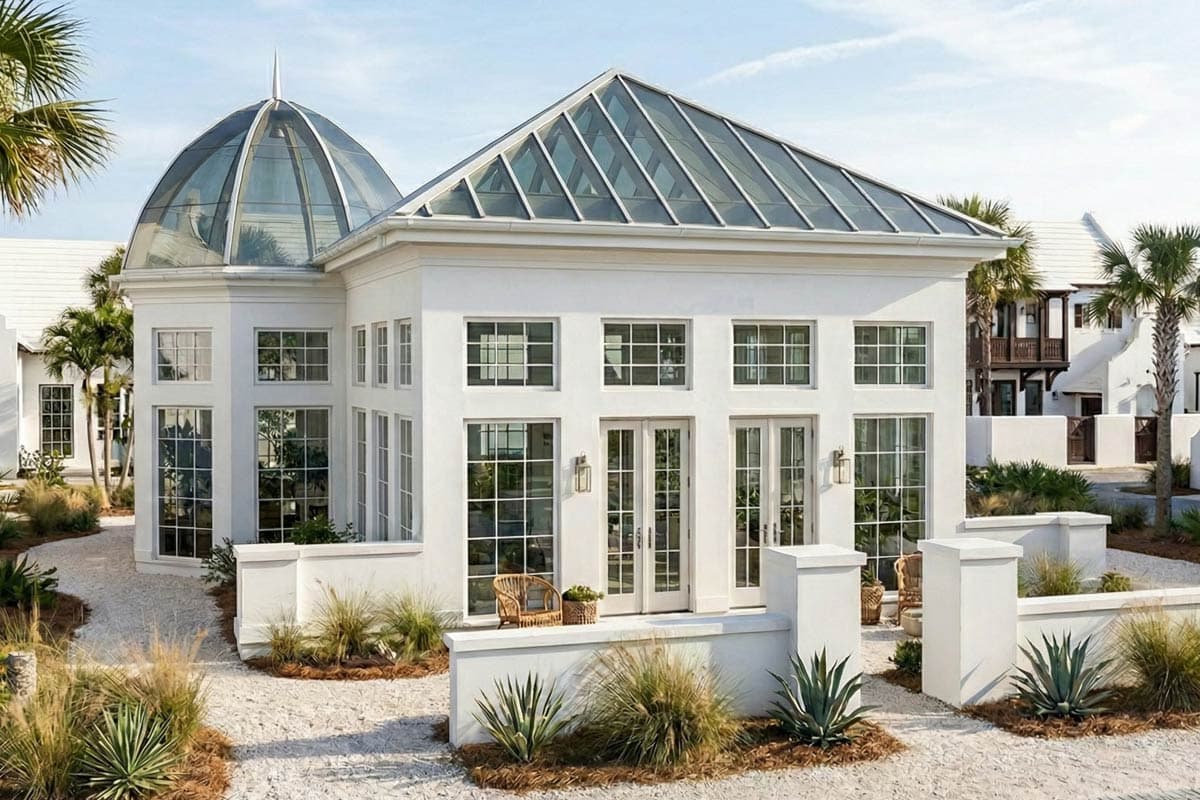

  • The exterior presents a clean, modern aesthetic with crisp white walls, generous windows, and distinctive rooflines, including a glass-paneled pitched roof and a striking glass dome, all designed to capture abundant natural light.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Greenhouse

743 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

41' 0"

Depth

34' 8"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

14'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Coastal Contemporary

Contemporary

Florida-Style

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Greenhouse

743 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

41' 0"

Depth

34' 8"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

14'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Coastal Contemporary

Contemporary

Florida-Style
