Plan 510022WDY
Elegant One Level European House Plan
Heated S.F.
3,457
Beds
4
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details
  • With its beautiful brick exterior and elegant hip roof, this European house plan has tremendous curb appeal.
  • The formal dining room is open to the foyer and the enormous living room where a big fireplace captures your attention.
  • Another fireplace in the keeping room can be seen from the high end kitchen.
  • There's even an outdoor fireplace in the huge rear covered porch.
  • Bedroom 2 is the ideal guest suite, set off by itself for privacy.
  • In the luxurious master suite, a tray ceiling crowns the bedroom and his and her walk-in closets lie off the deluxe master bathroom.
What's Included
This plan has 9 pages as follows:
  1. Coversheet Color Rendering

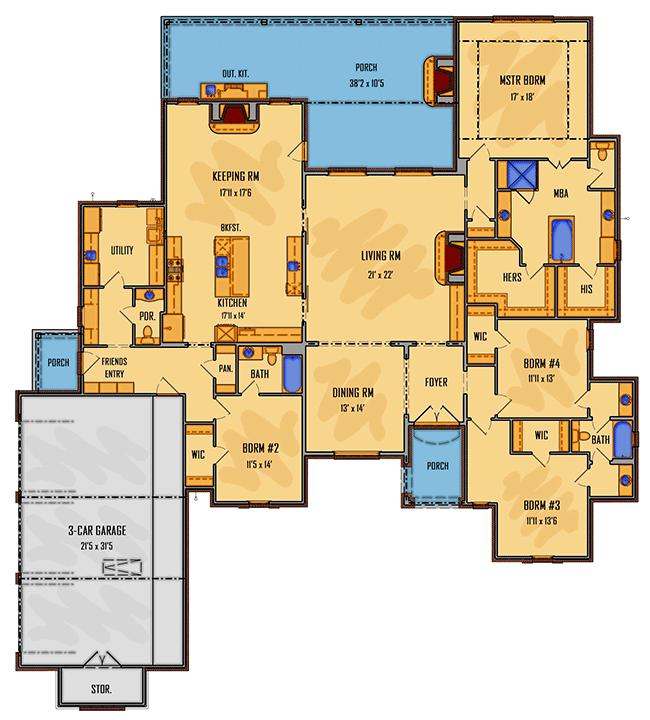

  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

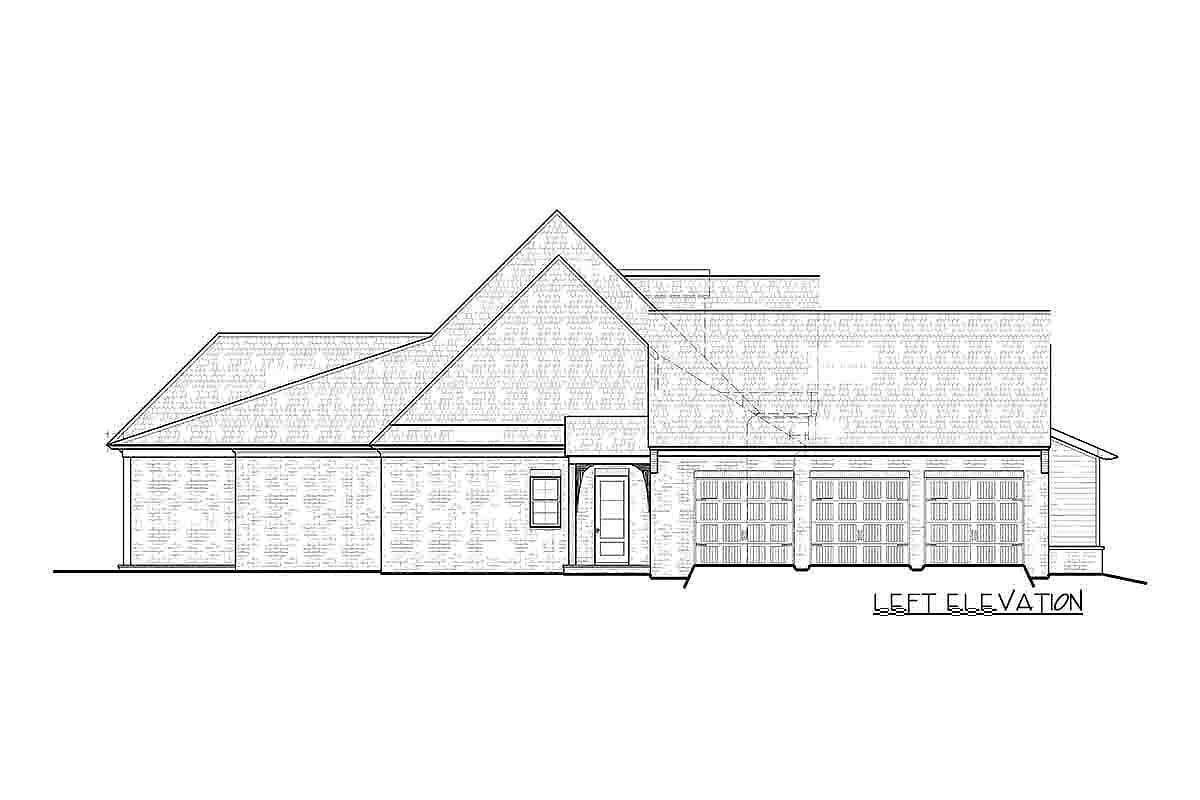

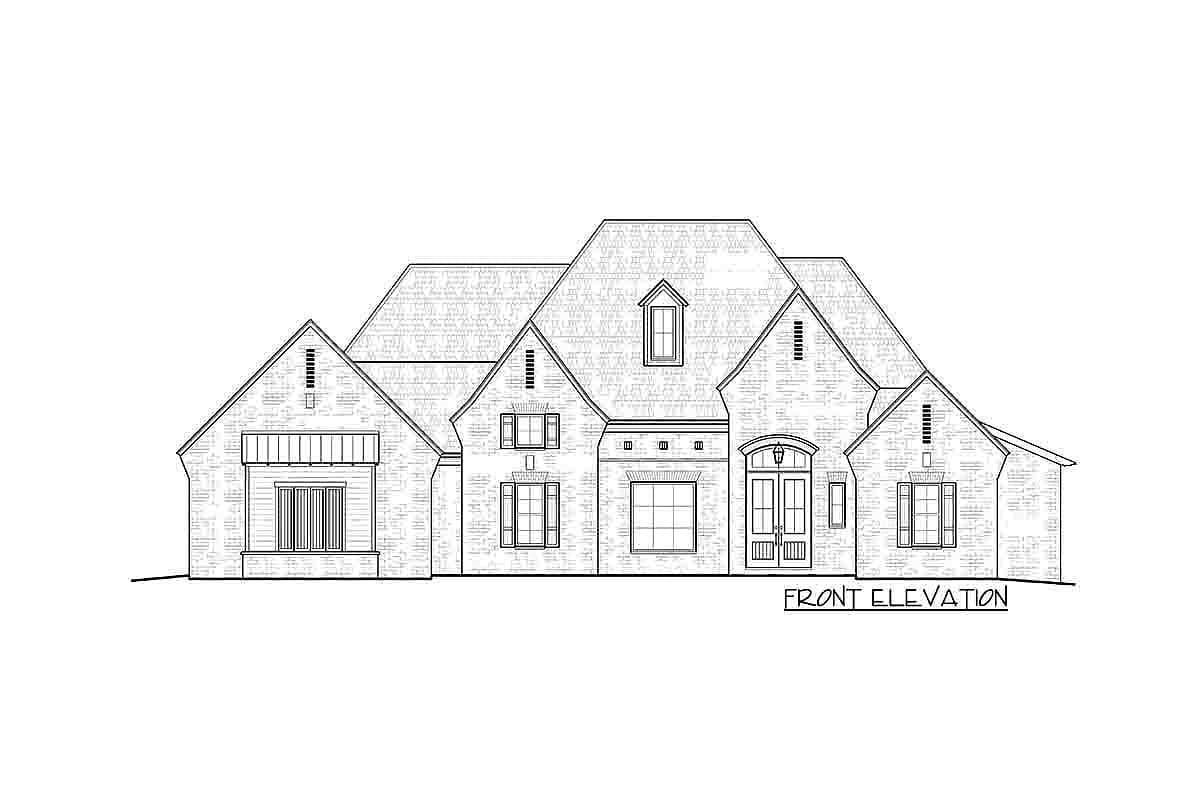

  3. Front / Left Exterior Elevations, Notes

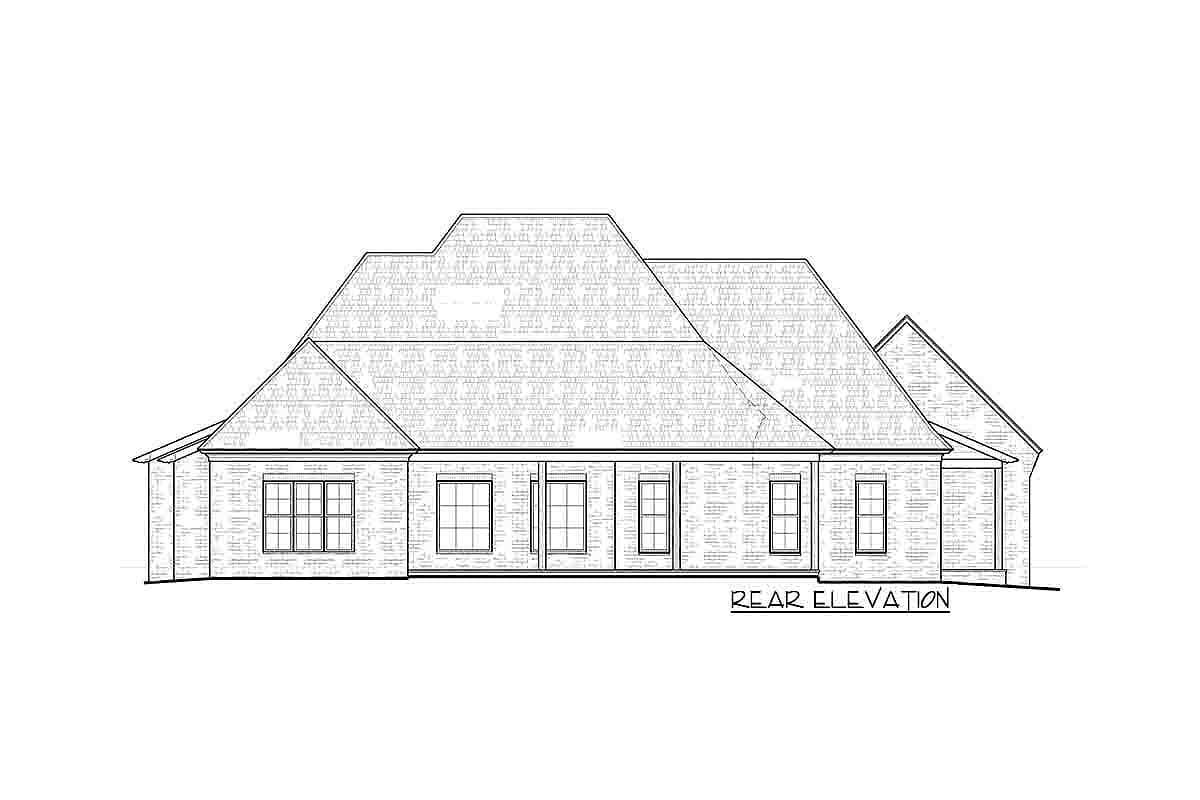

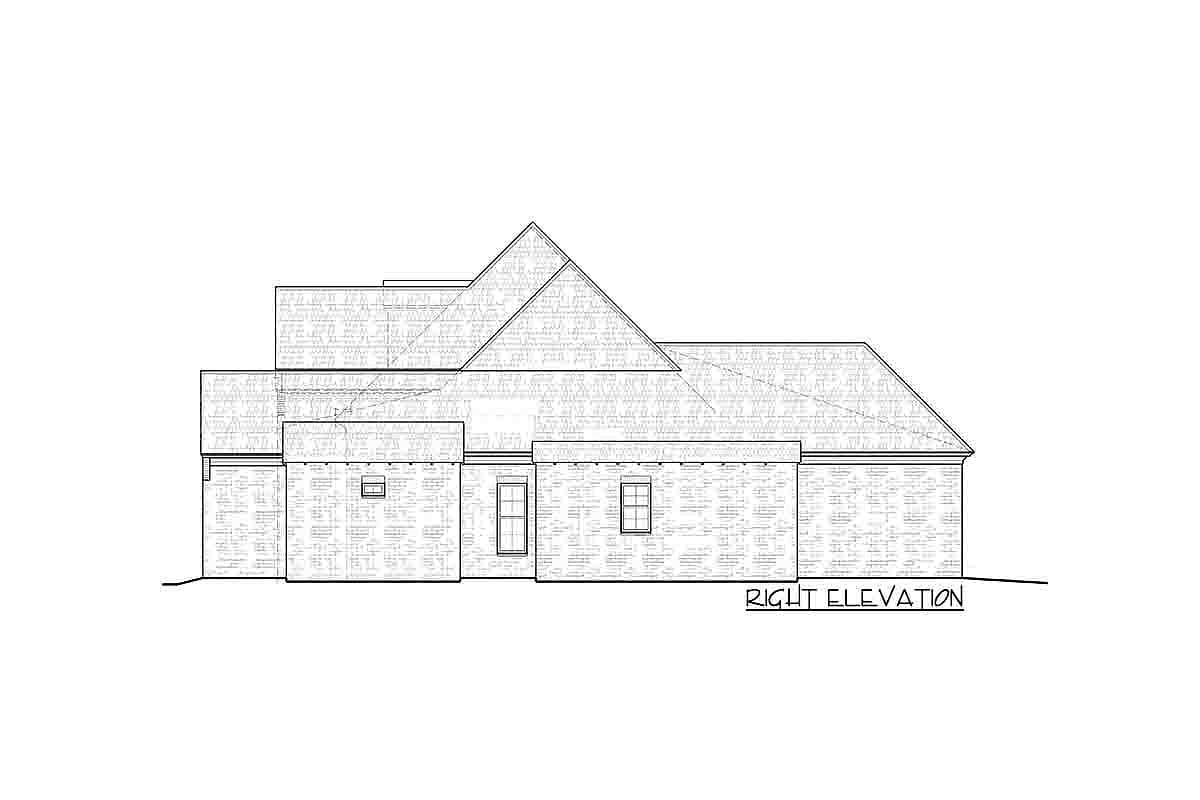

  4. Rear / Right Exterior Elevations, Notes
  5. Building Section, Roof Plan, Cornice Detail, Flashing Detail
  6. Flashing Detail, Column Detail, Jack Header Detail, Roof Detail, Rafter Span Schedule
  7. Electrical Plan and Schedules
  8. Slab Foundation
  9. Slab Footing Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Elegant One Level European House Plan

  • 3,457

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,457 sq. ft.
  • 1st Floor: 3,457 sq. ft.

Dimensions

  • Width: 82' 2"
  • Depth: 91' 5"
  • Max ridge height: 32' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 845 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 16 on 12
  • Secondary Pitch: 12 on
  • Framing Type: Stick
