Elegant Open Floor Plan

Plan 59580ND

  • 1,965

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Tall columns and 10' ceilings add elegance to an open floor plan in this split bedroom home plan.
  • The foyer flows effortlessly into the dining and great rooms.

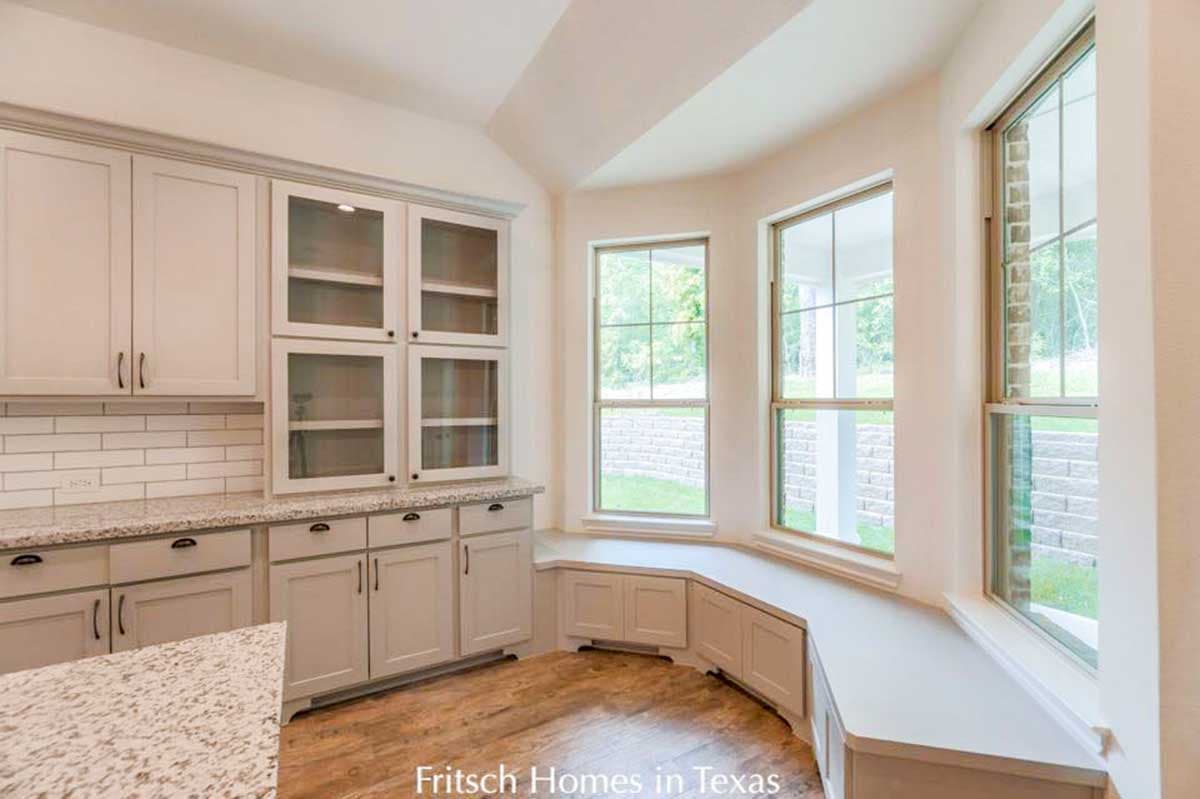

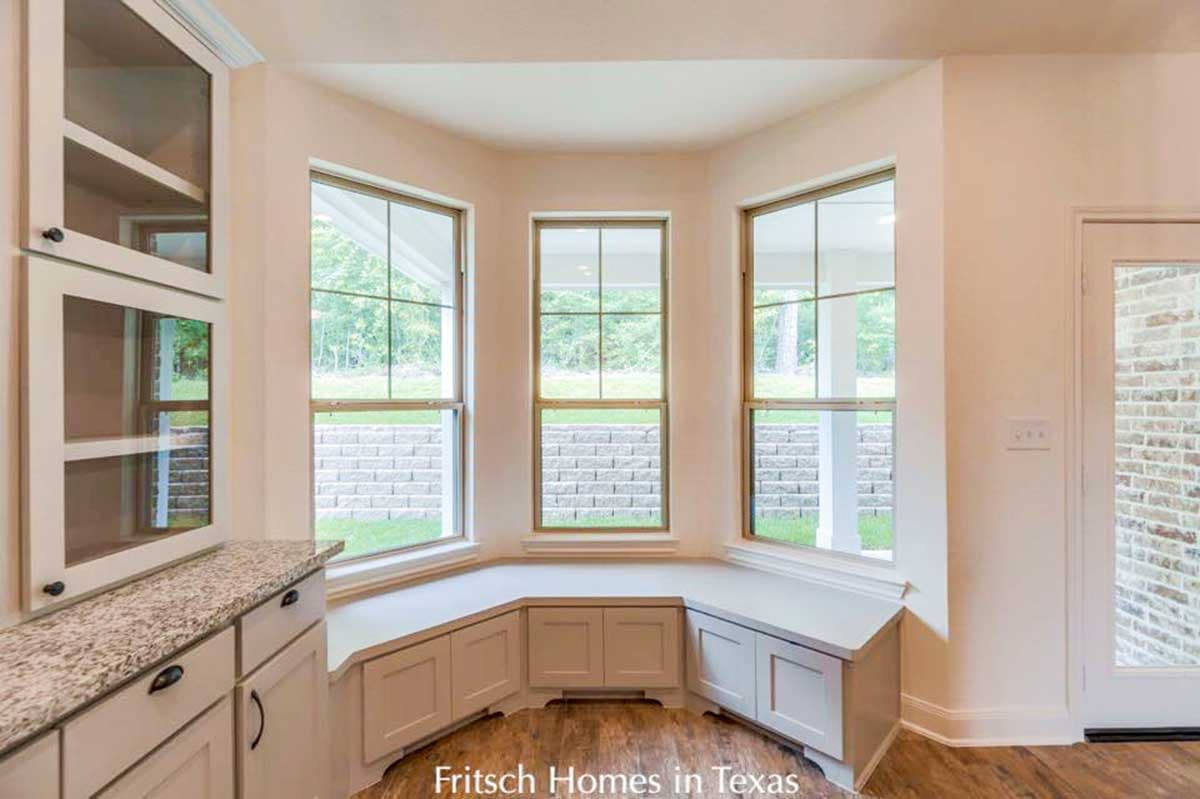

  • The bay-windowed breakfast room provides a sunny alternative to the formal dining room and affords a lively view of the back yard and grilling porch.
  • With a large whirlpool tub, boxed ceiling and cozy corner fireplace, the master suite is truly a private sanctuary.
  • Related Plans: See these related house plans - brick exterior with a bonus room - 5947ND; brick exterior without a bonus room - 5945ND; without dormers - 59537ND (brick) and 59579ND (siding).

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

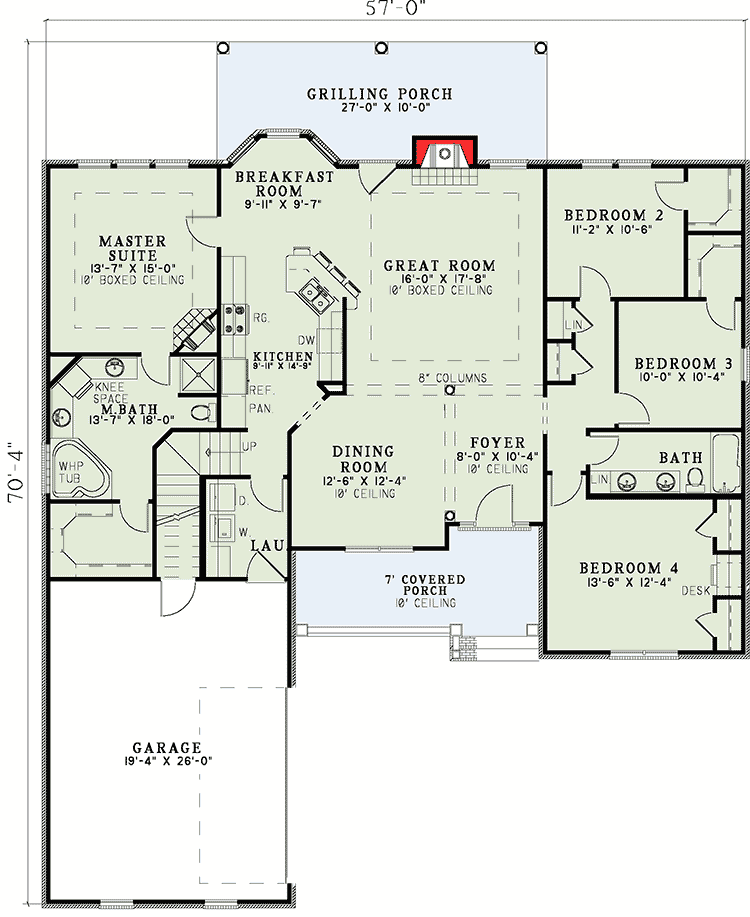

Elegant Open Floor Plan - 59580ND floor plan - Main Level
