Plan 90031PD

Elegant Stone Cottage

Heated S.F.
1,424
Beds
3
Baths
1.5
Stories
2
Cars
1

Floor Plan

Plan 90031PD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 90031PD

M-F 9am-5pm EST |

1-203-761-8500

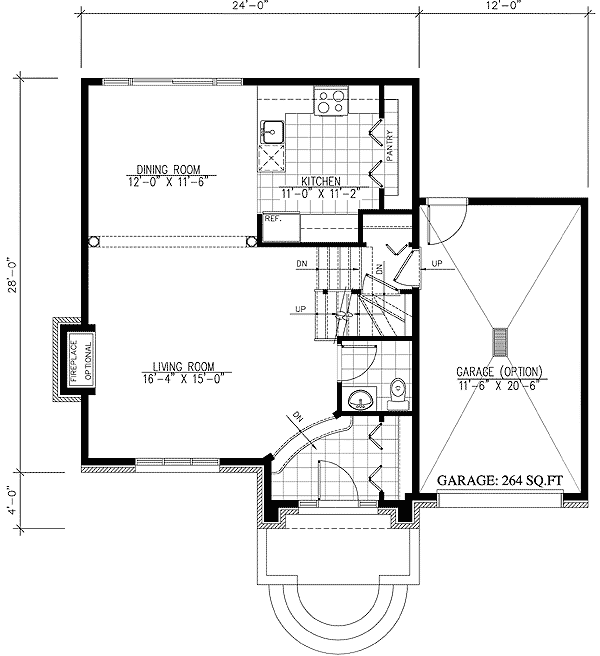

Main Level

Plan 90031PD: Elegant Stone Cottage - Floor Plan - Main Level - European

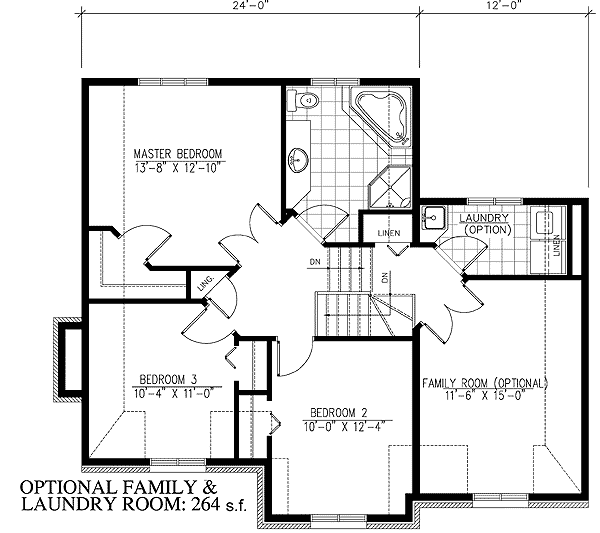

2nd Floor

Plan 90031PD: Elegant Stone Cottage - Floor Plan - 2nd Floor - European

Plan Details

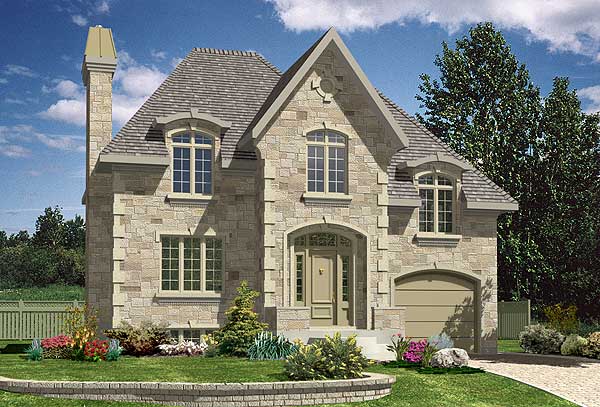

  • A steep hip roof and stone exterior accent this elegant cottage home with a split level design.
  • From the foyer, you step down to the large, sunken living room with optional fireplace. The dining room is open to both the kitchen and the living room and is brightened by a wall of windows.
  • Step down to the garage level with coat closet or step up to an optional family room/laundry over the garage.
  • Continue up more stairs to the bedroom level where you will find a master suite with walk-in closet and two additional bedrooms, all of which share the large bath.

What's Included

Please note this plan is designed to the National Building Code of Canada.

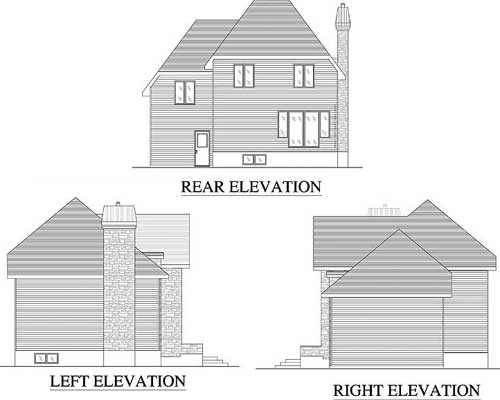

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,424 sq. ft.

1st Floor

706 sq. ft.

2nd Floor

718 sq. ft.

Basement Unfinished

706 sq. ft.

Bonus

264 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

32' 0"

Max Ridge Height

32' 1"

Garage

Type

Attached

Area

264 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

European

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Optionally Finished Bonus Room

Plan Collections

Canadian House Plans

Metric
