Elegant Traditional House Plan

Plan 80861PM

  • 2,961

    Heated s.f.

  • 3

    Beds

  • 1.5 - 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • An elegant curved dormer with a round window sits atop the beautiful two-story front porch of this European house plan.
  • The steep hip roof further enhances the European look and a massive transom window above the front door floods the foyer with light.
  • On the left side of the home, a wrap-around porch hugs the dining room, kitchen and breakfast nook.
  • The living room gets a quiet location away from kitchen noise.
  • Homeowners benefit from a lovely master suite with a giant private bathroom and a huge walk-in closet.
  • The two family bedrooms share a bathroom of their own.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

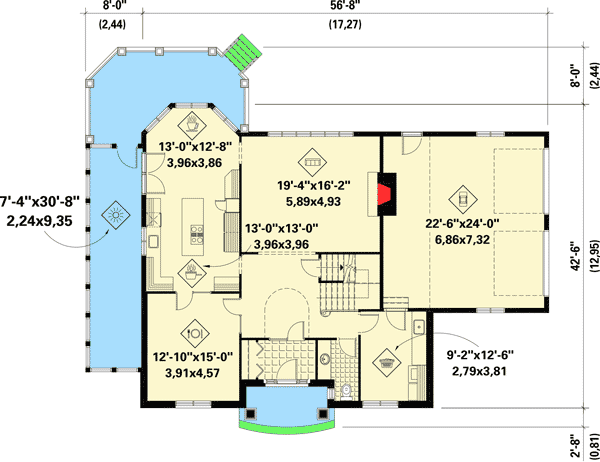

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Elegant Traditional House Plan - 80861PM floor plan - Main Level

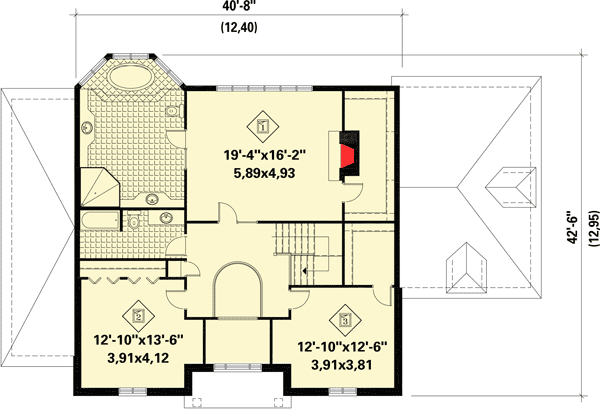

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Elegant Traditional House Plan - 80861PM floor plan - 2nd Floor
