Plan 623606DJ

Elegant Transitional House Plan with 4 Bedrooms and 3-Car Garage

Heated S.F.
3,541
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 623606DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623606DJ

M-F 9am-5pm EST |

1-203-761-8500

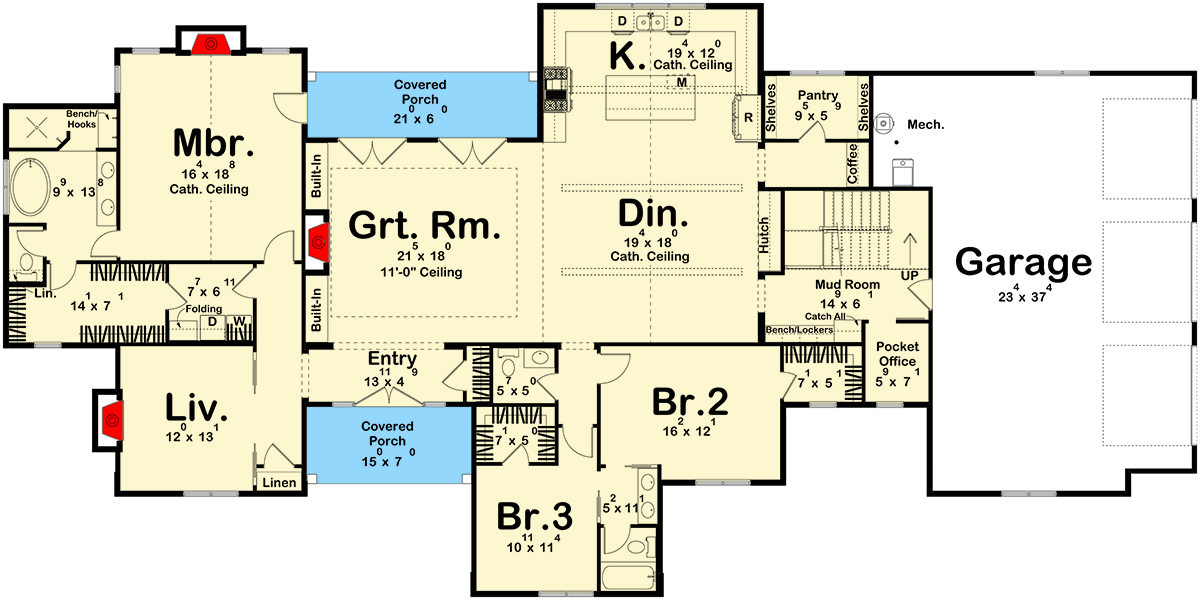

Main Level

Plan 623606DJ: Elegant Transitional House Plan with 4 Bedrooms and 3-Car Garage - Floor Plan - Main Level - Transitional

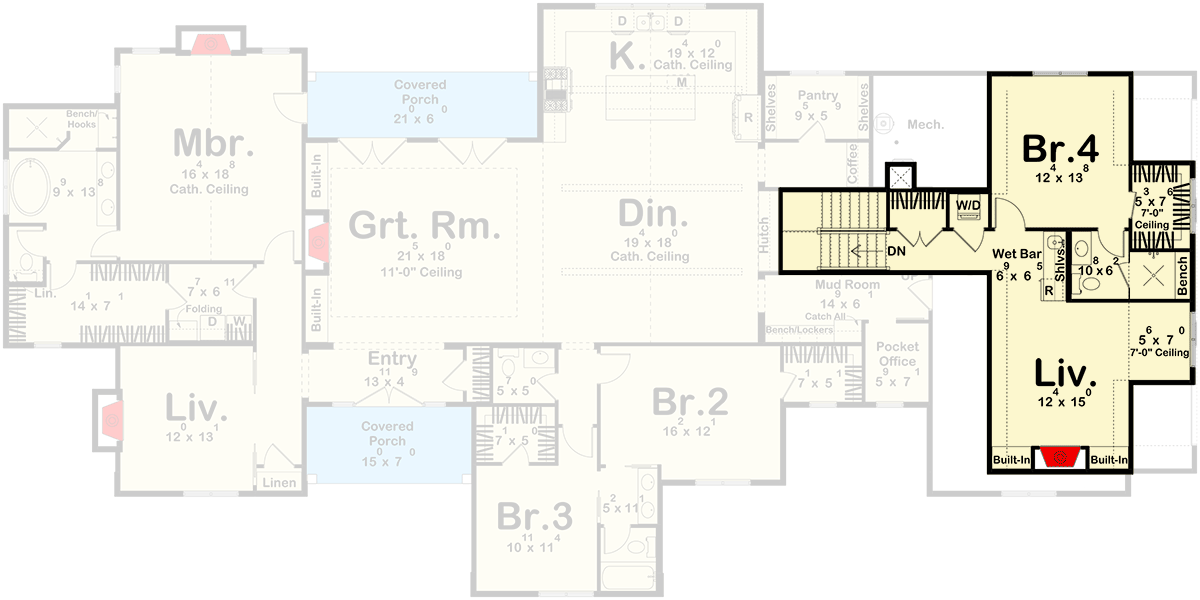

2nd Floor

Plan 623606DJ: Elegant Transitional House Plan with 4 Bedrooms and 3-Car Garage - Floor Plan - 2nd Floor - Transitional

Plan Details

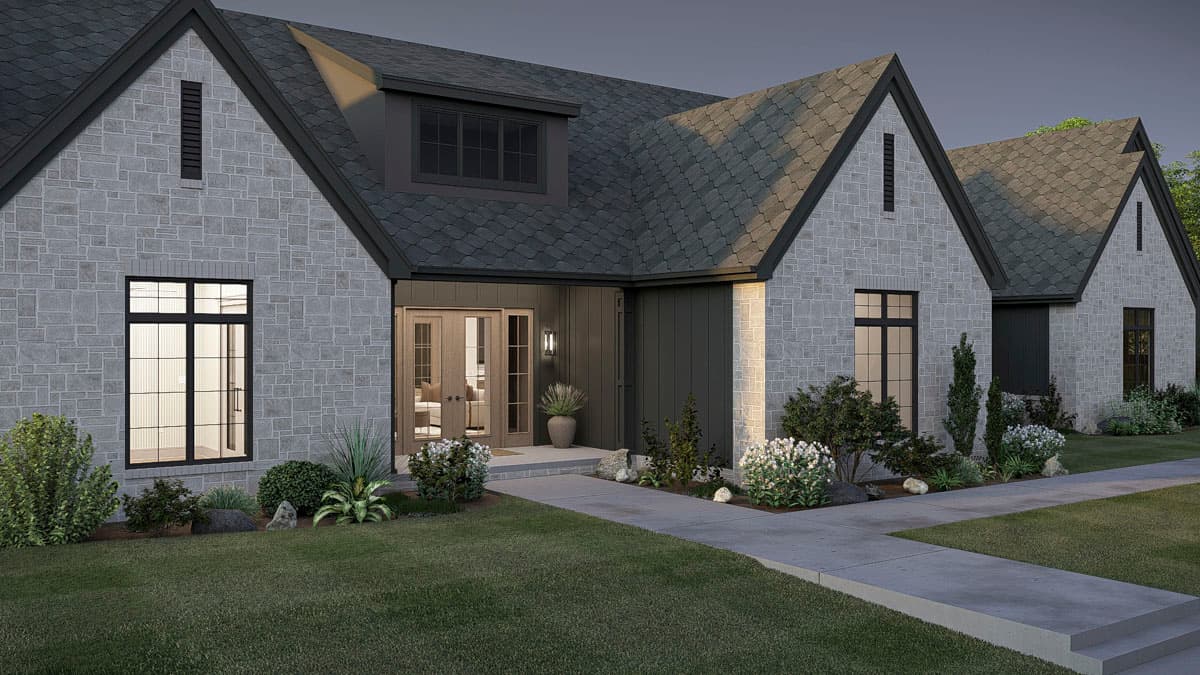

  • This stunning transitional house plan offers 3,541 sq. ft. of heated living space with 4 bedrooms, 3.5 bathrooms, and an attached 3-car garage.
  • The entrance opens to a grand foyer with a 10' ceiling height, leading to a dedicated home office and a convenient mudroom.

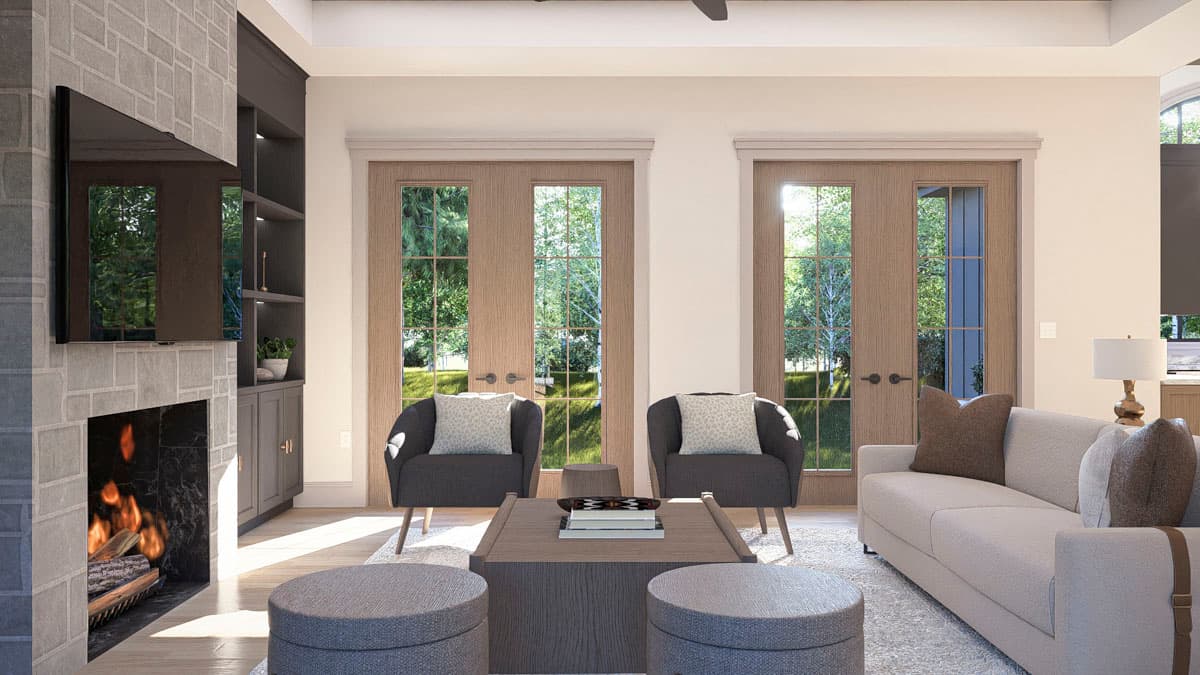

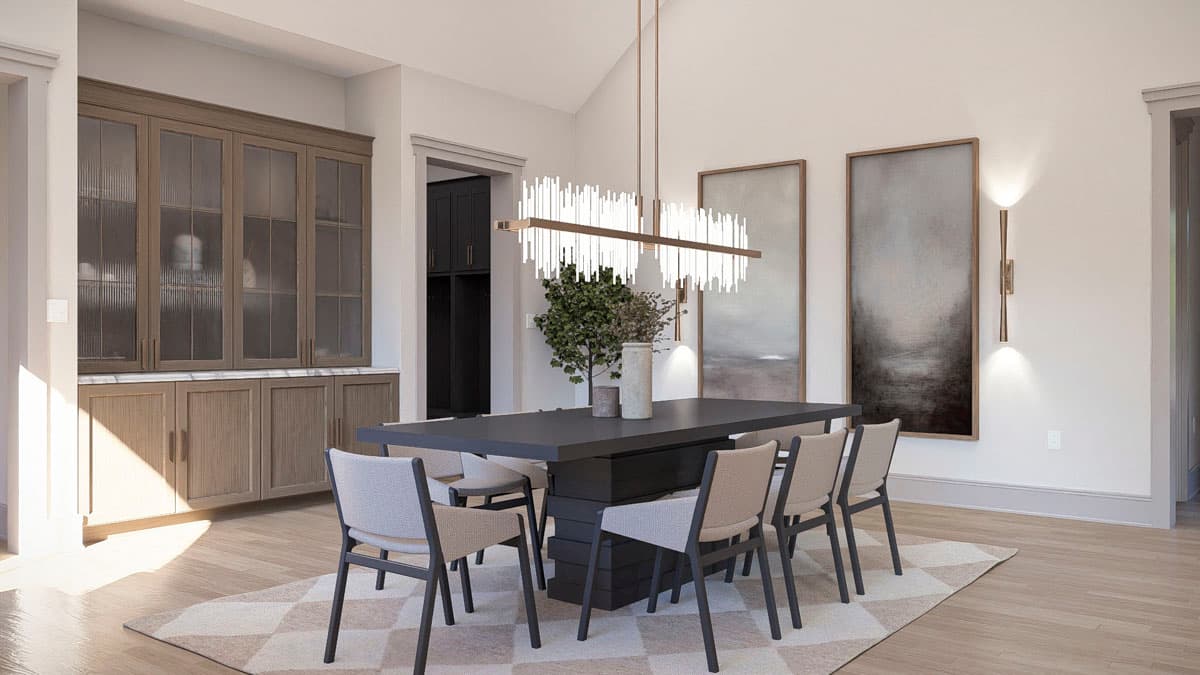

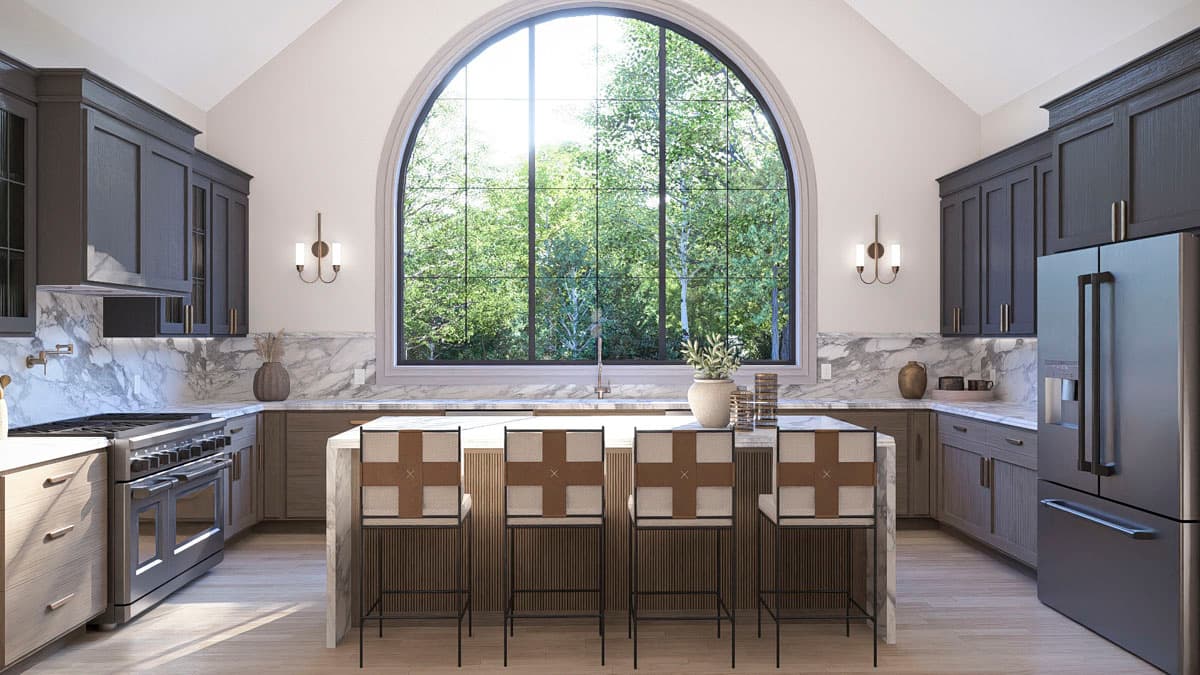

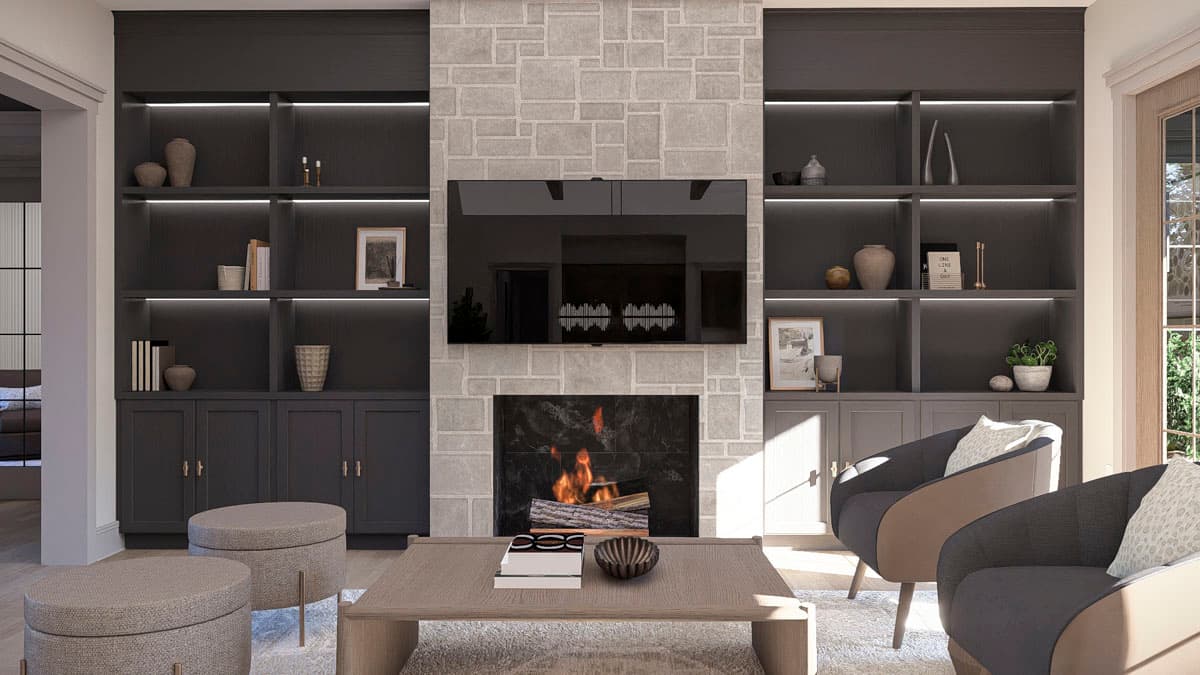

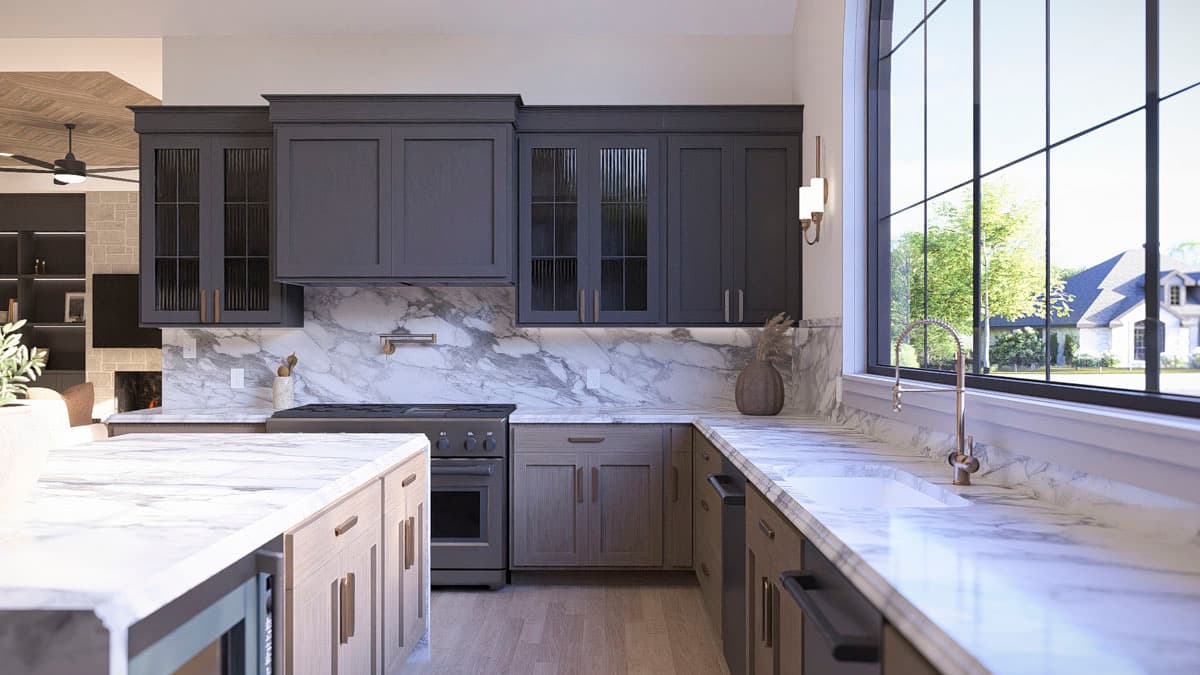

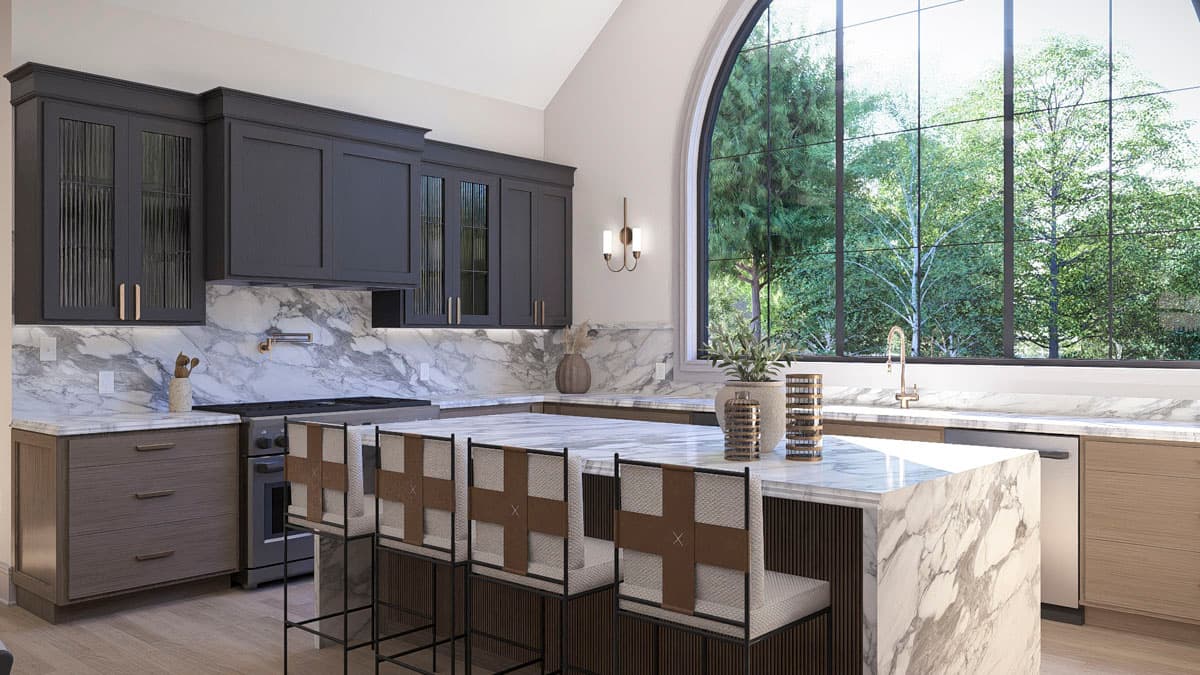

  • Enjoy a seamless flow through the main living areas, featuring a spacious great room, a gourmet kitchen with a butler's pantry, and a formal dining space.

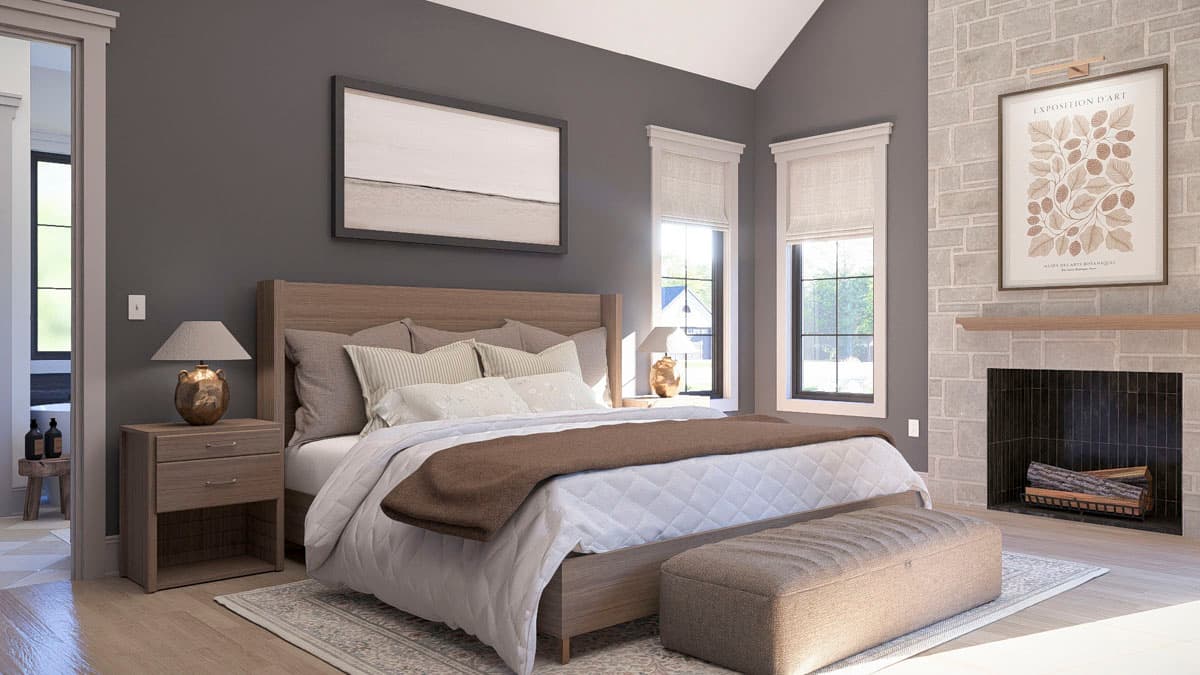

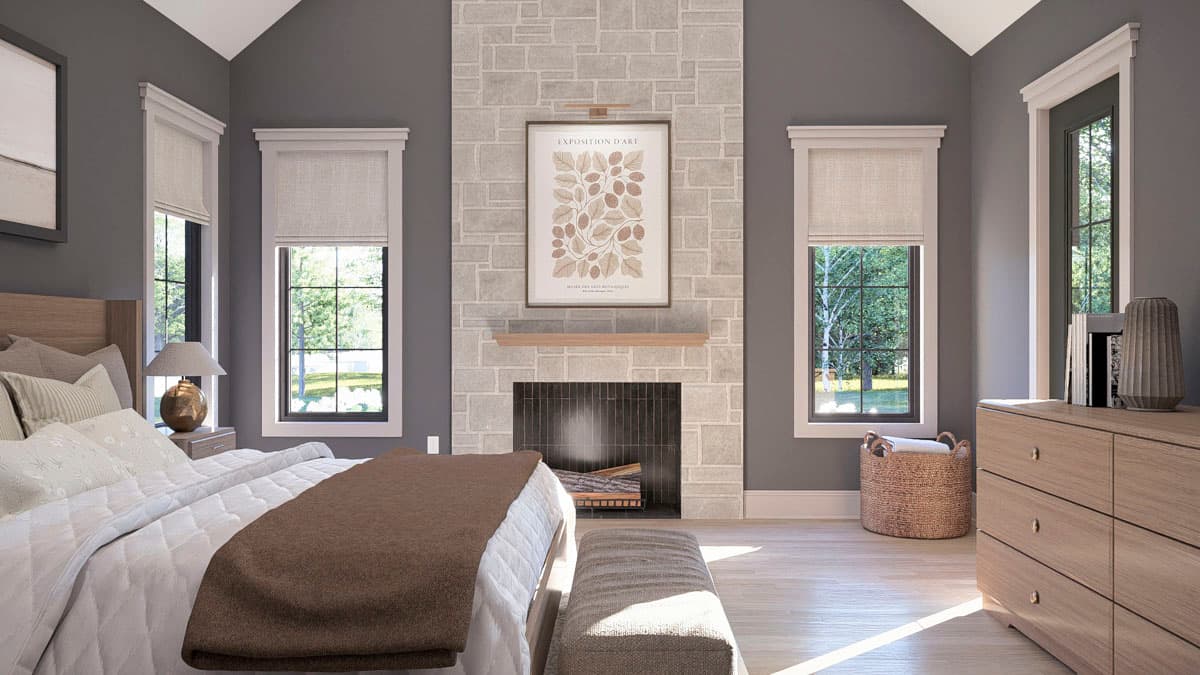

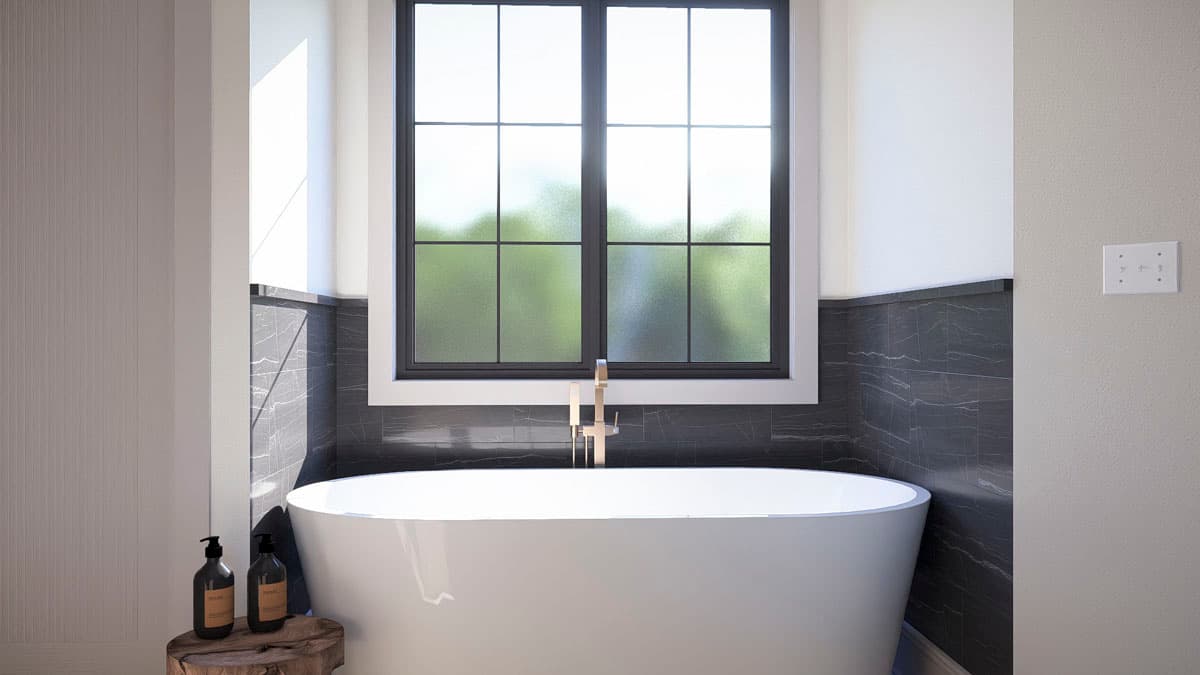

  • The luxurious first-floor primary suite offers a private retreat with laundry access, while the remaining three bedrooms are located on the second floor.
  • A main-level laundry room provides added convenience for everyday living.
  • Expansive covered porches offer ample space for outdoor relaxation and entertaining.
  • Related Plans: Get alternate house plans with 623216DJ (2,703 sq. ft.), 623419DJ (3,248 sq. ft.), 623332DJ (3,164 sq. ft.) or 623554DJ (3,451 sq. ft.).

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,541 sq. ft.

1st Floor

2,893 sq. ft.

2nd Floor

648 sq. ft.

Porch, Combined

231 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

107' 0"

Depth

53' 0"

Max Ridge Height

26' 0"

Garage

Type

Standard, Attached

Area

945 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Transitional

Special Features

Bedrooms - Split

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,541 sq. ft.

1st Floor

2,893 sq. ft.

2nd Floor

648 sq. ft.

Porch, Combined

231 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

107' 0"

Depth

53' 0"

Max Ridge Height

26' 0"

Garage

Type

Standard, Attached

Area

945 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Transitional

Special Features

Bedrooms - Split

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
