Plan 623332DJ
3 Bed Transitional Home Plan with RV Garage - 3164 Square Feet
Heated S.F.
3,164
Beds
3
Baths
2.5
Stories
1
Cars
3
Plan Details
  • This 3 bedroom, 2.5 bath Transitional Home Plan gives you 3164 square feet of heated living space and a spacious 1192 square foot 3-car garage with an RV Garage Bay with one stall specifically designed to accommodate an RV with sleek and modern garage doors complementing the overall aesthetic of the home.
  • Upon entering the main living area, you are greeted by an expansive open floor plan that seamlessly integrates the kitchen, dining area, and great room. The kitchen has ample counter space, a large center island and an arched window above the sink framing your views. The cathedral ceiling with exposed wood trusses adds warmth and character.
  • Outside, three covered porches wrap around the home, providing ample opportunities for outdoor living and entertaining.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related: Get a smaller version with a side car garage with house plan 623216DJ (2,703 sq. ft.) or get a larger version with house plan 623419DJ (3,248 sq. ft.)
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed Transitional Home Plan with RV Garage - 3164 Square Feet

  • 3,164

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

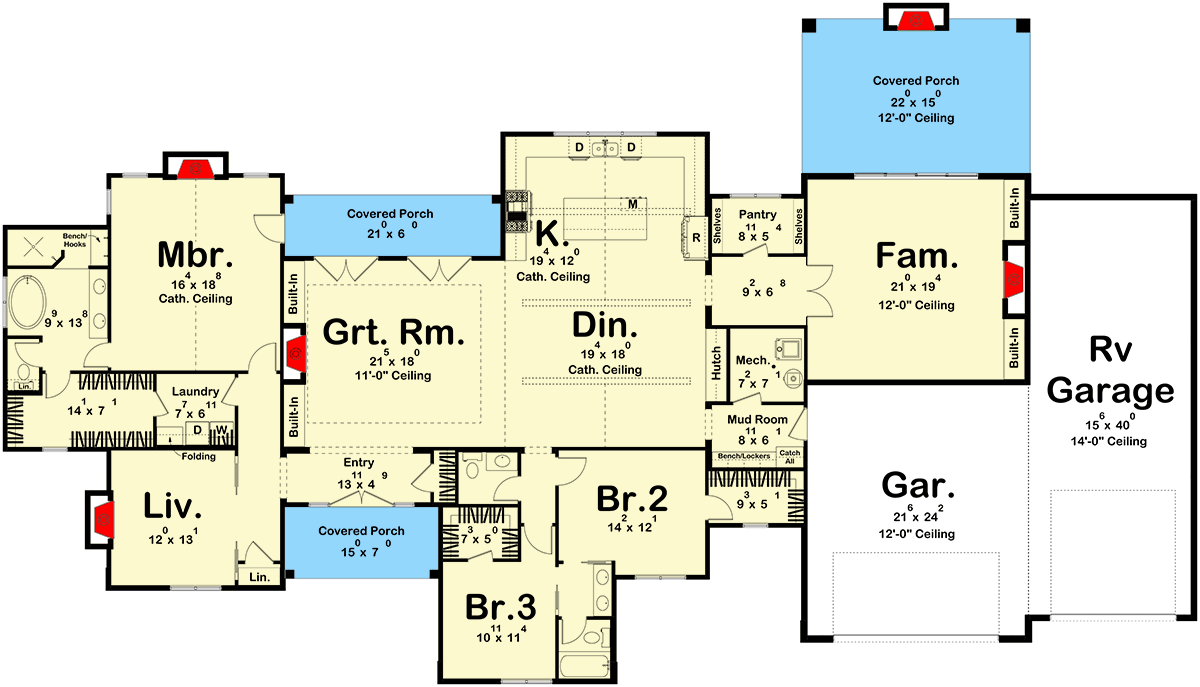

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,164 sq. ft.
  • 1st Floor: 3,164 sq. ft.

Dimensions

  • Width: 115' 0"
  • Depth: 65' 4"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: RV Garage, Attached
  • Area: 1192 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
