Plan 147057RML

Elegant Transitional Ranch House Plan: 3 Beds, 3-Car Garage, Bonus Room

Heated S.F.
4,193
Beds
3
Baths
2.5+
Stories
2
Cars
3

Floor Plan

Plan 147057RML

Main Level
Main Level
2nd Floor
2nd Floor

Plan 147057RML

M-F 9am-5pm EST |

1-203-761-8500

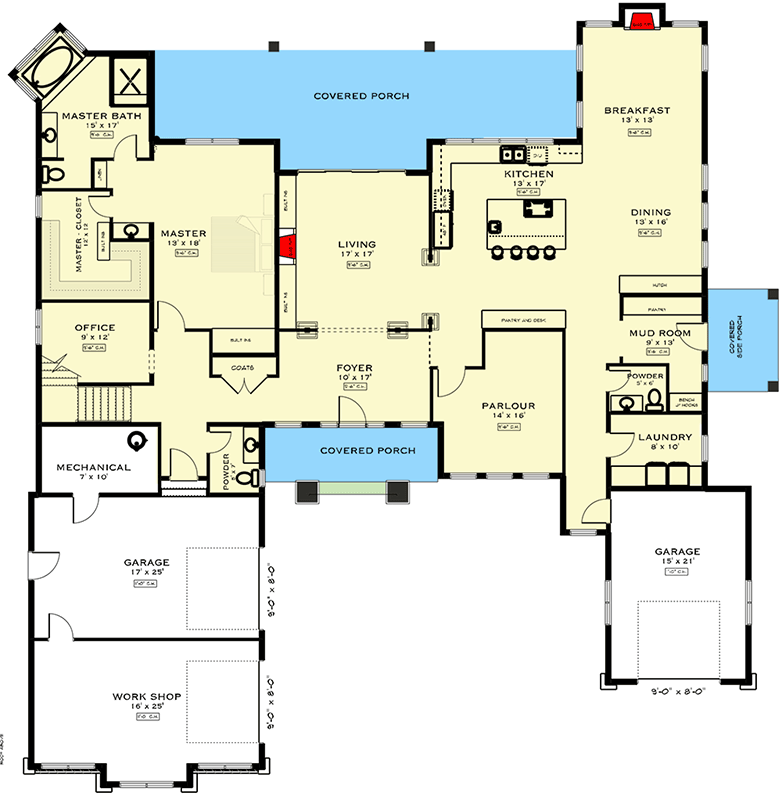

Main Level

Plan 147057RML: Elegant Transitional Ranch House Plan: 3 Beds, 3-Car Garage, Bonus Room - Floor Plan - Main Level - Ranch, Transitional

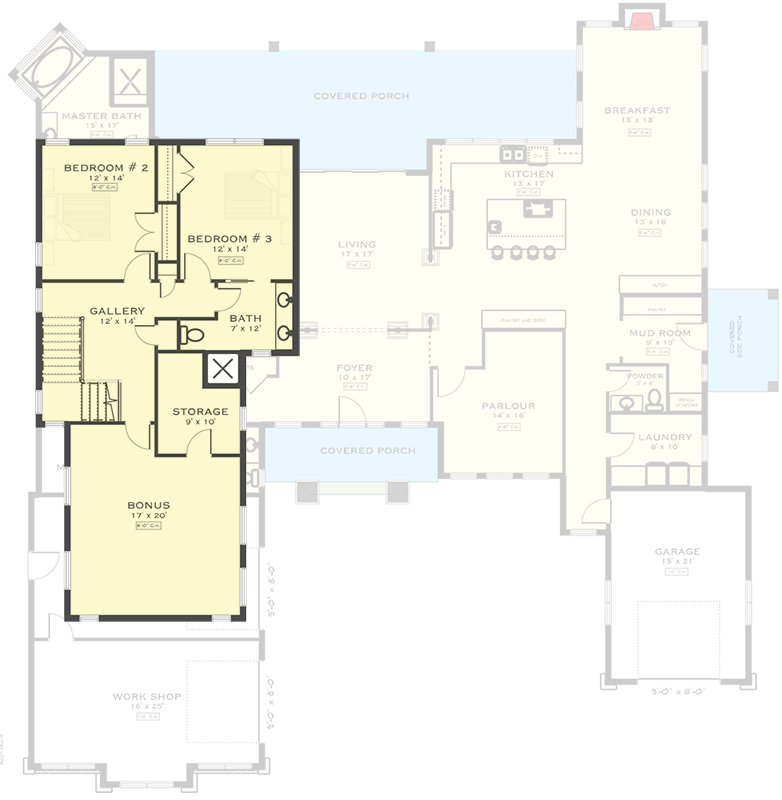

2nd Floor

Plan 147057RML: Elegant Transitional Ranch House Plan: 3 Beds, 3-Car Garage, Bonus Room - Floor Plan - 2nd Floor - Ranch, Transitional

Plan Details

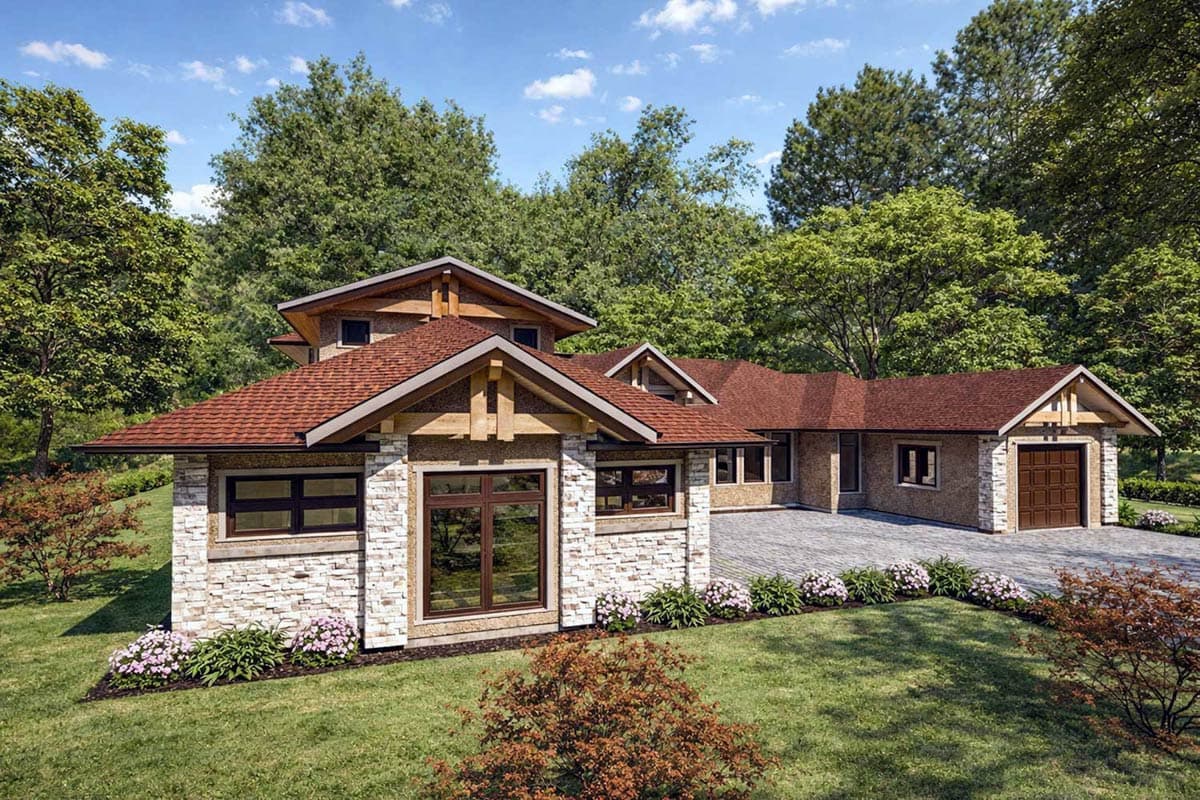

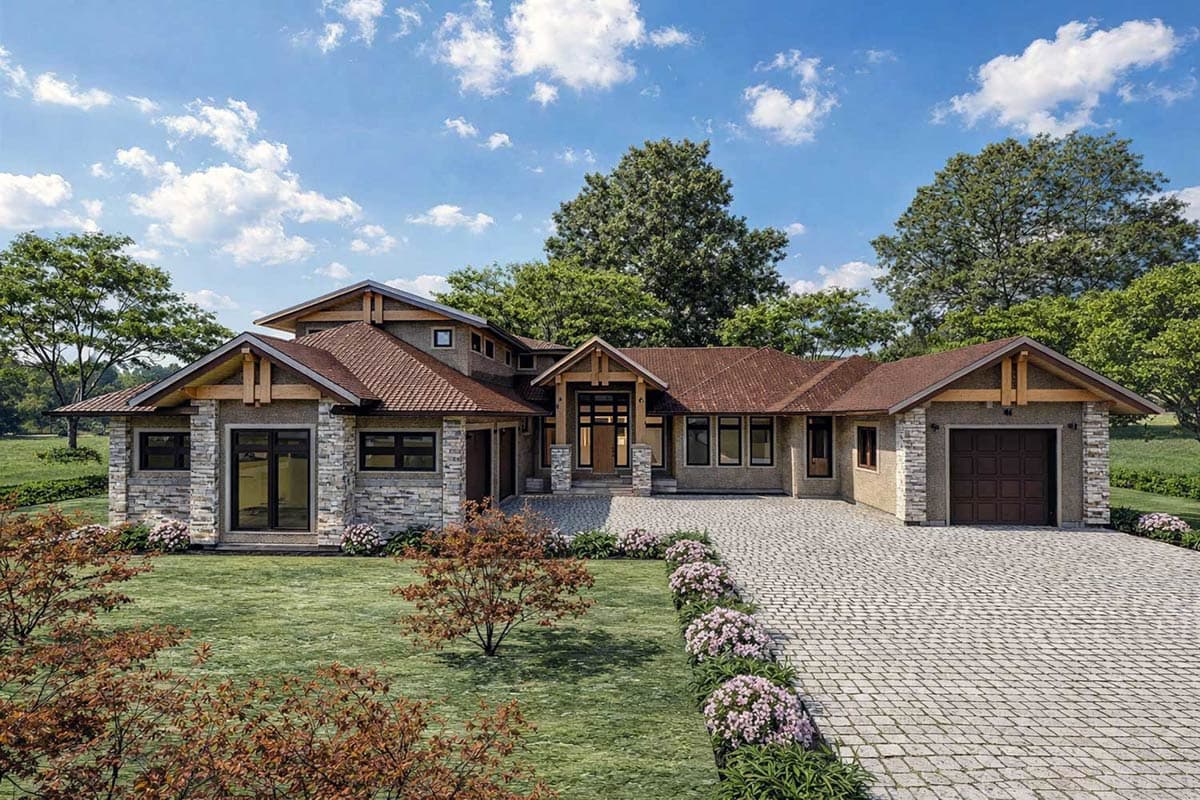

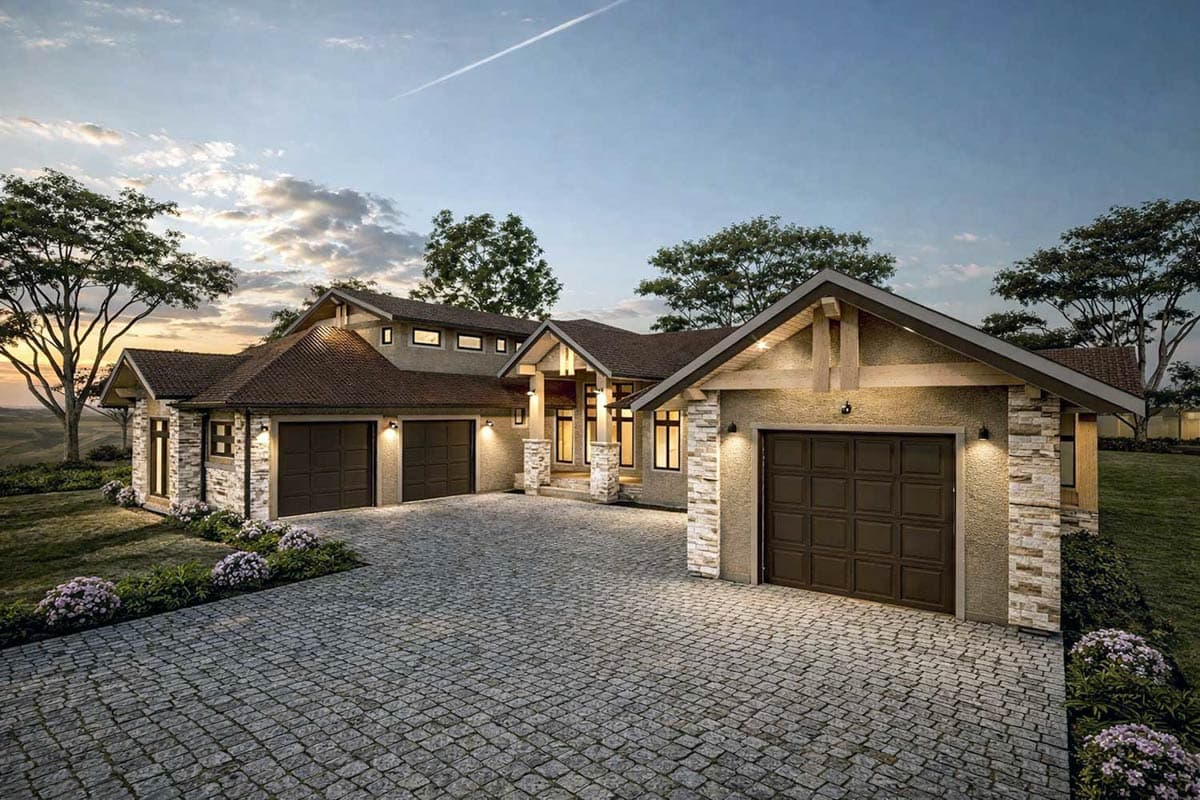

  • This expansive 4,193 sq. ft. Transitional Ranch house plan offers three bedrooms, two full and two half bathrooms, and an impressive 1,185 sq. ft. three-car garage, all wrapped in a sophisticated blend of stone and stucco finishes.
  • Step inside through a grand entrance, where 9'6" ceilings on the first floor immediately convey a sense of spaciousness. The thoughtful layout features an open-concept design, seamlessly integrating living spaces while providing privacy for a dedicated home office or library, perfect for remote work or quiet study.
  • The heart of the home centers around a generous great room that flows effortlessly into the gourmet kitchen and a charming breakfast nook, ideal for casual dining. A distinct keeping room offers an additional cozy gathering space, fostering intimate family moments or relaxed conversations.
  • Designed for ultimate comfort, the luxurious first-floor master suite provides a private retreat, strategically separated from the secondary bedrooms for enhanced tranquility. The split bedroom layout ensures privacy for all occupants, making this home ideal for families or hosting guests.
  • Beyond the main living areas, this plan includes practical and desirable spaces such as a well-appointed mudroom conveniently located near the garage, a versatile home office for productive days, and a separate library/study for quiet contemplation or reading.
  • Upstairs, a spacious finished bonus room offers incredible flexibility, ready to be transformed into a media room, play area, or an additional guest suite to suit your evolving lifestyle needs.

What's Included

  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,193 sq. ft.

1st Floor

3,062 sq. ft.

2nd Floor

1,131 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

84' 4"

Max Ridge Height

25' 4"

Garage

Type

Standard

Area

1185 sq. ft.

Count

3 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9' 6"

Second Floor

8'

Roof Details

Primary Pitch

4.5 on 12

Secondary Pitch

7 on 12

Framing Type

Stick And Truss

Architectural Style

Ranch

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Finished Bonus Room

Home Office

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

4,193 sq. ft.

1st Floor

3,062 sq. ft.

2nd Floor

1,131 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

84' 4"

Max Ridge Height

25' 4"

Garage

Type

Standard

Area

1185 sq. ft.

Count

3 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9' 6"

Second Floor

8'

Roof Details

Primary Pitch

4.5 on 12

Secondary Pitch

7 on 12

Framing Type

Stick And Truss

Architectural Style

Ranch

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Finished Bonus Room

Home Office

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
