Plan 765062TWN

Elevated Coastal 4-Bedroom House Plan with Elevator and Drive-Under Garage

Heated S.F.
2,532
Beds
4
Baths
4
Stories
2
Cars
2

Floor Plan

Plan 765062TWN

Main Level
Main Level
2nd Floor
2nd Floor
Ground Level
Ground Level

Plan 765062TWN

M-F 9am-5pm EST |

1-203-761-8500

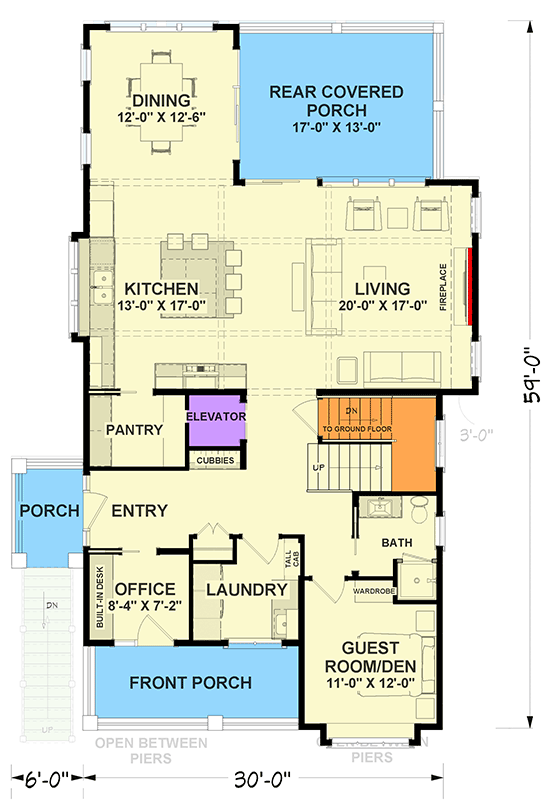

Main Level

Plan 765062TWN: Elevated Coastal 4-Bedroom House Plan with Elevator and Drive-Under Garage - Floor Plan - Main Level - Coastal, Coastal Contemporary, Florida-Style

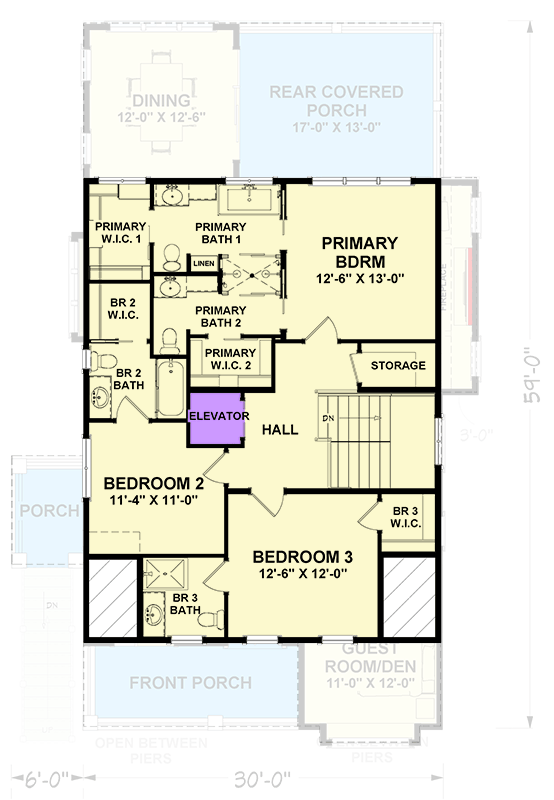

2nd Floor

Plan 765062TWN: Elevated Coastal 4-Bedroom House Plan with Elevator and Drive-Under Garage - Floor Plan - 2nd Floor - Coastal, Coastal Contemporary, Florida-Style

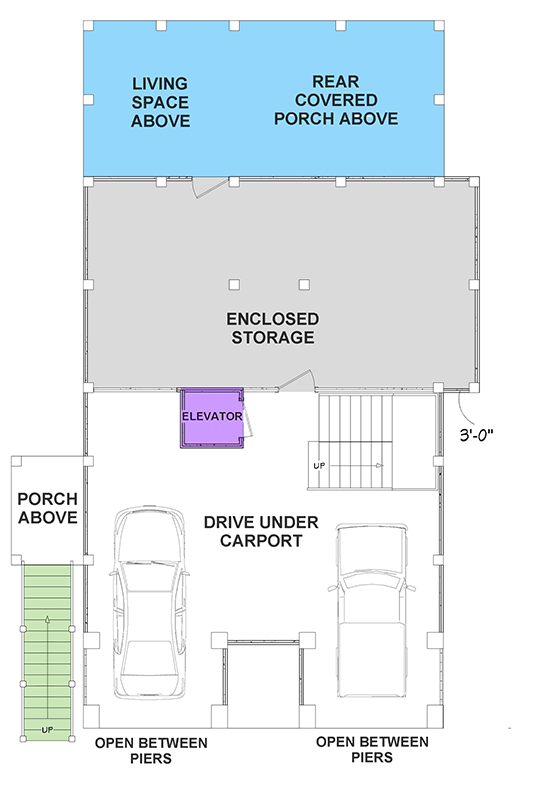

Ground Level

Plan 765062TWN: Elevated Coastal 4-Bedroom House Plan with Elevator and Drive-Under Garage - Floor Plan - Ground Level - Coastal, Coastal Contemporary, Florida-Style

Plan Details

  • This 2,532 sq. ft. Coastal Contemporary house plan offers 4 bedrooms, 4 full bathrooms, and an 803 sq. ft. 2-car drive-under garage, all elevated on piers for a classic Florida-style aesthetic.
  • Ascend to the main living level from the front porch, entering a thoughtfully designed space where a dedicated home office, complete with a built-in desk, offers a private haven for productivity. A convenient main-level laundry room is also situated here, alongside an integrated elevator providing seamless, luxurious access to every floor.
  • The heart of the home unfolds in an expansive open-concept layout, where a gourmet kitchen, featuring a generous island and a discreet butler walk-in pantry, flows effortlessly into the formal dining area and a light-filled living room, centered around a cozy fireplace—perfect for sophisticated entertaining and daily living.
  • The upper level is dedicated to private retreats, including an opulent master suite, while a versatile guest room or den on the main floor ensures comfort and flexibility for visitors or evolving family needs.
  • An integrated elevator provides effortless vertical circulation, linking all levels with ease and enhancing the home's accessibility, while the main floor's flexible guest room or den adapts beautifully to diverse lifestyle requirements, from a quiet study to a comfortable guest haven.
  • Embrace the coastal lifestyle on a total of 403 sq. ft. of inviting covered porches; the front porch offers a charming spot for morning coffee, while the expansive rear covered porch provides an idyllic setting for al fresco dining and enjoying serene outdoor moments.

What's Included

  • Cover sheet with general notes
  • Foundation page
  • Detailed floor plans
  • Roof plan
  • Electrical plans
  • Elevations
  • Typical wall section and cross section
  • General details
  • Cabinet elevations
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,532 sq. ft.

1st Floor

1,507 sq. ft.

2nd Floor

1,025 sq. ft.

Porch, Front

182 sq. ft.

Porch, Rear

221 sq. ft.

Porch, Combined

403 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Pier, Piling

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 0"

Depth

59' 0"

Max Ridge Height

34' 9"

Garage

Type

Attached, Drive Under

Area

803 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Architectural Style

Coastal

Coastal Contemporary

Florida-Style

Special Features

Elevator

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Master Suite - Upstairs

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,532 sq. ft.

1st Floor

1,507 sq. ft.

2nd Floor

1,025 sq. ft.

Porch, Front

182 sq. ft.

Porch, Rear

221 sq. ft.

Porch, Combined

403 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Pier, Piling

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 0"

Depth

59' 0"

Max Ridge Height

34' 9"

Garage

Type

Attached, Drive Under

Area

803 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Architectural Style

Coastal

Coastal Contemporary

Florida-Style

Special Features

Elevator

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Master Suite - Upstairs

Walk-in Pantry
